Mitsubishi Galant (2004+). Manual - part 1633

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-21

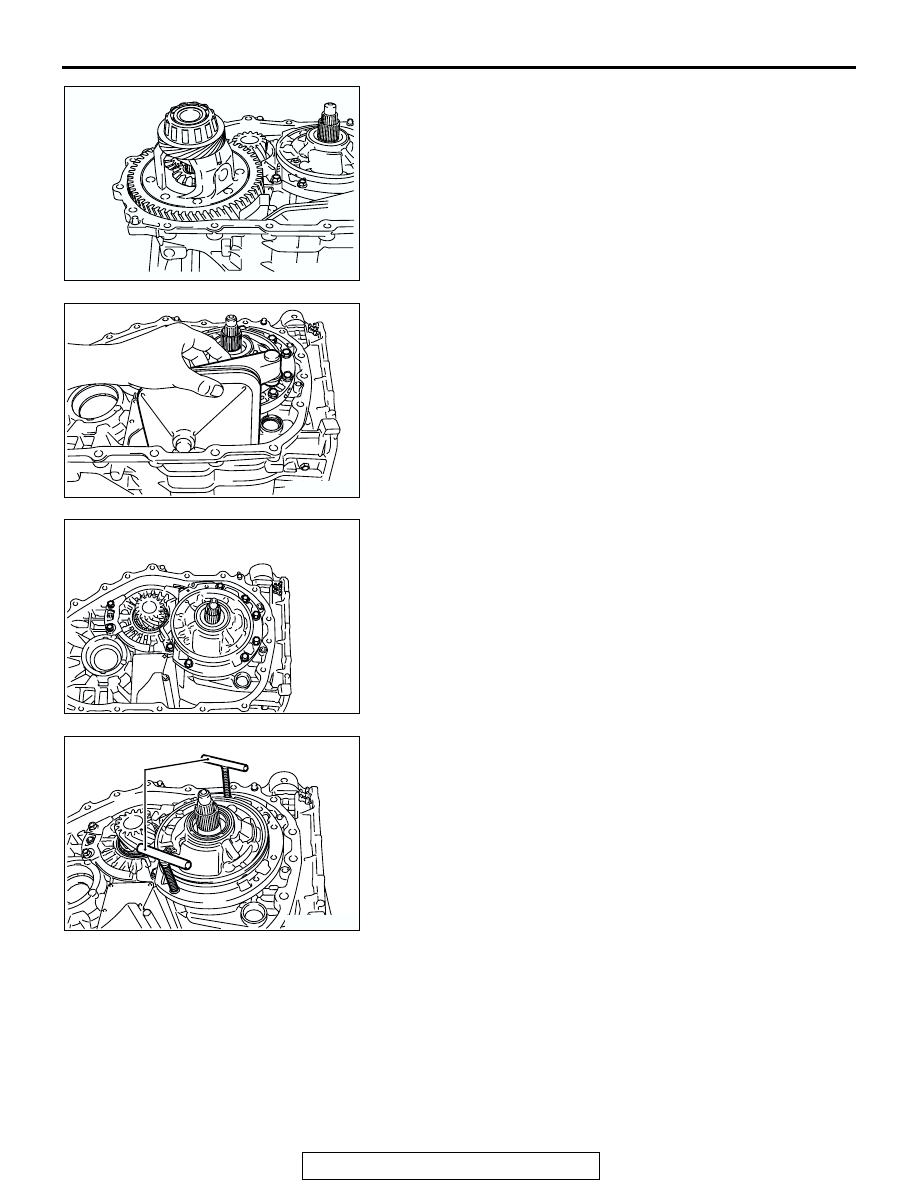

23.Remove the differential.

24.Remove the oil filter.

25.Remove the oil pump mounting bolts (six pieces).

26.Use special tools MD998333 in position shown in the

drawing.

27.Turn special tools MD998333 to remove the oil pump.
28.Remove the oil pump gasket.

AK301866

AK300234

AK300235

AK300236AD

MD998333

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-22

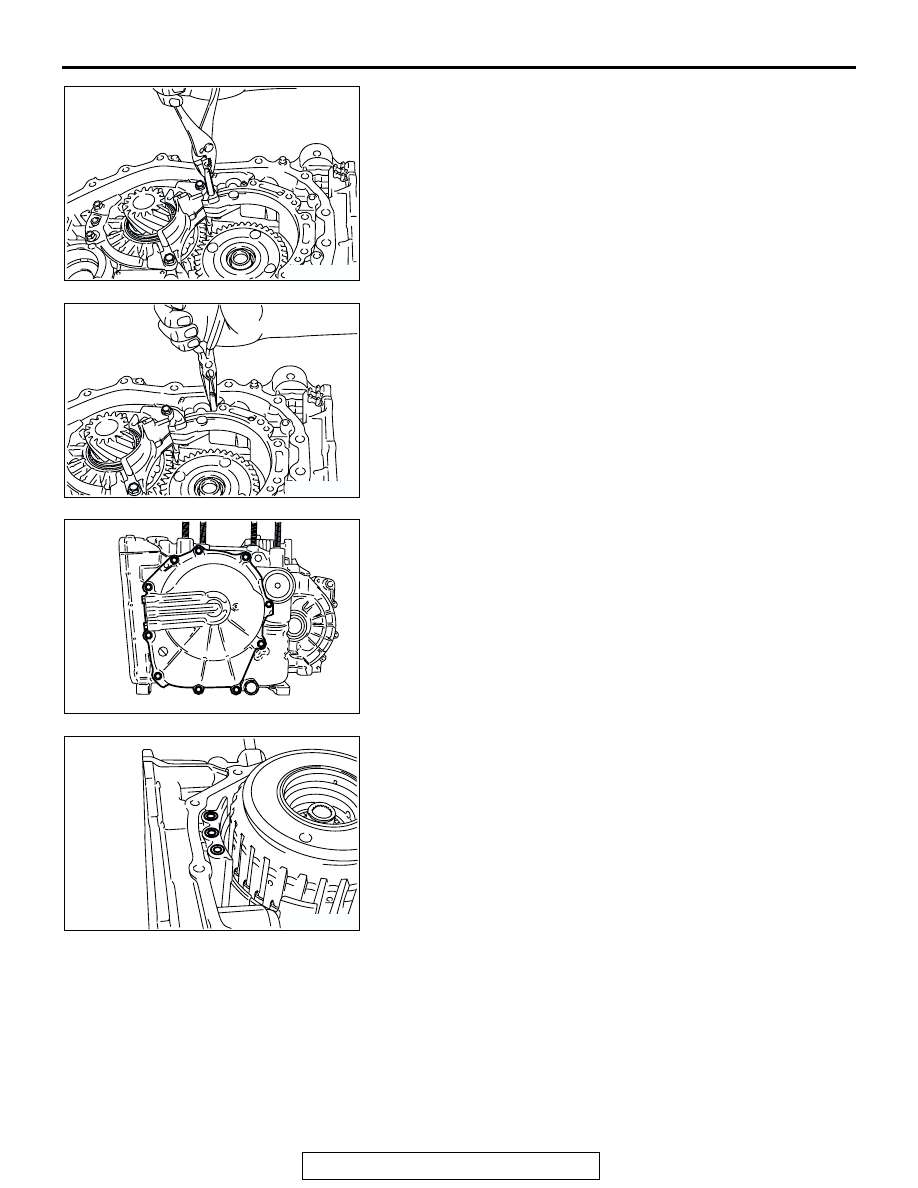

29.Remove thrust washer number 1.

30.Holding the input shaft, remove the underdrive clutch and

input shaft.

31.Remove thrust bearing number 2.

32.Remove the underdrive clutch hub.

AK300237

AK300238

AK300239

AK300240

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-23

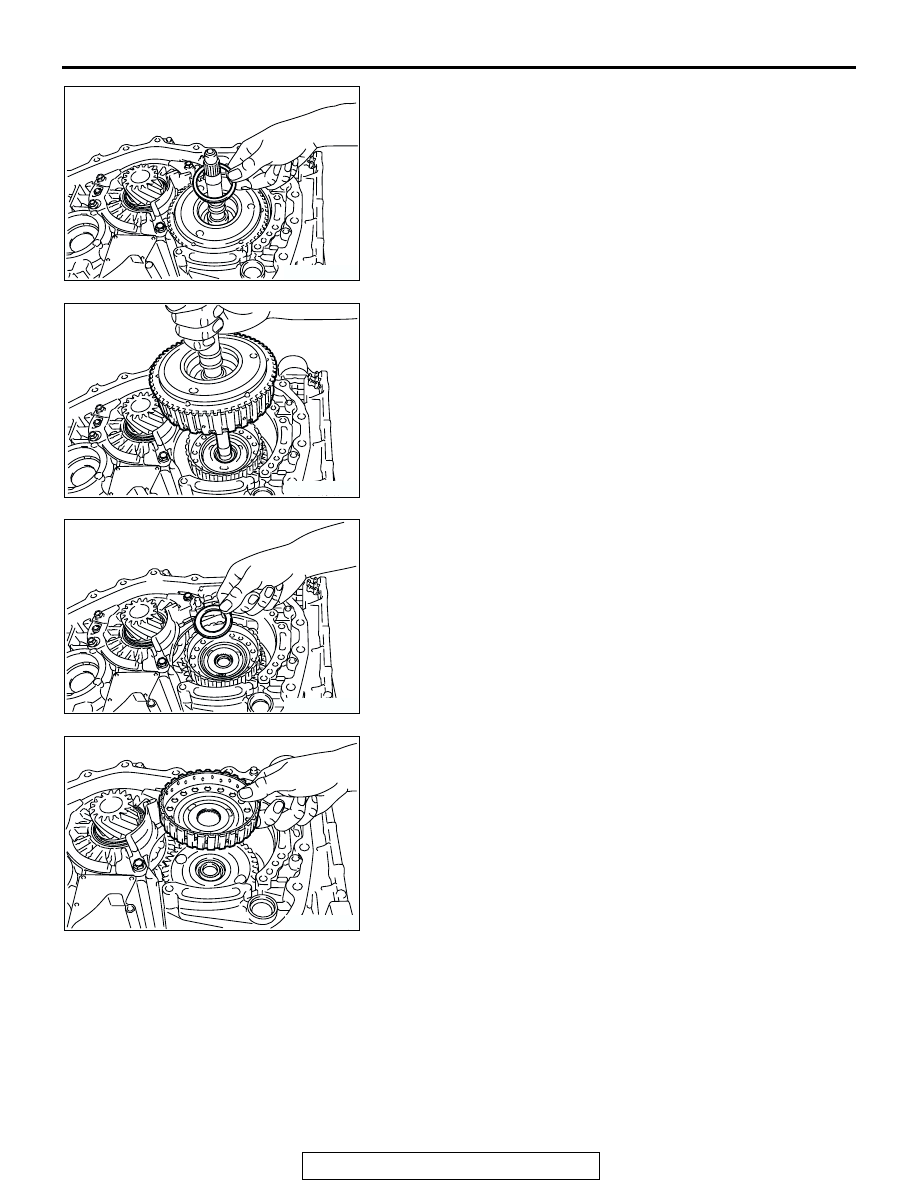

33.Remove the parking pawl shaft, and then remove the spacer

and spring.

34.Remove the parking roller support shafts (two pieces), and

then remove the parking pawl and parking roller support.

35.Remove the rear.
36.Remove thrust race number 8.
37.Remove the seal rings (four pieces).
38.Remove the input shaft rear bearing.

39.Remove the O-rings (three pieces).

AK300241

AK300242

AK300463

AK300464

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-24

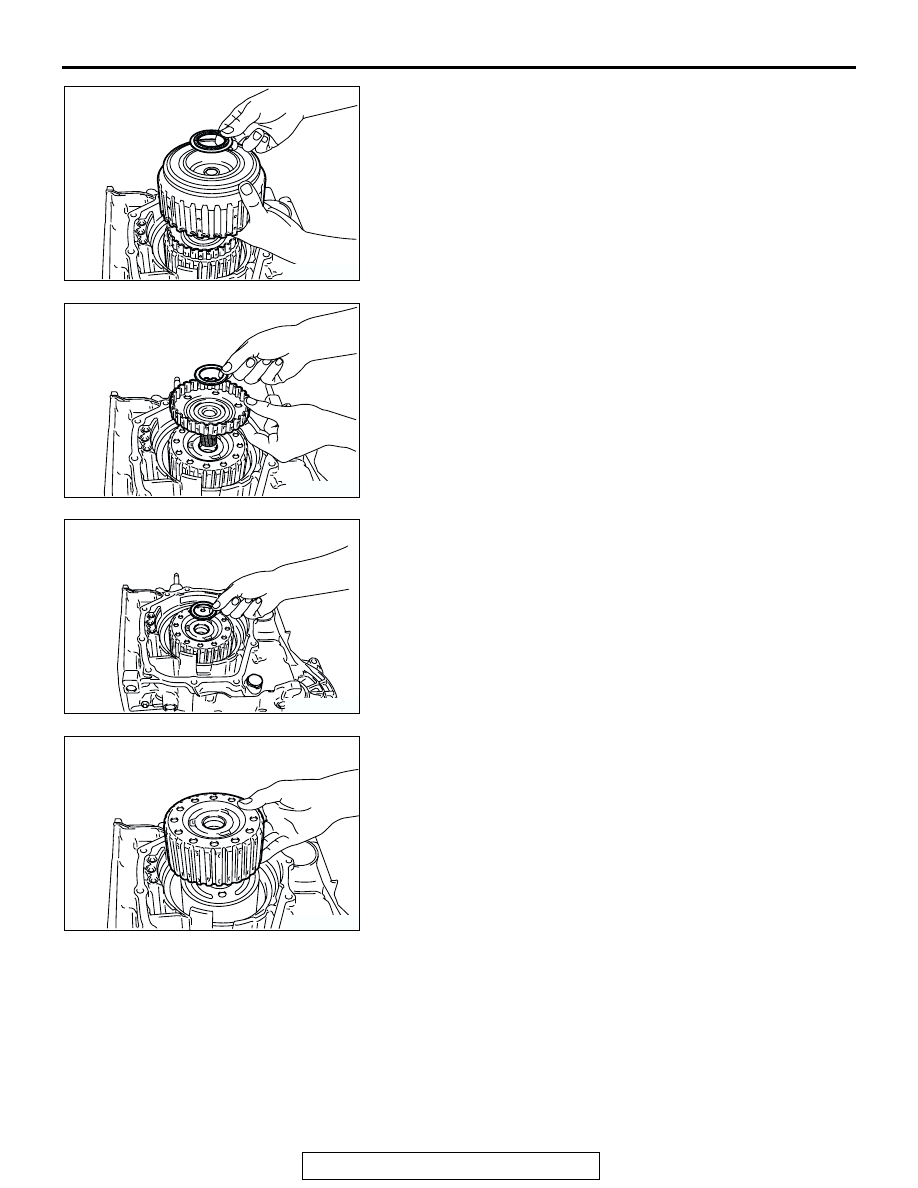

40.Remove the reverse and overdrive clutch and thrust bearing

number 7.

41.Remove overdrive clutch hub and thrust bearing number 6.

42.Remove thrust bearing number 5.

43.Remove the planetary reverse sun gear.

AK300465

AK300466

AK300467

AK300468
