ITEM

SPECIFICATION

Oil pump type

2.4L Engine

Involute gear type

3.8L Engine

Trochoid type

Drive method

Crankshaft

SPECIAL TOOLS

TSB Revision

ENGINE LUBRICATION

12-3

SPECIAL TOOLS

M1121000600404

ON-VEHICLE SERVICE

ENGINE OIL CHECK

M1121000900397

1. Pull out the oil dipstick slowly and check that the oil level is

within the marks on the oil dipstick.

2. Check that the oil is not excessively dirty, that there is no

coolant or gasoline mixed in, and that it is sufficiently thick
and slippery.

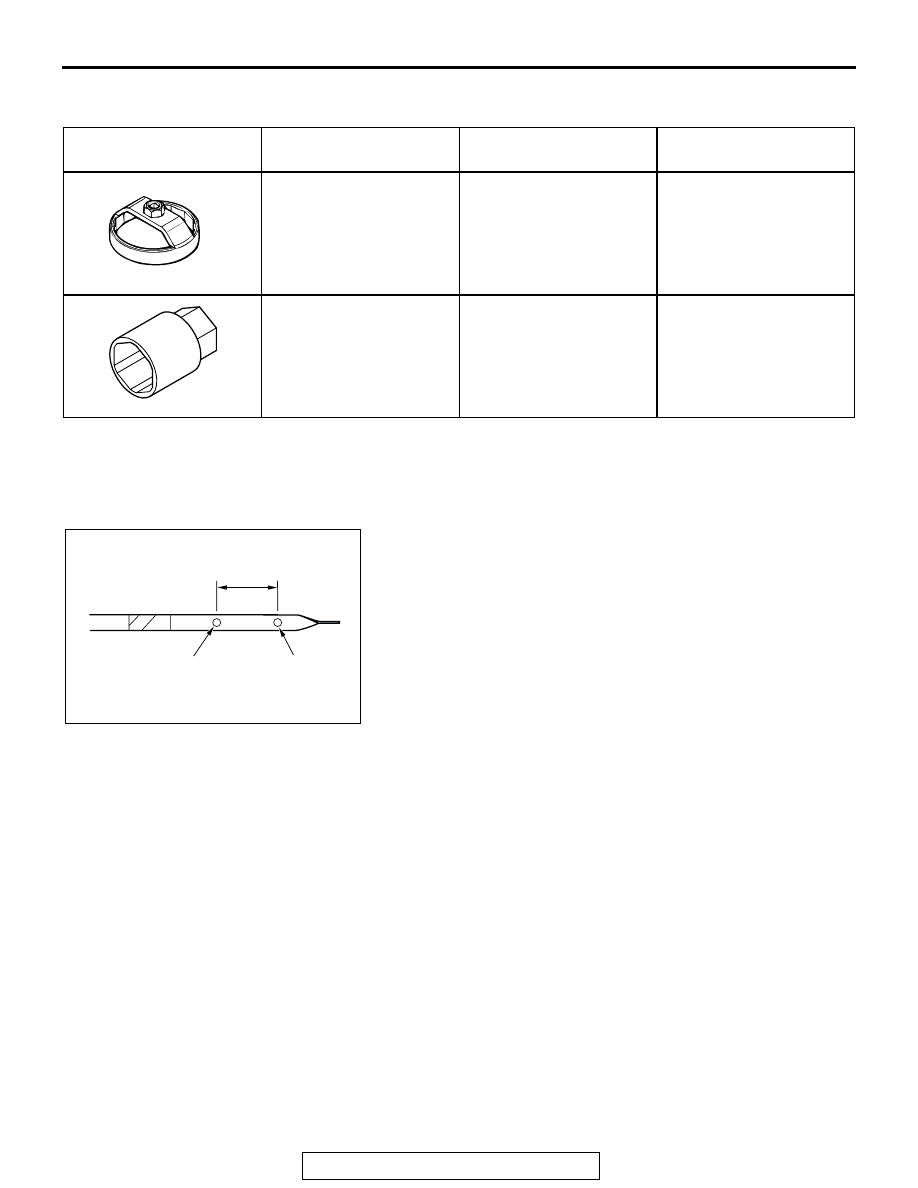

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991610
Oil filter wrench

General service tool

Removal and installation
of engine oil filter (when
using oil filter MD356000)

MD998054
Engine oil pressure
switch wrench

General service tool or
MD998054-01

Removal and installation
of engine oil pressure
switch

MB991610

AC205268

MAXIMUM

MINIMUM

GOOD

ON-VEHICLE SERVICE

TSB Revision

ENGINE LUBRICATION

12-4

ENGINE OIL REPLACEMENT

M1121001000450

1. Start the engine and allow it to warm up until the

temperature of the coolant reaches 80

− 90°C (176 −

194

°F).

WARNING

Use care as oil could be hot.

2. Remove the engine oil filler cap.
3. Remove the drain plug to drain oil.

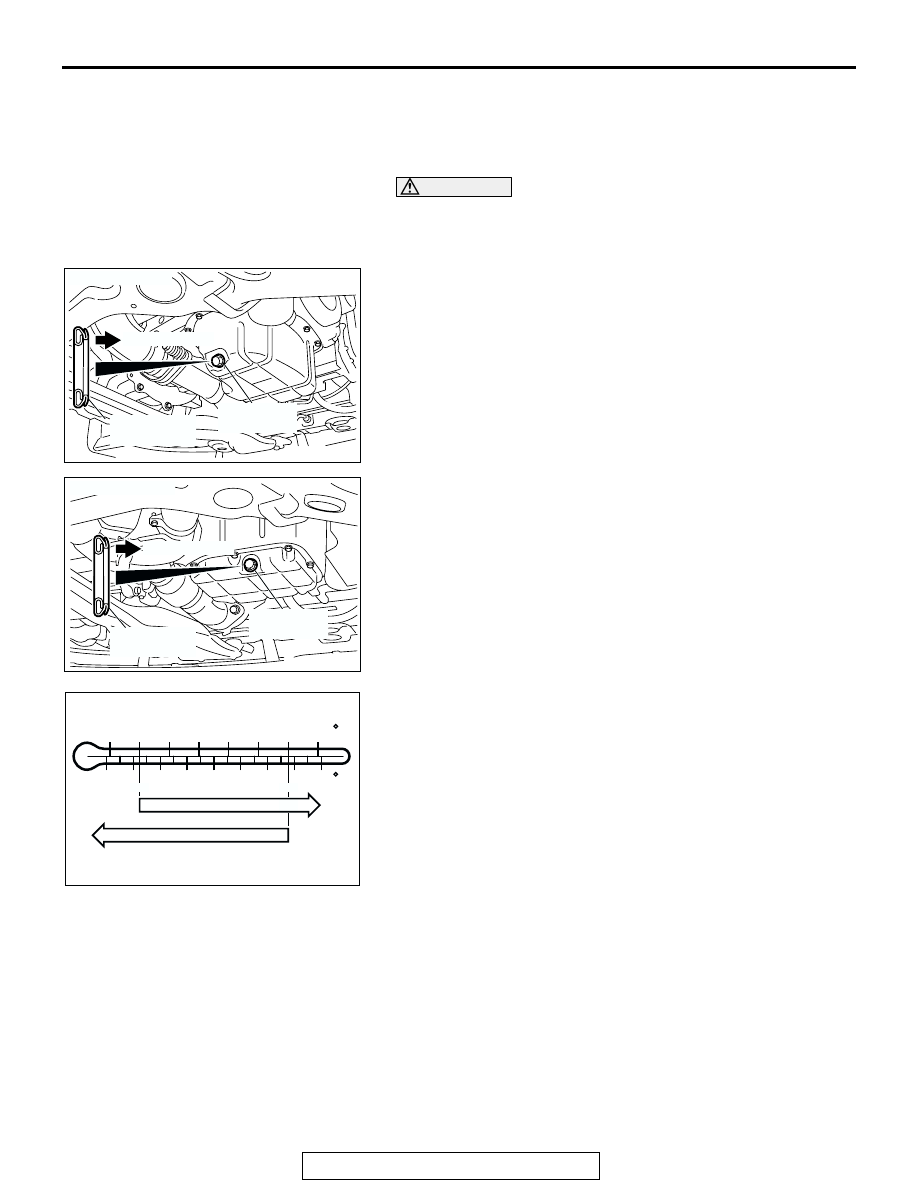

4. Install a new drain plug gasket so that it faces in the

direction shown in the illustration, and then tighten the drain
plug to the specified torque.

Tightening torque: 39

± 5 N⋅m (29 ± 3 ft-lb)

5. Refill the specified quantity of oil.

Specified Engine Oil: Engine oils displaying ILSAC

certification symbol ("Starburst" symbol) or con-
forming the API classification SL.

Total quantity:

<2.4L Engine> 4.3 dm

(4.5 quarts)

<3.8L Engine> 4.6 dm

(4.9 quarts)

6. Install the engine oil filler cap.
7. Check oil level.

AC305936

DRAIN PLUG
GASKET

OIL PAN SIDE

39 ± 5 N·m
29 ± 3 ft-lb

<2.4L ENGINE>

AC305937

DRAIN PLUG
GASKET

OIL PAN SIDE

39 ± 5 N·m
29 ± 3 ft-lb

<3.8L ENGINE>

-20

100

120

-10

-20

-30

-18

SAE 10W-30

SAE 5W-20 (PREFERRED), 5W-30

AC209357AB
