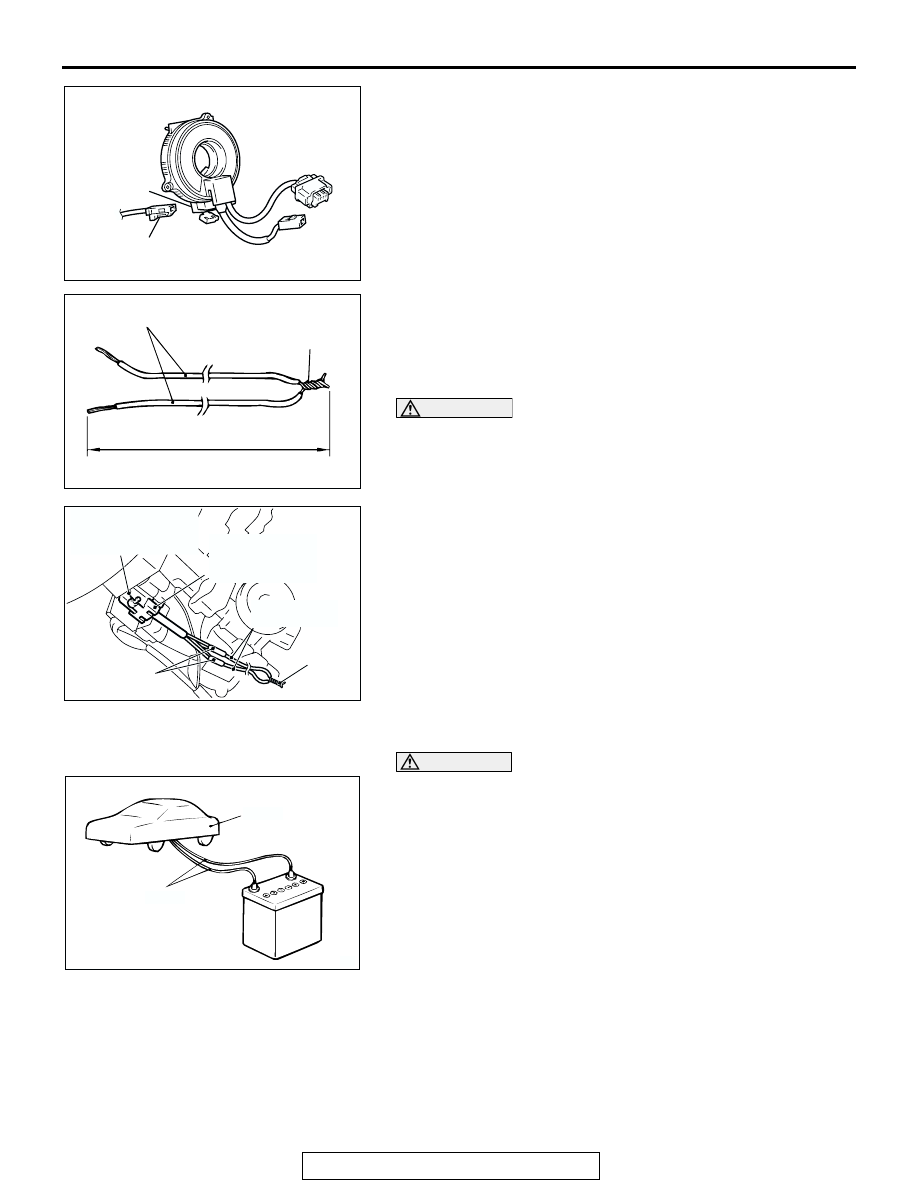

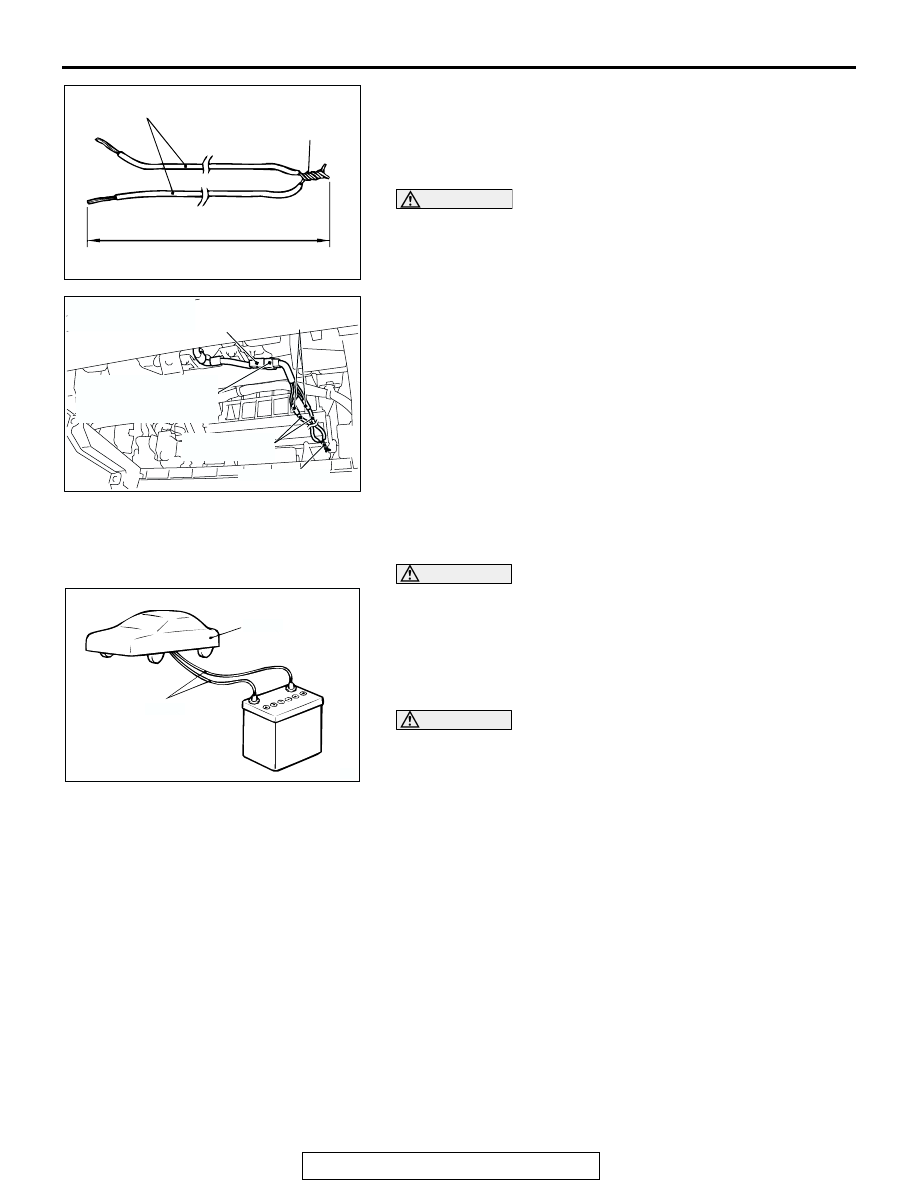

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-389

4. Remove the connection between the C-307 clock spring

connector (four-pin) and the harness side connector
(four-pin, yellow).
NOTE: If the clock spring connector is disconnected from
the instrument panel wiring harness, both electrodes of the
clock spring connector will be automatically shorted to pre-
vent unintended deployment of the air bag due to static elec-
tricity, etc.

5. Obtain two suitable wires, which are 6 meters (20 feet) or

longer, as deployment wires. Then connect the wires at one
end to short.
NOTE: This prevents the air bag from unintentional deploy-
ment caused by static electricity, etc.

CAUTION

Never fail to do Step 6 in order to prevent accidental
deployment caused by static.
6. Touch the vehicle’s body with your bare hands to discharge

static electricity.

7. Cut the instrument panel wiring harness (four-pin, yellow)

shown in the figure, while the C-307 clock spring connector
(four-pin) is disconnected.
NOTE: The disconnection location should be sufficiently
away from the C-307 harness side connector with consider-
ation to the expansion harness connection location upon
disconnection.

8. Individually connect a harness to the four disconnected

harnesses, cover the connection areas with insulation tape,
and then pull out the expansion harness outside the vehicle.

9. Connect the C-307 harness side connector connected with

the expansion harness to the C-307 clock spring connector.

WARNING

If the windshield glass is scratched, air bag deploy-
ment could cause it to crack and fly out of the vehicle,
so always put a cover over the vehicle.

10.To suppress the sound as much as possible, completely

close all door windows, close the doors and put a cover on
the vehicle.

AC306757

C-307 HARNESS SIDE
CONNECTOR (4-PIN, YELLOW)

C-307
CLOCK
SPRING
CONNECTOR
(4-PIN)

AB

AC100450AD

DEPLOYMENT WIRES

CONNECTION

6m (20 ft) OR LONGER

AC307147

DEPLOYMENT
WIRE

AB

INSULATOR
TAPE

C-307
CLOCK SPRING
CONNECTOR(4-PIN)

CONNECTION

C-307 HARNESS SIDE
CONNECTOR
(4-PIN, YELLOW)

ACX01308AC

DEPLOYMENT WIRE
6 m (20 ft)OR LONGER

COVER

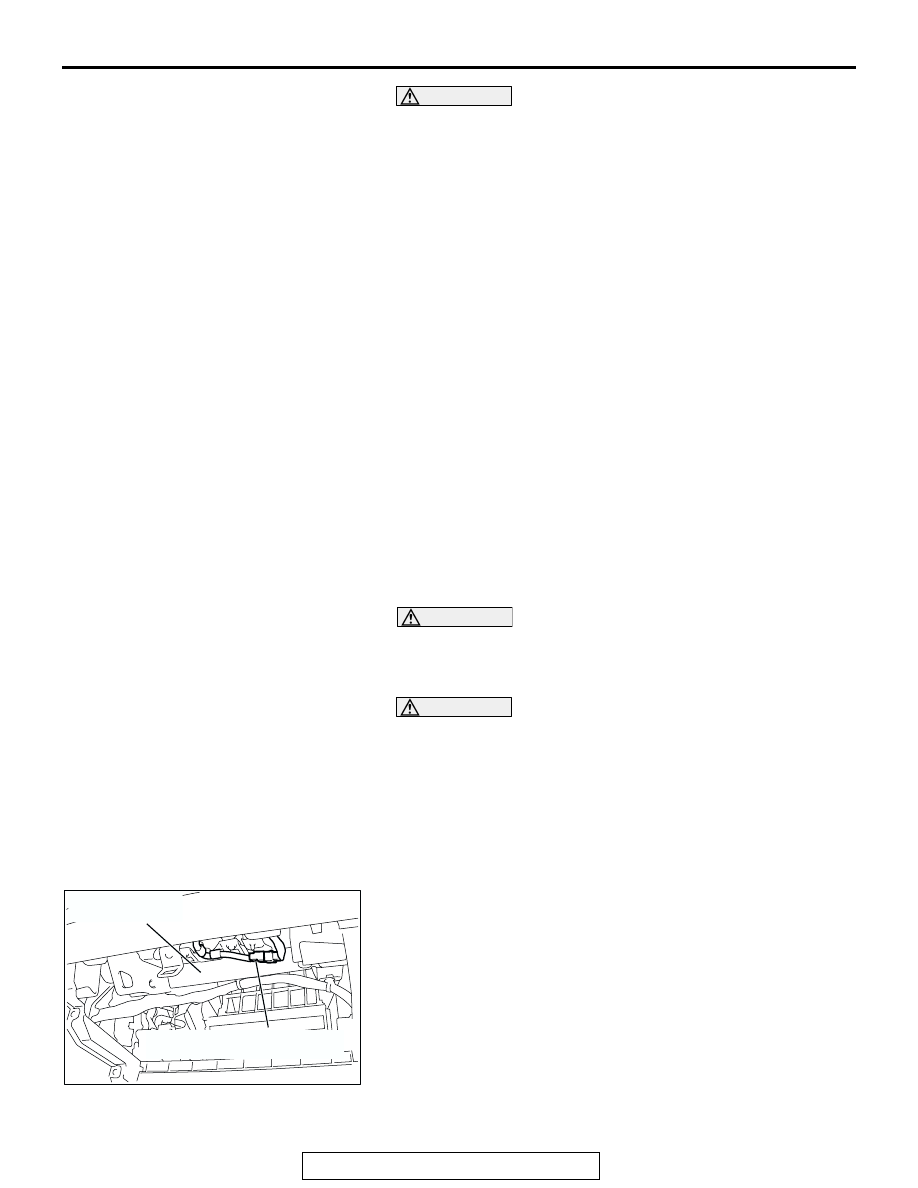

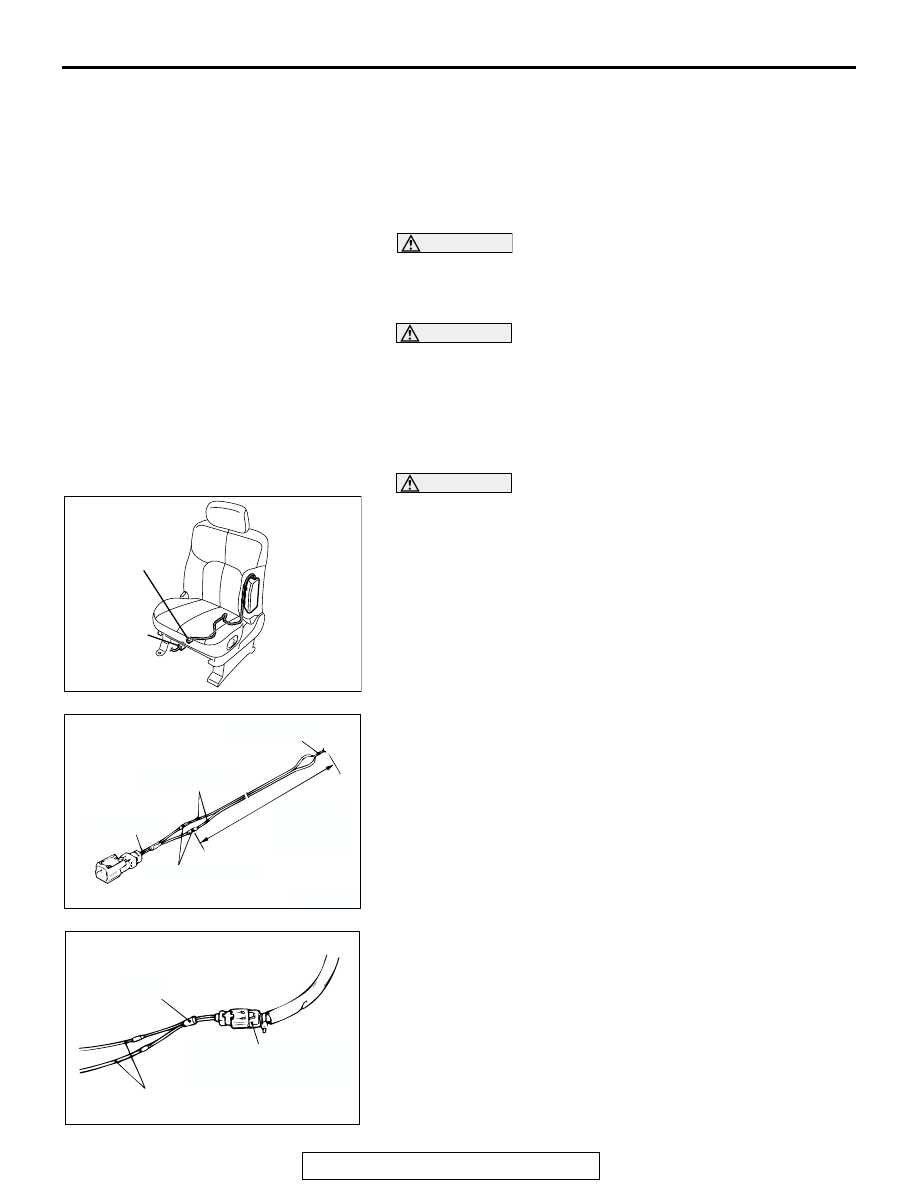

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-390

WARNING

•

Before deploying the air bag in this manner, first
check to be sure that there is no one in or near the
vehicle. Wear safety glasses.

•

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
the air bag deployment. See Deployed Air Bag
Module and Operated Seat Belt Pre-tensioner Dis-
posal (Refer to

P.52B-403

) for post-deployment

handling instructions.

•

If the air bag module fails to deploy, do not go near
the module.

11.At a location as far away from the vehicle as possible,

disconnect the two connected wires from each other, and
connect them to the two terminals of the battery (which has
been removed from the vehicle) to deploy the air bag.

12.After deployment, dispose of the air bag module according

to the Deployed Air Bag Module and Operated Seat Belt
Pre-tensioner Disposal (Refer to

P.52B-403

).

.

DEPLOYMENT INSIDE THE VEHICLE (when disposing of a
vehicle) <Air bag module (front passenger's side)>
1. Move the vehicle to an isolated spot.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-26

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

2. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

3. Remove the glove box assembly (Refer to GROUP 52A,

Instrument Panel

P.52A-3

).

4. Disconnect  the C-110 air bag module (front passenger's

side) connector (four-pin, yellow) from the harness side
connector (four-pin, yellow).
NOTE: If the C-110 air bag module connector is discon-
nected, both electrodes of the air bag module connector will
be automatically shorted to prevent unintended deployment
of the air bag due to static electricity, etc.

AC307137AB

C-110 AIR BAG MODULE
CONNECTOR (4-PIN, YELLOW)

FRONT DECK
CROSSMEMBER

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-391

5. Obtain two suitable wires, which are 6 meters (20 feet) or

longer, as deployment wires. Then connect the wires at one
end to short.
NOTE: This prevents the air bag from unintentional deploy-
ment caused by static electricity, etc.

CAUTION

Never fail to do Step 6 in order to prevent accidental
deployment caused by static.
6. Touch the vehicle’s body with your bare hands to discharge

static electricity.

7. Cut the instrument panel wiring harness (four-pin, yellow)

shown in the figure, while the C-110 air bag module
connector (four-pin) is disconnected.
NOTE: The disconnection location should be sufficiently
away from the C-110 harness side connector with consider-
ation to the expansion harness connection location upon
disconnection.

8. Individually connect a harness to the four disconnected

harnesses, cover the connection areas with insulation tape,
and then pull out the expansion harness outside the vehicle.

9. Connect the C-110 harness side connector connected with

the expansion harness to the C-110 air bag module
connector.

WARNING

If the glass is scratched, air bag deployment could
cause it to crack and fly out of the vehicle, so always
put a cover over the vehicle.

10.To suppress the operation sound as much as possible,

completely close all door windows, close the doors and put a
cover on the vehicle.

WARNING

•

Before deploying the air bag in this manner, first
check to be sure that there is no one in or near the
vehicle. Wear safety glasses.

•

The inflator will be quite hot immediately following
the deployment, so wait at least 30 minutes to
allow it to cool before attempting to handle it.
Although not poisonous, do not inhale gas from
the air bag deployment. See Deployed Air Bag
Module and Operated Seat Belt Pre-tensioner Dis-
posal (Refer to

P.52B-403

) for post-deployment

handling instructions.

•

If the air bag module fails to deploy, do not go near
the module.

11.At a location as far away from the vehicle as possible,

disconnect the two connected wires from each other, and
connect them to the two terminals of the battery (which has
been removed from the vehicle) to deploy the air bag.

AC100450AD

DEPLOYMENT WIRES

CONNECTION

6m (20 ft) OR LONGER

AC307138

DEPLOYMENT
WIRE

AB

INSULATOR
TAPE

C-110 AIR BAG MODULE
CONNECTOR (4-PIN, YELLOW)

C-110 HARNESS SIDE
CONNECTOR
(4-PIN, YELLOW)

CONNECTION

ACX01308AC

DEPLOYMENT WIRE
6 m (20 ft)OR LONGER

COVER

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-392

12.After deployment, dispose of the air bag module according

to the Deployed Air Bag Module and Operated Seat Belt
Pre-tensioner Disposal (Refer to

P.52B-403

).

.

DEPLOYMENT INSIDE THE VEHICLE (when disposing of a
vehicle) <Side-airbag module>
1. Move the vehicle to an isolated spot.

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cables before doing any further work (Refer to

P.52B-26

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

2. Disconnect the negative (

−) and positive (+) battery cables

from the battery terminals, and then remove the battery from
the vehicle.

WARNING

The side-airbag modules for both the driver's side
and passenger's side should be deployed.

3. Remove the connection between the D-24 or D-32

side-airbag module connector (two-pin, red) and the
harness side connector (two-pin, red).
NOTE: If the air bag module connector is disconnected from
the floor wiring harness, both electrodes of the air bag mod-
ule connector will be automatically shorted to prevent unin-
tended deployment of the air bag due to static electricity, etc.

4. Connect deployment wires, each 6 meters (20 feet) or

longer, to the two leads of SRS air bag adapter harness
(MB686560), and cover the connections with insulation
tape. The other ends of the deployment wires should be
connected to each other (short-circuited), to prevent sudden
unexpected deployment of the air bag module.

5. Connect the D-24 or D-32 side-airbag module connector

(two-pin, red) to SRS air bag adapter harness (MB686560)
and move the deployment wires out of the vehicle.

AC206853

AC

D-24 OR D-32
HARNESS SIDE
CONNECTOR
(2-PIN, RED)

D-24 OR D-32
SIDE-AIRBAG
MODULE
CONNECTOR
(2-PIN, RED)

AC001932

CONNECTION

DEPLOYMENT WIRES

MR686560

INSULATOR TAPE

6 m (20 ft)
LONG OR
MORE

AB

AC000406AX

MB686560

DEPLOYMENT WIRES

D-24 OR D-32
SIDE-AIRBAG MODULE
CONNECTOR (2-PIN, RED)
