AIR BAG MODULES AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-369

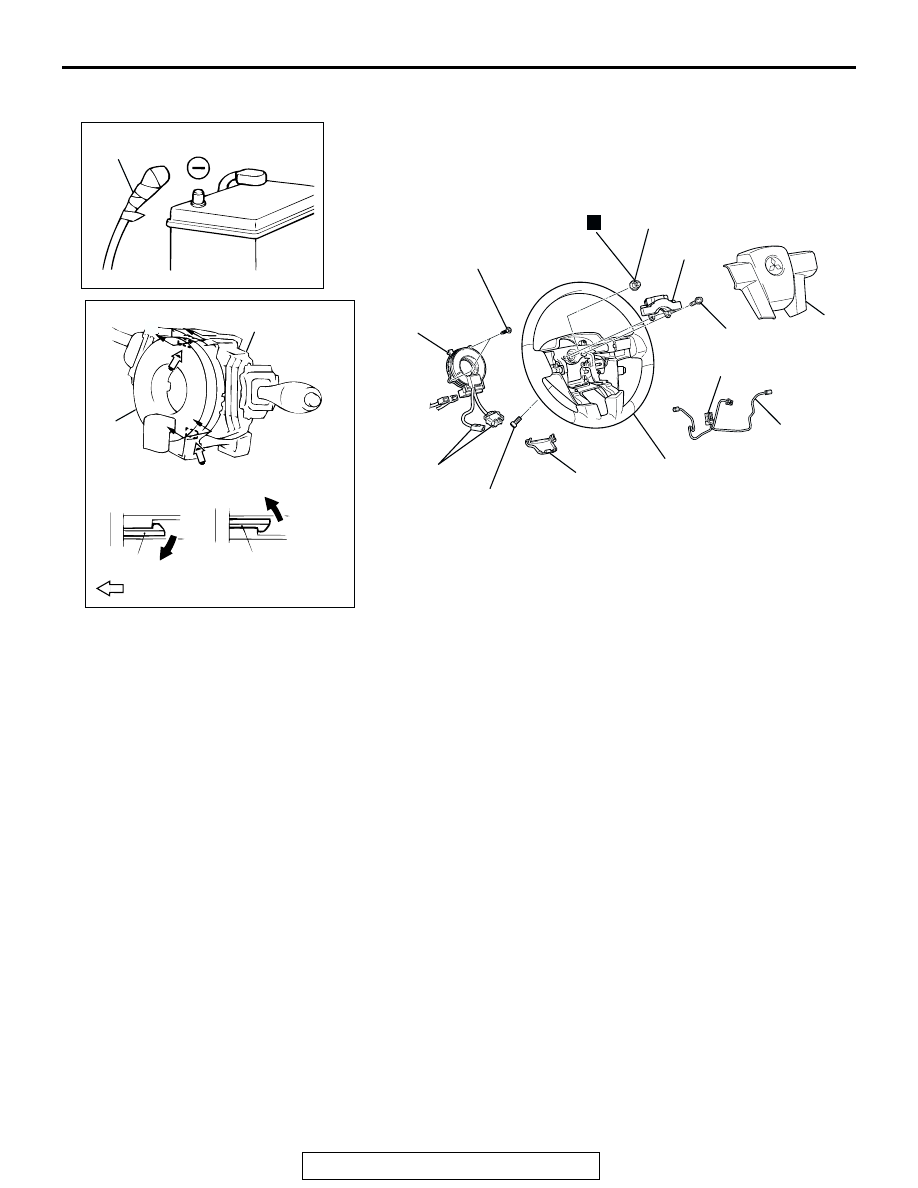

<Air bag module (driver's side) and clock spring>

AC307516AB

4

6

5

41 ± 8 N·m
30 ± 6 ft-lb

0.69 ± 0.15 N·m
6 ± 1 in-lb

A

B

B

COLUMN SWITCH

SECTION A - A

SECTION B - B

CLAW

CLAW

NOTE
          : CLAW POSITIONS

8

1

2

A

9.0 ± 2.0 N·m
80 ± 17 in-lb

8

N

7

3

3

3.9 ± 0.9 N·m
35 ± 8 in-lb

AIR BAG MODULE REMOVAL
STEPS

<<A>>

1. NEGATIVE (

−) BATTERY CABLE

CONNECTION

2. COVER

<<B>>

3. CONNECTORS (FOR HORN AND

AIR BAG MODULE)

<<C>>

4. AIR BAG MODULE ASSEMBLY

CLOCK SPRING REMOVAL STEPS

<<A>>

1. NEGATIVE (

−) BATTERY CABLE

CONNECTION

2. COVER

<<B>>

3. CONNECTORS (FOR HORN, AIR

BAG MODULE AND STEERING
WHEEL REMOTE CONTROL
HARNESS)

<<C>>

4. AIR BAG MODULE ASSEMBLY
5. STEERING WHEEL DYNAMIC

DAMPER

6. STEERING WHEEL REMOTE

CONTROL HARNESS

<<D>>

7. STEERING WHEEL ASSEMBLY
•

COLUMN COVER LOWER (REFER
TO GROUP 52A, INSTRUMENT
PANEL

P.52A-3

).

<<E>>

8. CLOCK SPRING

AIR BAG MODULE INSTALLATION
STEPS

>>A<<

•

PRE-INSTALLATION INSPECTION

>>C<<

4. AIR BAG MODULE ASSEMBLY
3. CONNECTORS (FOR HORN AND

AIR BAG MODULE)

2. COVER
1. NEGATIVE (

−) BATTERY CABLE

CONNECTION

>>D<<

•

POST-INSTALLATION INSPECTION
CLOCK SPRING INSTALLATION
STEPS

>>A<<

•

PRE-INSTALLATION INSPECTION

>>B<<

8. CLOCK SPRING
•

COLUMN COVER LOWER (REFER
TO GROUP 52A, INSTRUMENT
PANEL

P.52A-3

).

>>C<<

7. STEERING WHEEL ASSEMBLY
6. STEERING WHEEL REMOTE

CONTROL HARNESS

5. STEERING WHEEL DYNAMIC

DAMPER

>>C<<

4. AIR BAG MODULE ASSEMBLY
3. CONNECTORS (FOR HORN, AIR

BAG MODULE, AND STEERING
WHEEL REMOTE CONTROL
HARNESS)

2. COVER

AIR BAG MODULES AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-370

Required Special Tools:

•  MB991958 : Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface

(V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehi-

cles with CAN communication system)

• MB991222: Probe

• MB990803: Steering  Wheel Puller

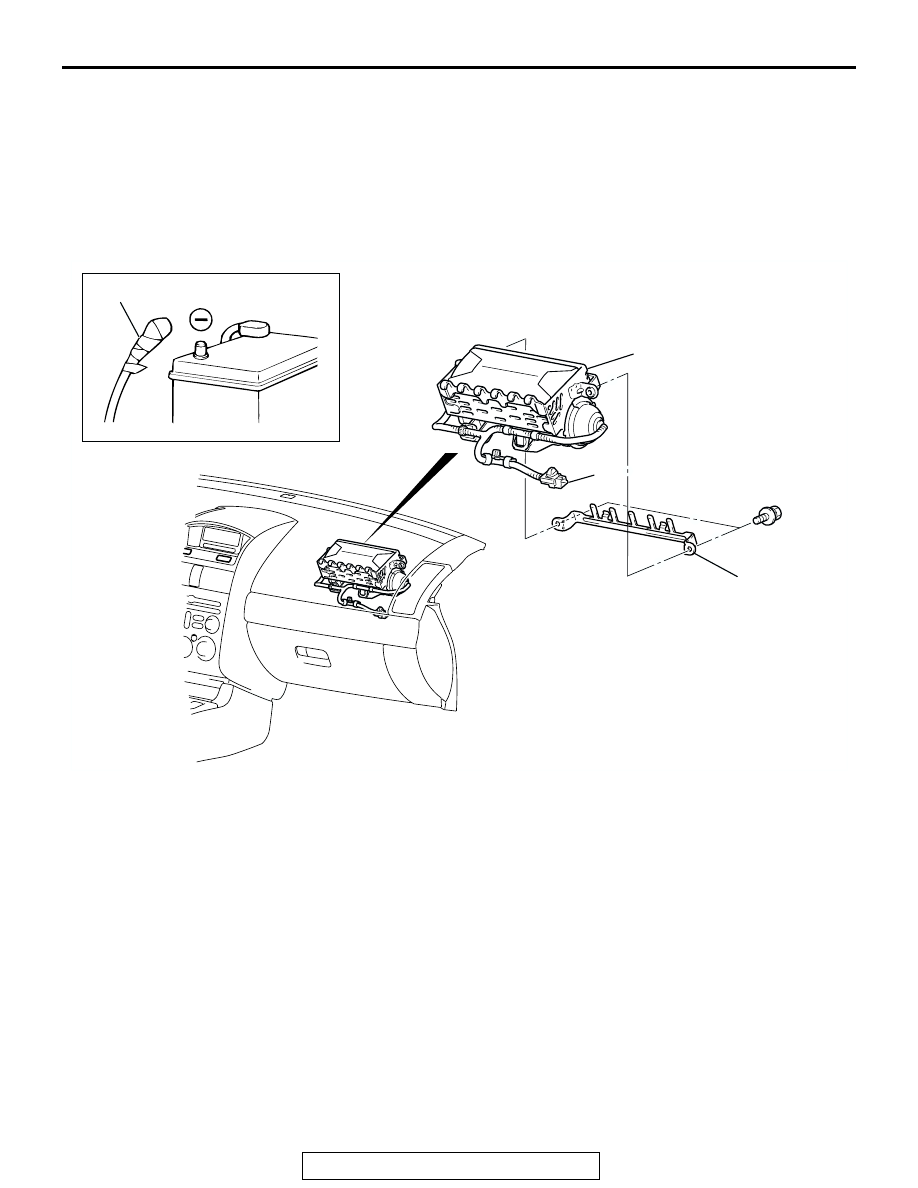

<Air bag module (front passenger's side)>

Required Special Tool:

•  MB991958 : Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface

(V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehi-

cles with CAN communication system)

1. NEGATIVE (

−) BATTERY CABLE

CONNECTION

>>D<<

•

POST-INSTALLATION INSPECTION

CLOCK SPRING INSTALLATION
STEPS (Continued)

AC307663 AB

1

4

3

2

AIR BAG MODULE REMOVAL
STEPS

<<A>>

1. NEGATIVE (

−) BATTERY CABLE

CONNECTION

<<B>>

2. CONNECTORS
•

INSTRUMENT PANEL ASSEMBLY
(REFER TO GROUP 52A,
INSTRUMENT PANEL

P.52A-3

).

•

DISTRIBUTION DUCT (REFER TO
GROUP 52A, INSTRUMENT PANEL

P.52A-8

).

3. AIR BAG MODULE BRACKET

<<F>>

4. AIR BAG MODULE

AIR BAG MODULE INSTALLATION
STEPS

>>A<<

•

PRE-INSTALLATION INSPECTION

4. AIR BAG MODULE
3. AIR BAG MODULE BRACKET
•

DISTRIBUTION DUCT (REFER TO
GROUP 52A, INSTRUMENT PANEL

P.52A-8

).

•

INSTRUMENT PANEL ASSEMBLY
(REFER TO GROUP 52A,
INSTRUMENT PANEL

P.52A-3

).

2. CONNECTOR
1. NEGATIVE (

−) BATTERY CABLE

CONNECTION

>>D<<

•

POST-INSTALLATION INSPECTION

AIR BAG MODULES AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-371

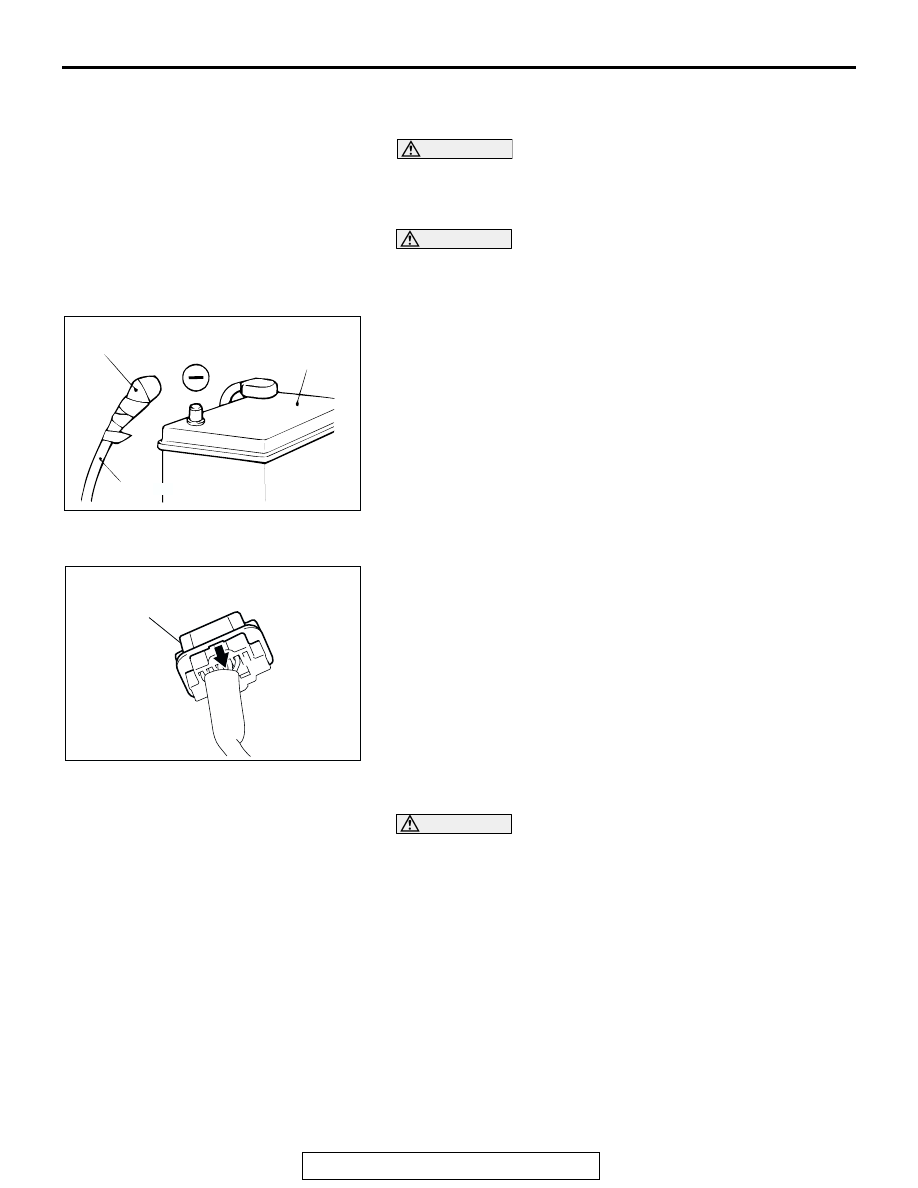

REMOVAL SERVICE POINTS

.

<<A>> NEGATIVE (

−) BATTERY CABLE DISCONNECTION

DANGER

Wait at least 60 seconds after disconnecting the bat-
tery cable before doing any further work. (Refer to

P.52B-26

).

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (

−) battery cable from the battery and

tape the terminal to prevent accidental connection and air
bag(s) deployment.

.

<<B>> CONNECTOR (FOR AIR BAG MODULE) REMOVAL
Slide the outer housing of the clock spring or front passenger’s
air bag module  connector in the arrow direction shown, and
disconnect the connector.

.

<<C>> AIR BAG MODULE ASSEMBLY REMOVAL

WARNING

•

The air bag module must not be measured with
such equipment as an ohmmeter.

•

The air bag module must not be disassembled.

•

The removed air bag module should be stored in a
clean, dry place with the deployment surface fac-
ing up.

Loosen the torx screw and remove the air bag module assem-
bly.

.

ACX00583

INSULATING TAPE

BATTERY

BATTERY CABLE (–)

AC

AC306561AE

OUTER HOUSING OF THE CLOCK SPRING
OR FRONT PASSENGER'S AIR BAG
MODULE CONNECTOR

AIR BAG MODULES AND CLOCK SPRING

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-372

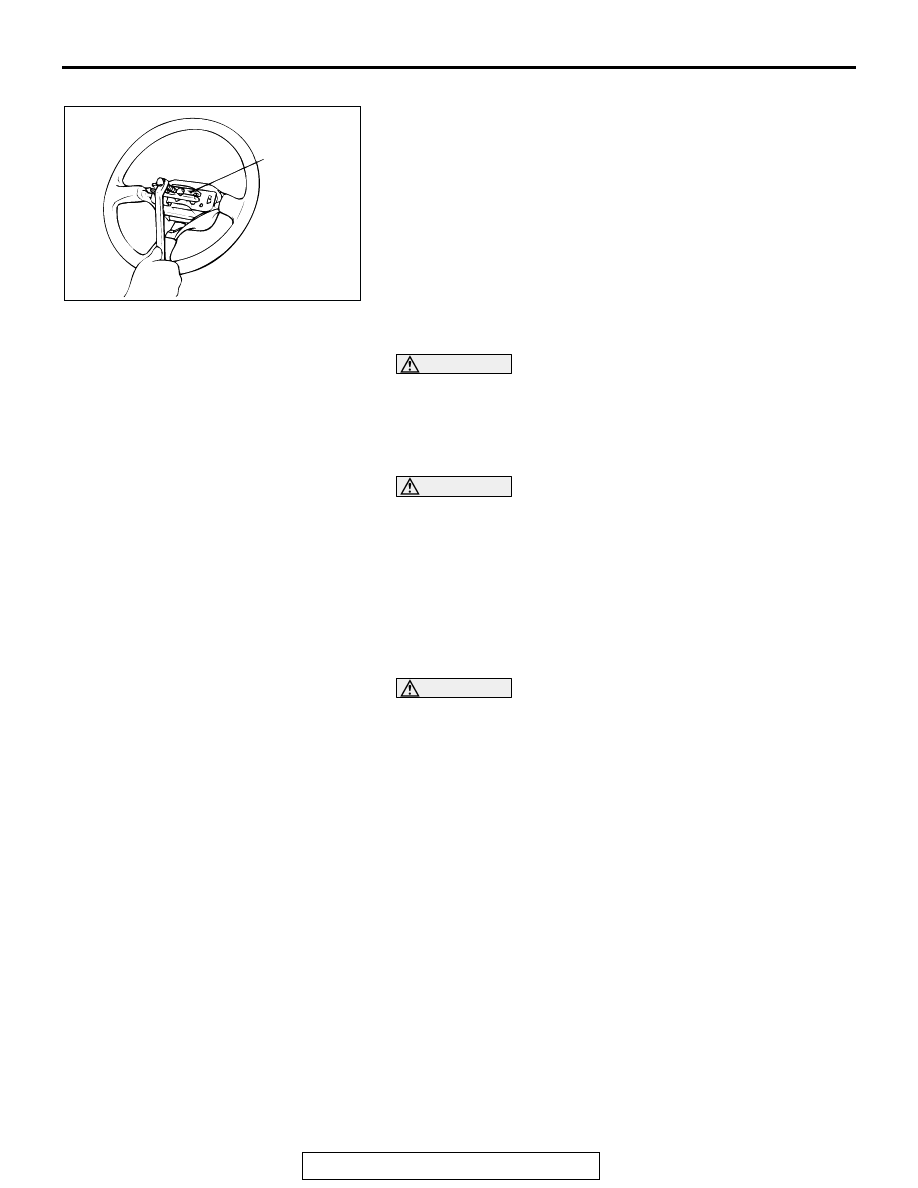

<<D>>STEERING WHEEL ASSEMBLY REMOVAL
Use special tool MB990803 to remove the steering wheel.

.

<<E>> CLOCK SPRING REMOVAL

WARNING

The removed clock spring should be stored in a
clean, dry place.

.

<<F>> AIR BAG MODULE REMOVAL (FRONT
PASSENGER’S SIDE)

WARNING

•

When the passenger’s air bag module is removed,
do not damage the engagement of the pawls.

•

The removed passenger’s air bag module should
be stored in a clean, dry place with  the deploy-
ment surface facing up.

INSTALLATION SERVICE POINTS

.

>>A<< PRE-INSTALLATION INSPECTION

WARNING

Dispose of air bag modules only according to the
specified procedure. (Refer to

P.52B-388

).

1. When installing the new air bag modules and clock spring,

refer to “INSPECTION” (

P.52B-374

).

2. Connect the negative (

−) battery cable.

AC000991AB

MB990803
