SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-285

STEP 5. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1506 set?

YES : Return to Step 1.
NO :  The procedure is complete.

DTC B1507: Seat Slide Sensor System Fault Ground Circuit (Short-Circuited to Ground)

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SEAT SLIDE
SENSOR

HALL IC

SEAT SLIDE SENSOR
DETECTION CIRCUIT

SRS-ECU

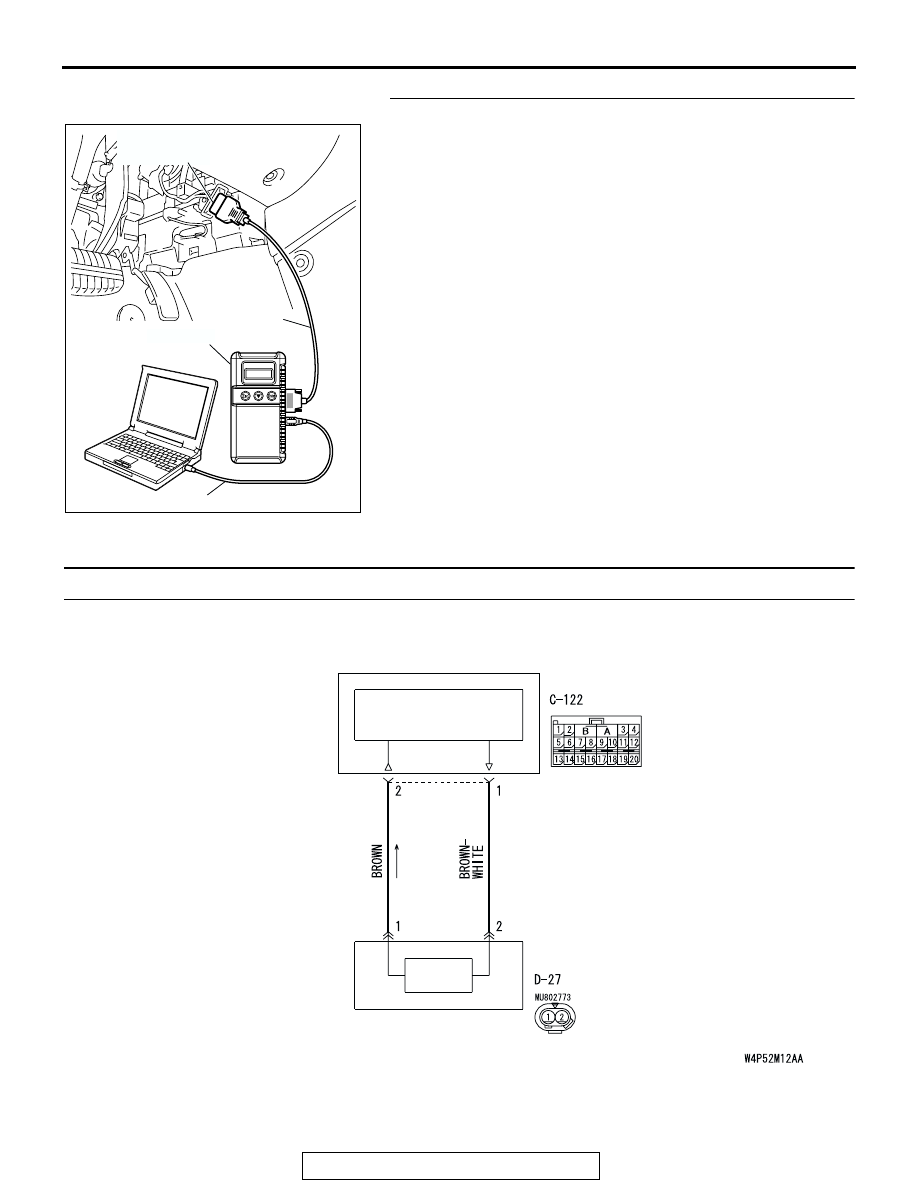

Seat Slide Sensor Circuit

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-286

CAUTION

If DTC B1507 is set in the combination meter,
always diagnose the CAN bus lines.

.

CIRCUIT OPERATION

• The seat slide sensor sets the current value Hi or

Low determined by the seat position.

• The SRS-ECU determines the seat position

according to the current value from the seat slide
sensor.

.

DTC SET CONDITIONS
This DTC is set if there is abnormal resistance
between the input terminals of the seat slide sensor.

.

TROUBLESHOOTING HINTS

• Damaged wiring harnesses or connectors

• Short to ground in the seat slide sensor harness

• Malfunction of the SRS-ECU

.

DIAGNOSIS

Required Special Tools:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

Communication System)

• MB991865: Dummy resistor

• MB991866: Resister harness

AC305362

CONNECTOR: C-122

C-122 (Y)

AE

SRS-ECU

AC308165

CONNECTOR : D-27

AB

D-27 (GR)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-287

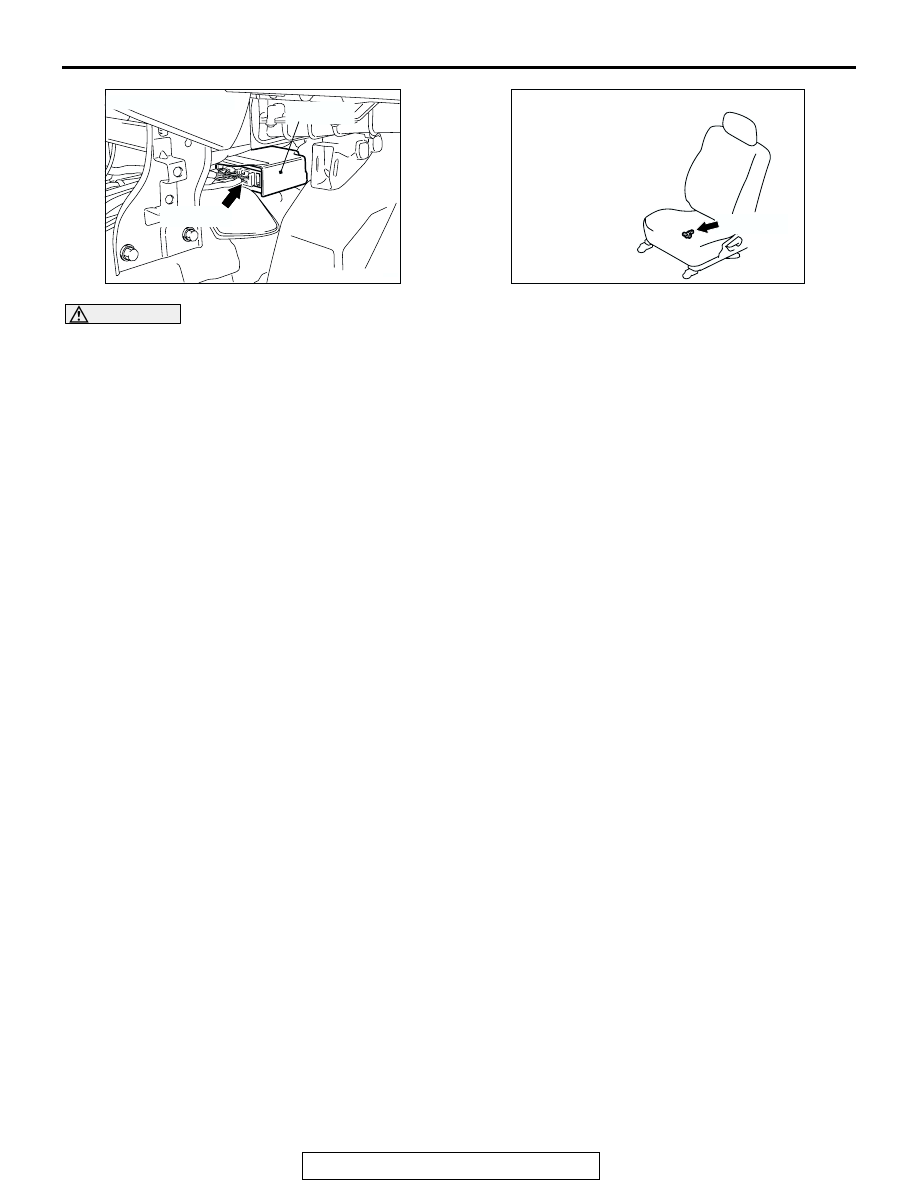

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-30

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.

(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-6

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-288

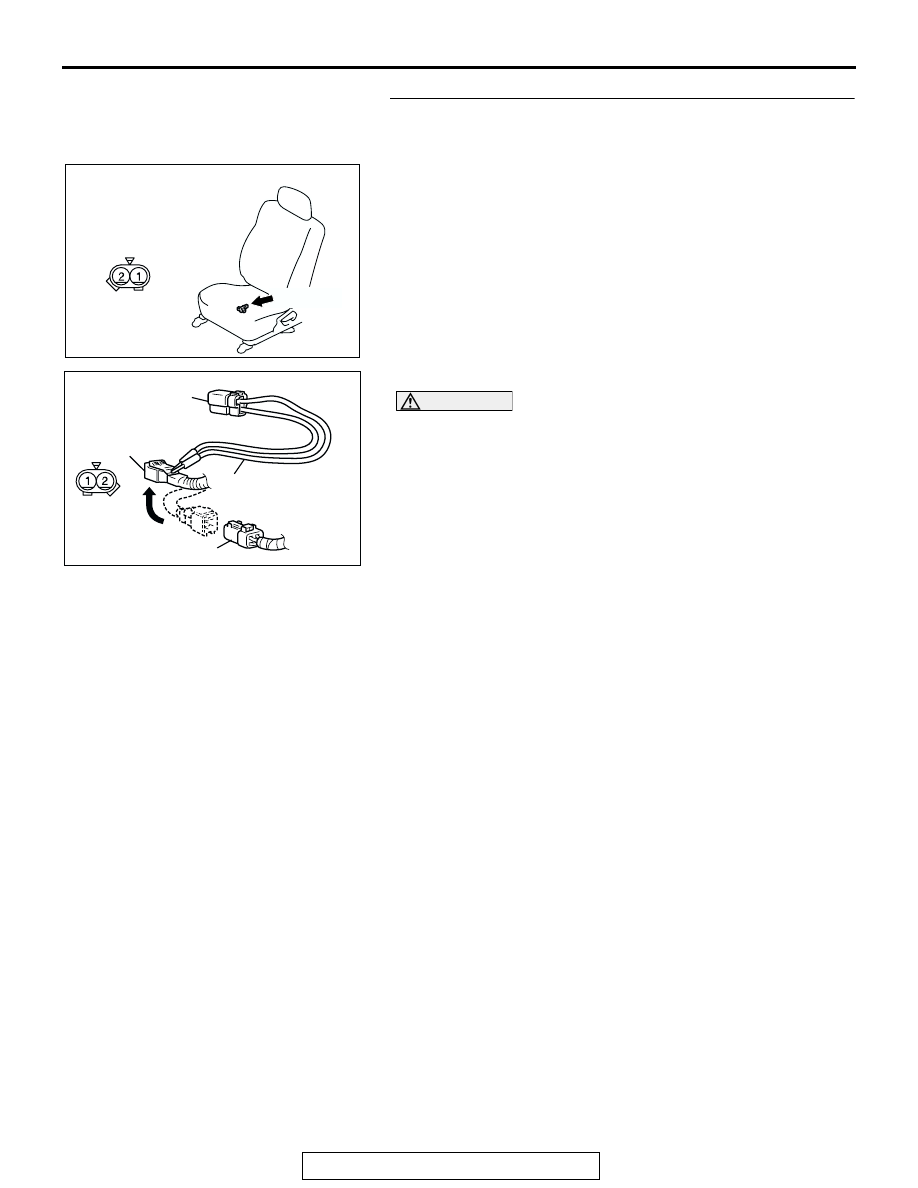

STEP 3. Check the seat slide sensor. (Using scan tool
MB991958, read the diagnostic trouble code.)

(1) Disconnect the negative battery terminal.
(2) Disconnect the seat slide sensor connector D-27.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into the D-27 harness side

connector by backprobing.

(5) Connect the negative battery terminal.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q: Is DTC B1507 set?

YES : Go to Step 4.
NO :  Replace the seat slide sensor. (Refer to

P.52B-384

).

Then go to Step 5.

AC308165

CONNECTOR : D-27

AC

D-27 (GR)

HARNESS SIDE

AC006042BQ

MB991866
(RESISTOR HARNESS)

D-27 HARNESS SIDE
CONNECTOR

D-27 SEAT SLIDE
SENSOR CONNECTOR

MB991865 (DUMMY
RESISTOR: 3



Ω)

(REAR VIEW)
