SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-269

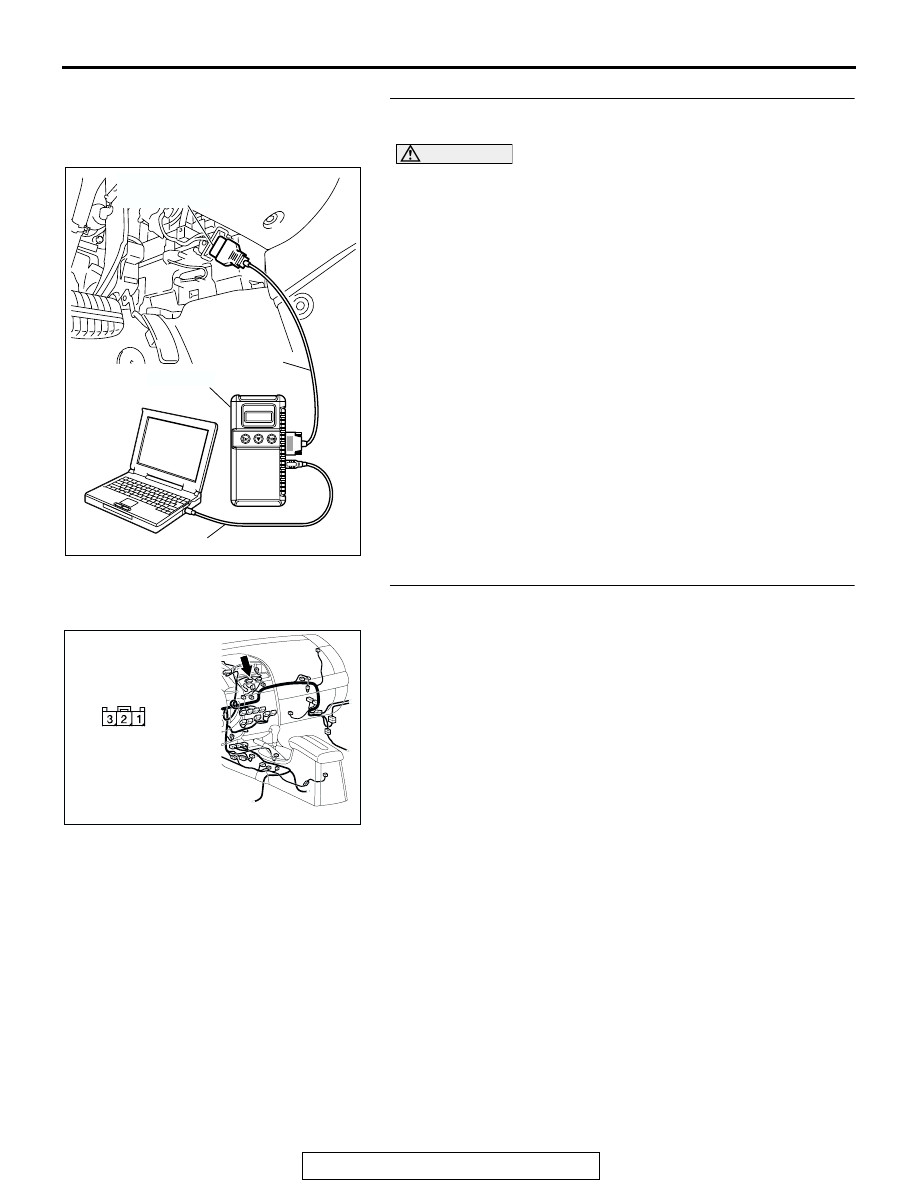

STEP 3. Using scan tool MB991958, read the diagnostic
trouble code.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Turn the ignition switch to the "ON" position.
(2) Check if the DTC is set.
(3) Turn the ignition switch to the "LOOK (OFF)" position.
Q: Is DTC B1540, B1541, B1542, B1543, B1545 or B1546

set?
YES : Carry out the troubleshooting of the occupant

classification-ECU or the occupant classification
sensor system.  (Refer to

P.52B-318

 <B1540, B1541,

B1542, B1543>,

P.52B-320

 <B1545, B1546>).

NO :  Go to Step 4 .

STEP 4. Check the passenger’s air bag OFF indicator light
connector C-06.

Q: Is the connector correctly engaged?

YES : Go to Step 5 .
NO :  Engage the connector correctly. Then go to Step 10 .

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305233CX

CONNECTOR: C-06

HARNESS SIDE

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-270

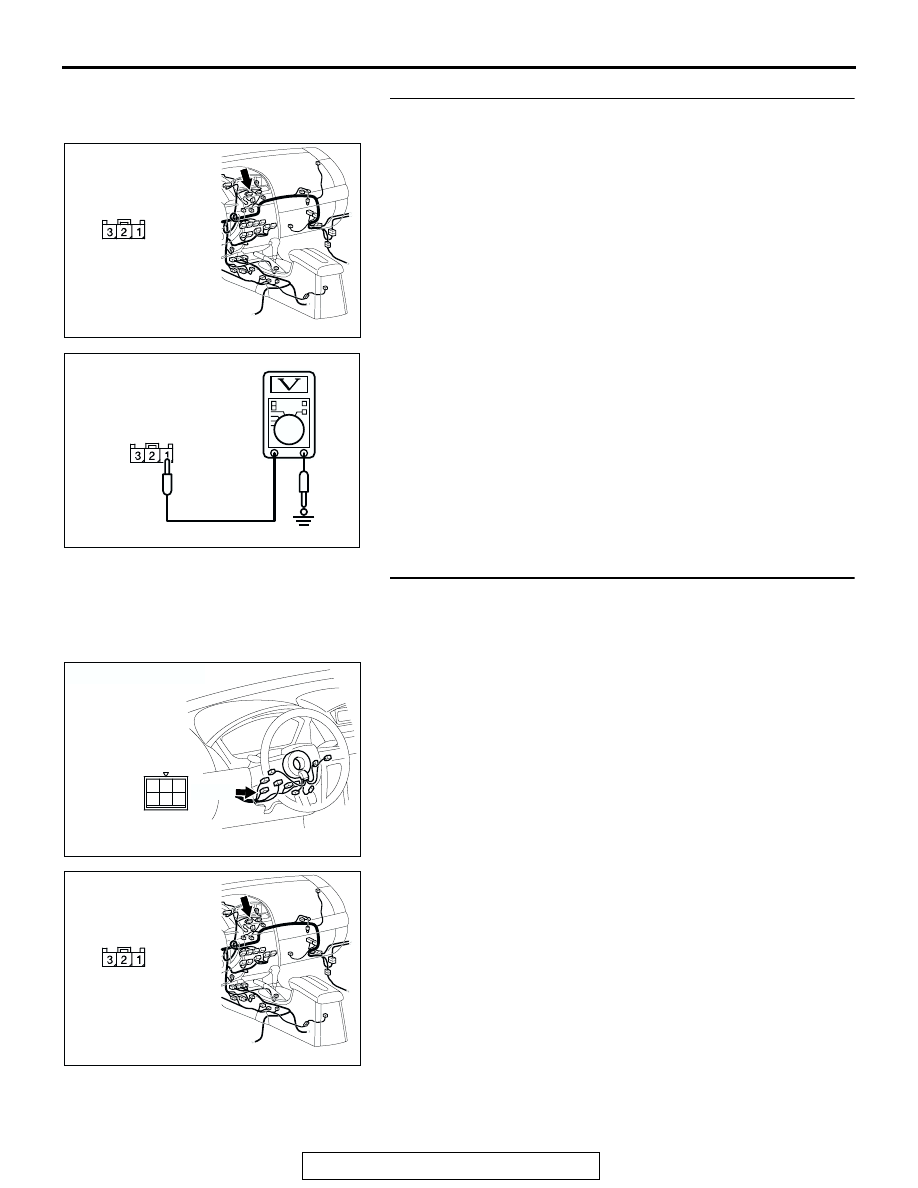

STEP 5. Measure the voltage at passenger’s air bag OFF
indicator light connector C-06.

(1) Disconnect passenger’s air bag OFF indicator light

connector C-06.

(2) Measure the voltage between C-06 harness side connector

terminal 1 and body ground.
Voltage should measure approximately 12 volt.

Q: Is the check result satisfactory?

YES : Go to Step 7 .
NO :  Go to Step 6 .

STEP 6. Check the harness for short circuit between
ignition switch connector C-308 (terminal No.2) and

passenger’s air bag OFF indicator light C-06 (terminal
No.1).

AC305233CX

CONNECTOR: C-06

HARNESS SIDE

AC308205

C-06 HARNESS SIDE
CONNECTOR

AB

AC305235AG

CONNECTOR: C-308

C-308

2
5

4

1

6

3

AC305233CX

CONNECTOR: C-06

HARNESS SIDE

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-271

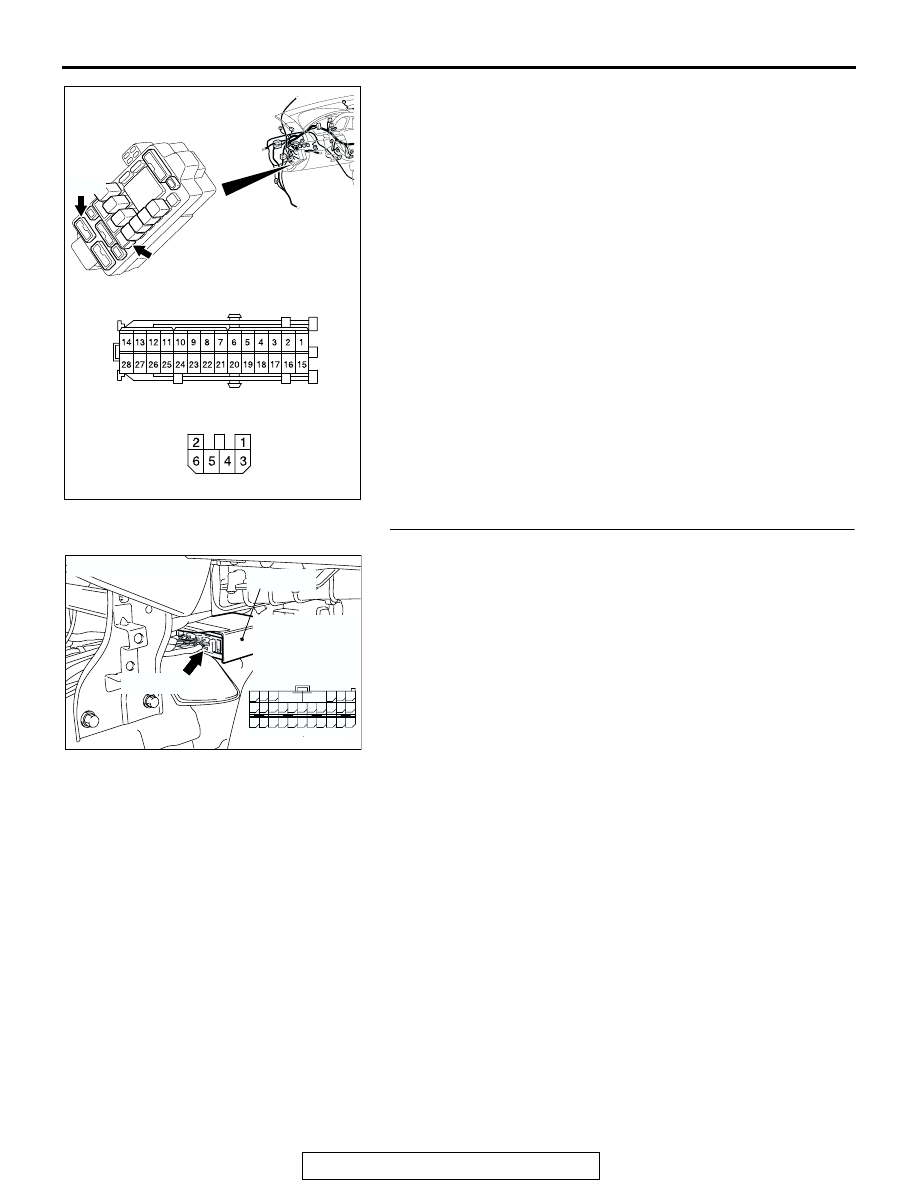

NOTE: After inspecting intermediate connectors C-211 and
C-215 inspect the wiring harness. If intermediate connectors
C-211 and C-215 are damaged, repair or replace them. Refer
to GROUP 00E, Harness Connector Inspection

P.00E-2

. Then

go to Step 10  .
Q: Are the harness wires between Ppassenger’s air bag

OFF indicator light connector C-06 (terminal No.1) and
the ignition switch connector C-308 (terminal No.2) in
good condition?
YES : Go to Step 7 .
NO :  Repair the harness wires. Then go to Step 10 .

STEP 7. Check SRS-ECU connector C-121.

Q: Is the connector correctly engaged?

YES : Go to Step 8 .
NO :  Engage the connector correctly. Then go to Step 10 .

AC305416

CONNECTORS: C-211, C-215

JUNCTION BLOCK
(FRONT VIEW)

C-215

C-211

HARNESS SIDE

C-211

HARNESS SIDE

C-215

AK

AC305362

CONNECTOR: C-121

C-121 (Y)

AH

SRS-ECU

C-121
HARNESS SIDE
CONNECTOR
(REAR VIEW)

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-272

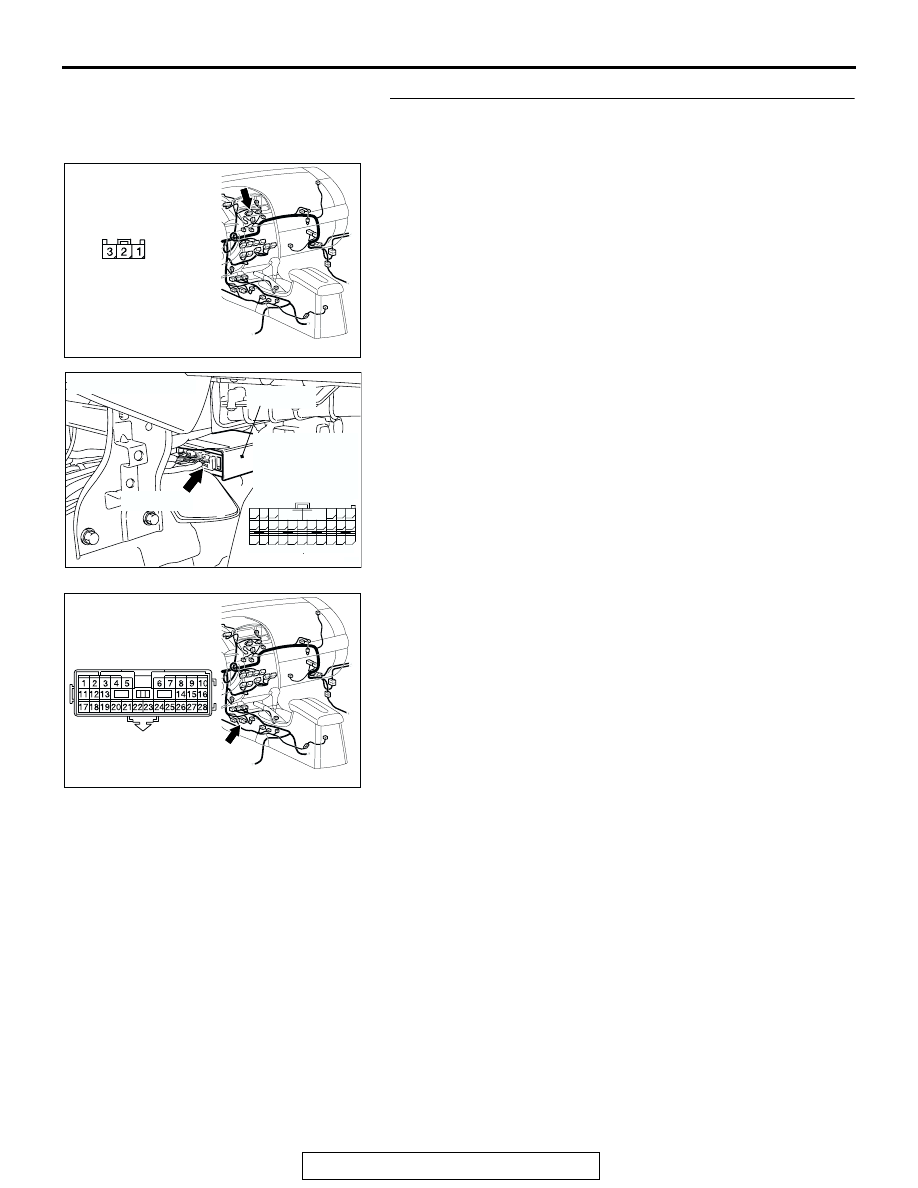

STEP 8. Check the harness for short circuit between
passenger’s air bag OFF indicator light C-06 (terminal
No.3) and SRS-ECU connector C-121 (terminal No.21).

NOTE: After inspecting intermediate connector C-22 inspect
the wiring harness. If intermediate connector C-22 is damaged,
repair or replace them. Refer to GROUP 00E, Harness Con-
nector Inspection

P.00E-2

. Then go to Step 10  .

Q: Are the harness wires between SRS-ECU connector

C-121 (terminal No.21) and the passenger’s air bag OFF
indicator light C-06 (terminal No.3) in good condition?
YES : Go to Step 9 .
NO :  Repair the harness wires. Then go to Step 10 .

AC305233CX

CONNECTOR: C-06

HARNESS SIDE

AC305362

CONNECTOR: C-121

C-121 (Y)

AH

SRS-ECU

C-121
HARNESS SIDE
CONNECTOR
(REAR VIEW)

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

AC305233 AI

CONNECTOR: C-22

C-22 (Y)
