SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-189

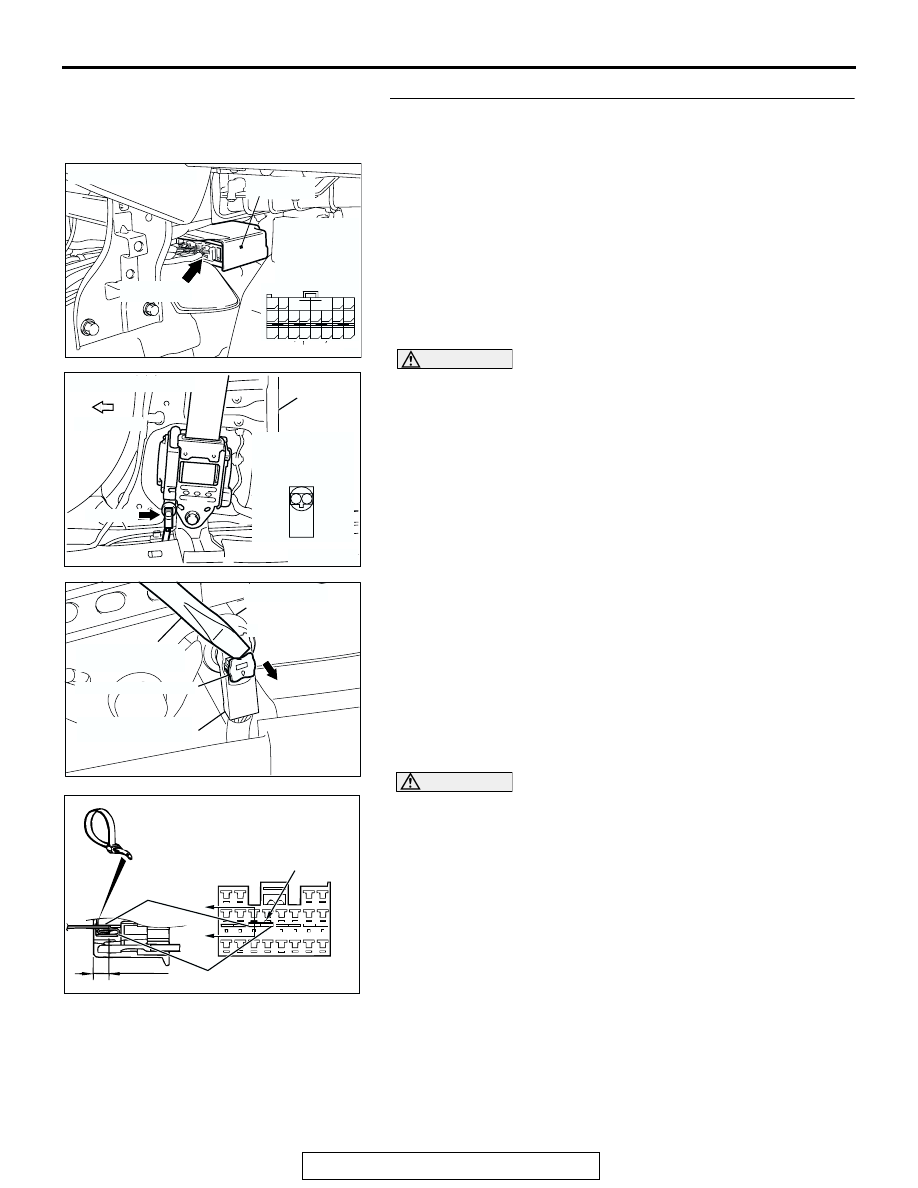

STEP 7. Check the passenger's seat belt pre-tensioner
circuit. Measure the resistance at the SRS-ECU connector
C-120.

(1) Disconnect SRS-ECU connector C-120.

DANGER

To prevent the seat belt pre-tensioner from deploying
unintentionally, disconnect the passenger’s seat belt
pre-tensioner connector D-33 to short the squib cir-
cuit.

(2) Disconnect passenger's seat belt pre-tensioner connector

D-33. Use a flat-tipped screwdriver to unlock the locking
button at the harness side connector by withdrawing it
toward you in two stages, and then disconnect the
connector.

CAUTION

Insert an insulator such as a cable tie to a depth of 4mm
(0.16 inch) or more, otherwise the short spring will not be
released.
(3) Insert a cable tie [3 mm (0.12 inch) wide, 0.5 mm (0.02 inch)

thick] between terminals 59, 60 and the short spring to
release the short spring.

AC305362

CONNECTOR: C-120

C-120 (Y)

AG

SRS-ECU

63

55

51

69

61

66

58

65

64

56 57

68

60

67

59

70

62

53

52 B

A

54

C-120
Harness side
connector
(rear view)

AC307915 AC

CONNECTOR: D-33

D-33 (B)

FORWARD

CENTER
PILLAR

HARNESS SIDE
CONNECTOR
(FRONT VIEW)

2 1

AC103556AU

LOCKING BUTTON

FLAT-TIP SCREW
DRIVER

D-33 HARNESS
SIDE CONNECTOR

D-33 PASSENGER'S
SEAT BELT
PRE-TENSIONER
CONNECTOR

AC301608

SEC-
TION
A - A

C-120 HARNESS SIDE
CONNECTOR (FRONT VIEW)

CABLE TIE

SHORT SPRING

4 mm OR MORE

TERMINAL

A

AE

A

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-190

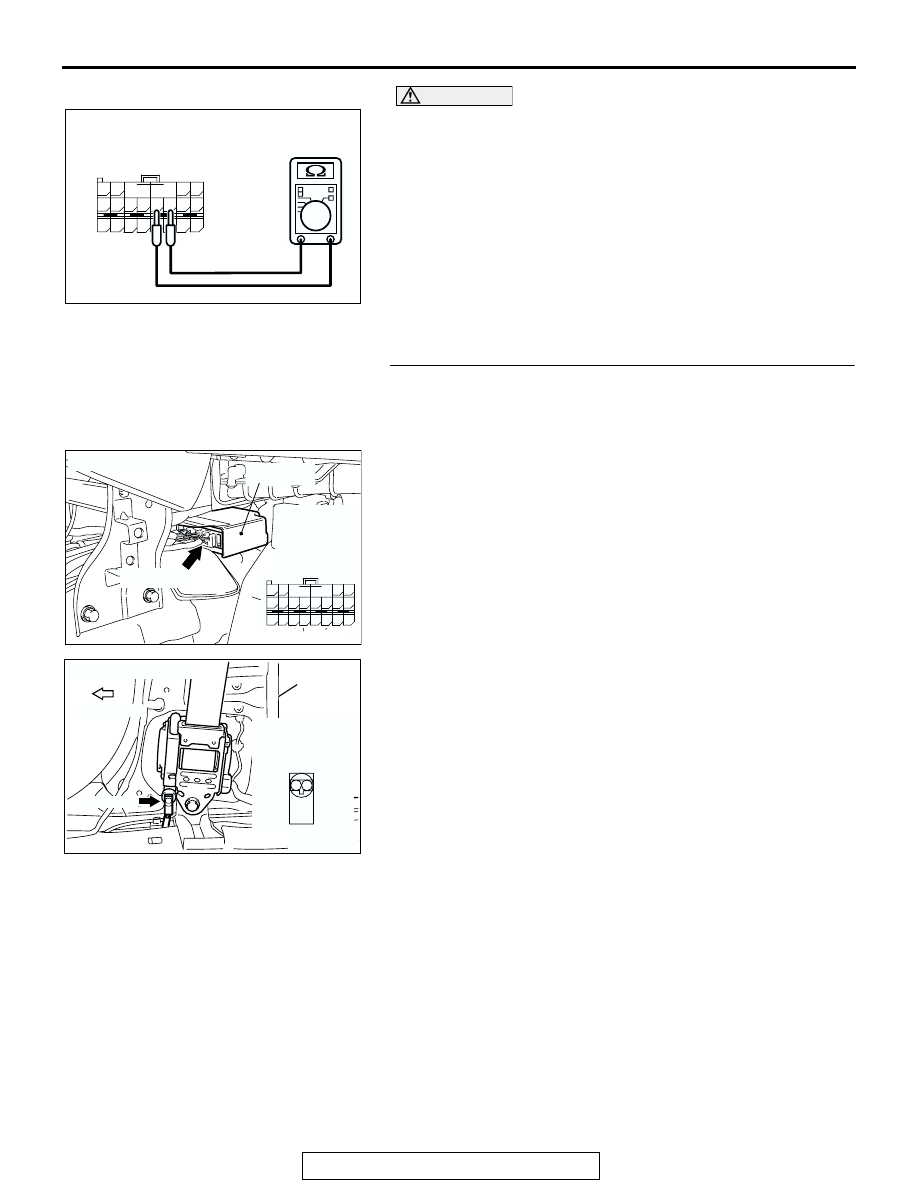

CAUTION

Do not insert a test probe into the terminal from its front
side directly as the connector contact pressure may be
weakened.
(4) Check for continuity between C-120 harness side connector

terminals 59 and 60.

It should be open circuit.

Q: Does continuity exist?

YES : Erase the diagnostic trouble code memory, and check

diagnostic trouble code. If DTC B1460 set, replace
the SRS-ECU (Refer to

P.52B-365

). Then go to Step

9.

NO :  Go to Step 8.

STEP 8. Check the harness for short circuit between
SRS-ECU connector C-120 (terminal No.59 and 60) and
passenger’s seat belt pre-tensioner connector D-33
(terminal No.1 and 2).

Q: Are harness wires between SRS-ECU connector C-120

(terminal No.59 and 60) connector and passenger’s seat
belt pre-tensioner connector (terminal No.1 and 2) in
good condition?
YES : Go to Step 9.
NO :  Replace the harness wires between SRS-ECU

connector C-120 and passenger’s seat belt
pre-tensioner connector D-33. Then go to Step 9.

AC301572

63

55

51

69

61

66

58

65

64

56 57

68

60

67

59

70

62

53

52 B

A

54

C-120 HARNESS SIDE
CONNECTOR (REAR VIEW)

AE

AC305362

CONNECTOR: C-120

C-120 (Y)

AG

SRS-ECU

63

55

51

69

61

66

58

65

64

56 57

68

60

67

59

70

62

53

52 B

A

54

C-120
Harness side
connector
(rear view)

AC307915 AC

CONNECTOR: D-33

D-33 (B)

FORWARD

CENTER
PILLAR

HARNESS SIDE
CONNECTOR
(FRONT VIEW)

2 1

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-191

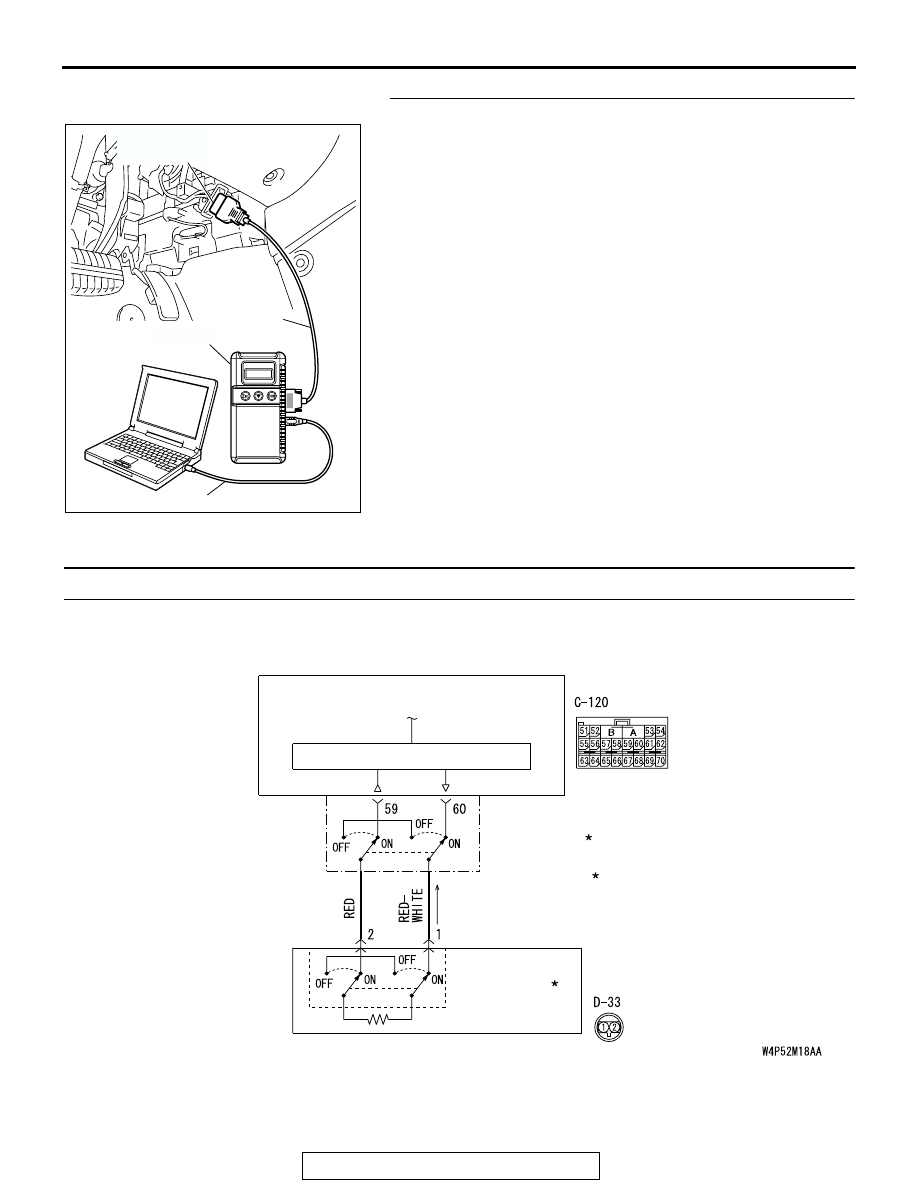

STEP 9. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC B1460 set?

YES : Return to Step 1.
NO :  The procedure is complete.

DTC B1461: Seat Belt Pre-Tensioner (RH) (Squib) System Fault 2 (Open in the Squib Circuit)

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SEAT BELT
PRETENSIONER
(RH)

AIR BAG DRIVE CIRCUIT

SRS-ECU

CONNECTOR
LOCK SWITCH

CONNECTOR
LOCK SWITCH

: CONNECTOR CONNECTED: ON

  CONNECTOR DISCONNECTED: OFF

Passenger's (Front) Seat Belt Pre-Tensioner (Squib) Circuit

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-192

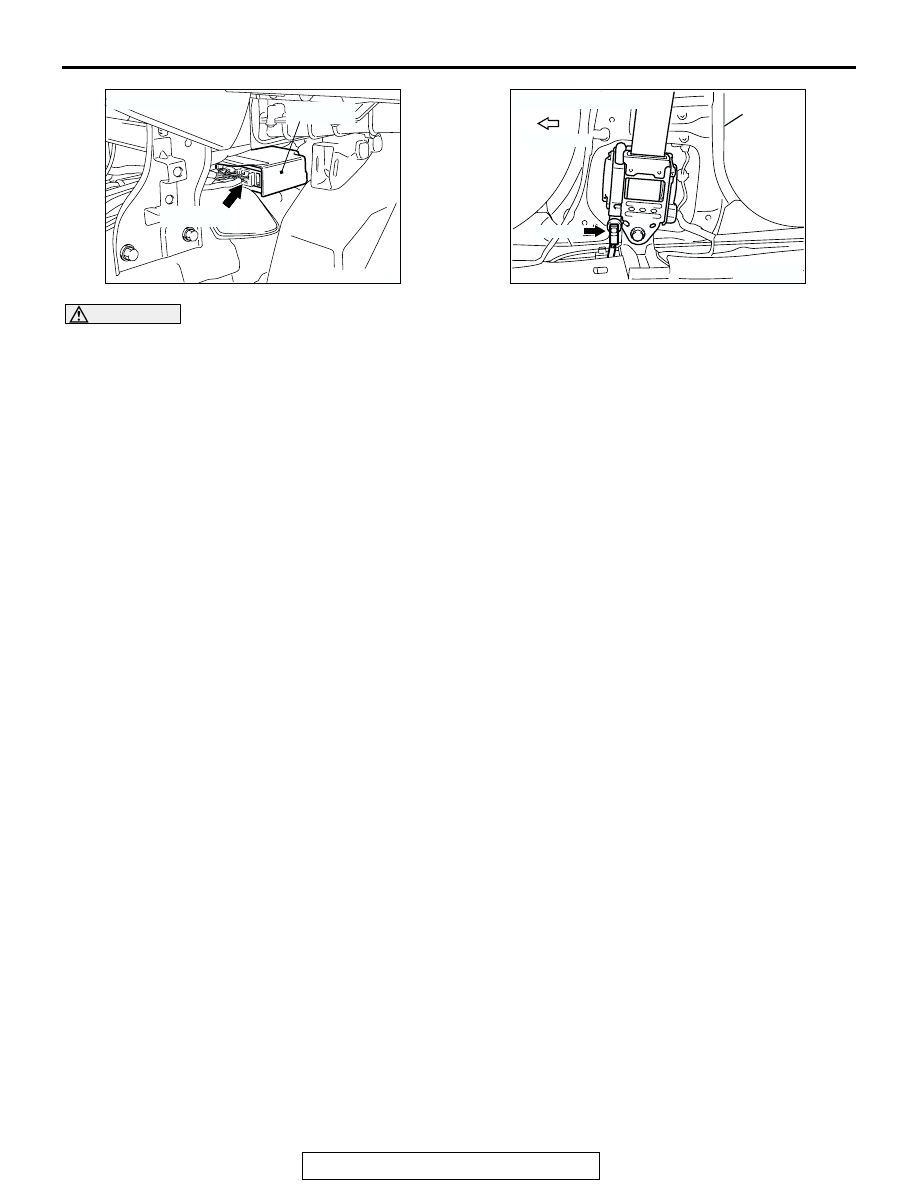

CAUTION

If DTC B1461 is set in the SRS-ECU, always diag-
nose the CAN main bus line.

.

CIRCUIT OPERATION
The SRS-ECU judges how severe a collision is by
detecting signals from the front impact sensors and
the front air bag analog G-sensor. If the impact is
over a predetermined level, the SRS-ECU sends an
ignition signal. At this time, if the front air bag safing
G-sensor is on, the pre-tensioner will deploy.

.

DTC SET CONDITIONS
This DTC is set if there is abnormal resistance
between the input terminals of the passenger's seat
belt pre-tensioner (squib).

.

TROUBLESHOOTING HITS

• Open circuit in the passenger's seat belt

pre-tensioner (squib) circuit

• Improper connector contact

• Malfunction of the SRS-ECU

.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A

• MB991865: Dummy resistor

• MB991884: Resister harness (For Pre-tensioner)

AC305362

CONNECTOR: C-120

C-120 (Y)

AC

SRS-ECU

AC307915 AB

CONNECTOR: D-33

D-33 (B)

FORWARD

CENTER
PILLAR
