Mitsubishi Galant (2004+). Manual - part 1556





SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-117

DTC B1418: Front Impact Sensor (LH) (Squib) for Power Supply Circuit
DTC B1419: Front Impact Sensor (LH) (Squib) for Communication System

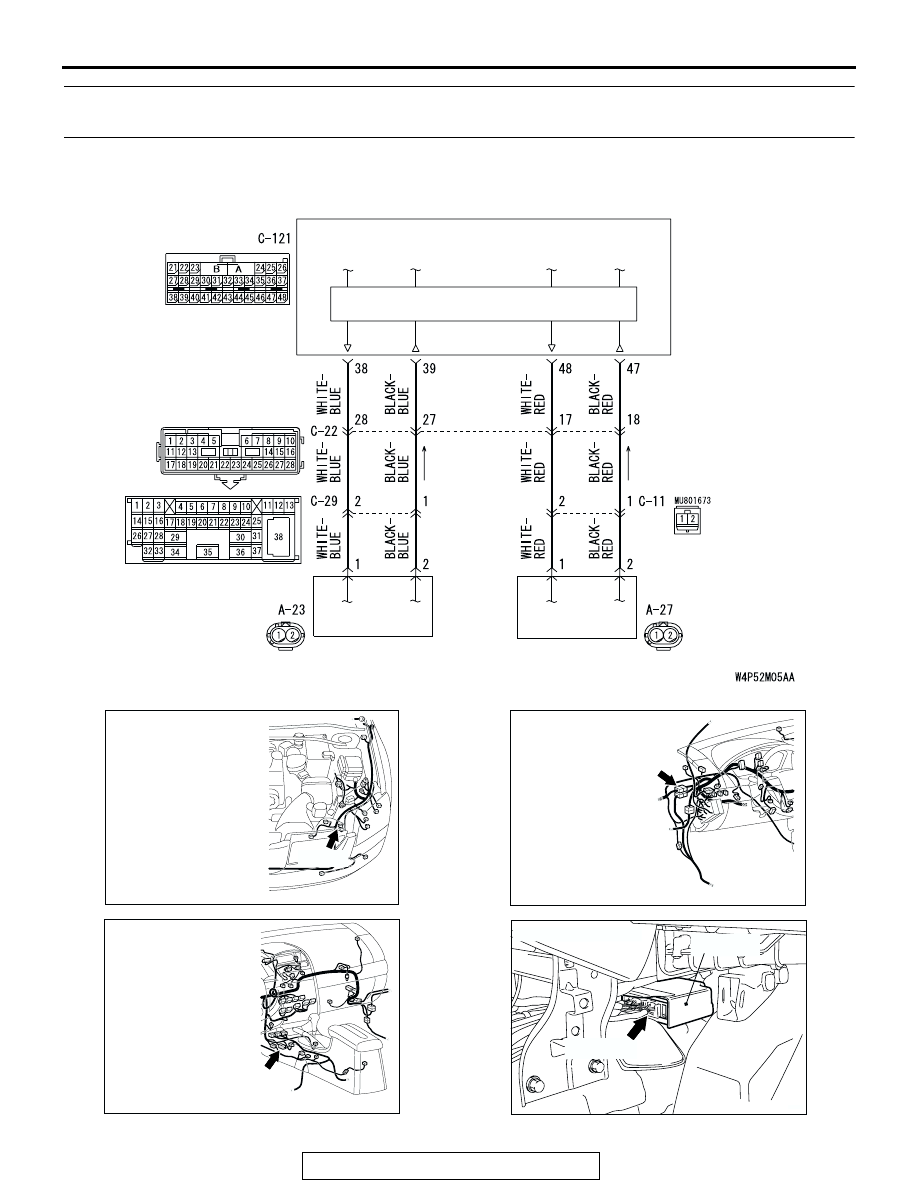

INTERFACE CIRCUIT

SRS-ECU

FRONT IMPACT
SENSOR (LH)

FRONT IMPACT
SENSOR (RH)

Front Impact Sensor Circuit

AC305210

CONNECTOR: A-23

AW

A-23 (Y)

AC305233 AO

CONNECTOR: C-22

C-22 (Y)

AC305231BF

CONNECTOR: C-29

AC305362

CONNECTOR: C-121

C-121 (Y)

AD

SRS-ECU

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-118

CAUTION

If DTC B1418 or B1419 is set in the SRS-ECU,
always diagnose the CAN main bus line.

.

CIRCUIT OPERATION
The front impact sensor includes an analog G sensor
and CPU, etc. The CPU monitors the analog G sen-
sor output signal. If the CPU judges that the front air
bags should be deployed, it sends a fire signal to the
SRS-ECU to deploy the front air bags. In addition,
the CPU diagnoses the internal components of the
front impact sensor. If a malfunction occurs, it
requests the SRS-ECU to set a diagnostic trouble
code.

.

DTC SET CONDITIONS
These DTCs are set if communication between the
front impact sensor (LH) and the SRS-ECU is not
possible or faulty.

.

TROUBLESHOOTING HINTS

• Damaged wiring harnesses or connectors

• Malfunction of the side impact sensor (LH)

• Malfunction of the SRS-ECU

.

DIAGNOSIS

Required Special Tool:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

• MB991223 (MB991222): Harness set (Probe)

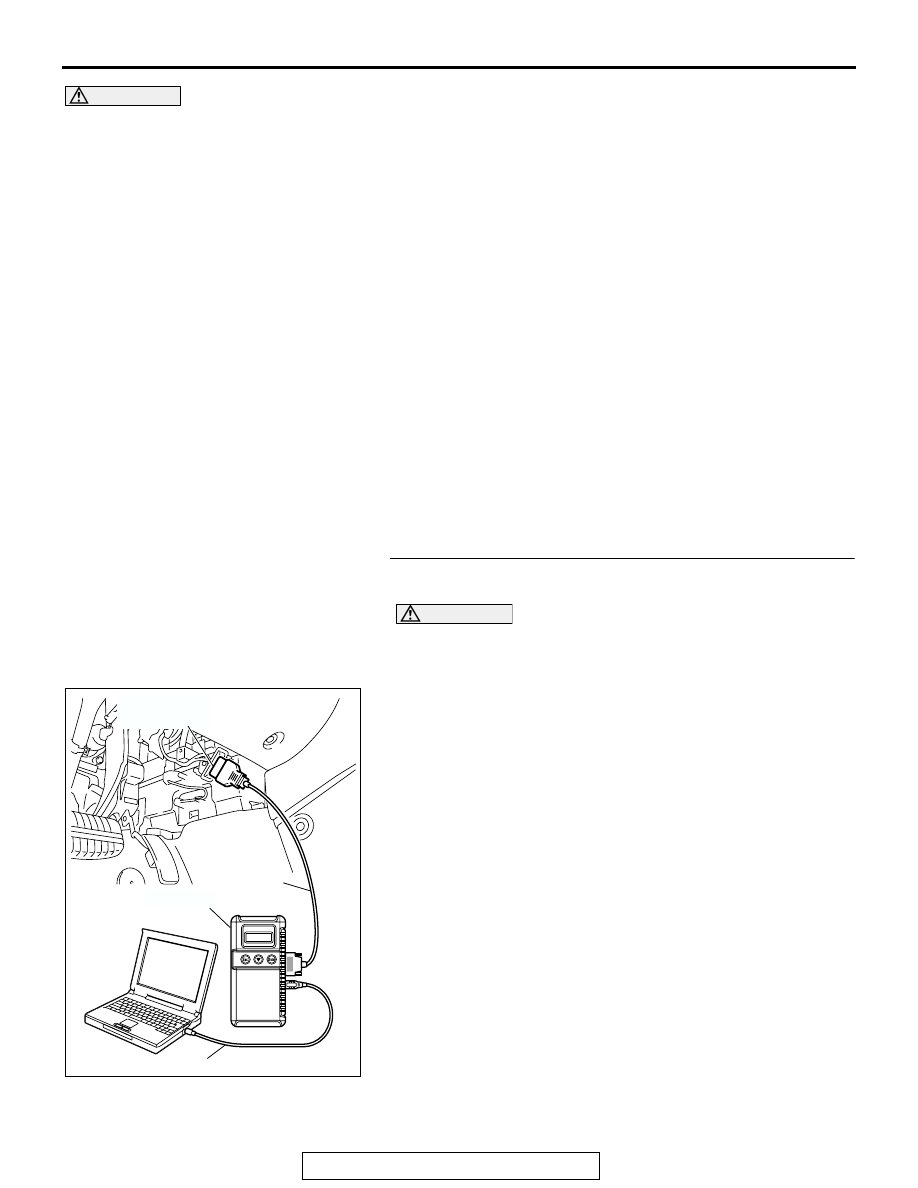

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-30

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-119

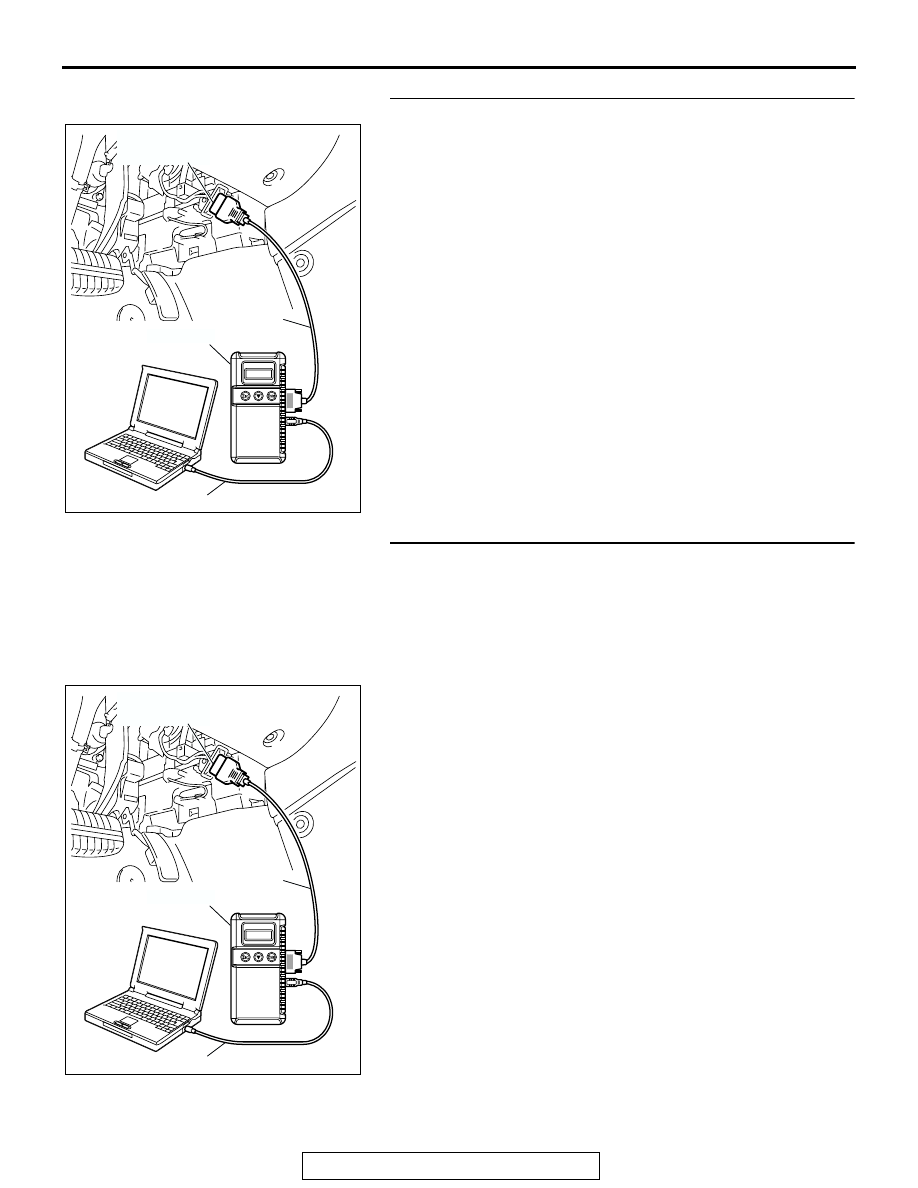

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-6

).

STEP 3. Check for any diagnostic trouble code. (Using
scan tool MB991958, read the diagnostic trouble code.)

Check the front impact sensor (LH).
(1) Disconnect the negative battery terminal.
(2) Replace the front impact sensor (LH) with the front impact

sensor (RH).

(3) Connect the negative battery terminal.
(4) Erase diagnostic trouble code from memory, and check the

diagnostic trouble code.

Q: Is DTC B1408 or B1409 set?

YES : Replace the side impact sensor (LH) with a new one.

(Refer to

P.52B-377

). Go to Step 5.

NO :  Go to Step 4.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-120

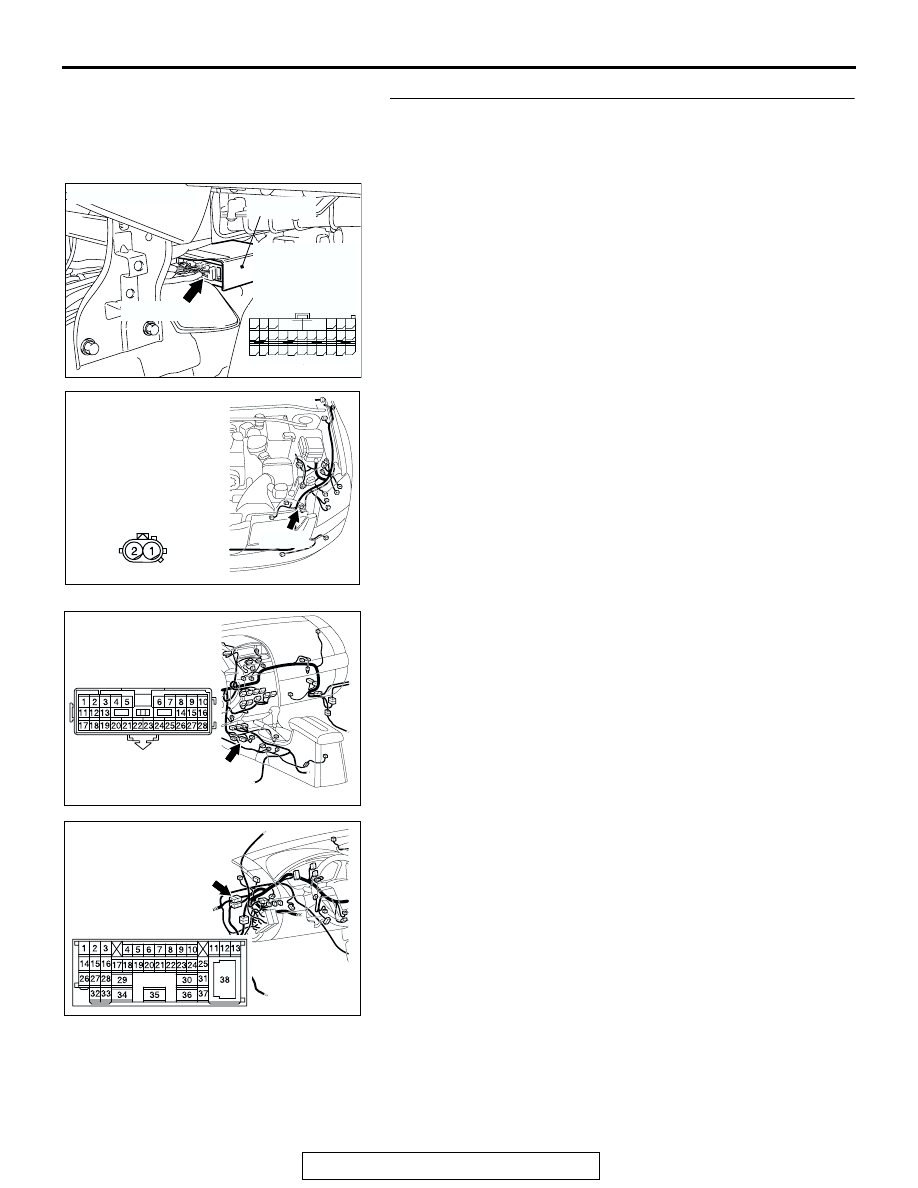

STEP 4. Check the harness wires for open circuit or short
circuit between SRS-ECU connector C-121 (terminal No.38
and 39) and front impact sensor (LH) connector A-23
(terminal No.1 and 2).

NOTE: After inspecting intermediate connectors C-22 and C-29
inspect the wiring harness. If the intermediate connectors C-22
and C-29 is damaged, repair or replace it.
Q: Are the harness wires between SRS-ECU connector

C-121 (terminal No.38 and 39) and front impact sensor
(LH) connector A-23 (terminal No.1 and 2) in good
condition?
YES :
Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1418 or B1419
sets, replace the SRS-ECU (Refer to

P.52B-365

).

Then go to Step 5.

NO :  Replace the harness wires between SRS-ECU

connector C-121 and front impact sensor (RH)
connector A-23. Then go to Step 5.

AC305362

CONNECTOR: C-121

C-121 (Y)

AH

SRS-ECU

C-121
HARNESS SIDE
CONNECTOR
(REAR VIEW)

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

AC305210

CONNECTOR: A-23

AT

A-23 (Y)

HARNESS SIDE

AC305233 AI

CONNECTOR: C-22

C-22 (Y)

AC305231AI

CONNECTOR: C-29
