SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-57

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958. Refer to "How to connect the

scan tool

P.52B-30

."

(2) Turn the ignition switch to the "ON" position.
(3) Diagnose the CAN bus line.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.
NO :  Repair the CAN bus line (Refer to GROUP 54C,

Diagnosis

P.54C-14

).

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to the "ON" position.

(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Go to Step 3.
NO :  There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to
GROUP 00, How to Cope with Intermittent
Malfunction

P.00-6

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-58

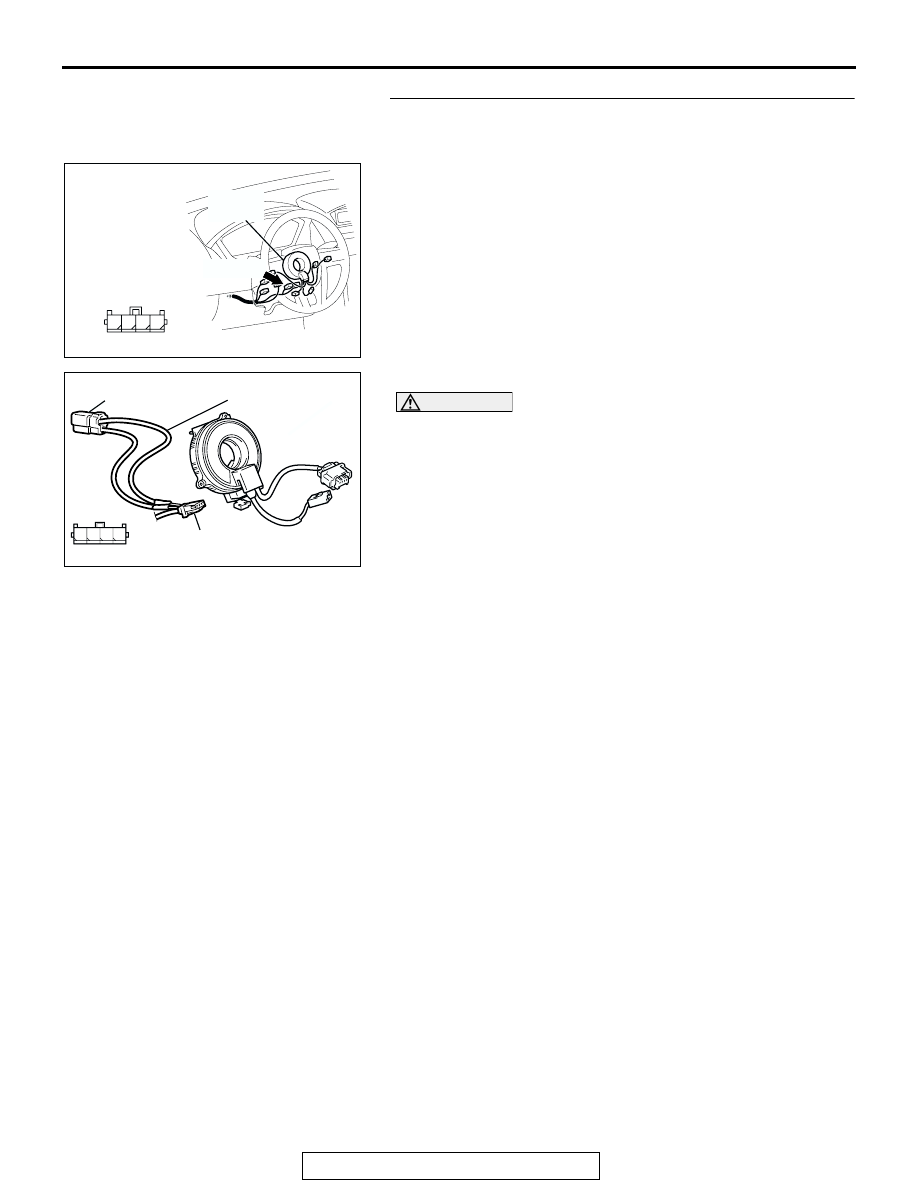

STEP 3. Check the driver's air bag module. (Using scan
tool MB991958, read the diagnostic trouble code.)

(1) Disconnect the negative battery terminal.
(2) Slide the outer housing of the driver’ s air bag module

connector C-305 in the arrow direction shown, and
disconnect the connector.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into clock spring side air bag

module connector C-305 (terminal No.1 and 2 <1st squib>
or terminal No.3 and 4 <2nd squib>) by backprobing.

(5) Connect the negative battery terminal.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q:  Is DTC B1402 <1st squib> or B1482 <2nd squib> set?

YES : Go to Step 4.
NO :  Replace the driver’s air bag module. (Refer to

P.52B-368

). Then go to Step 7.

AC306561AC

OUTER HOUSING OF THE DRIVER'S
AIR BAG MODULE CONNECTOR C-305

AC306758 AB

C-305 AIR BAG
MODULE
CONNECTOR

MB991865
(DUMMY RESISTOR : 3

Ω)

MB991866 (RESISTOR
HARNESS)

(REAR VIEW

)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-59

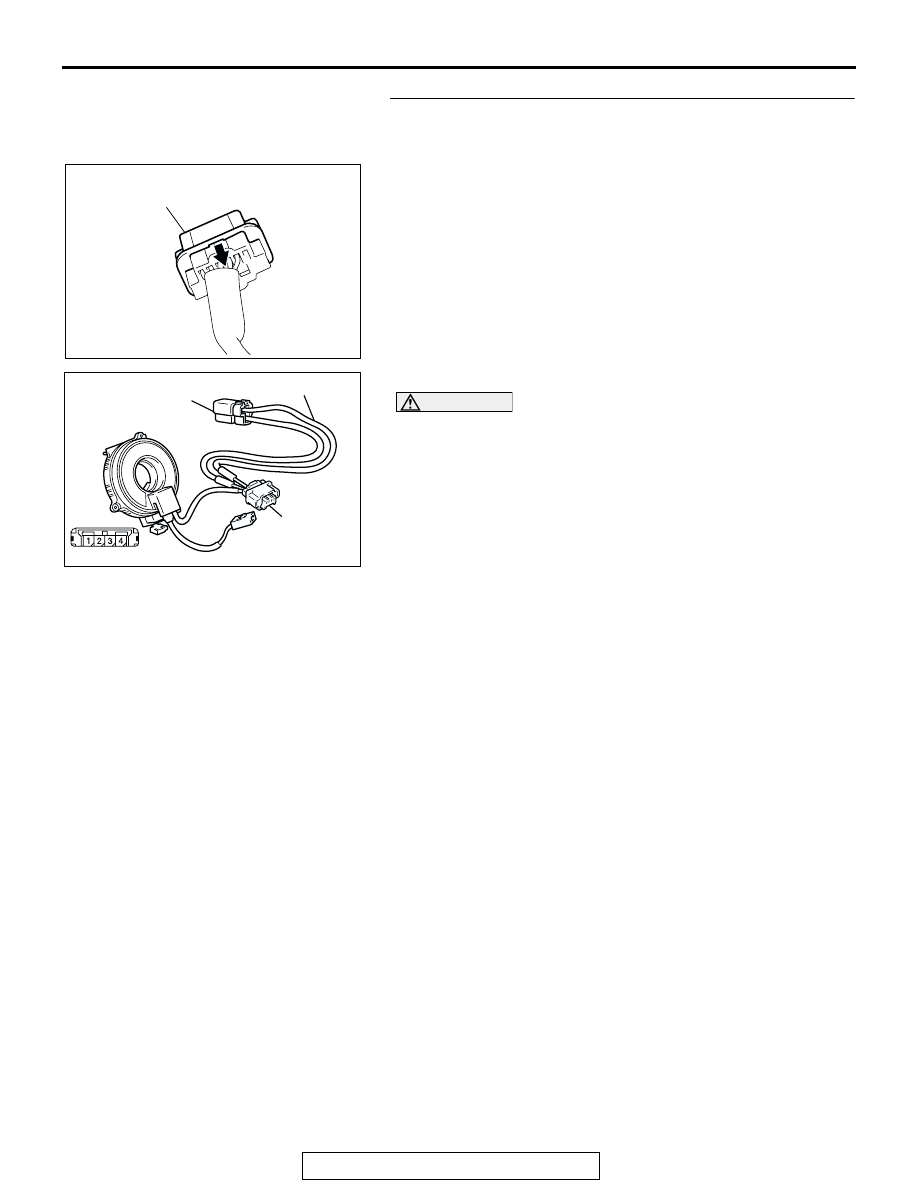

STEP 4. Check the clock spring. (Using scan tool
MB991958, read the diagnostic trouble code.)

(1) Disconnect the negative battery terminal.
(2) Disconnect the clock spring connector C-307.

(3) Connect special tool MB991865 to special tool MB991866.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Insert special tool MB991866 into clock spring harness side

connector C-307 (terminal No.13 and 14 <1st squib> or
terminal No. 11 and 12 <2nd squib>) by backprobing.

(5) Connect the negative battery terminal.
(6) Erase the diagnostic trouble code memory, and check the

diagnostic trouble code.

Q:  Is DTC B1402 <1st squib> or B1482 <2nd squib> set?

YES : Go to Step 5.
NO :  Replace the clock spring (Refer to

P.52B-368

). Then

go to Step 7.

AC305235AK

C-307 (Y)

CONNECTOR: C-307

C-307 HARNESS
SIDE CONNECTOR

CLOCK
SPRING

11

12

13

14

AC306767

C-307 CLOCK SPRING
CONNECTOR

AB

MB991865
(DUMMY RESISTOR : 3

Ω)

MB991866 (RESISTOR
HARNESS)

1112

14

13

(REAR VIEW)

SRS AIR BAG DIAGNOSIS

TSB Revision

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-60

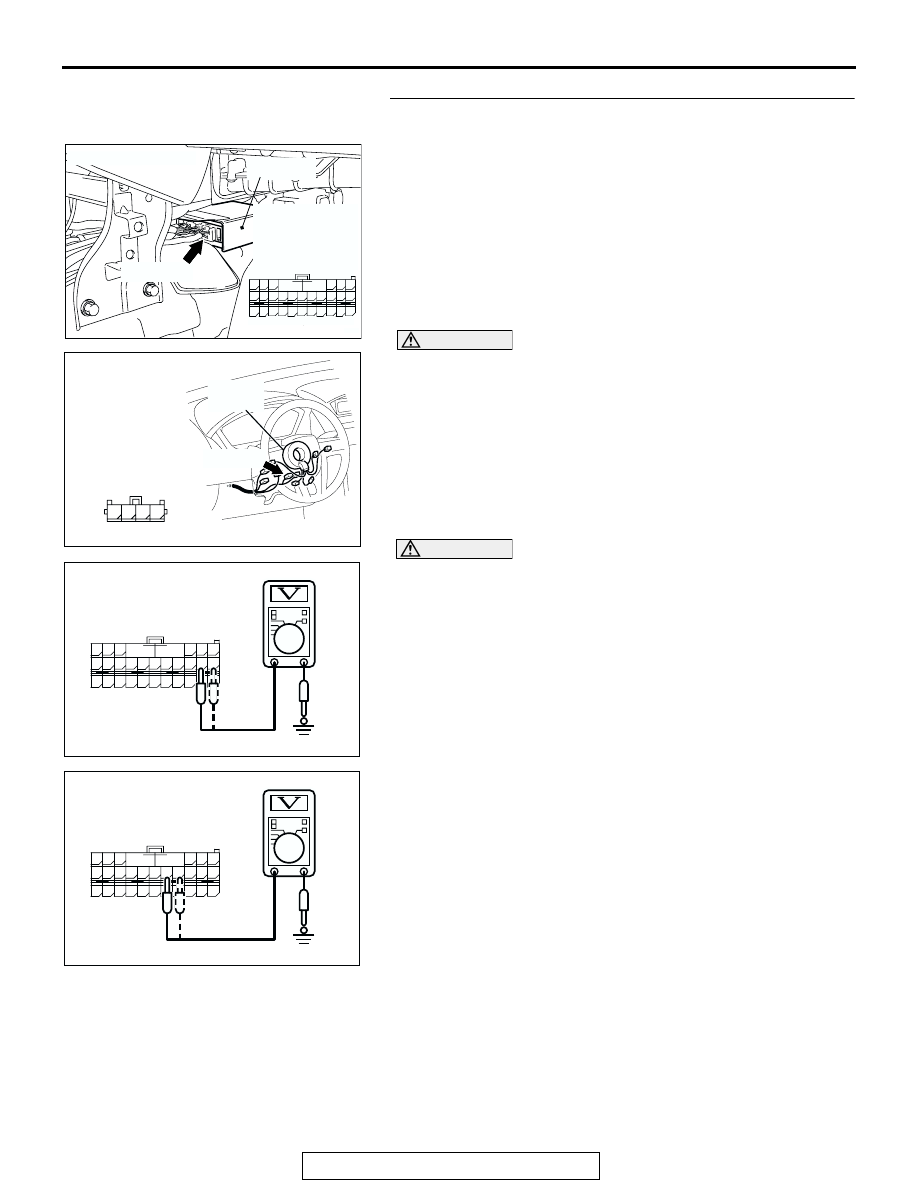

STEP 5. Check the driver’s air bag module circuit. Measure
the voltage at the SRS-ECU connector C-121.

(1) Disconnect SRS-ECU connector C-121.

DANGER

To prevent the air bag from deploying unintentionally,
disconnect the clock spring connector C-307 to short
the squib circuit.

(2) Disconnect the clock spring connector C-307.
(3) Turn the ignition switch to the "ON" position.

CAUTION

Do not insert a test probe into the terminal from its front
side directly, as the connector contact pressure may be
weakened.
(4) Measure the voltage between C-121 harness side

connector terminals 36 and 37 <1st squib> or 33 and 34
<2nd squib> and body ground.
Voltage should measure 0 volt.

Q: Is the measured voltage within the specified range?

YES : Erase the diagnostic trouble code memory, and check

the diagnostic trouble code. If DTC B1402 <1st
squib> or B1482 <2nd squib> sets, replace the
SRS-ECU. (Refer to

P.52B-365

). Then go to Step 7.

NO :  Go to Step 6.

AC305362

CONNECTOR: C-121

C-121 (Y)

AH

SRS-ECU

C-121
HARNESS SIDE
CONNECTOR
(REAR VIEW)

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

AC305235AK

C-307 (Y)

CONNECTOR: C-307

C-307 HARNESS
SIDE CONNECTOR

CLOCK
SPRING

11

12

13

14

AC301587

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

C-121 HARNESS SIDE
CONNECTOR (REAR VIEW)

<1ST SQUIB>

AC

AC308148

42

31

38

27

21

41

28

39

22

30

25

47

36

33

44

34

45

37

48

26

29

23

40

32

43

35

46

24

B

A

C-121 HARNESS SIDE
CONNECTOR (REAR VIEW)

<2ND SQUIB>

AB
