MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-267

.

CIRCUIT OPERATION
The multi-center display unit (middle grade type) is
linked to CAN communication lines to communicate
with the combination meter and the powertrain con-
trol module, both of which have a terminator resistor.

.

TECHNICAL DESCRIPTION (COMMENT)
If the system does not communicate with the scan
tool, power supply to the data link connector or CAN
bus lines may be defective.

.

TROUBLESHOOTING HINTS

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991911: MUT-III Main Harness A (Vehicles with CAN

communication system)

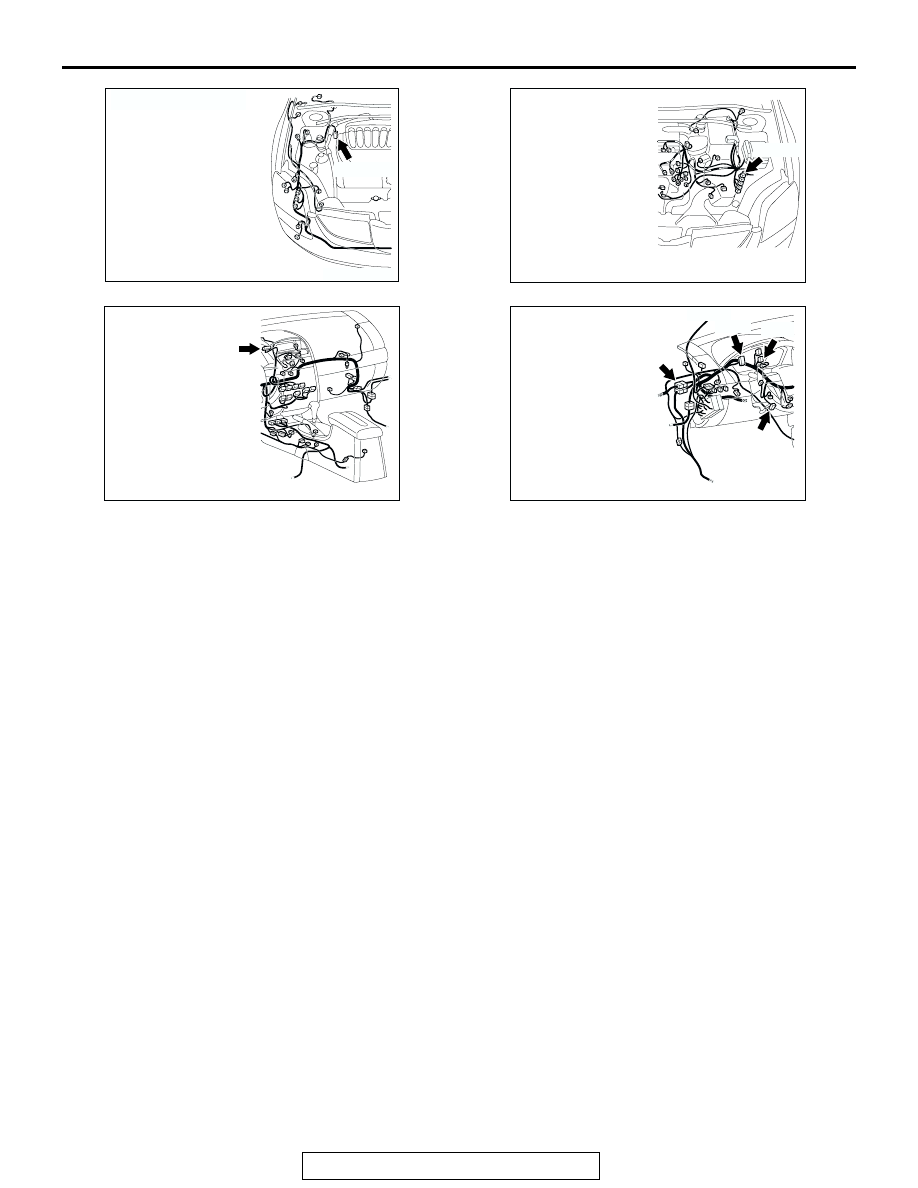

AC305206

CONNECTOR: A-02

AO

A-02 (GR)

AC305216

B-19 (B)

CONNECTOR: B-19

AD

AC305233

C-05 (B)

CP

CONNECTOR: C-05

AC305231

C-02

C-29

C-101

C-125 (B)

DC

CONNECTORS: C-02, C-29, C-101, C-125

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-268

STEP 1. Check that the powertrain control module
communicates with the scan tool.
Check if scan tool MB991958I can communicate with the
multi-center display.

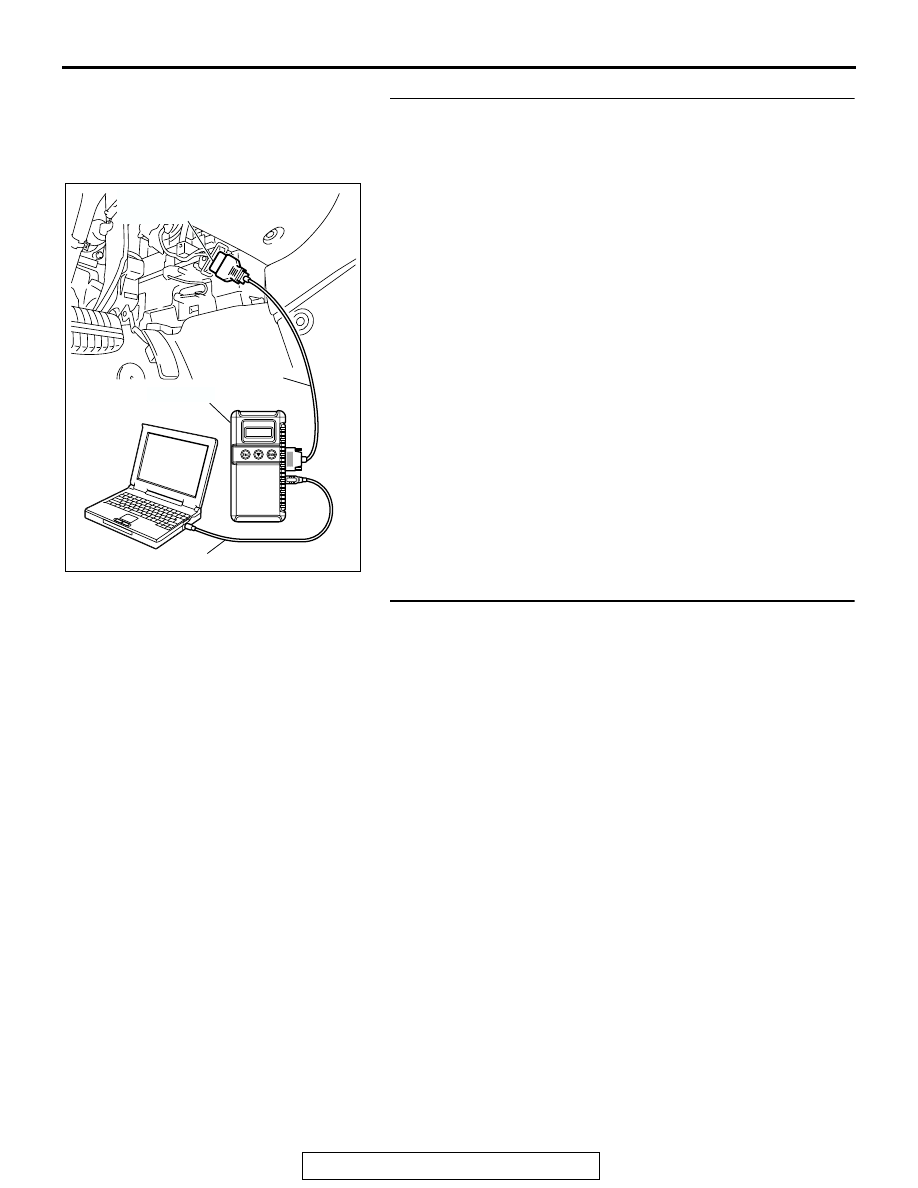

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Check if scan tool MB991958 can communicate with the

powertrain control module.

Q: Is the check result satisfactory?

YES : Go to Step 2.
NO :  Refer to GROUP 13A, MFI Diagnostic Trouble Code

Chart

P.13A-34

 or GROUP 13B, MFI Diagnostic

Trouble Code Chart

P.13B-33

.

STEP 2. Using scan tool MB991958, diagnose the CAN bus
line
Use scan tool MB991958 to diagnose the CAN bus lines.
Q: Is the check result satisfactory?

YES : Diagnose the power supply circuit. Refer to

P.54A-81

.

NO :  Repair the CAN bus lines (Refer to GROUP 54C,

Diagnosis-Can Bus Diagnostic Chart

P.54C-14

).

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-269

INSPECTION PROCEDURE 2: The multi-center display does not Show any Information. (Middle Grade
type)

JOINT
CONNECTOR (2)

JOINT
CONNECTOR (1)

JOINT
CONNECTOR (2)

RELAY BOX

JUNCTION
BLOCK

BATTERY

IGNITION
SWITCH (ACC)

JOINT
CONNECTOR (2)

POWER SUPPLY

MULTI-CENTER
DISPLAY UNIT

RELAY
BOX

IGNITION
SWITCH (IG1)

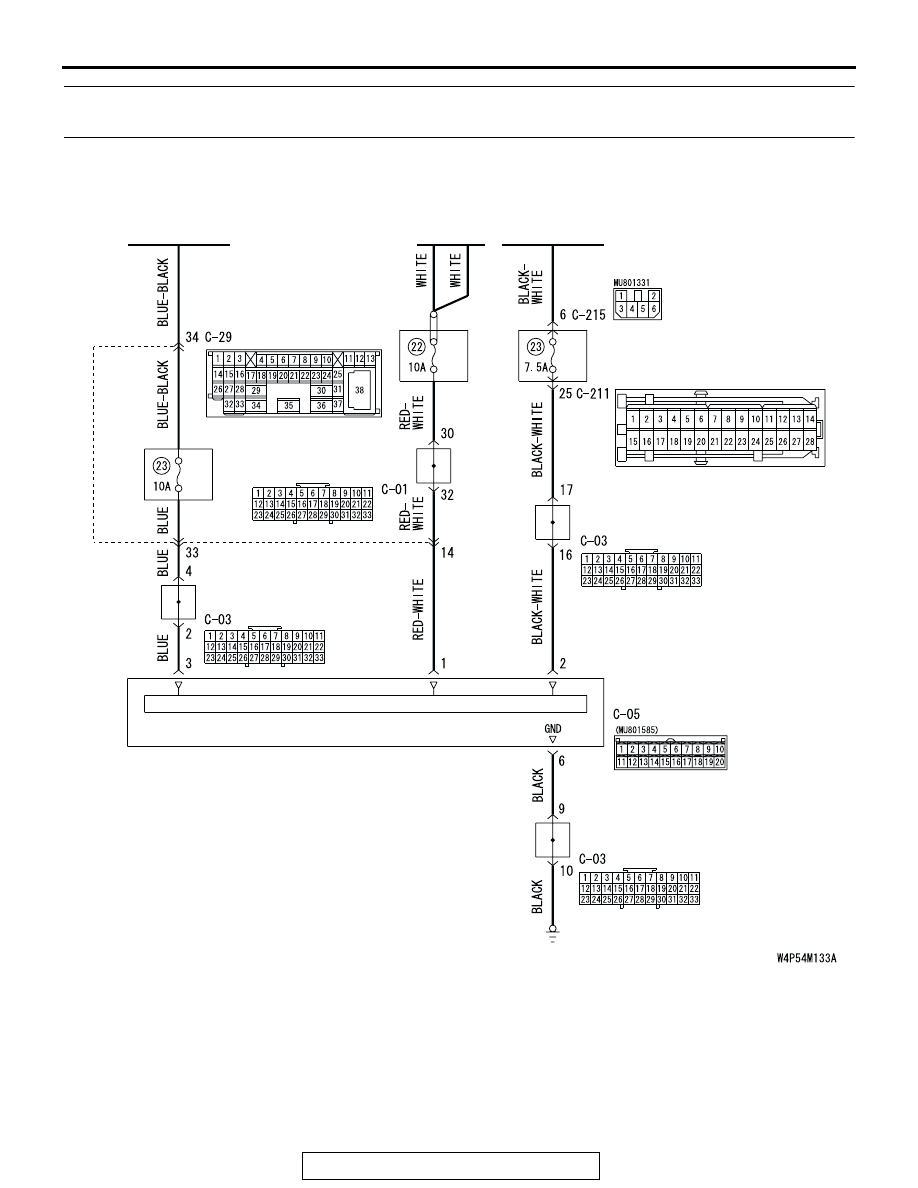

Multi-Center Display Power Supply Circuit

MULTI-CENTER DISPLAY

TSB Revision

CHASSIS ELECTRICAL

54A-270

.

CIRCUIT OPERATION
The multi-center display unit (middle grade type) is
energized by the battery through the ignition switch
(ACC) and (IG1).

.

TECHNICAL DESCRIPTION (COMMENT)
The ground circuit, the battery circuit, the ignition
switch (ACC) circuit or the ignition switch (IG1) circuit
is suspected to be open or defective.

.

TROUBLESHOOTING HINTS

• Malfunction of the multi-center display unit (mid-

dle grade type)

• Damaged wiring harness and connectors

.

DIAGNOSIS

Required Special Tool:

• MB991223: Harness Set

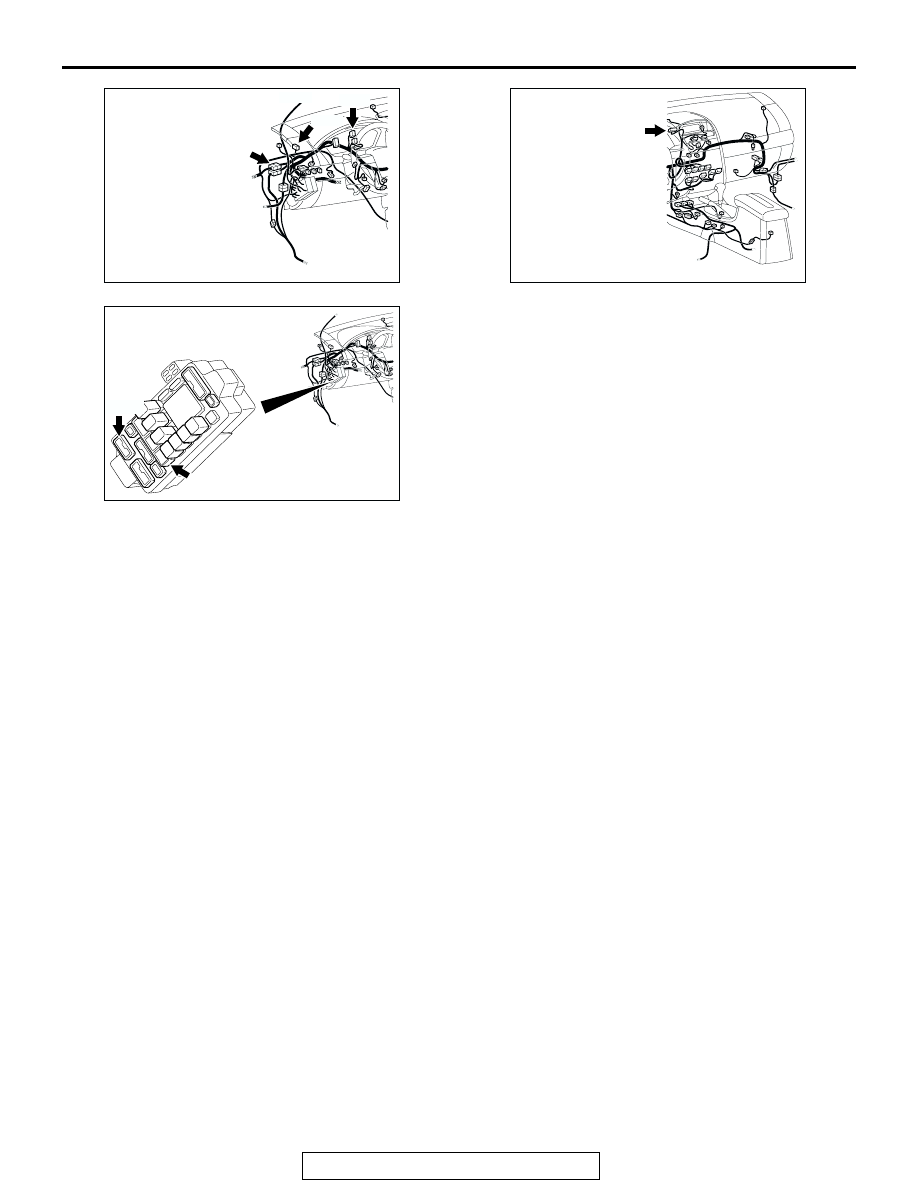

AC305231CI

CONNECTORS: C-01, C-03, C-29

C-01

C-03

C-29

AC305233

C-05 (B)

CK

CONNECTOR: C-05

AC305415

CONNECTORS: C-211, C-215

JUNCTION BLOCK
(FRONT VIEW)

C-215

C-211
