IGNITION SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-47

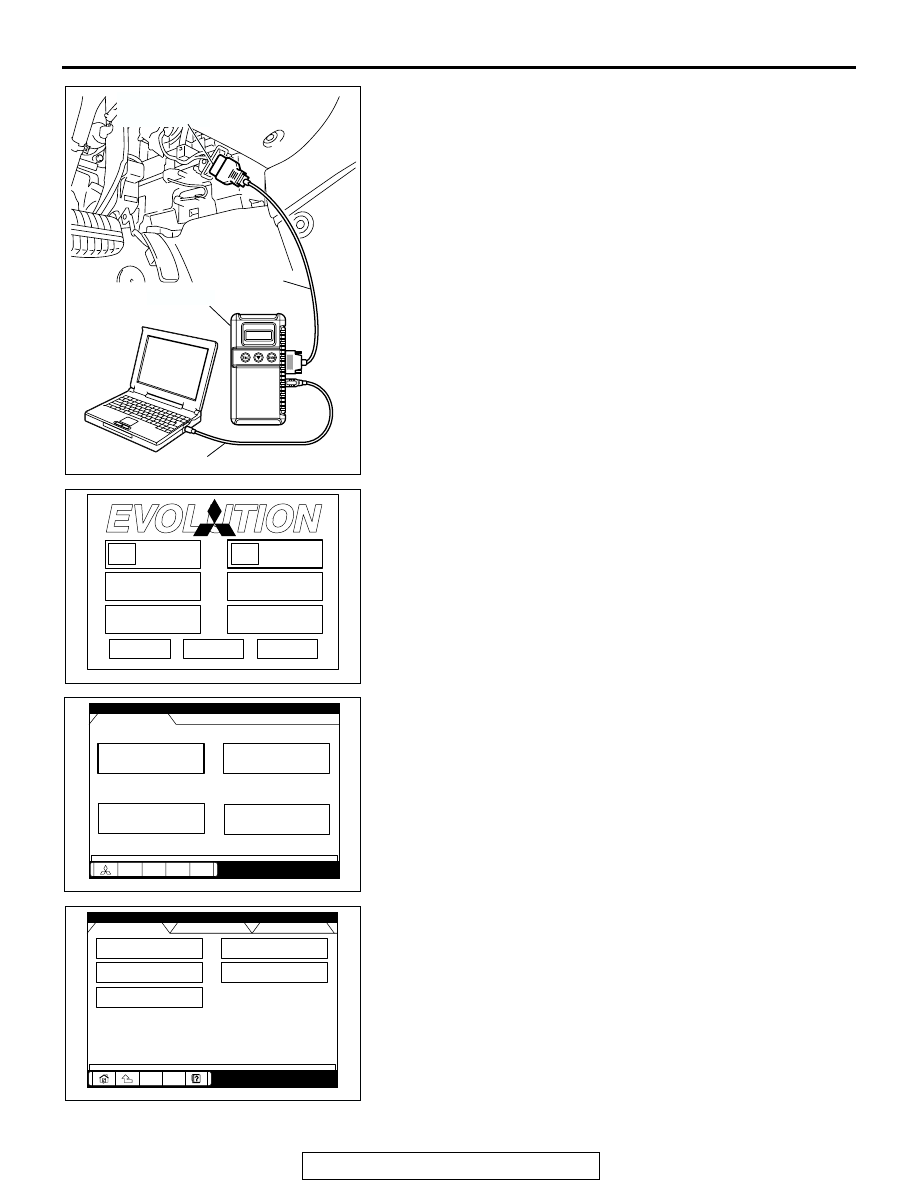

1. Connect the scan tool MB991958 to the data link connector.
2. Turn the ignition switch to "ON" position.

3. Select "Interactive Diagnosis" from the start-up screen.

4. Select "System select."

5. Choose "IMMOBILIZER" from the "POWER TRAIN" tab.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

TIR

Technical Information

Retrleval

Interactive

Diagnosis

Tutorial

Maintenance

Power Down

AC207295

AB

System select

Special function

CAN bus diagnosis

Function Select Menu

Menu

AC209666

Maintenance

AC

MFI

ELC-A/T

IMMOBILIZER

SS4II

CRUISE CNTRL

CHASSIS

BODY

System Select Menu

POWER TRAIN

AC209667

AC

IGNITION SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-48

6. Select "Data List."

7. The multi-center display shows whether the ignition key,

which has been inserted in the switch, can be rewritten and
how many ignition keys have ever been registered.

TP LOCK
CHECK

IGNITION KEY:

JUDGMENT OF
IGNITION KEY

UNLOCK

Can be overwritten Correct

LOCK

Can not be
overwritten

Incorrect

Check Chart For

 Problem Sy

Data List

Special Function

Self-diagnosis

Voltmeter

Simulated Vehicle

Speed Out

Drive Recorder

Resistor

POWERTRAIN

IMMOBILIZER

IMMOBILIZER

AC210932

AB

AC209776

POWERTRAIN

IMMOBILIZER

Data List Reference Table

Info. No.

01

REGD.KEY

3

TP LOCK CHECK

UNLOCK

02

Name

Value

Graph

Data List

Data List

AB

IGNITION SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-49

IGNITION SWITCH

REMOVAL AND INSTALLATION

M1543002100456

WARNING

•

Before removing the steering wheel, air bag module assembly and clock spring refer to
GROUP 52B, Service Precautions (

P.52B-26

) and Air Bag Module and Clock Spring

(

P.52B-368

).

•

When removing and installing the steering wheel, do not let it bump against the air bag
module.

IGNITION SWITCH

TSB Revision

CHASSIS ELECTRICAL

54A-50

AC308088

SECTION A – A

CLAW

2

1

2

3

4

7

2

5

6

A

A

2.5 ± 0.5 N·m
23 ± 4 in-lb

2.0 ± 1.0 N·m
18 ± 9 in-lb

AB

5.0 ± 1.0 N·m
44 ± 9 in-lb

8

A

B

B

COLUMN SWITCH

CLAW

CLAW

NOTE

A

: CLAW POSITIONS

SECTION A – A

SECTION B – B

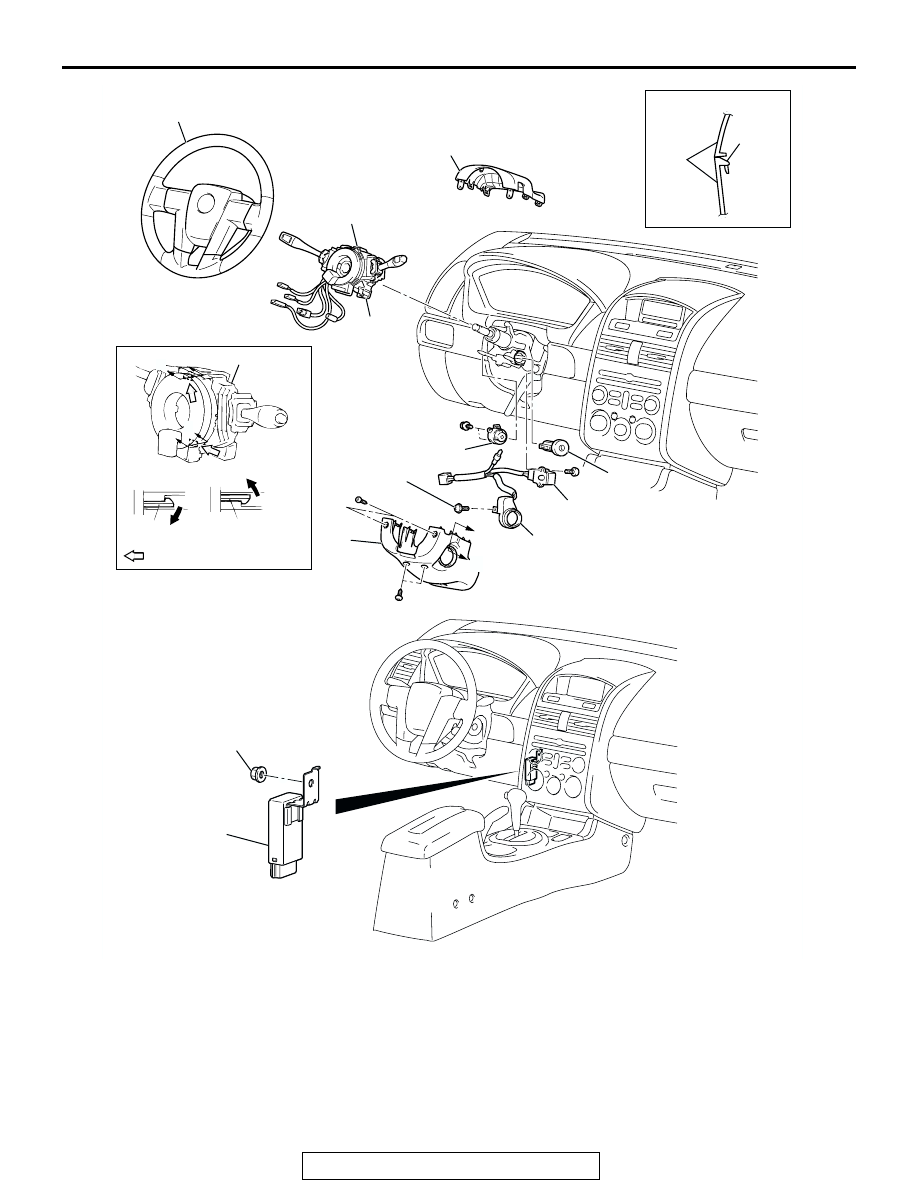

IGNITION SWITCH REMOVAL
STEPS

1.

STEERING WHEEL ASSEMBLY
(REFER TO GROUP 37,
STEERING WHEEL

P.37A-27

.)

<<A>>

2.

STEERING COLUMN COVER
(REFER TO GROUP 52A,
INSTRUMENT PANEL ASSEMBLY

P.52A-3

.)

3.

CLOCK SPRING AND COLUMN
SWITCH ASSEMBLY (REFER TO
GROUP 52B, AIR BAG
MODULE(S) AND CLOCK SPRING

P.52B-368

.)

4.

IGNITION SWITCH

5.

KEY RING ANTENNA

IGNITION SWITCH REMOVAL
STEPS (Continued)
