WHEEL AND TIRE DIAGNOSIS
TSB Revision
WHEEL AND TIRE
31-3
WHEEL BALANCE ACCURACY
M1311001700258
PURPOSE
This section contains tips and procedures for achiev-
ing accurate wheel balance. Steering wheel vibration
and/or body shake can result if any of these proce-
dures are not carefully observed.

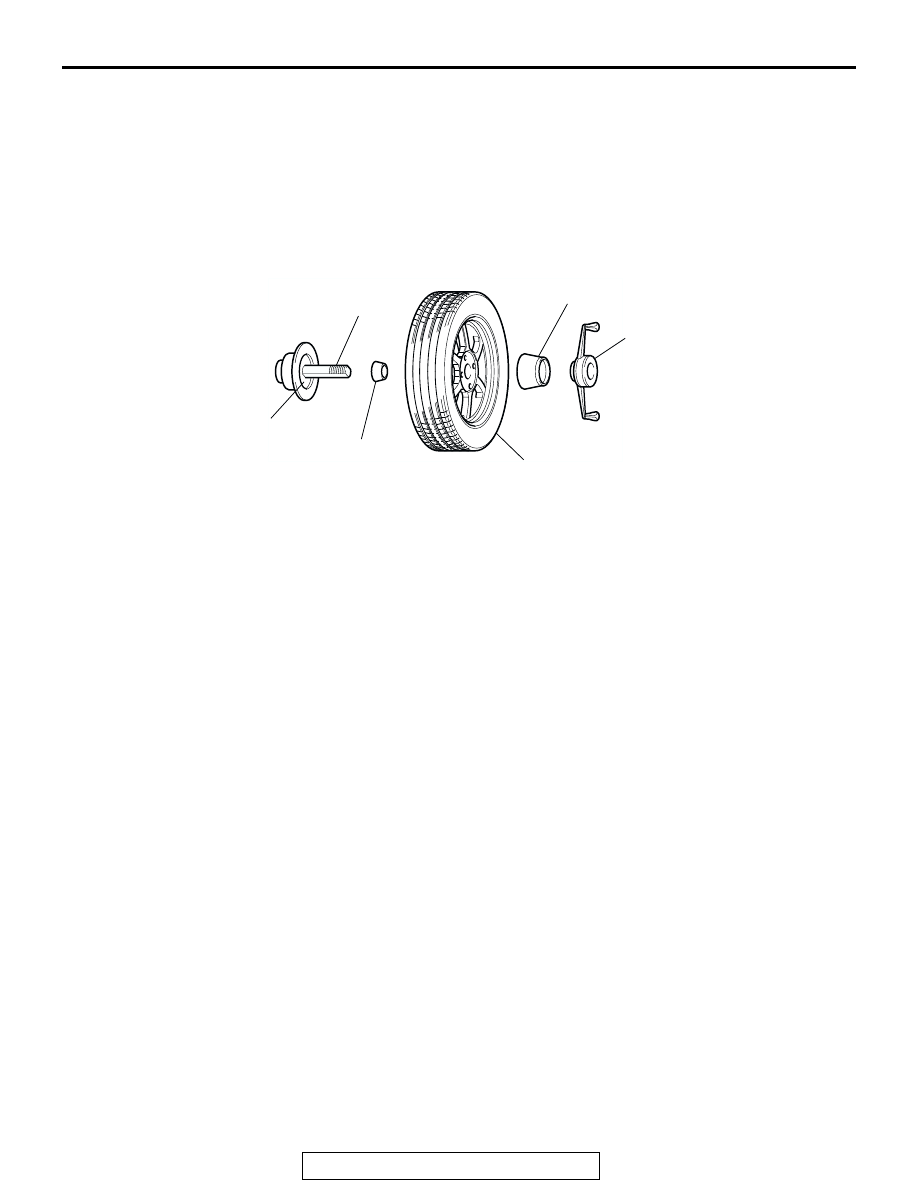

1. Wheels and tires must be properly mounted on a
balancer in order to achieve correct balance.
Centering the wheel on the shaft of the balancer is
essential for proper mounting.
2. Off-the-car wheel balancers must be calibrated
periodically to ensure good balancing results. An
inaccurately calibrated balancer could cause
unnecessary replacement of tires, shocks,
suspension components, or steering components.
Check your balancer's calibration approximately
every 100 balances. Your wheel balancer's instruc-
tion manual should include calibration procedures. If
the calibration procedures specifically for your bal-
ancer are missing, use the generic steps in this sec-
tion for zero calibration, static balance, and dynamic
balance checks. The wheel balancer calibration
checks are also described in the flowchart. (Refer to
P.31-6
.)

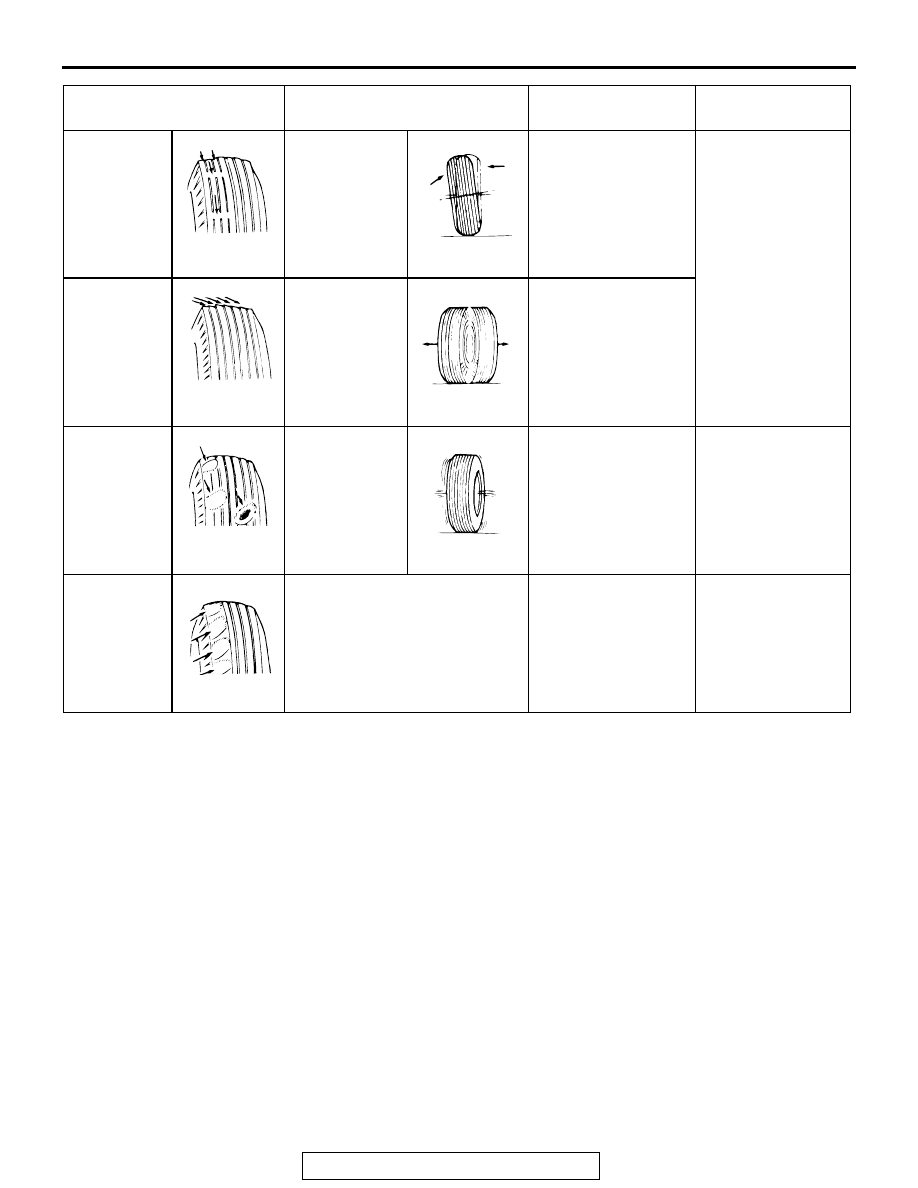

Wear on one
side
Excessive
camber
Check the camber.
Refer to GROUP
33A, On-vehicle
Service
− Front
Wheel Alignment
Check and
Adjustment
P.33-6
.
Feathered
edge
Incorrect toe-in
Adjust the toe-in.
Bald spots
Unbalanced
wheel
Balance the wheels.
−
Scalloped
wear
Lack of rotation of tires or worn
or out-of-alignment suspension
Rotate the tires, and
check the front
suspension
alignment.
Refer to GROUP
33A, On-vehicle
Service
− Front
Wheel Alignment
Check and
Adjustment
P.33-6
.
SYMPTOM
PROBABLE CAUSE
REMEDY
REFERENCE
PAGE
ACX00928 AB
ACX00929 AB
ACX00930AB
ACX00931AB
ACX00932AB
ACX00933 AB
ACX00934
