SPECIAL TOOLS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1125

SPECIAL TOOLS

M1131000600609

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

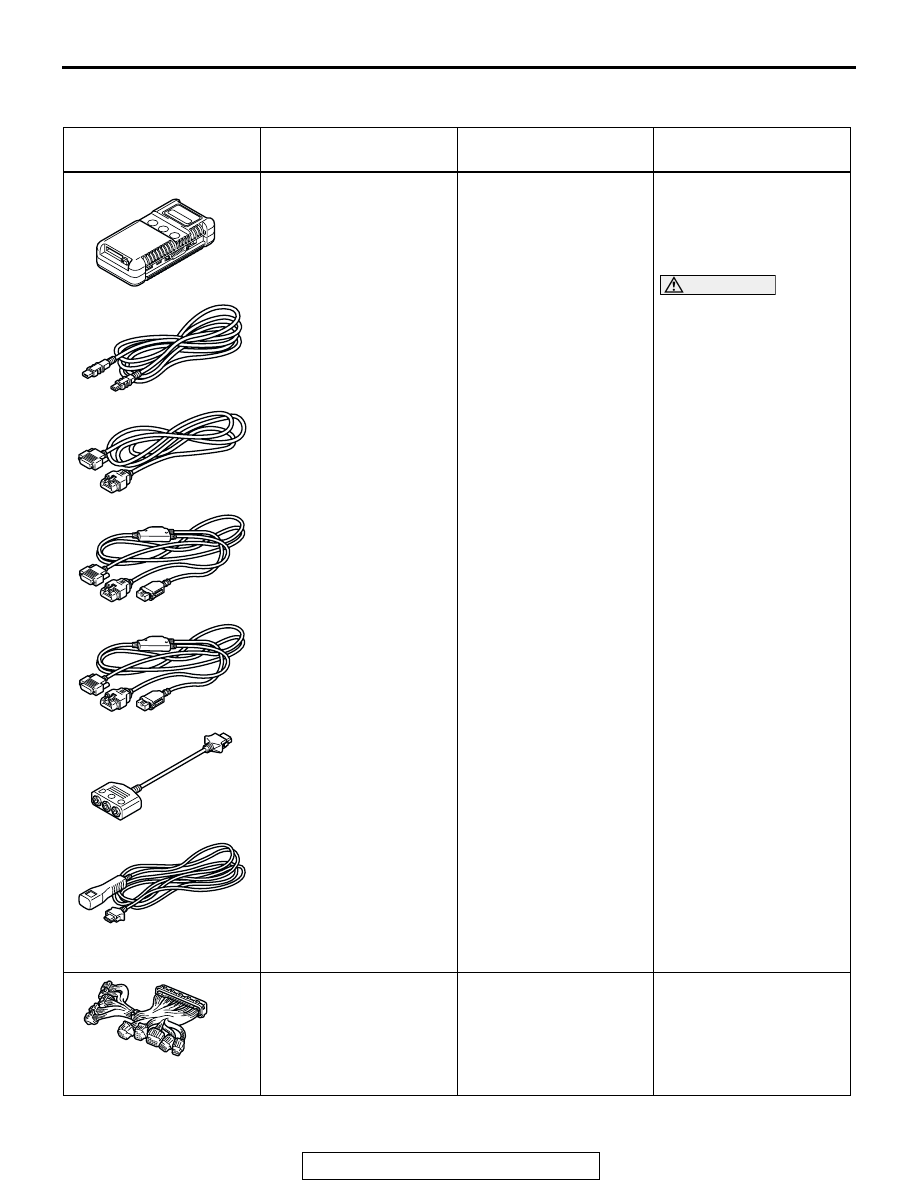

MB991958
A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826
MUT-III sub assembly
A: Vehicle
Communication Interface
(V.C.I.)
B: MUT-III USB Cable
C: MUT-III Main Harness
A (Vehicles with CAN
communication system)
D: MUT-III Main Harness
B (Vehicles without CAN
communication system)
E: MUT-III Main Harness
C (for Daimler Chrysler
models only)
F: MUT-III Adapter
Harness
G: MUT-III Trigger
Harness

MB991824-KIT
NOTE: G: MB991826
MUT-III Trigger Harness
is not necessary when
pushing V.C.I. ENTER
key.

• Reading diagnostic

trouble code

• MFl system inspection

• Measurement of fuel

pressure

CAUTION

For vehicles with CAN
communication, use
MUT-III main harness A
to send simulated
vehicle speed. If you
connect MUT-III main
harness B instead, the
CAN communication
does not function
correctly.

MB991923
Power plant ECU check
harness

MD998478-01

• lnspection using an

oscilloscope

• lnspection of the

powertrain control
module (PCM)
terminal voltage check

MB991910

MB991826

MB991958

MB991911

MB991914

MB991824

MB991827

MB991825

A

B

C

D

E

F

G

MB991923

SPECIAL TOOLS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1126

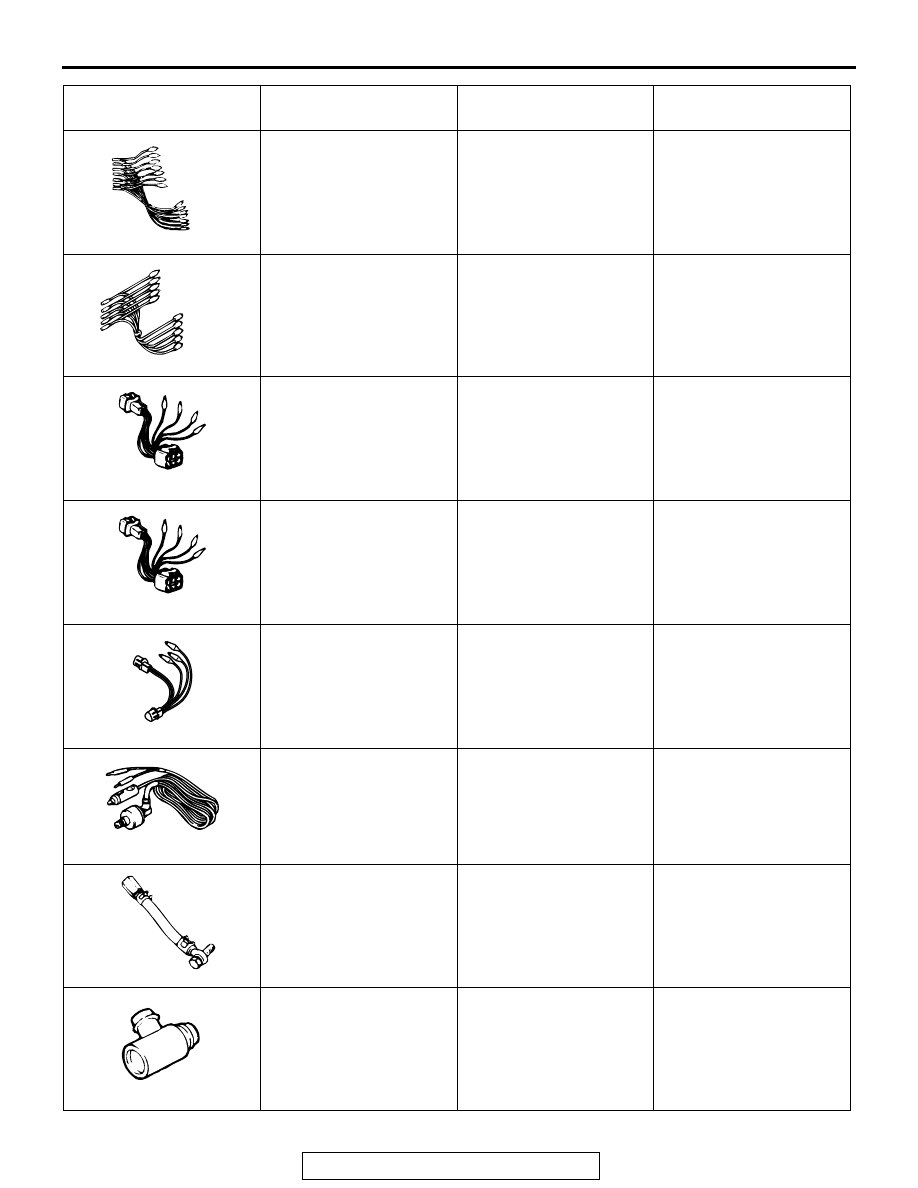

MB991709
Test harness set

MB991709-01

Inspection using an
oscilloscope

MB991658
Test harness set

Tool not available

• Inspection using an

oscilloscope

• Adjustment of

accelerator pedal
position sensor

MD998464
Test harness (4 pin,
square)

MD998464-01

• Inspection of heated

oxygen sensor

MB991316
Test harness (4 pin,
square)

Tool not available

Inspection of heated
oxygen sensor

MD998478
Test harness (3 pin,
triangle)

MD998478-01

Inspection using an
oscilloscope

MB991637
Fuel pressure gauge set

Tool not available

Measurement of fuel
pressure

MD998709
Adaptor hose

MIT210196

Measurement of fuel
pressure

MD998742
Hose adaptor

MD998742-01

Measurement of fuel
pressure

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

MB991658

MB991637

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1127

ON-VEHICLE SERVICE

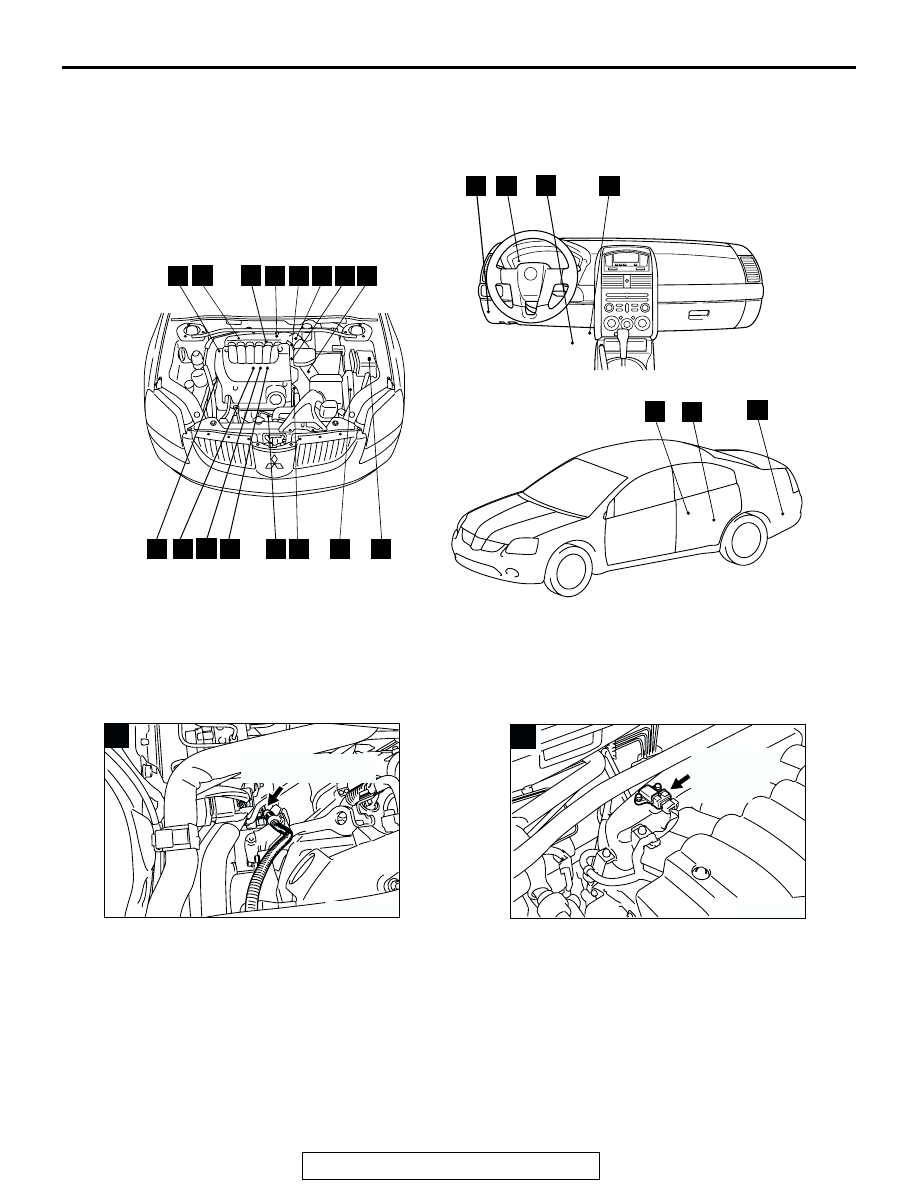

COMPONENT LOCATION

M1131002100837

NAME

SYMBOL

NAME

SYMBOL

Accelerator pedal position sensor S

Knock sensor

K

Camshaft position sensor

N

Left bank heated oxygen sensor
(front)

M

Crankshaft position sensor

I

Left bank heated oxygen sensor
(rear)

M

Data link connector

T

Malfunction Indicator Lamp
(SERVICE ENGINE SOON or
Check Engine Lamp)

R

Exhaust gas recirculation (EGR)
valve

D

Manifold absolute pressure
sensor

B

Engine coolant temperature
sensor

E

Mass airflow sensor (with built-in
intake air temperature sensor)

H

Evaporative emission purge
solenoid

G

Multiport fuel injection (MFI) relay P

Evaporative emission ventilation
solenoid

W

Powertrain control module (PCM) O

Fuel level sensor (main)

V

Power steering pressure switch

A

Fuel level sensor (sub)

U

Right bank heated oxygen sensor

(front)

C

Fuel pump relay

Q

Right bank heated oxygen sensor

(rear)

C

Fuel tank differential pressure
sensor

U

Throttle actuator control motor

F

Fuel tank temperature sensor

V

Throttle actuator control motor
relay

P

Ignition coil

L

Throttle position sensor

F

Injector

J

ON-VEHICLE SERVICE

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1128

AK303200

B

C

D

E

F

G

I

J

M N

A

O

P

Q

R

S

T

U

AB

W

V

H

K

L

AK303297

POWER STEERING
PRESSURE SWITCH

AB

A

AK303287

B

MANIFOLD
ABSOLUTE
PRESSURE
SENSOR

AB
