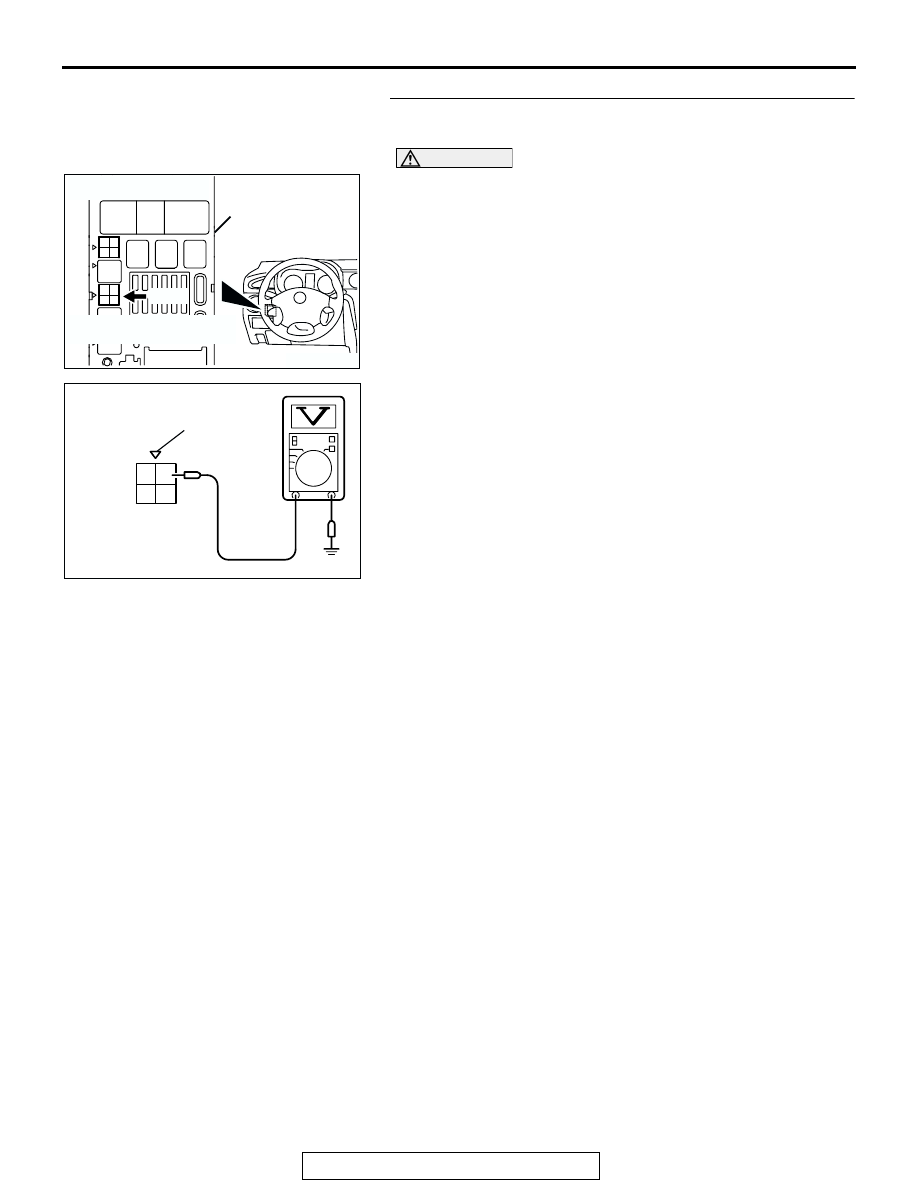

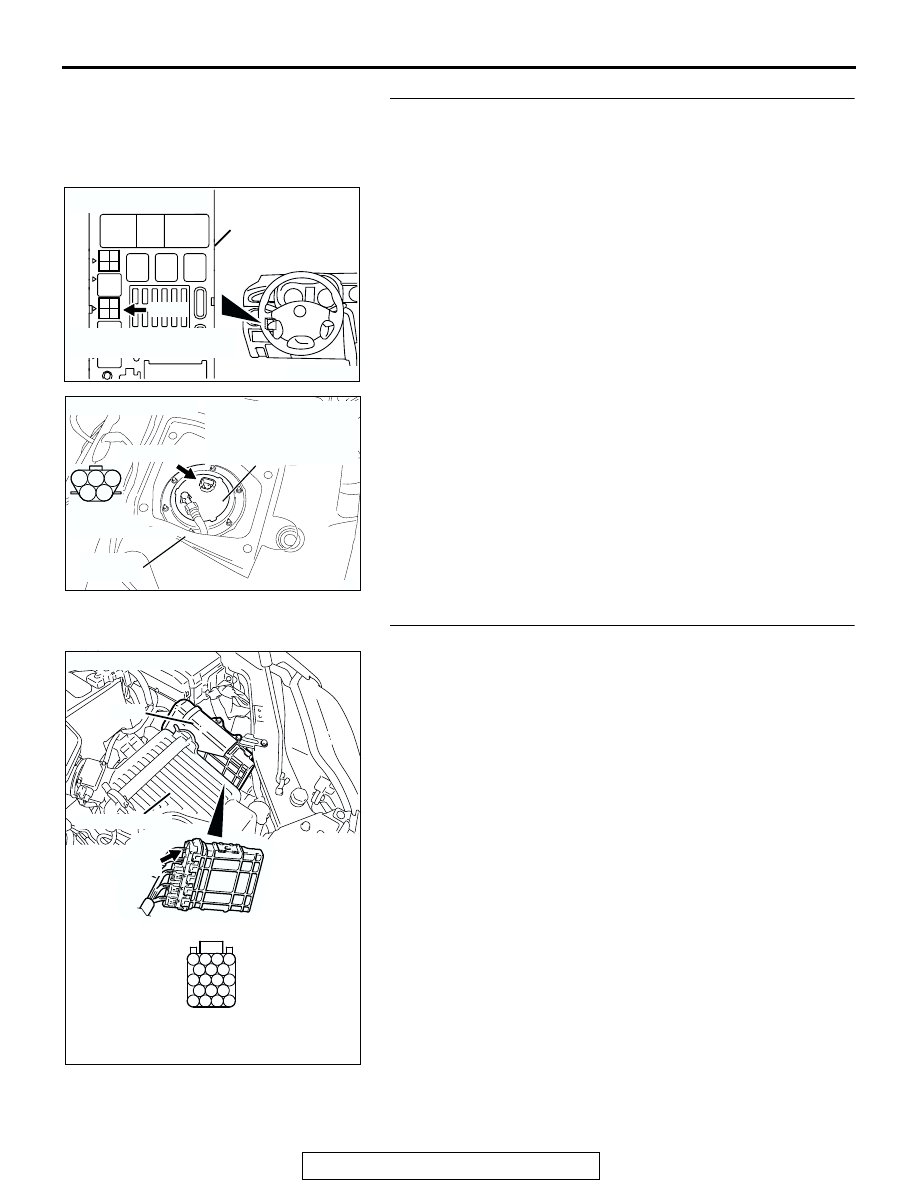

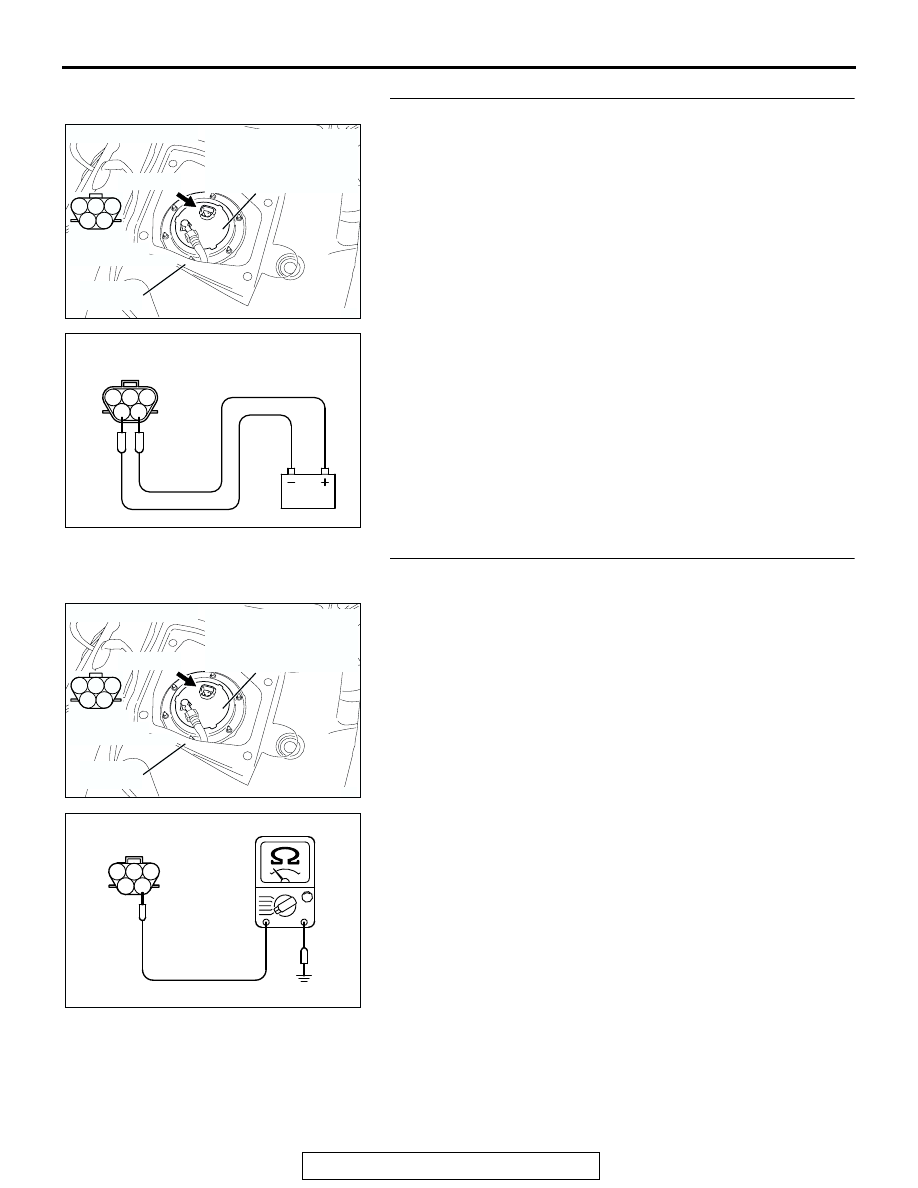

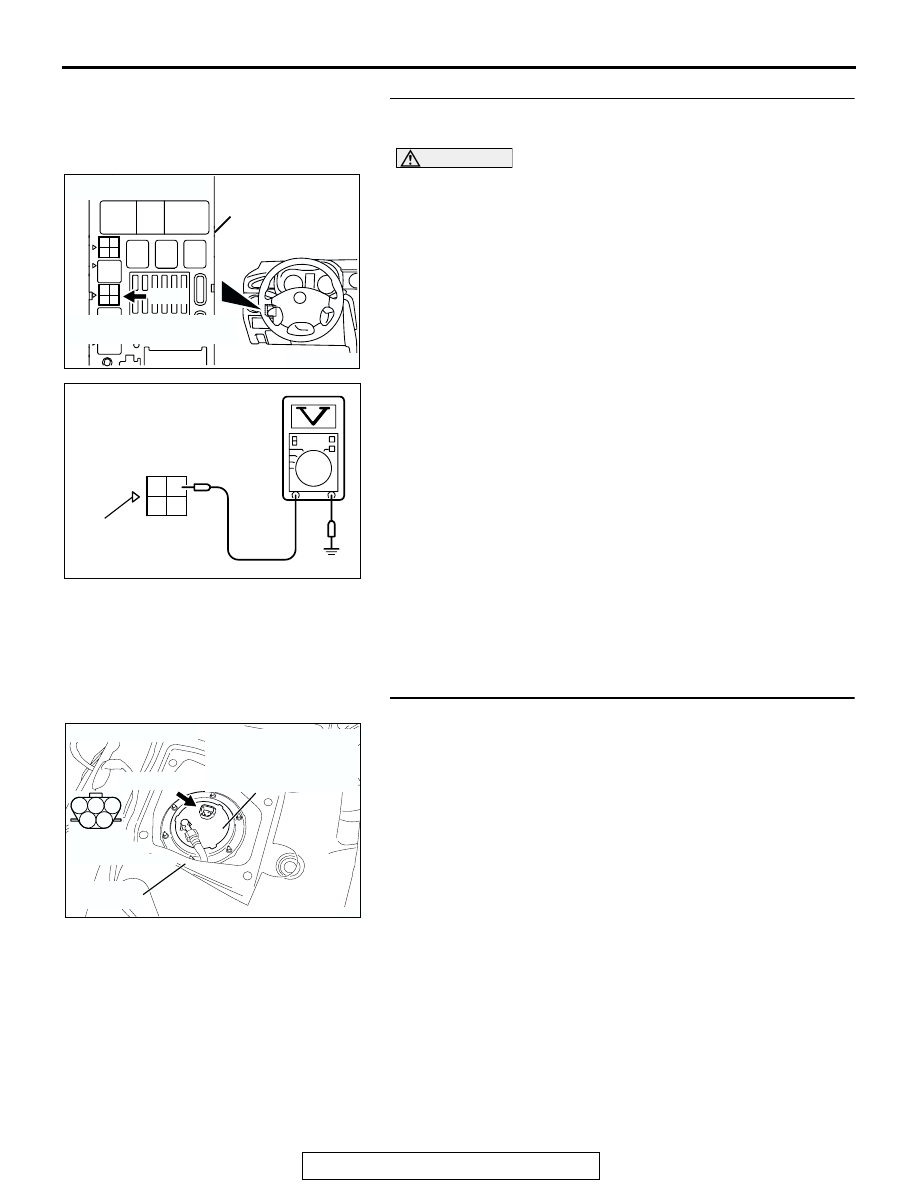

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE> 13B-1069 STEP 7. Measure the power supply voltage at fuel pump CAUTION Because it is difficult to distinguish the top and bottom of harness side. (2) Turn the ignition switch to the "ON" position. (3) Measure the voltage between terminal No. 1 and ground. • Voltage should be battery positive voltage. Q: Is battery positive voltage (approximately 12 volts) present? connector C-210 (terminal No. 1) and fuel pump relay 3 1 3 1 3 1 AK203272 JUNCTION BLOCK C-208 HARNESS CONNECTOR: CONNECTOR: C-208 AB 2 1 3 4 AK203273 C-208 HARNESS AB JUNCTION |
