Mitsubishi Galant (2004+). Manual - part 1330

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1013

STEP 4. Inspection of throttle body (throttle valve area) for
dirtiness.
Q: Is the throttle valve area dirty?

YES : Refer to On-vehicle Service

− Clean the throttle valve

area

P.13B-1133

.

NO :  Check the following items, and repair, replace or

clean the defective sections.

a. Check the ignition coil and spark plugs.
b. Check the EGR valve.

Then confirm that the malfunction symptom is

eliminated.

INSPECTION PROCEDURE 15: Hesitation, sag or stumble.

.

COMMENT

• In cases such as the above, the ignition system,

air/fuel mixture compression pressure may be
defective.

.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

• Malfunction of the ignition system.

• Malfunction of air/fuel ratio control system.

• Malfunction of the fuel supply system.

• Malfunction of the EGR system.

• Poor compression pressure.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1014

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

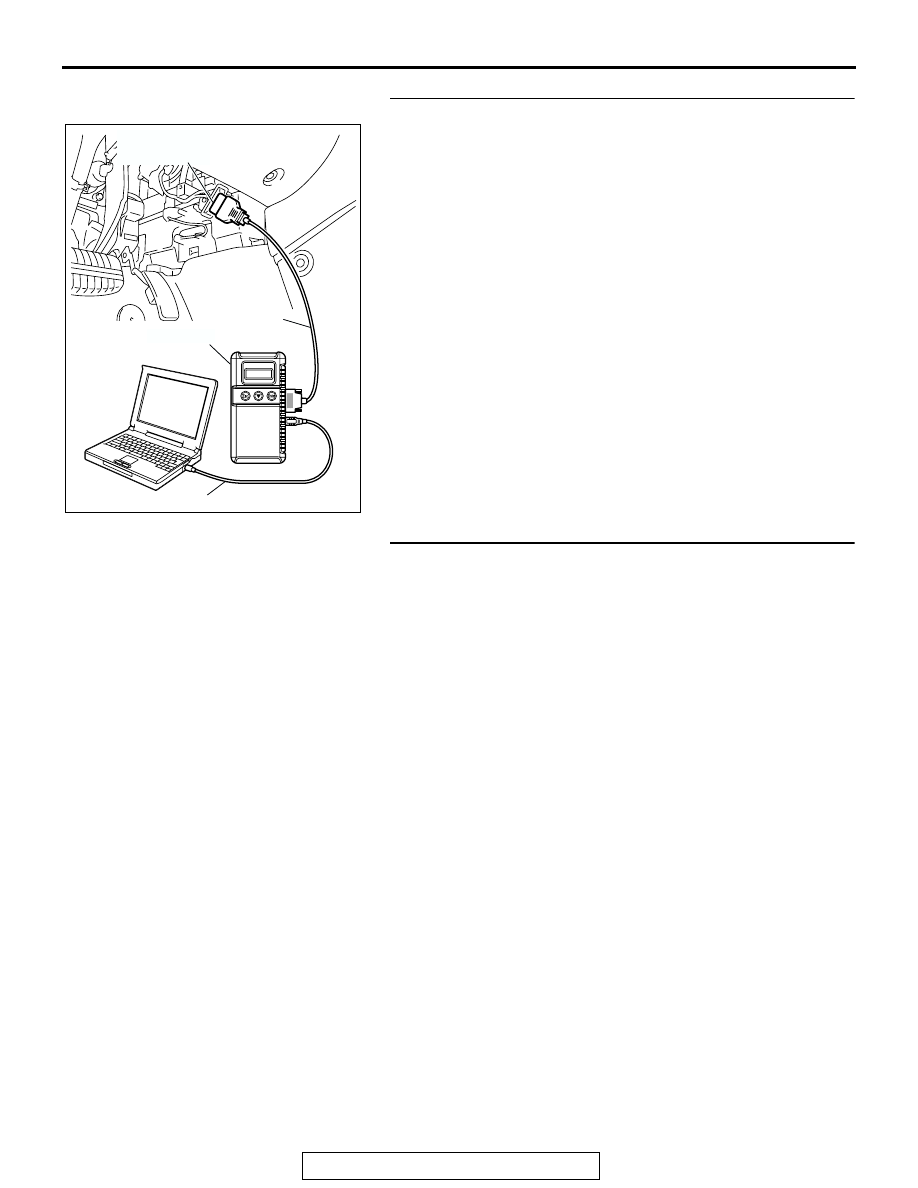

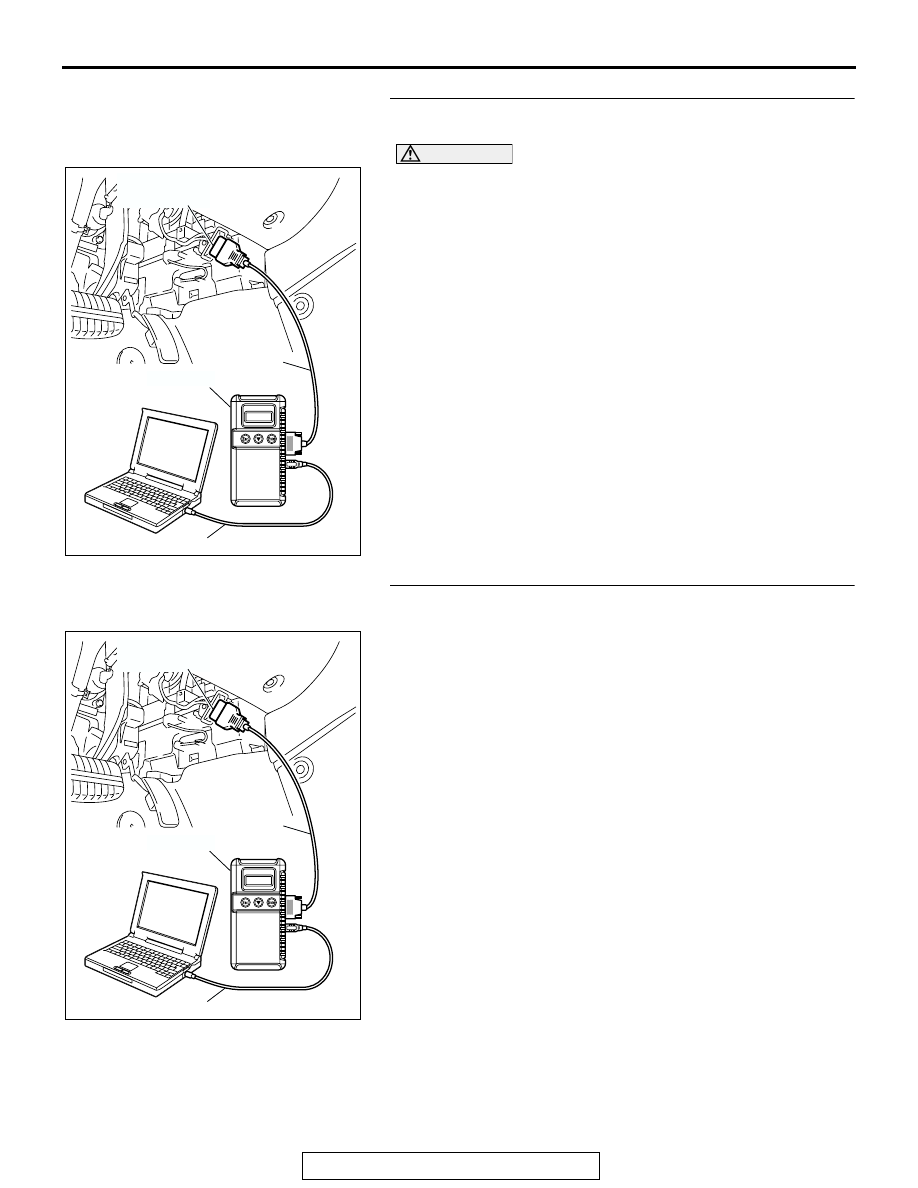

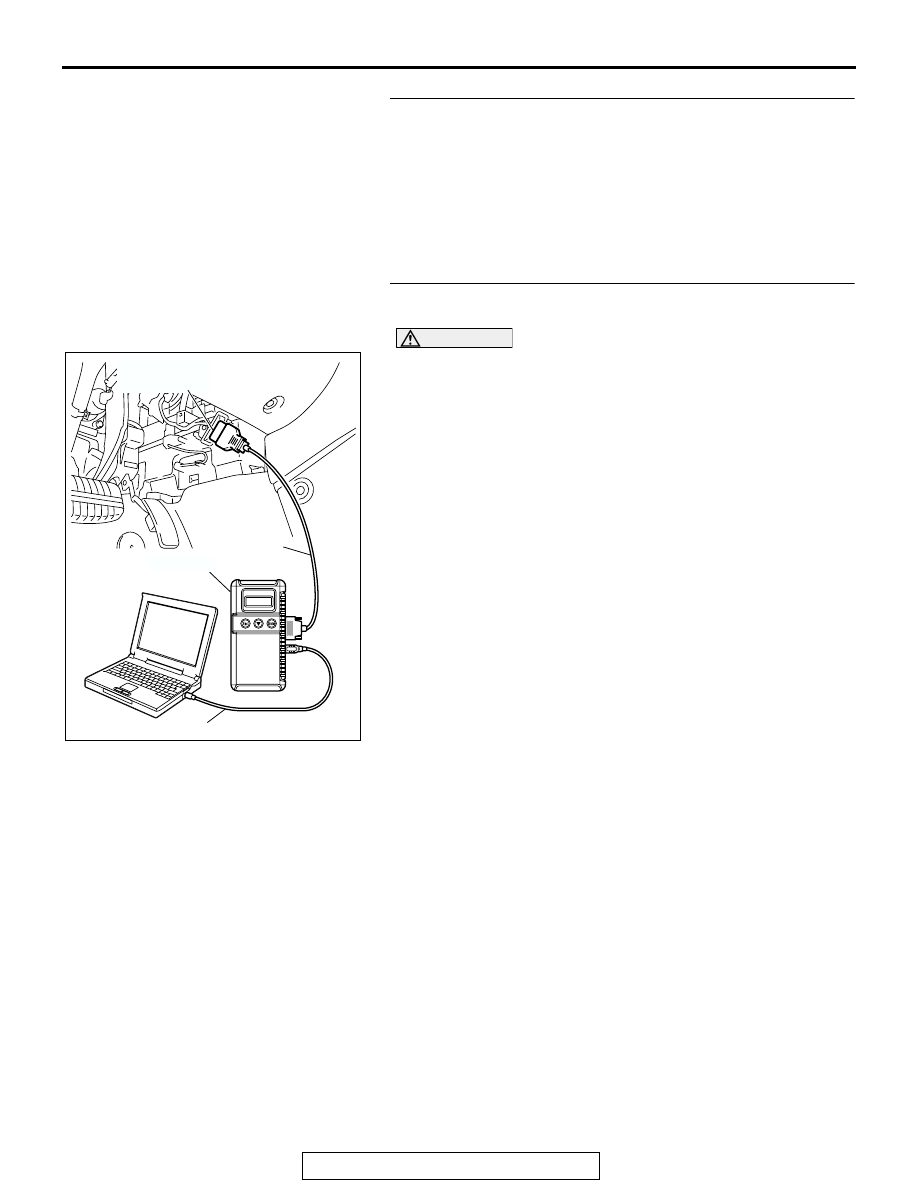

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13B-33

.

NO :  Go to Step 2.

STEP 2. Using scan tool MB991958, check actuator test
items 01, 02, 03, 04, 05, 06: Injector.

(1) Check following items in the actuator test. Refer to Actuator

Test Reference Table

P.13B-1106

.

a. Item 01, 02, 03, 04, 05, 06: Injector.

(2) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are thy operating properly?

YES : Go to Step 3.
NO :  Refer to DTC P0201

P.13B-471

, P0202

P.13B-482

,

P0203

P.13B-492

, DTC P0204

P.13B-503

,

P0205

P.13B-513

, P0206

P.13B-524



− Injector Circuit.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1015

STEP 3. Check the ignition timing.

(1) Refer to GROUP 11A, On-vehicle Service

− Ignition Timing

Check

P.11A-12

.

Q: Is the ignition timing normal?

YES : Go to Step 4.
NO :  Check that the crankshaft position sensor and timing

belt cover are in the correct position. Then confirm
that the malfunction symptom is eliminated.

STEP 4. Using scan tool MB991958, check data list and
actuator test.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.

(3) Check the following items in the data list. Refer to Data List

Reference Table

P.13B-1092

.

a. Item 13: Intake Air Temperature Sensor.
b. Item 25: Barometric Pressure Sensor.

c. Item 21: Engine Coolant Temperature Sensor.

d. Item 69: Right Bank Heated Oxygen Sensor (rear).
e. Item 39: Right Bank Heated Oxygen Sensor (front).

f. Item 59: Left Bank Heated Oxygen Sensor (rear).

g. Item 11: Left Bank Heated Oxygen Sensor (front).

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are they operating properly?

YES : Go to Step 5.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-1016

STEP 5. Using scan tool MB991958, check data list.

(1) Turn the ignition switch to the "ON" position.
(2) Check the following items of data list. Refer to Data List

Reference Table

P.13B-1092

.

a. Item 39: Right Bank Heated Oxygen Sensor (front).
b. Item 11: Left Bank Heated Oxygen Sensor (front).

• Voltage should fluctuate between 0 − 0.4 volt and 0.6 −

1.0 volt while idling after the engine has warmed-up.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Go to Step 7.
NO :  Go to Step 6.

STEP 6. Check the fuel pressure.

Refer to On-vehicle Service

− Fuel Pressure Test

P.13B-1133

.

Q: Is the fuel pressure normal?

YES : Check the following items, and repair or replace the

defective items.

a. Vacuum leak.

• Broken intake manifold gasket.

• Broken air intake hose.

• Broken vacuum hose.

• Positive crankcase ventilation valve does

not operate.

b. Injector clogged.

Then confirm that the malfunction symptom is

eliminated.

NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
