MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-817

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

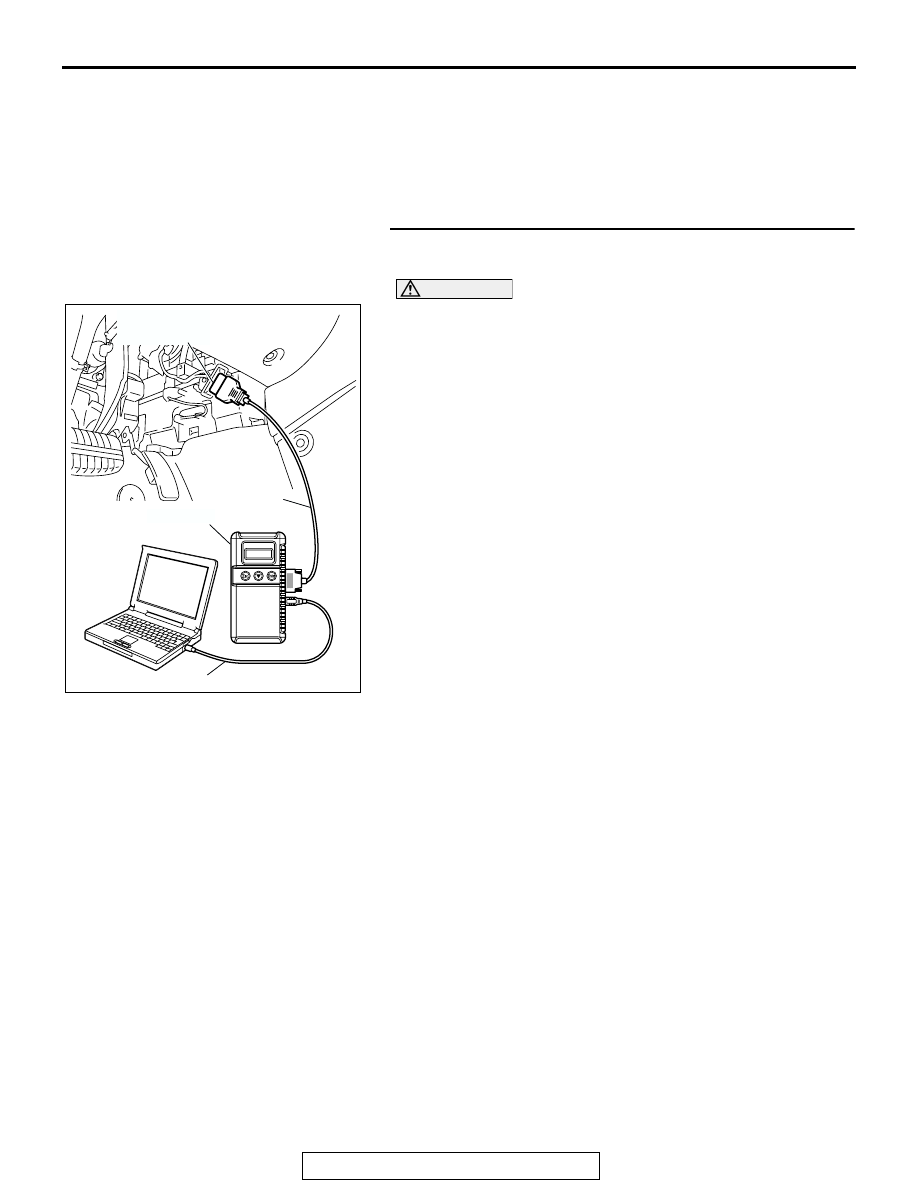

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC)

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.

(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is DTC P0606 set?

YES : Replace the PCM.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-818

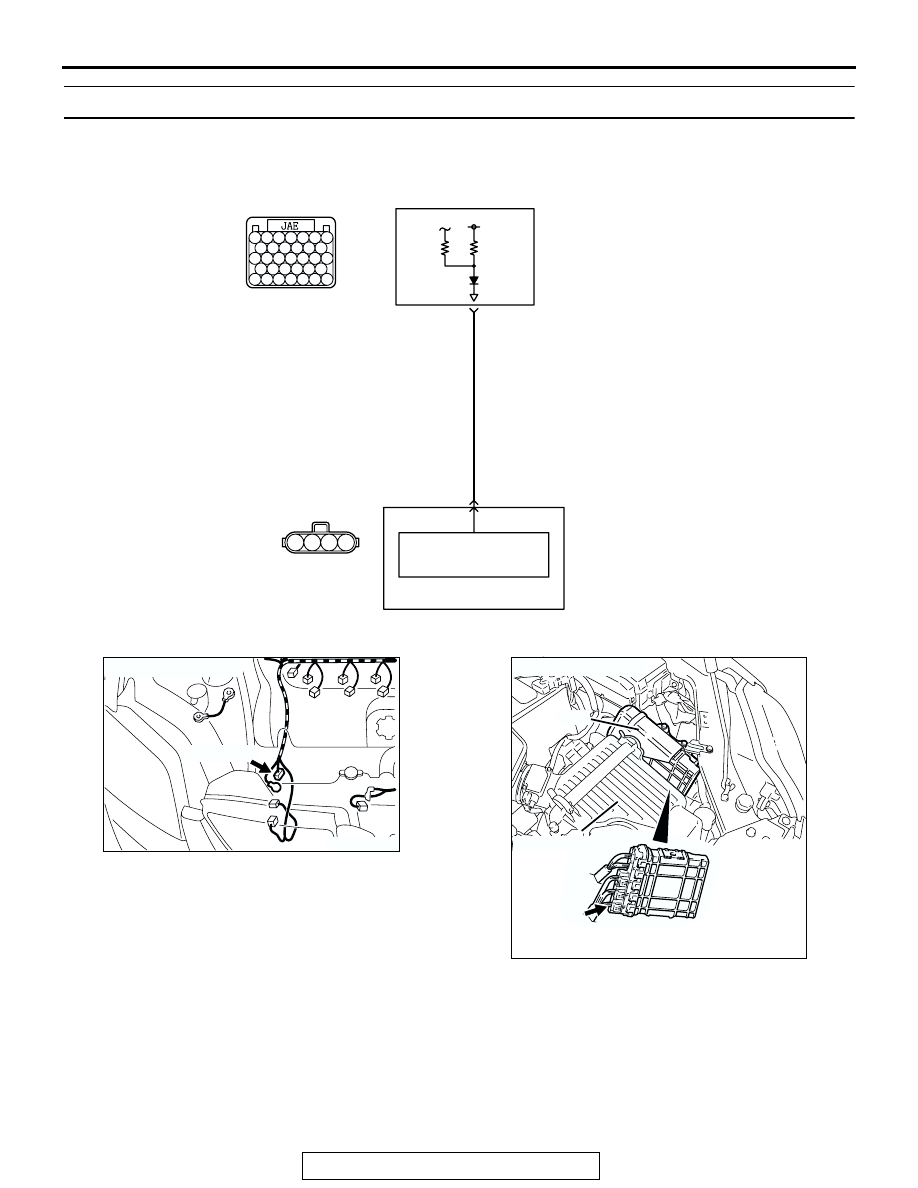

DTC P0622: Generator FR Terminal Circuit Malfunction

.

CIRCUIT OPERATION

• The PCM (terminal No. 131) apply a battery posi-

tive voltage into the generator FR terminal No. 4
via resistance inside the unit.

.

TECHNICAL DESCRIPTION

• When the generator field coils are controlled, the

generator FR terminal inputs signal to the PCM.

• The PCM detects the generator output with the

input signal, and controls the idle air control
motor according to the generator output.

.

AK302867

YELLO

W

-BLA

CK

POWERTRAIN CONTROL
MODULE (PCM)

GENERATOR

IC VOLTAGE
REGULATOR

      B-116
(MU802066)

131

     B-23

4

Generator Circuit

4

3

2

1

121 122 123 124 125 126 127

128 129 130 131 132 133

134 135 136 137 138 139 140

141 142 143 144 145 146

147 148 149 150 151 152 153

AK303166AB

CONNECTOR: B-116

B-116 (GR)

AK303059

CONNECTOR: B-23

PCM

AB

AIR CLEANER

B-23

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-819

DTC SET CONDITIONS

Check Conditions

• Engine speed is higher than 50 r/min.

Judgement Criteria

• Input voltage from the generator FR terminal has

continued to be approximately battery positive
voltage for 20 seconds.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set area: )

• Generator failed.

• Open or shorted circuit in generator FR terminal

circuit, harness danage or connector damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

• MB991923: Power Plant ECU Check Harness

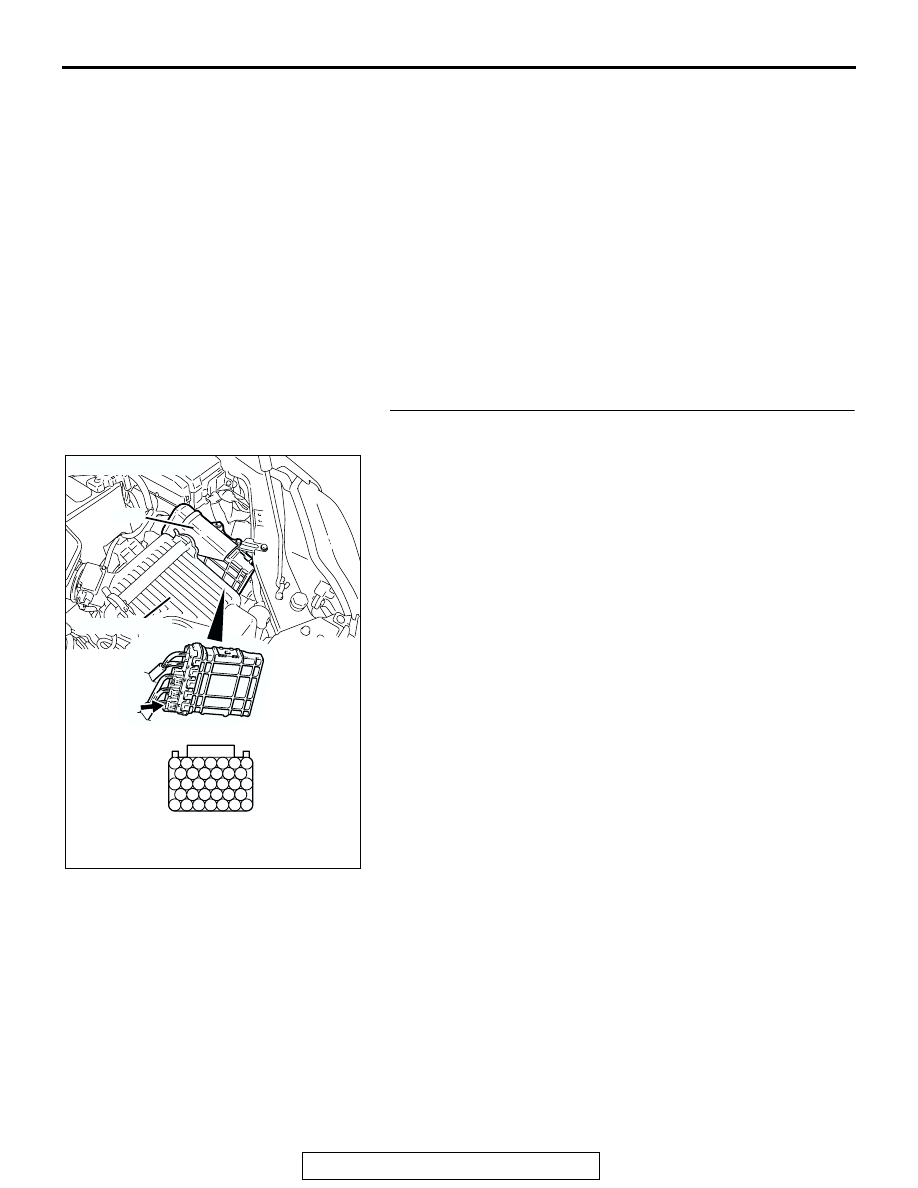

STEP 1. Check harness connector B-23 at PCM connector
for damage.

Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Conector Inspection

P.00E-2

. Then go to Step 8.

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-820

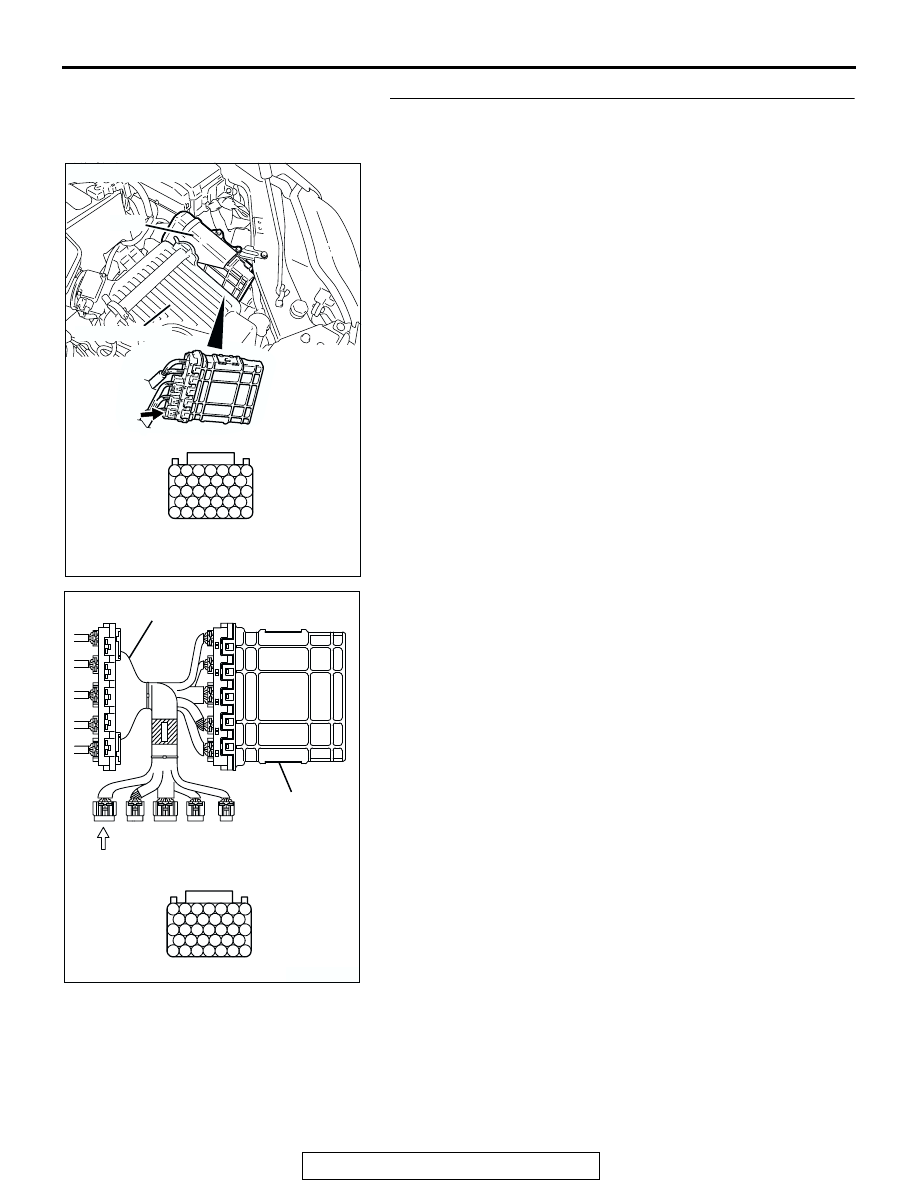

STEP 2. Measure the voltage at PCM connector B-23 by
using power plant ECU check harness special tool
MB991923.

(1) Disconnect the all PCM connectors and connect power

plant ECU check harness special tool MB991923 between
the separated connectors.

(2) Start the engine and run at idle.

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER

AK202954

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AB

POWER PLANT ECU
CHECK HARNESS CONNECTOR

MB991923

PCM
