MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-733

Step 17   .

STEP 17. Perform the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern (Refer to

Diagnostic Function

− OBD-ll Drive Cycle − Procedure 1 −

Evaporative Emission System Leak Monitor

P.13B-5

).

(2) Read the diagnostic trouble code (DTC).
Q: Is DTC P0452 set?

YES : Repeat the troubleshooting from Step 2.
NO :  The procedure is complete.

DTC P0453: Evaporative Emission System Pressure Sensor High Input

AC306278

A

B

C

D

E

F

G

O

P

Q

N

M

L

H

I

J

K

AC

INTAKE MANIFOLD PLENUM

FUEL TANK

EVAPORATIVE EMISSION
VENTILATION SOLENOID

CHECK VALVE

EVAPORATIVE EMISSION
PURGE SOLENOID

EVAPORATIVE
EMISSION CANISTER

ONBOARD REFUELING
VAPOR RECOVERY(ORVR)
VENT VALVE MODULE

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

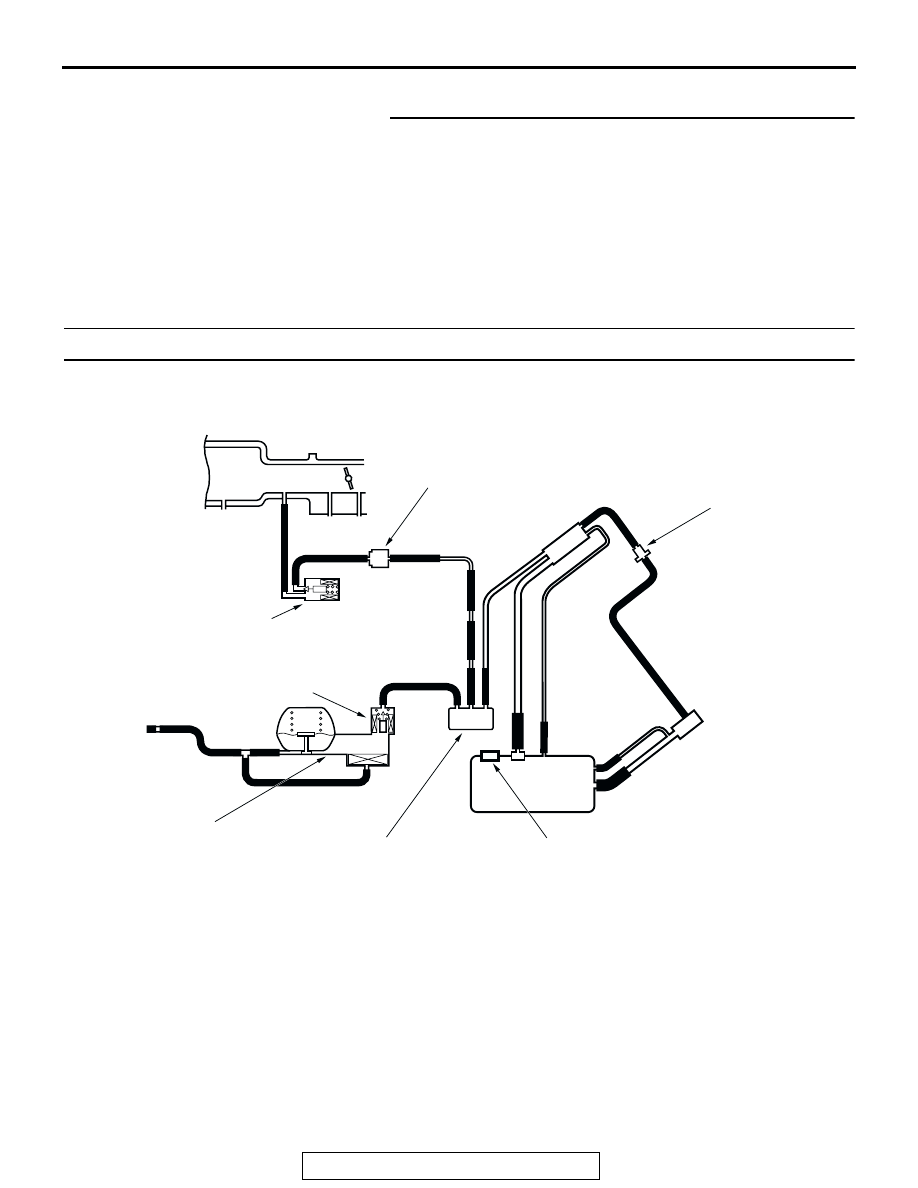

SYSTEM DIAGRAM

CHAMBER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-734

FUEL TANK
DIFFERENTIAL
PRESSURE
SENSOR

POWERTRAIN
CONTROL
MODULE

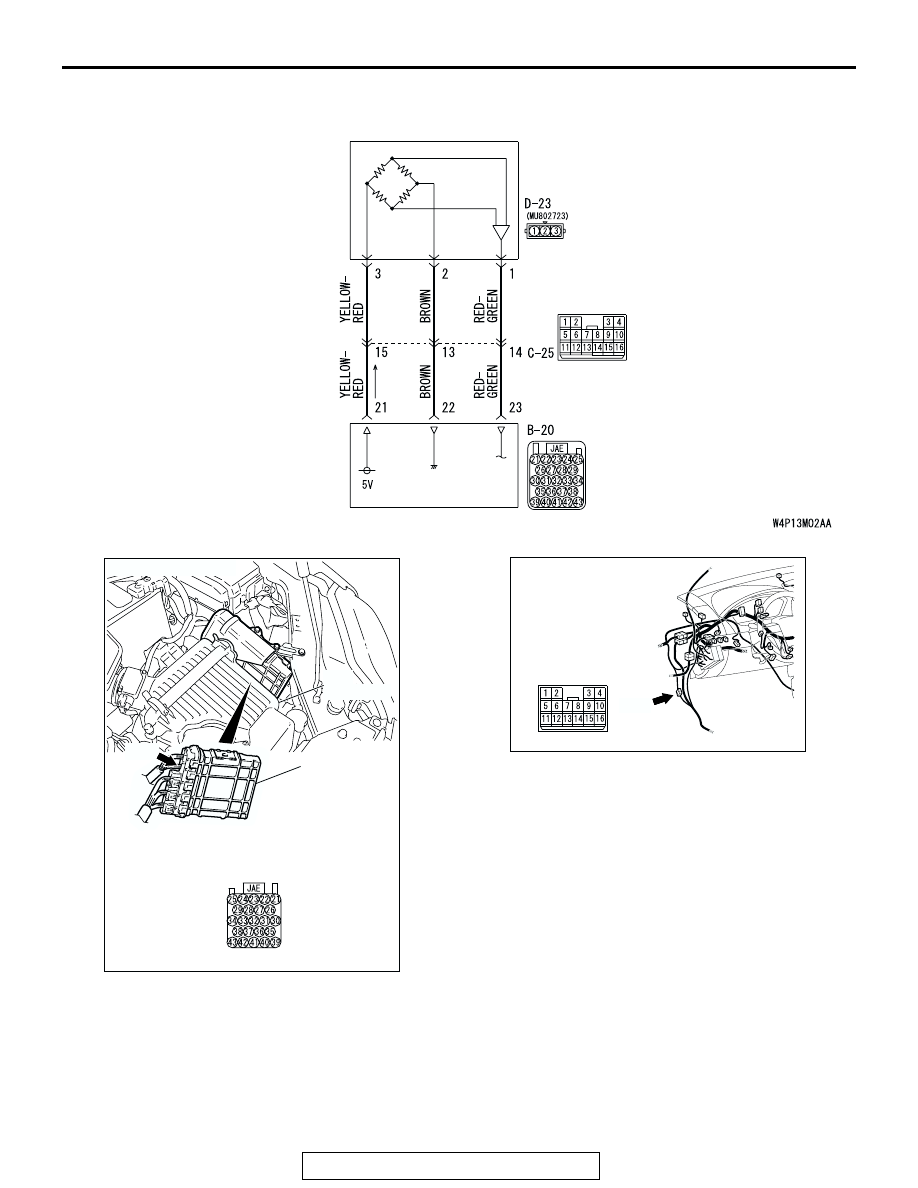

Fuel Tank Differential Pressure Sensor Circuit

AC306128

AC306248

B-20 HARNESS

CONNECTOR:

COMPONENT SIDE

AB

B-20

CONNECTOR: B-20

PCM

AIR
CLEANER

AC305231

CONNECTOR: C-25

AM

C-25

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-735

.

CIRCUIT OPERATION

• The PCM (terminal 21) supplies a 5-volt refer-

ence voltage to the fuel tank differential pressure
sensor (terminal 3). The PCM (terminal 22) sup-
plies a ground to the fuel tank differential pres-
sure sensor (terminal 2).

• The PCM (terminal 23) receives a voltage signal

proportional to the pressure in the fuel tank from
the fuel tank differential pressure sensor (terminal
1).

.

TECHNICAL DESCRIPTION

• To determine whether the fuel tank differential

pressure sensor is defective, the PCM monitors
the fuel tank differential pressure sensor output
voltage.

• The PCM judges if the fuel tank differential pres-

sure sensor output voltage is normal.

NOTE: In rare cases, this DTC may be also set
under some fuel and driving conditions regardless of
the fuel pressure sensor output voltage when the fuel
system is clogged.

.

DESCRIPTIONS OF MONITOR METHODS

• Compare purge solenoid status with fuel tank dif-

ferential pressure sensor output voltage.

.

MONITOR EXECUTION

• Continuous.

.

MONITOR EXECUTION CONDITIONS (Other
Monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Evaporative emission purge solenoid monitor

• Evaporative emission ventilation solenoid monitor

 Sensor (The sensors below are determined to be

normal)

• Mass airflow sensor

• Barometric pressure sensor

• Intake air temperature sensor

• Engine coolant temperature sensor

.

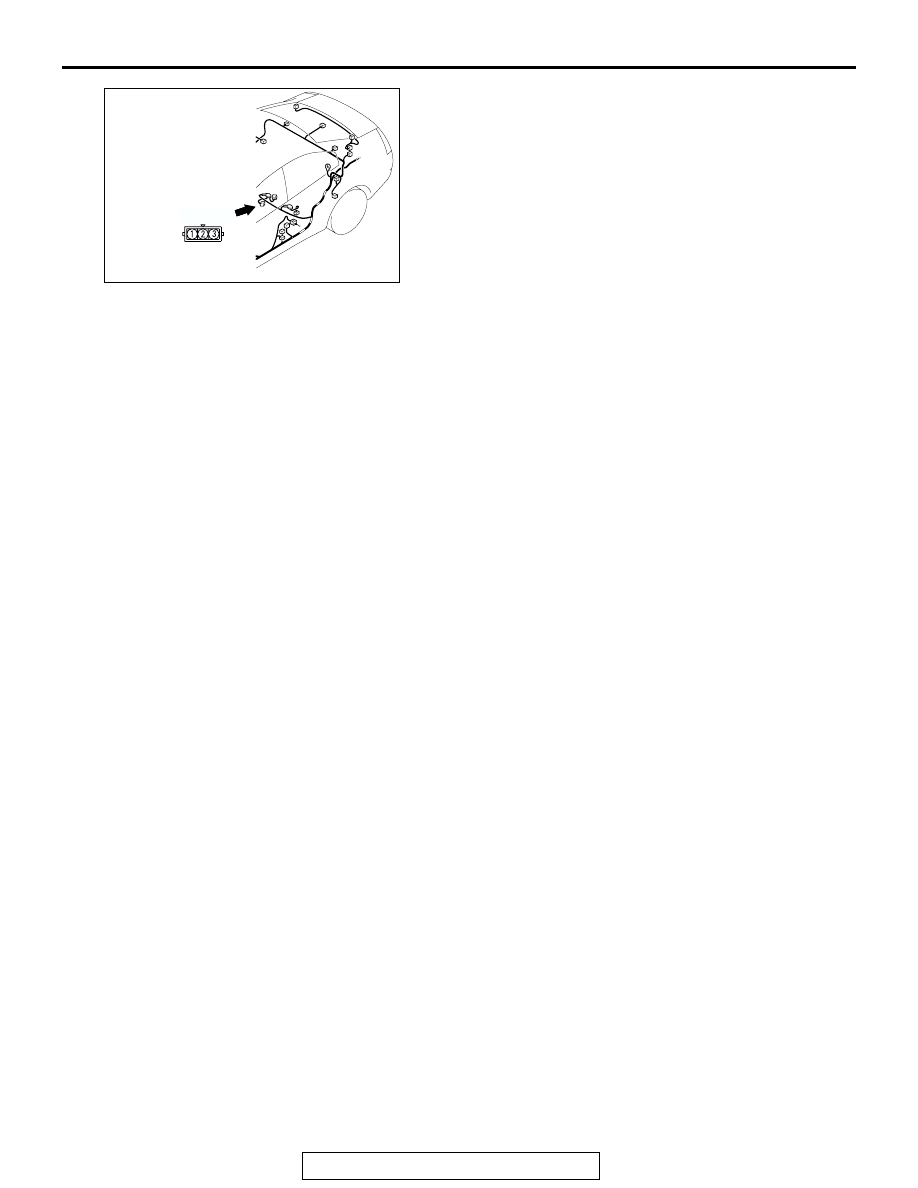

AC305266

CONNECTOR: D-23

AB

D-23 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-736

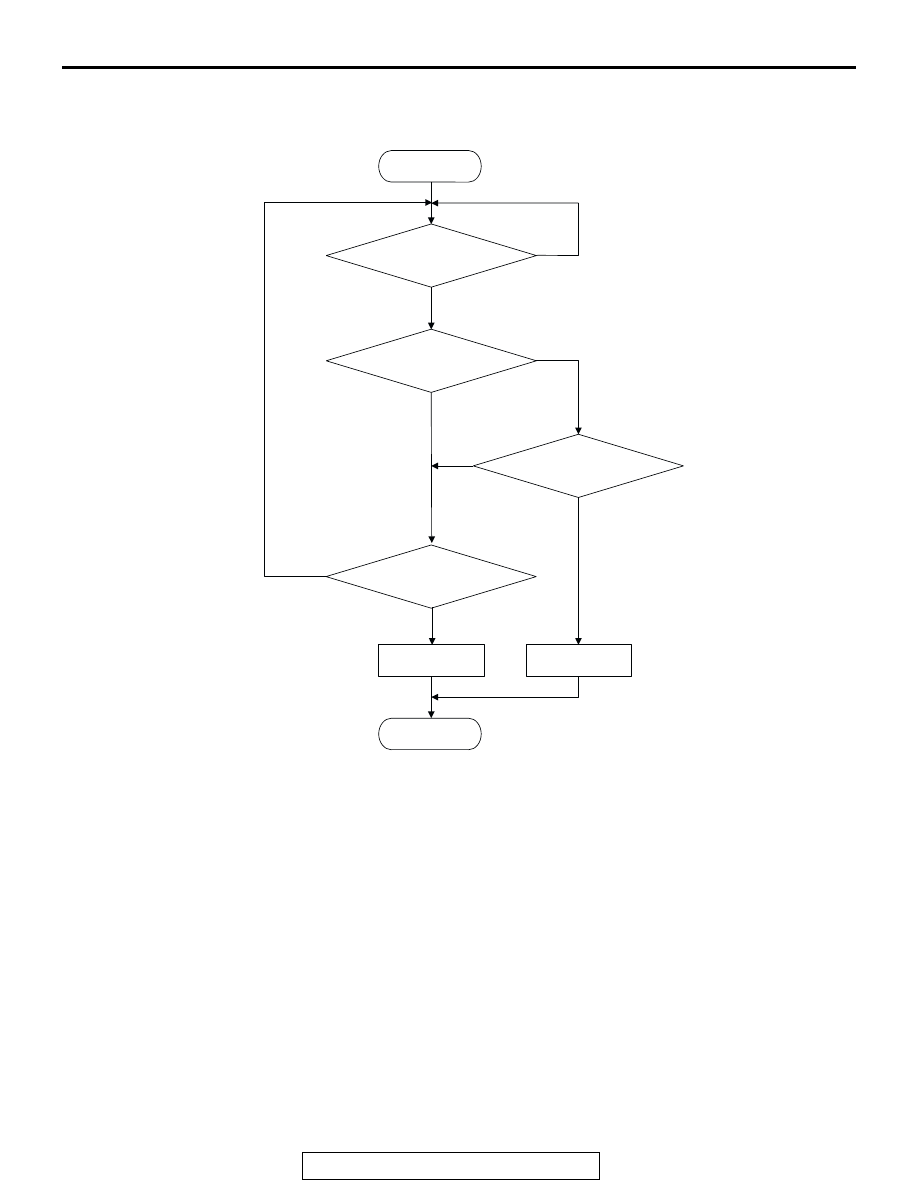

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Test Conditions: For Test to Run

• Intake air temperature is between 5°C (41°F) and

45

°C (113°F) or greater.

• Engine speed is 1,600 r/min or greater.

• Volumetric efficiency is between 20 to 70 percent.

Judgment Criteria

• When the evaporative emission purge solenoid

valve is fully operational (100 percent ratio), the
fuel differential pressure sensor output voltage
remains at 4.0 volts or greater for ten seconds.

.

OBD-ll DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-ll Drive Cycle −

Procedure 1

− Evaporative Emission System Leak

Monitor

P.13B-5

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

• Malfunction of the fuel tank differential pressure

sensor.

• Open or shorted fuel tank differential pressure

sensor circuit.

• Malfunction of the PCM.

.

NO

YES

CONTINUOUS

FAILURE FOR 10 SECS

START



END



NO

NO

NO

YES



YES



YES

MALFUNCTION

GOOD



MONITORING



CONDITIONS



OUTPUT VOLTAGE



< 1.0V

OUTPUT VOLTAGE



> 4.0V



AC306648

RANGE CHECK - MIN/MAX
