Mitsubishi Galant (2004+). Manual - part 123

POWER SEAT

TSB Revision

CIRCUIT DIAGRAMS

90-251

SLIDE

RECLINING

RECLINING
MOTOR

SLIDE
MOTOR

POWER SEAT
SWITCH

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

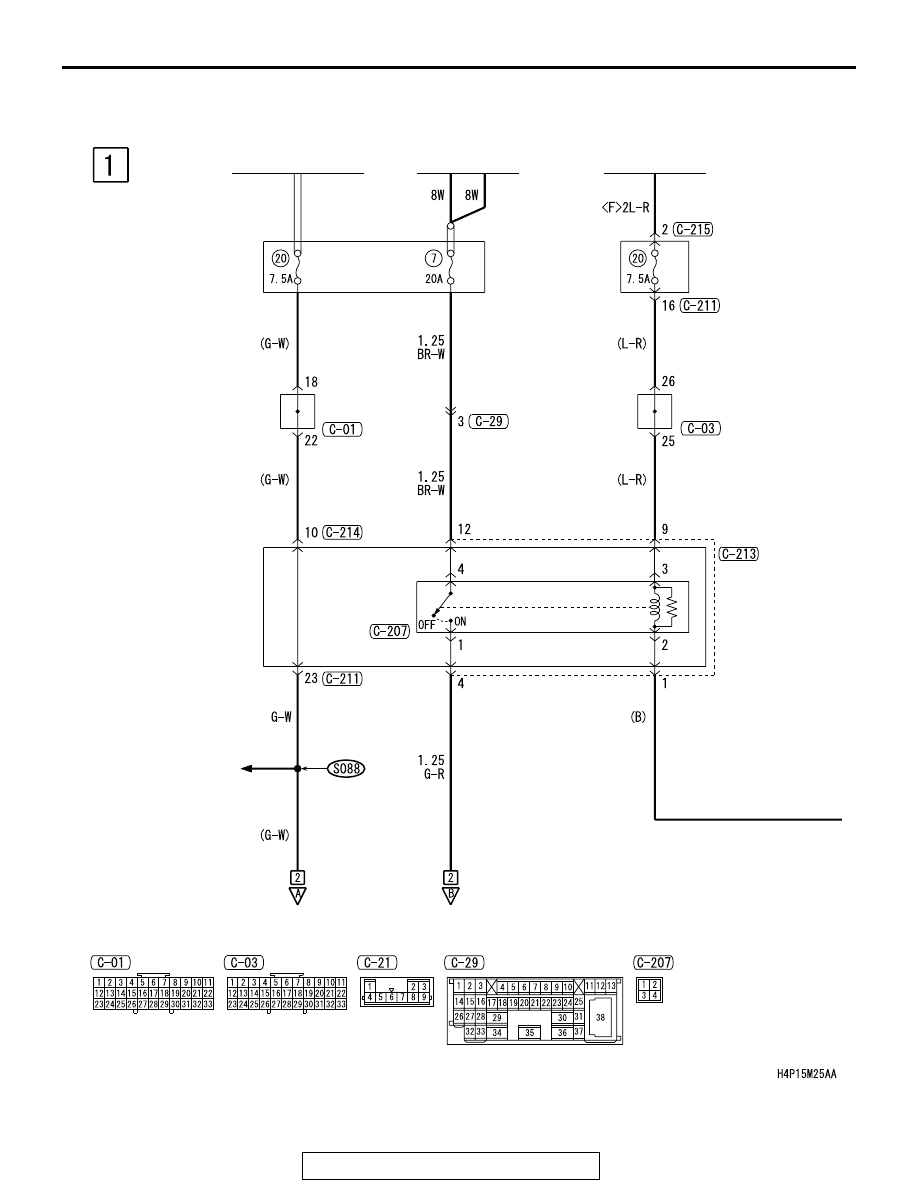

HEATED SEAT

TSB Revision

CIRCUIT DIAGRAMS

90-252

HEATED SEAT

M1901010700224

FRONT-ECU
(TAILLIGHT RELAY)

BATTERY

IGNITION
SWITCH (IG2)

RELAY
BOX

JOINT
CONNECTOR (1)

JOINT
CONNECTOR (2)

JUNCTION
BLOCK

HEATED
SEAT
RELAY

JUNCTION
BLOCK

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·DEFOGGER AND DOOR
 MIRROR HEATER
·ELECTRONIC BRAKE-
 FORCE DISTRIBUTION
 (EBD) AND ANTI-LOCK
 BRAKING SYSTEM (ABS)
 <VEHICLES WITH
 TRACTION CONTROL (TCL)>
·FOG LIGHT
·GLOVE BOX LIGHT
·INVECS-II 4A/T
·MANUAL AIR
 CONDITIONING SYSTEM
·METER AND GAUGE
·MULTI CENTER DISPLAY
·RHEOSTAT
·SUPPLEMENTAL
 RESTRAINT SYSTEM (SRS)
·TURN-SIGNAL
 LIGHT AND
 HAZARD WARNING
 LIGHT

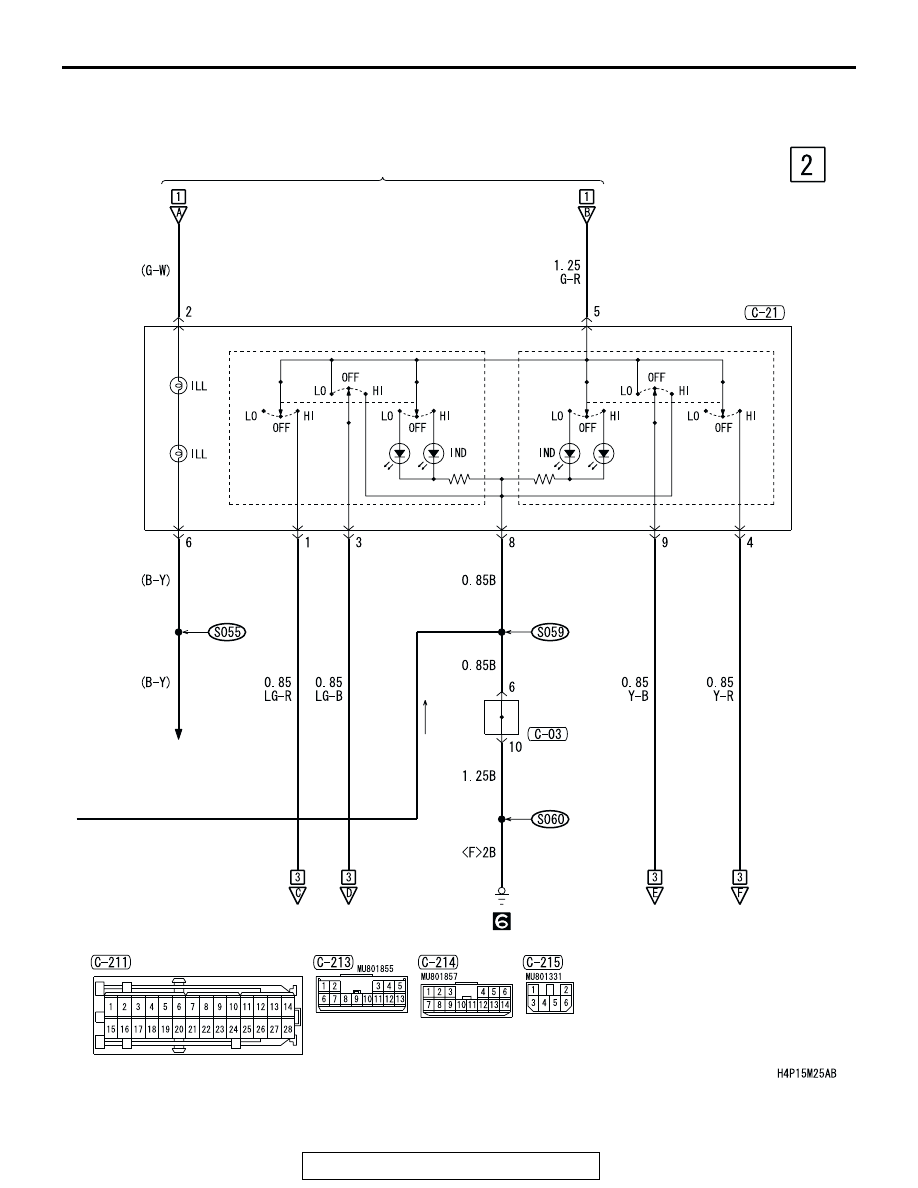

HEATED SEAT

TSB Revision

CIRCUIT DIAGRAMS

90-253

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET

JUNCTION BLOCK

RHEOSTAT

HEATED SEAT
SWITCH

JOINT
CONNECTOR (2)

(LH)

(RH)

HEATED SEAT

TSB Revision

CIRCUIT DIAGRAMS

90-254

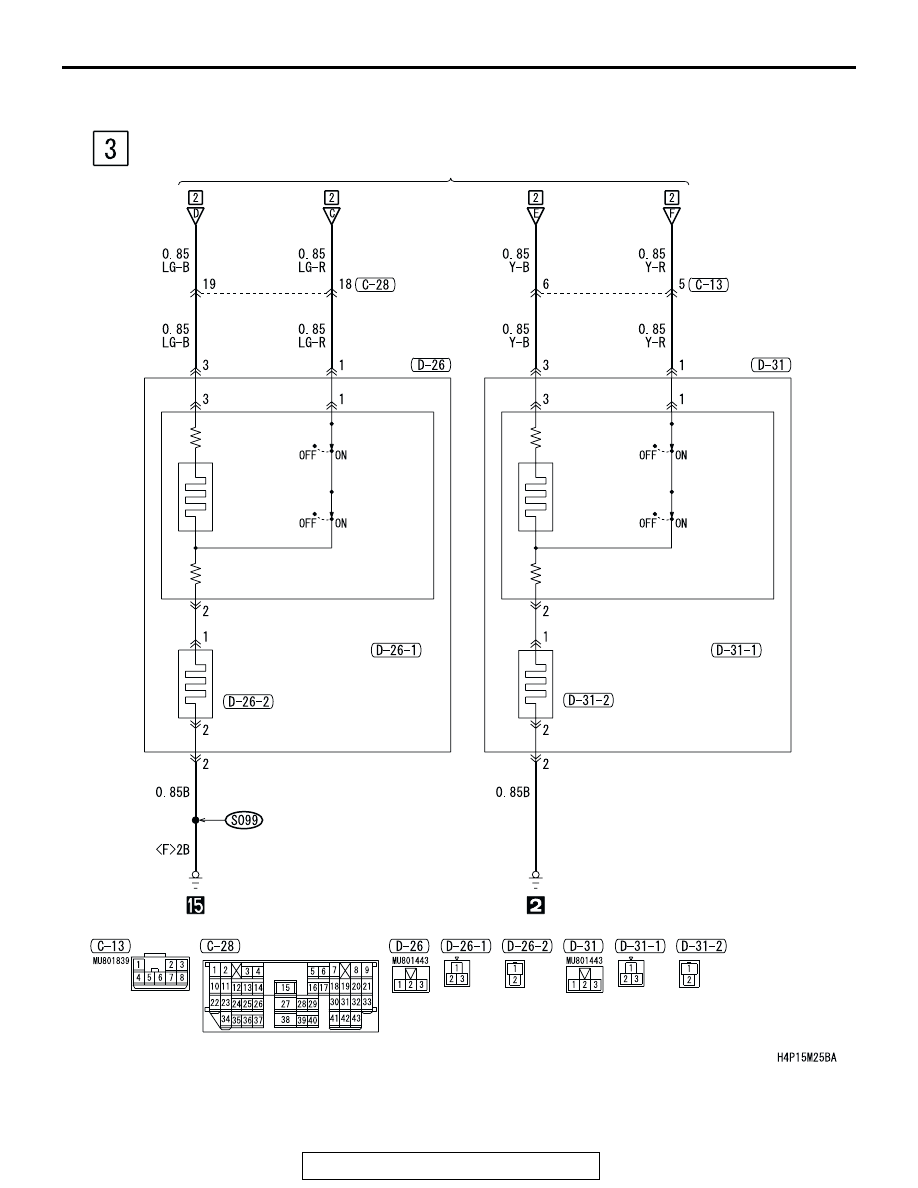

HEATED SEAT (CONTINUED)

HEATED SEAT
SWITCH

HEATED SEAT
ASSEMBLY (LH)

HEATED SEAT
ASSEMBLY (RH)

HEATER

THERMOSTAT

THERMOSTAT

HEATER

THERMOSTAT

THERMOSTAT

SEAT
CUSHION
HEATER

SEAT
BACK
HEATER

SEAT
CUSHION
HEATER

SEAT
BACK
HEATER

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET
