MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-593

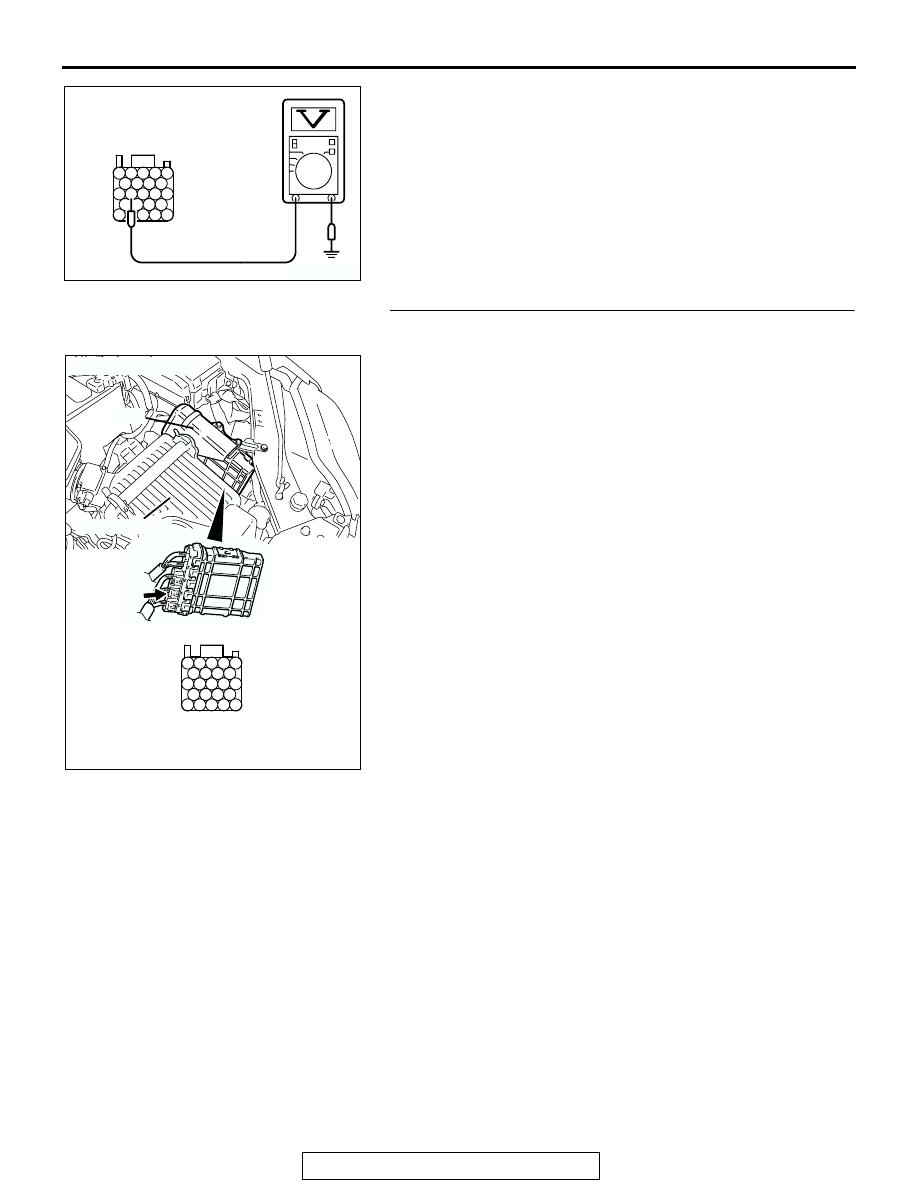

(4) Measure the voltage between terminal No. 103 and ground.

• Voltage should be between 4.9 and 5.1 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.9 and 5.1 volts?

YES : Go to Step 8.
NO :  Go to Step 9.

STEP 8. Check harness connector B-22 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Repair harness wire between crankshaft position

sensor connector B-119 (terminal No. 2) and PCM
connector B-22 (terminal No. 103) because of open
circuit. Then go to Step 20.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

AK202940AB

POWER PLANT ECU
CHECK HARNESS
CONNECTOR

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-594

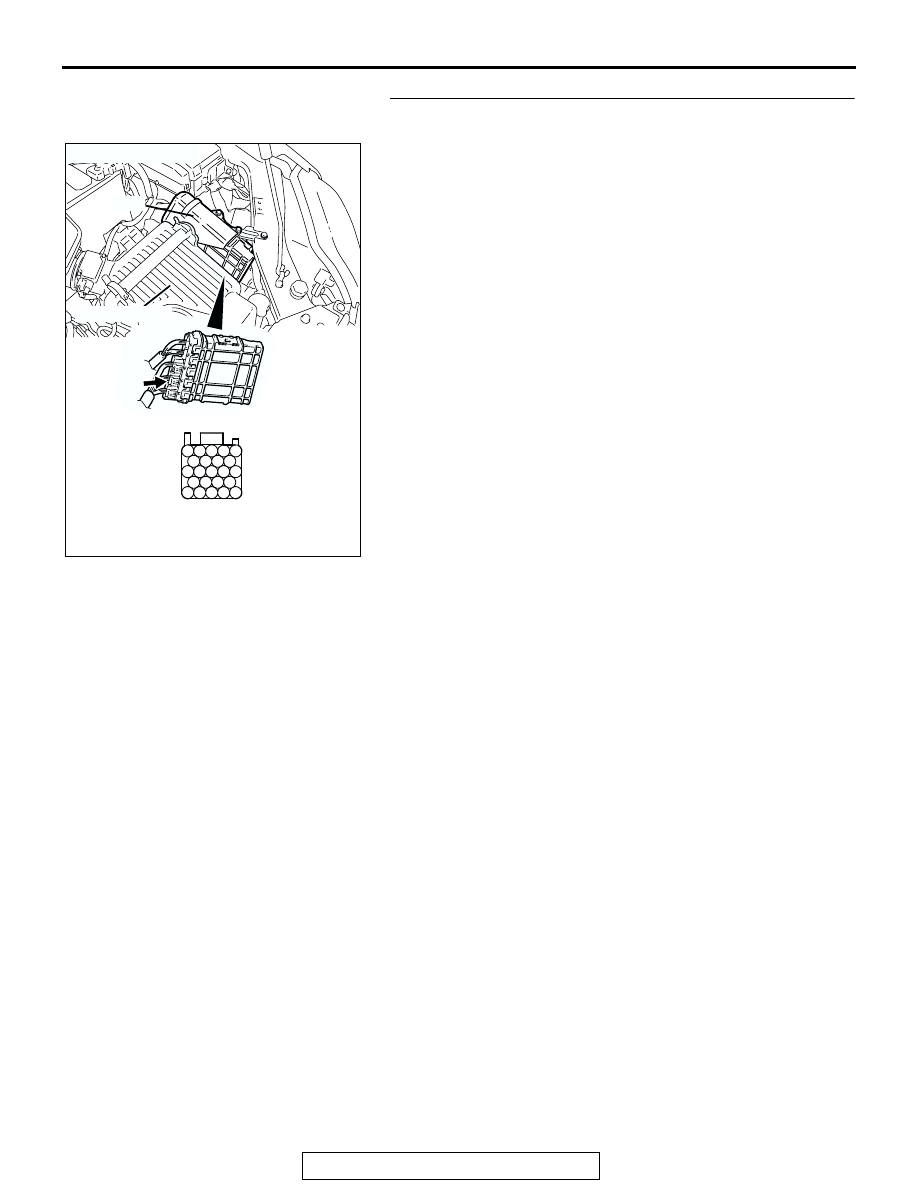

STEP 9. Check harness connector B-22 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 20.

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-595

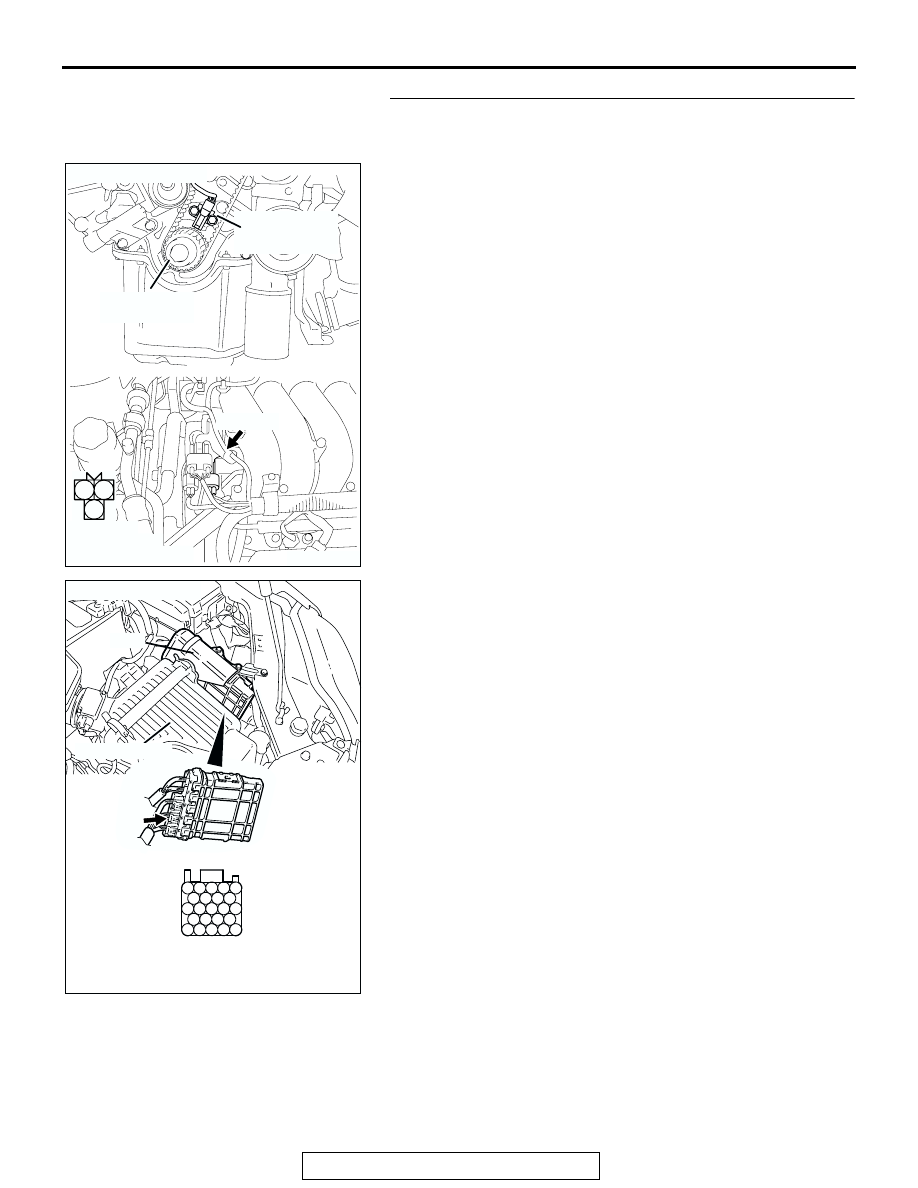

STEP 10. Check for short circuit to ground between
crankshaft position sensor connector B-119 (terminal No.
2) and PCM connector B-22 (terminal No. 103).

Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 20.
NO :  Repair it. Then go to Step 20.

AK303123

1

2

3

CRANKSHAFT
POSITION
SENSOR

AB

CRANKSHAFT
SPROCKET

CONNECTOR: B-119

B-119 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-596

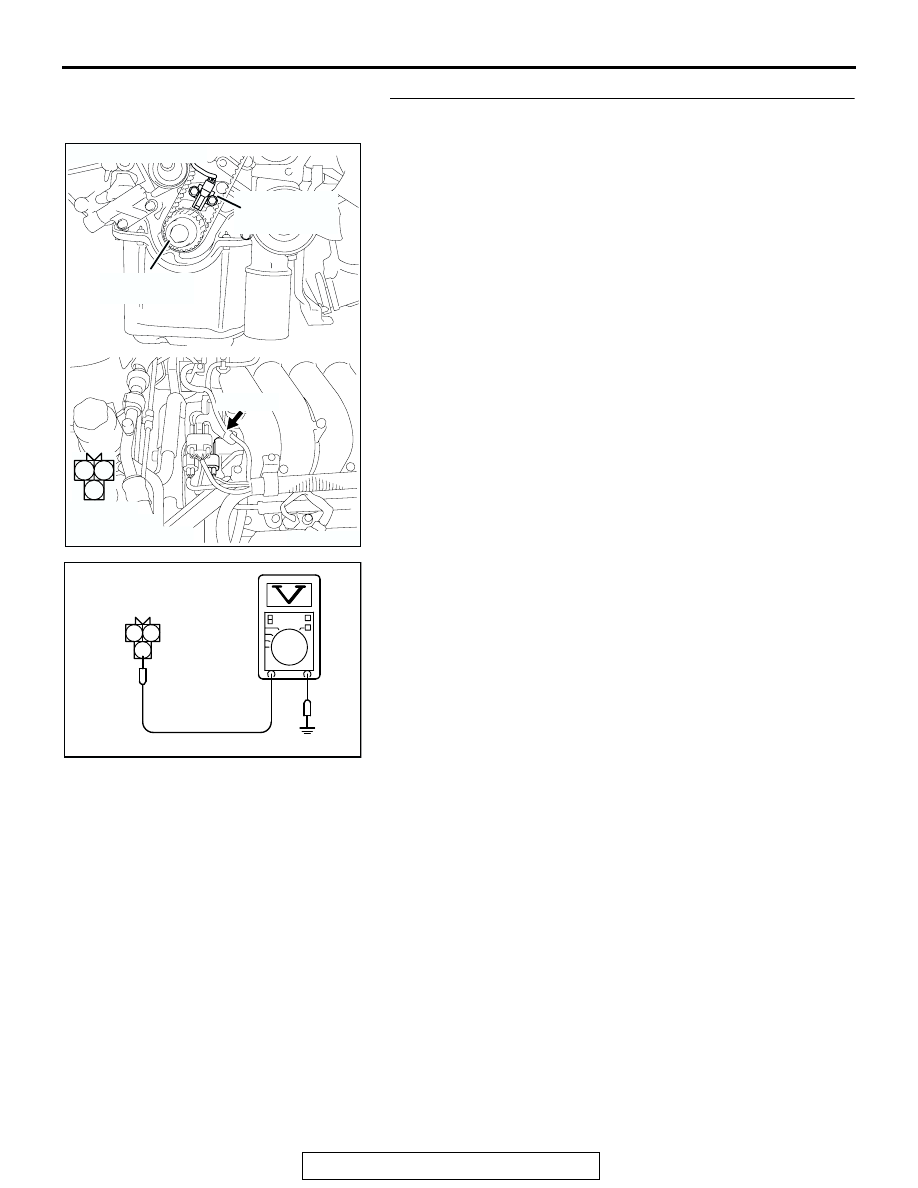

STEP 11. Measure the power supply voltage at crankshaft
position sensor harness side connector B-119.

(1) Disconnect the connector B-119 and measure at the

harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 3 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 13.
NO :  Go to Step 12.

AK303123

1

2

3

CRANKSHAFT
POSITION
SENSOR

AB

CRANKSHAFT
SPROCKET

CONNECTOR: B-119

B-119 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303127AB

2 1

3

B-119 HARNESS
CONNECTOR:
COMPONENT SIDE
