MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-549

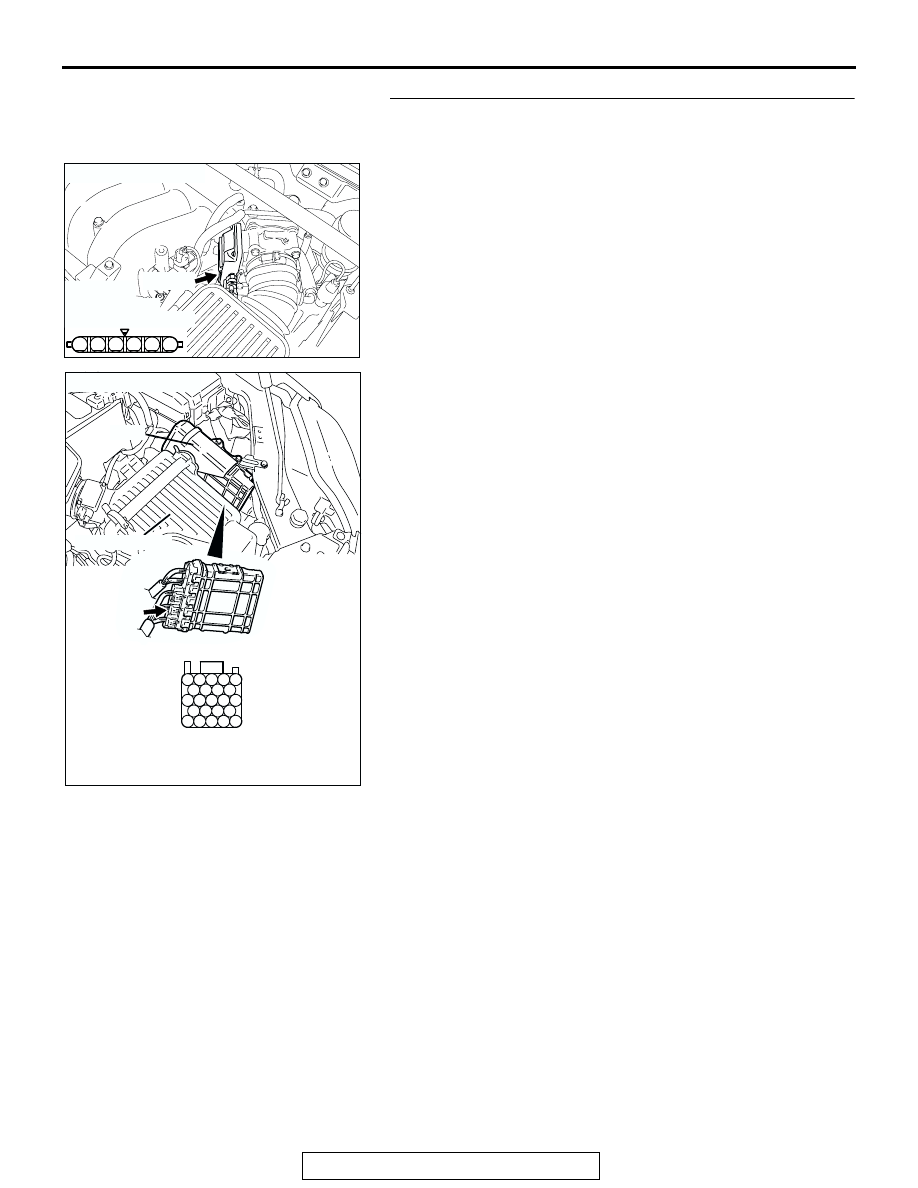

STEP 5. Check for open circuit and harness damage
between throttle position sensor connector B-06 (terminal
No. 3) and PCM connector B-22 (terminal No. 95).

Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair it. Then go to Step 8.

2 1

6 5 4 3

AK303044

HARNESS
CONNECTOR:
COMPONENT SIDE

B-06 (B)

CONNECTOR: B-06

AB

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-550

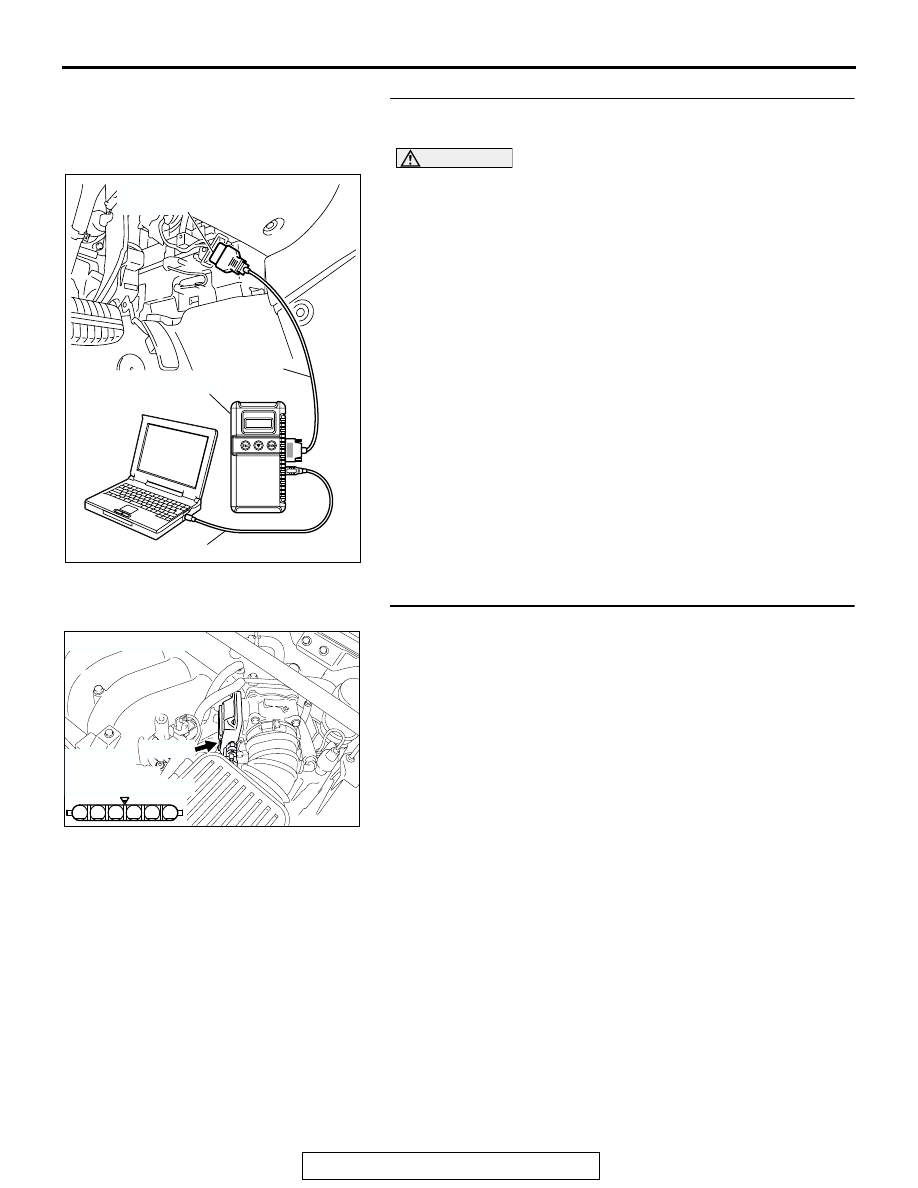

STEP 6. Using scan tool MB991958, check data list item 14:
Throttle Position Sensor (sub).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Detach the intake air hose at the throttle body.
(4) Disconnect the connector of the throttle position sensor.
(5) Use test harness special tool (MB991658) to connect only

terminals No. 3, No. 4, No. 5, and No. 6.

(6) Set scan tool MB991958 to the data reading mode for item

14, Throttle Position Sensor (sub).

• Output voltage should be between 2.2 and 2.8 volts

when the throttle valve is fully closed with your finger.

• Output voltage should be 4.0 volts or more when the

throttle valve is fully open with your finger.

(7) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Replace the PCM. Then go to Step 8.

STEP 7. Replace the throttle body assembly.

(1) Replace the throttle body assembly.
(2) Turn the ignition switch to the "ON" position.

(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P0223 set?

YES : Replace the PCM. Then go to Step 8.
NO :  The procedure is complete.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

2 1

6 5 4 3

AK303044

HARNESS
CONNECTOR:
COMPONENT SIDE

B-06 (B)

CONNECTOR: B-06

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-551

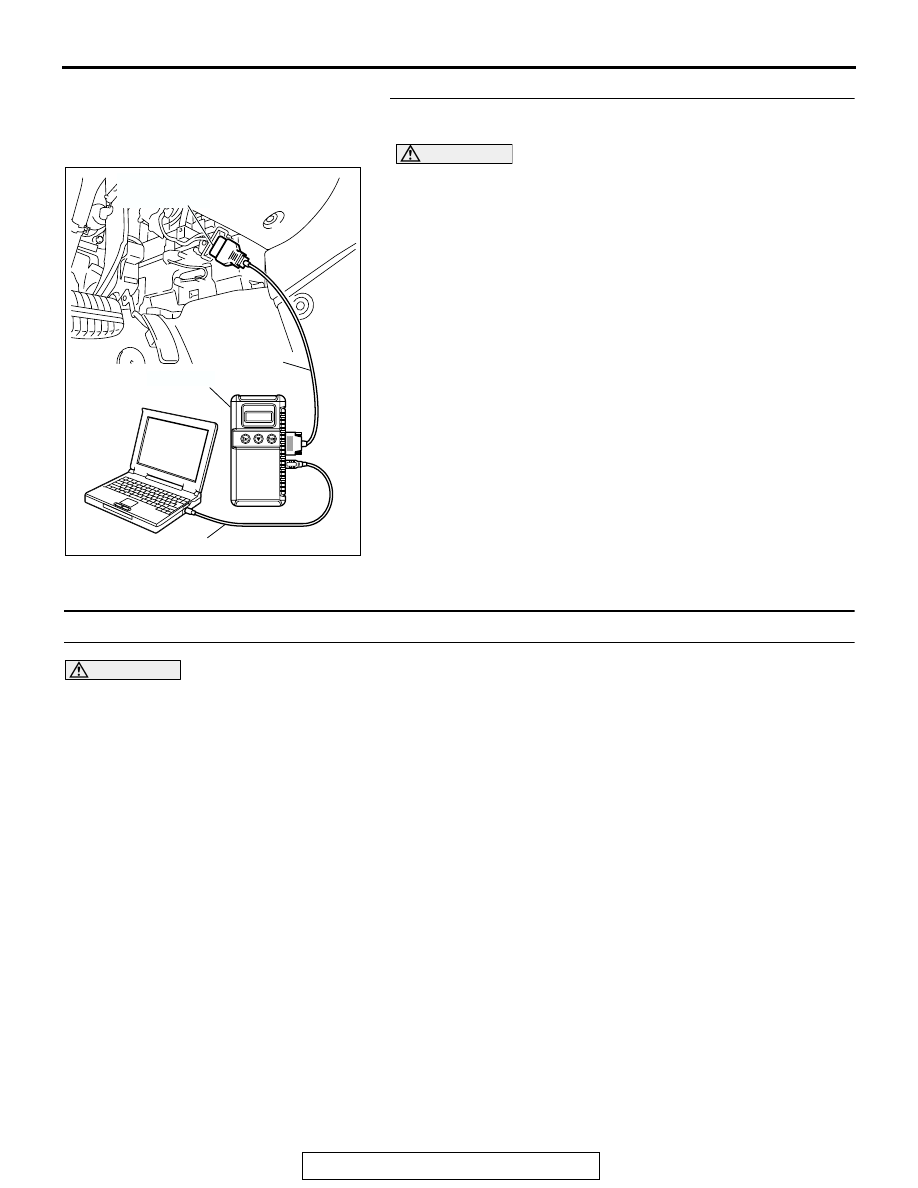

STEP 8. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is DTC P0223 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0300: Random/Multiple Cylinder Misfire Detected

CAUTION

If DTC P0300 has been set, TCL related DTC
U1120 is also set. After P0300 has been diag-
nosed, don't forget to erase DTC U1120.

.

TECHNICAL DESCRIPTION

• If a misfire occurs while the engine is running, the

engine speed changes for an instant.

• The PCM checks for such changes in engine

speed.

.

DESCRIPTIONS OF MONITOR METHODS
Monitor angular acceleration of crankshaft and

detect malfunction when negative variation of the
angular acceleration is large.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Camshaft position sensor

• Mass airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

• Throttle position sensor

.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-552

DTC SET CONDITIONS

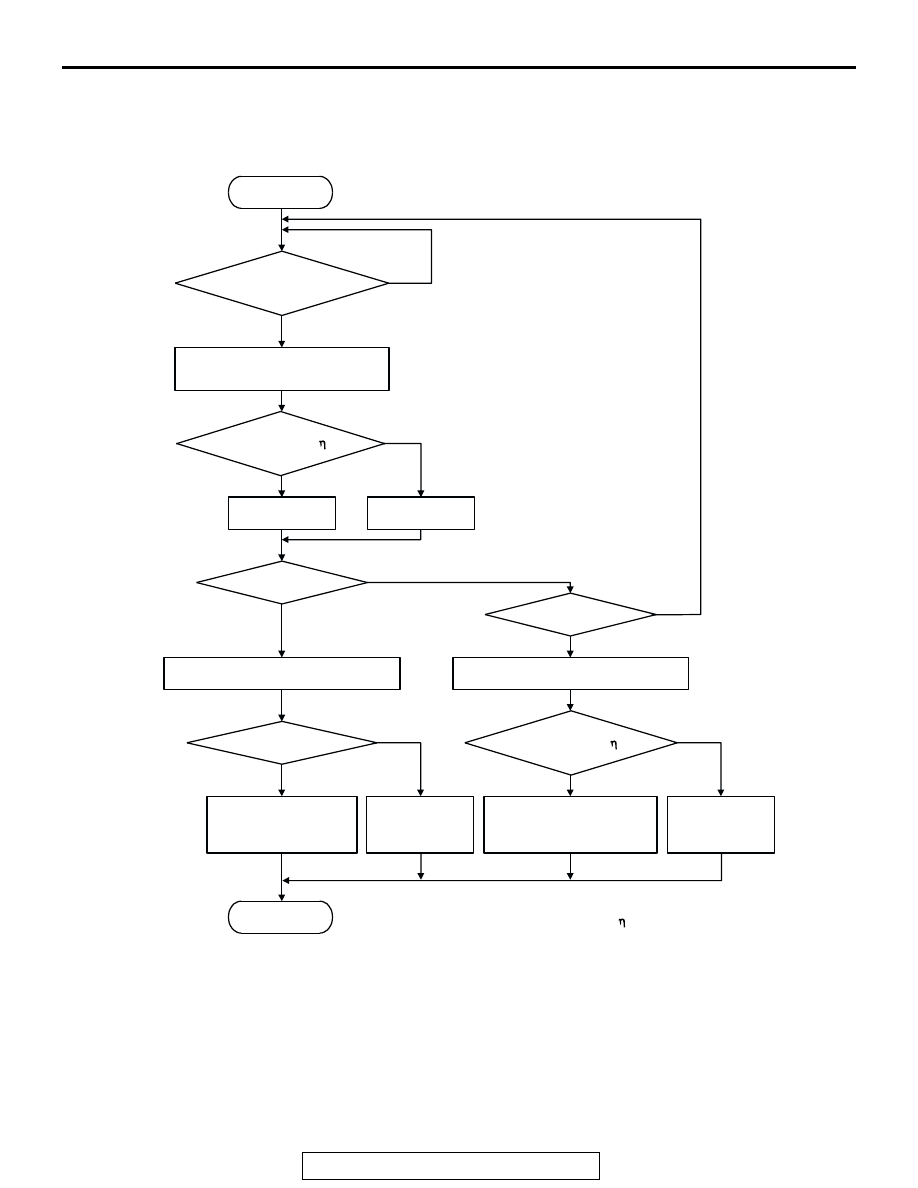

Logic Flow Chart

.

Check Conditions

• Engine speed is between 440 and 6,200 r/min.

• Engine coolant temperature is higher than −10°C

(14

°F).

• Barometric pressure is higher than 76 kPa (22.4

in.Hg).

• Volumetric efficiency is between 30 and 60 per-

cent.

• Adaptive learning is complete for the vane which

generates a crankshaft position signal.

• While the engine is running, excluding gear shift-

ing, deceleration, sudden acceleration/decelera-
tion and A/C compressor switching.

• The throttle deviation is −0.06 V/10 ms to +0.06

V/10 ms.

START

MONITORING

CONDITIONS

CALCULATE CRANKSHAFT

ANGULAR ACCELERATION (An)

An < TH

MF

 (Ne,   v)

MISFIRE

CALCULATE PERCENT MISFIRE (R

MF

)

END

NO

NO

NO

NO

NO

NO

YES

YES

YES

YES

YES

YES

GOOD

WITHIN 1000rev

R

MF

 > SPECIFIED VALUE

MALFUNCTION

(EXCEED STD  ×1.5)

GOOD

MALFUNCTION

(CATALYTIC CONVERTER

IS DAMAGED.)

GOOD

R

MF

 > TH

CD

 (Ne,   v)

CALCULATE PERCENT MISFIRE (R

MF

)

WITHIN 200rev

Ne: ENGINE SPEED
   v: VOLUMETRIC EFFICIENCY

AK204053
