Mitsubishi Galant (2004+). Manual - part 1199





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-489

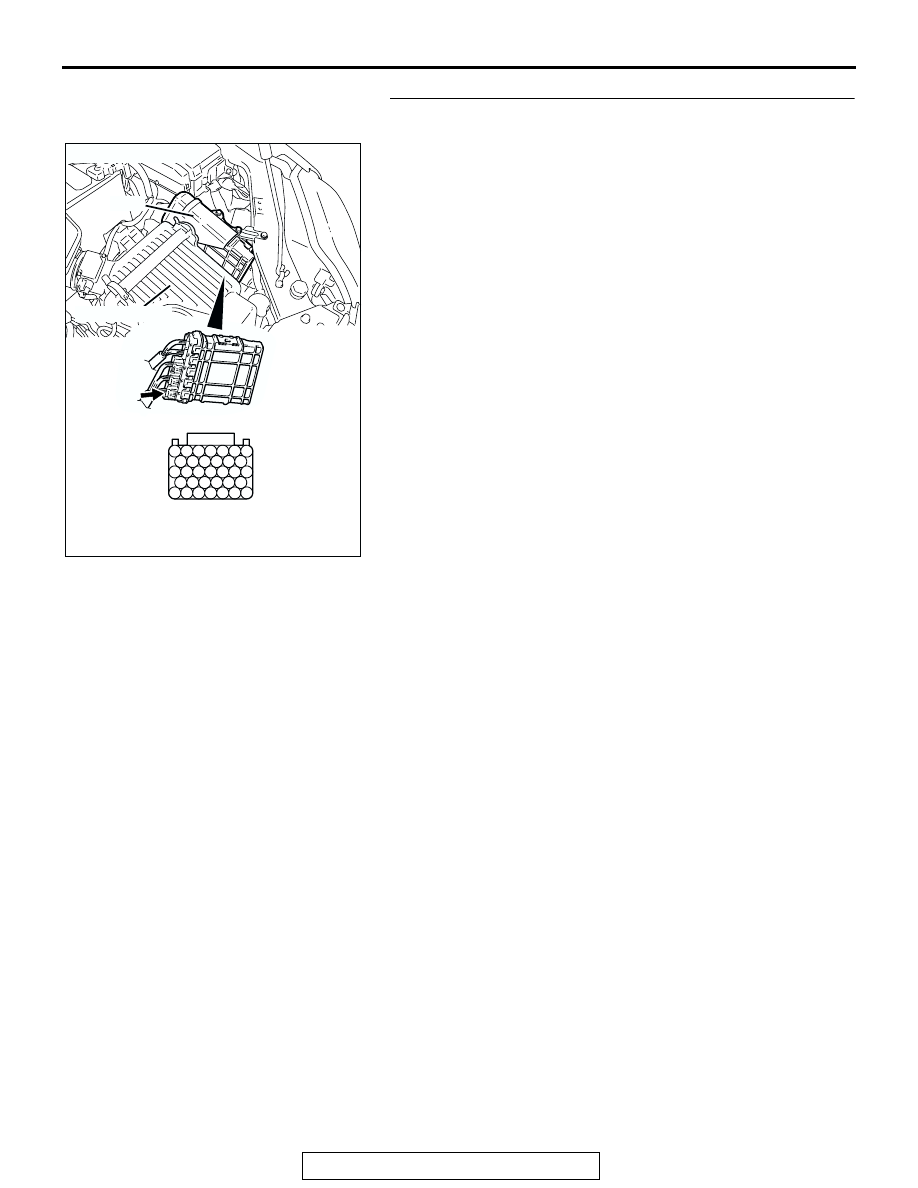

STEP 7. Check harness connector B-23 at PCM for
damage.

Q: Is the connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-490

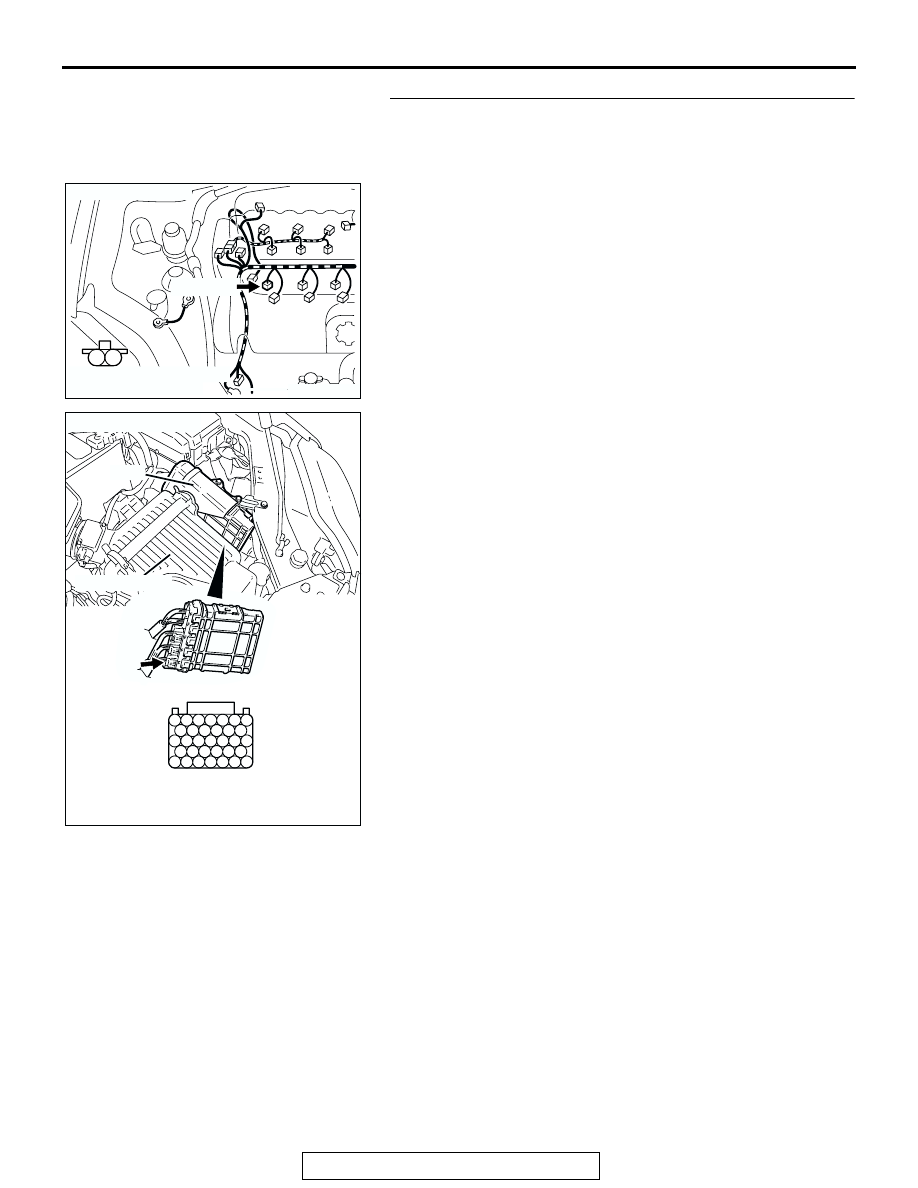

STEP 8. Check for open circuit and short circuit to ground
and harness damage between No.2 cylinder injector
connector B-30 (terminal No. 2) and PCM connector B-23
(terminal No. 146).

Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair it. Then go to Step 10.

AK303103

M

1

2

CONNECTOR: B-30

B-30 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AB

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-491

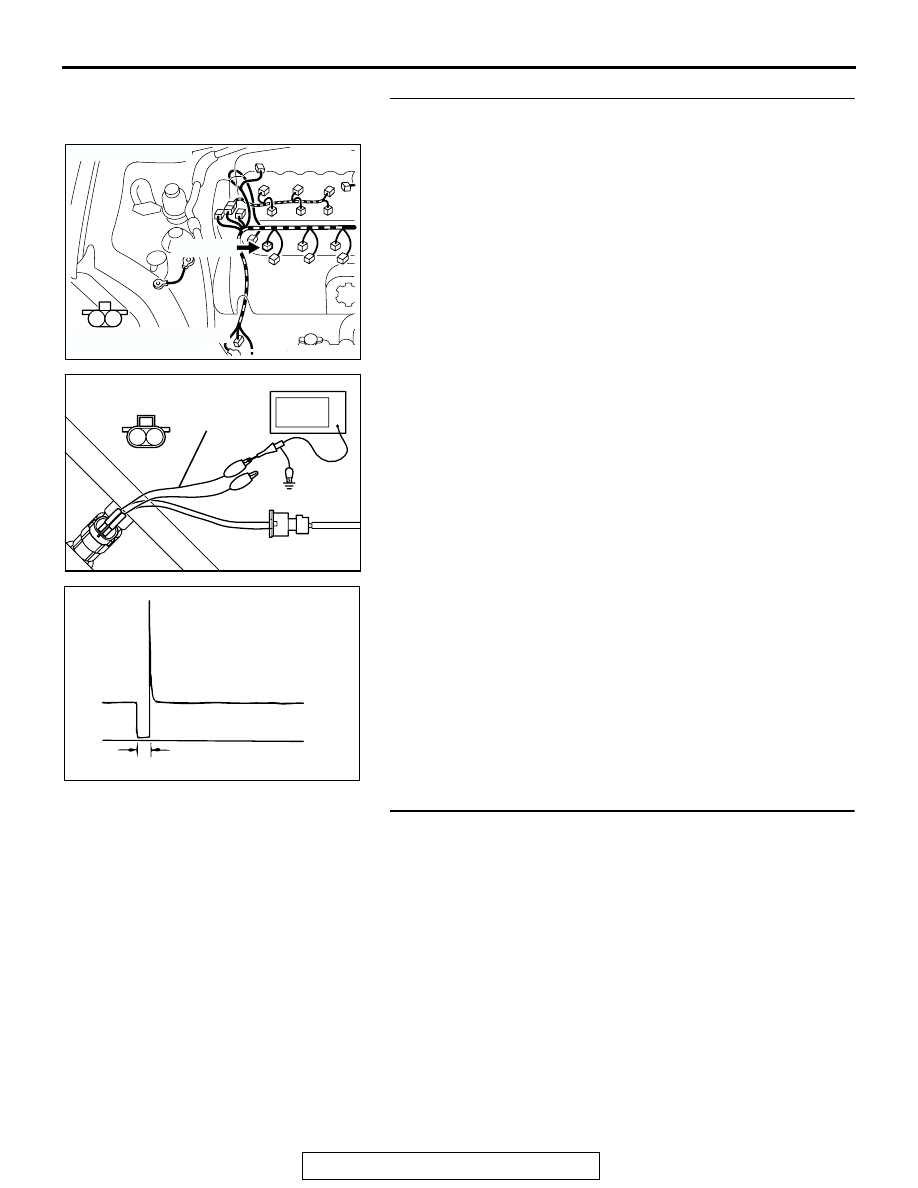

STEP 9. Using the oscilloscope, check the No.2 cylinder
injector.

(1) Disconnect the No. 2 cylinder injector connector B-30 and

connect the test harness special tool (MB991658) between
the separated connectors. (All terminals should be
connected)

(2) Connect the oscilloscope probe to the injector side

connector terminal No. 2.
NOTE: When measuring with the PCM side connector, dis-
connect the all PCM connectors and connect check har-
ness special tool (MB991923) between the separated
connectors. Then connect an oscilloscope probe to terminal
No. 146.

(3) Start the engine and run at idle.

(4) Measure the waveform.

• The waveform should show a normal pattern similar to

the illustration.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the waveform normal?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Replace the PCM. Then go to Step 10.

STEP 10. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0202 set?

YES : Repeat the troubleshooting.
NO :  The procedure is complete.

AK303103

M

1

2

CONNECTOR: B-30

B-30 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AB

AK102980

1 2

INJECTOR
CONNECTOR

MB991658

AC

OSCILLOSCOPE

AKX01557 AB

A

NORMAL  WAVEFORM

A:INJECTOR DRIVE TIME

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-492

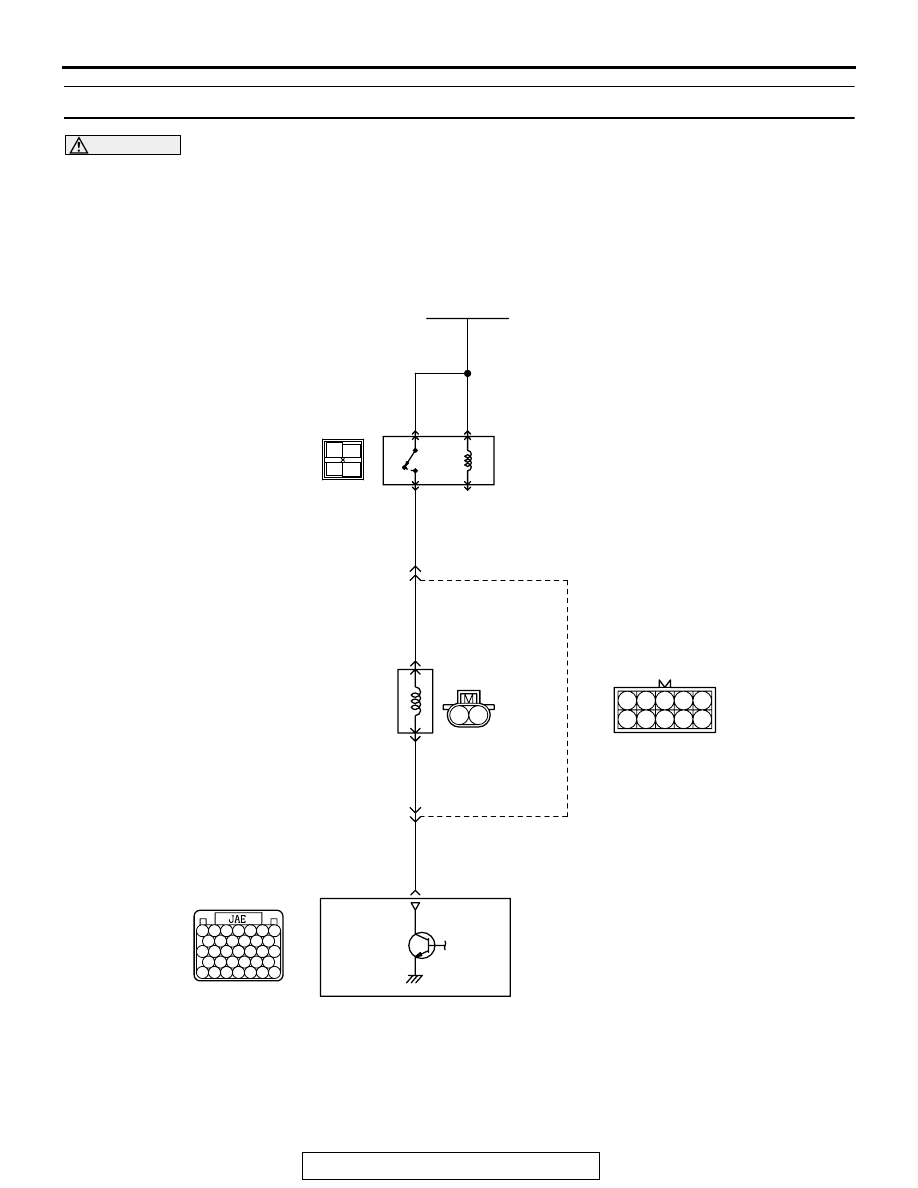

DTC P0203: Injector Circuit Malfunction - Cylinder 3

CAUTION

If DTC P0203 has been set, TCL related DTC
U1120 is also set. After P0203 has been diag-
nosed, don't forget to erase DTC U1120.

AK302851

GRA

Y

-

BLA

CK

GRA

Y

-

BLA

CK

RED

RED

RED-

WHITE

RED-

WHITE

RED-

WHITE

BATTERY

MFI
RELAY

B-17X

INJECTOR
NO. 3

4

1

2

3

1

2

140

10

9

POWERTRAIN CONTROL
MODULE (PCM)

     B-32
MU802645

      B-23

B-03

2

1

Injector Circuit - Cylinder 3

3 4

1 2

1

2 3

6

7 8

4 5

9 10

121 122 123 124 125 126 127

128 129 130 131 132 133

134 135 136 137 138 139 140

141 142 143 144 145 146

147 148 149 150 151 152 153
