MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-377

STEP 15. Test the OBD-II drive cycle.

(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0156 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0157: Heated Oxygen Sensor Circuit Low Voltag (bank 2, sensor 2)

GREEN

BLUE

BLA

CK

AK302846

TO PCM

FROM MFI RELAY

69

96

2

4

3

1

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

POWERTRAIN CONTROL
MODULE (PCM)

B-24

MU802665

B-22

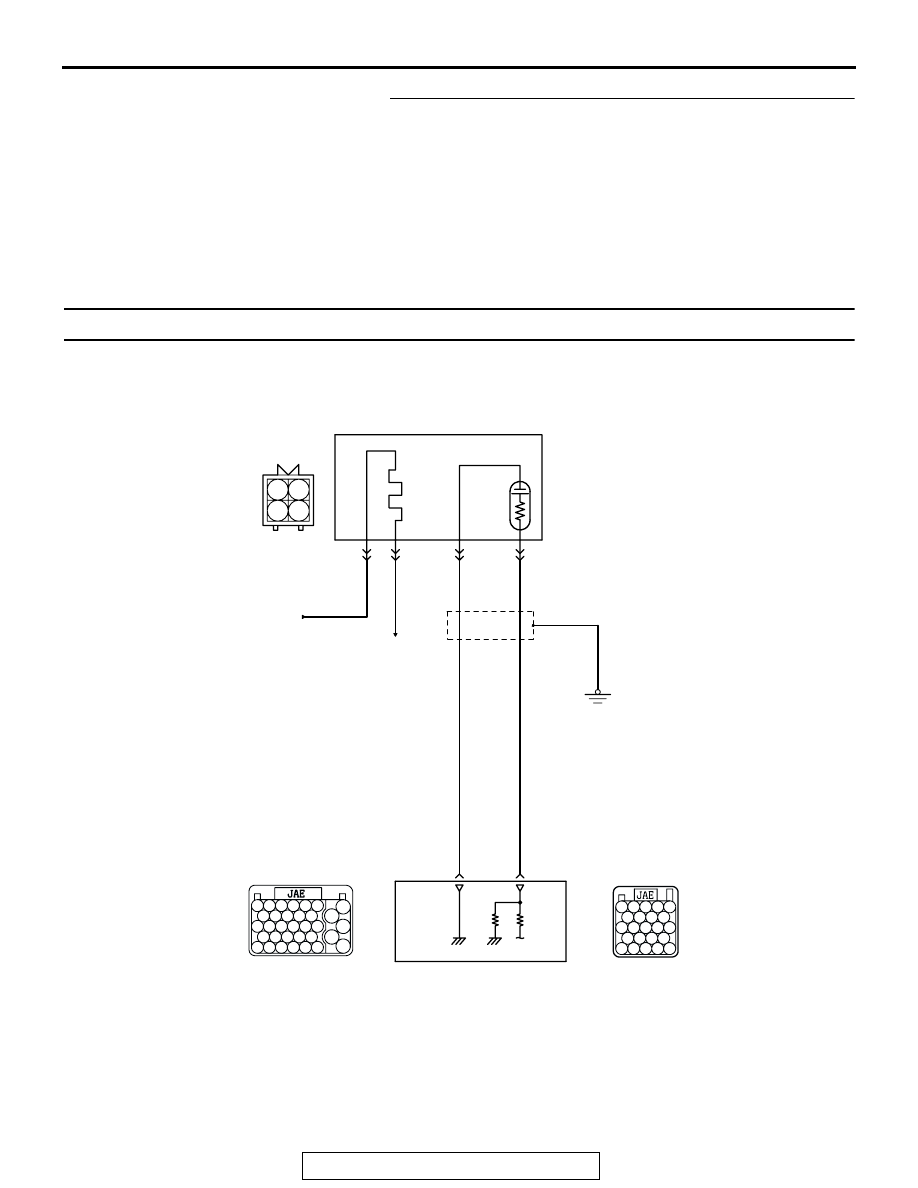

Left Bank Heated Oxygen Sensor (rear) Circuit

B-21

1

2

3

4

52

51

53 54 55 56

57

58 59 60 61 62

63

64 65 66 67 68 69

70

71 72 73 74 75

76

77 78 79 80 81 82

83

100

99

92

91

93 94 95

96 97 98

101 102 103 104

105 106 107 108

109 110 111 112 113

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-378

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the PCM (ter-
minal No. 96) from the output terminal
(terminalNo. 4) of the left bank heated oxygen
sensor (rear).

• Terminal No. 2 of the left bank heated oxygen

sensor (rear) is grounded with PCM (terminal No.
69).

.

TECHNICAL DESCRIPTION

• The output signal of the left bank heated oxygen

sensor (front) is compensated by the output sig-
nal of the left bank heated oxygen sensor (rear).

• The PCM checks for an open circuit in the left

bank heated oxygen sensor (rear) output line.

.

DESCRIPTIONS OF MONITOR METHODS
Left bank heated oxygen sensor (rear) output voltage

stays low when air/fuel ratio is forced to be rich.
The above procedure is repeated when oxygen
sensor is inactive.

.

MONITOR EXECUTION
Continuous

.

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Heated oxygen sensor heater (front) monitor

• Heated oxygen sensor heater (rear) monitor

• Air/fuel ratio feedback monitor

Sensor (The sensor below is determined to be

normal)

• Mass airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

.

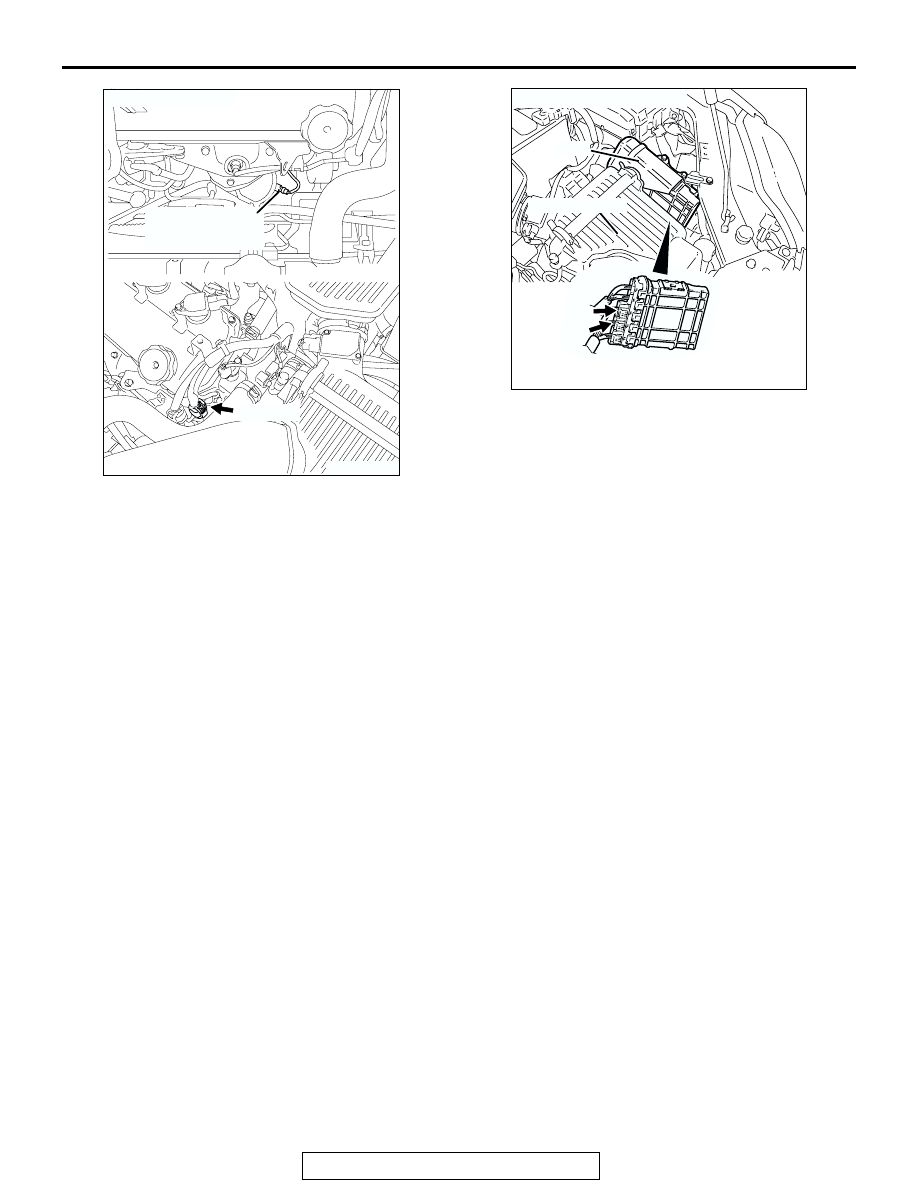

AK303079

CONNECTOR: B-24

AB

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

B-24 (GR)

AK303013

CONNECTORS: B-21, B-22

PCM

AB

AIR CLEANER

B-22 (B)

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-379

DTC SET CONDITIONS

Logic Flow Chart

.

Check Conditions

• 3 minutes or more have passed since the engine

starting sequence was completed.

• Left bank heated oxygen sensor (rear) signal

voltage has continued to be 0.15 volt or lower.

• Engine coolant temperature is higher than 76°C

(169

°F).

• Engine speed is higher than 1,200 r/min.

• Volumetric efficiency is higher than 25 percent.

• Mass airflow sensor output is 8 g/sec or more.

• At least 20 seconds have passed since fuel shut

off control was canceled.

• Monitoring time: 10 seconds.

START

V

F

 > =4.5V

2secs HAS PASSED

YES

YES

YES

NO

NO

NO

MALFUNCTION

MONITORING

CONDITIONS

YES

NO

MONITORING

CONDITIONS

+5V ON

AK302398

V

F

 < 0.15V

10secs HAS PASSED

YES

YES

NO

NO

END

MALFUNCTION

GOOD

MODULATE A/F CONDITION TO RICH

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-380

Judgement Criteria

• Making the air/fuel ratio 15 percent for 10 sec-

onds richer does not result in raising the left bank
heated oxygen sensor (rear) output voltage
beyond 0.15 volt.

.

OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13B-5

.

.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are: )

• Left bank heated oxygen sensor (rear) failed.

• Short circuit in left bank heated oxygen sensor

(rear) output line.

• Connector damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

• MB991316: Test Harness

STEP 1. Using scan tool MB991958, check data list item 59:
Heated Oxygen Sensor Bank 2, Sensor 2 (left bank).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

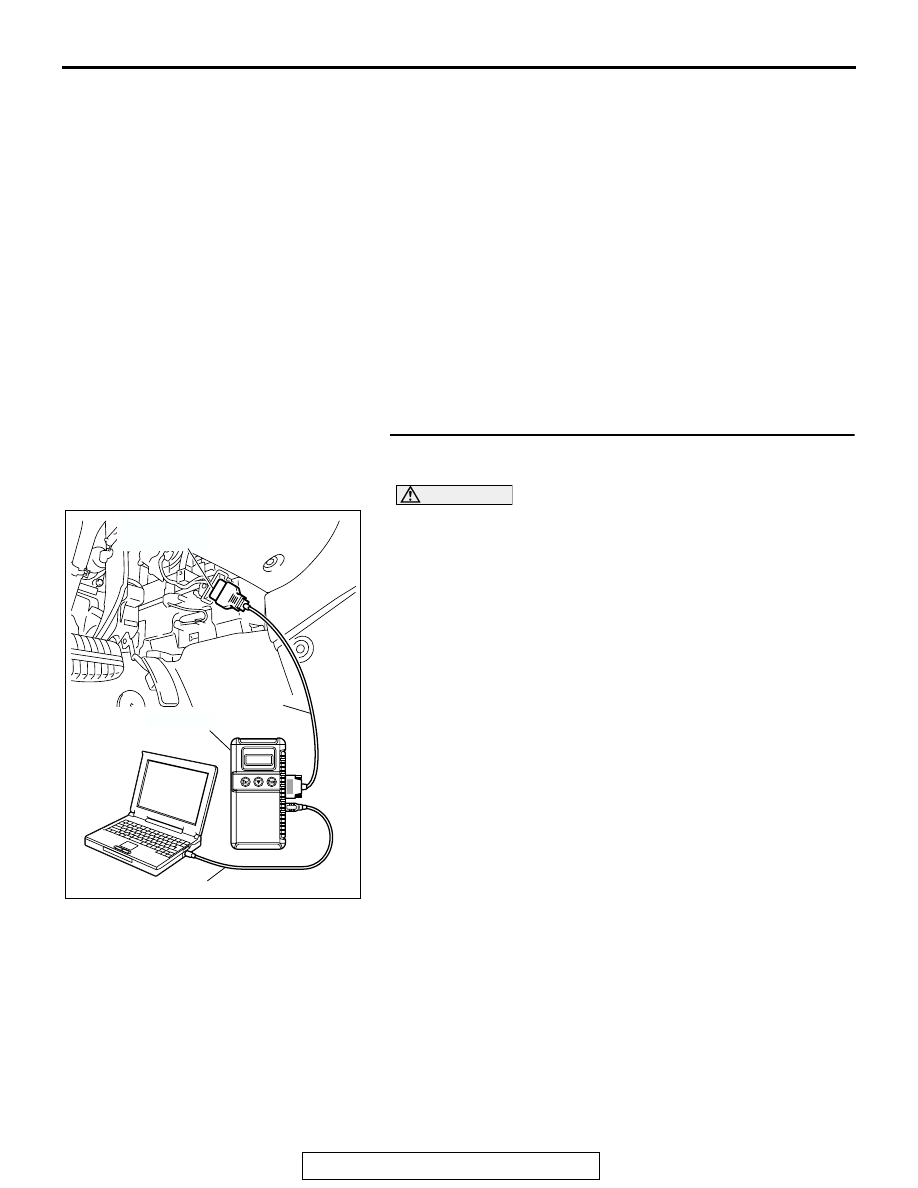

(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.

(3) Set scan tool MB991958 to the data reading mode for item

59, Heated Oxygen Sensor Bank 2, Sensor 2 (left rear).

• Warming up the engine. When the engine is revved, the

output voltage should repeat 0 volt and 0.6 to 1.0 volt
alternately.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Go to Step 2.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
