MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-365

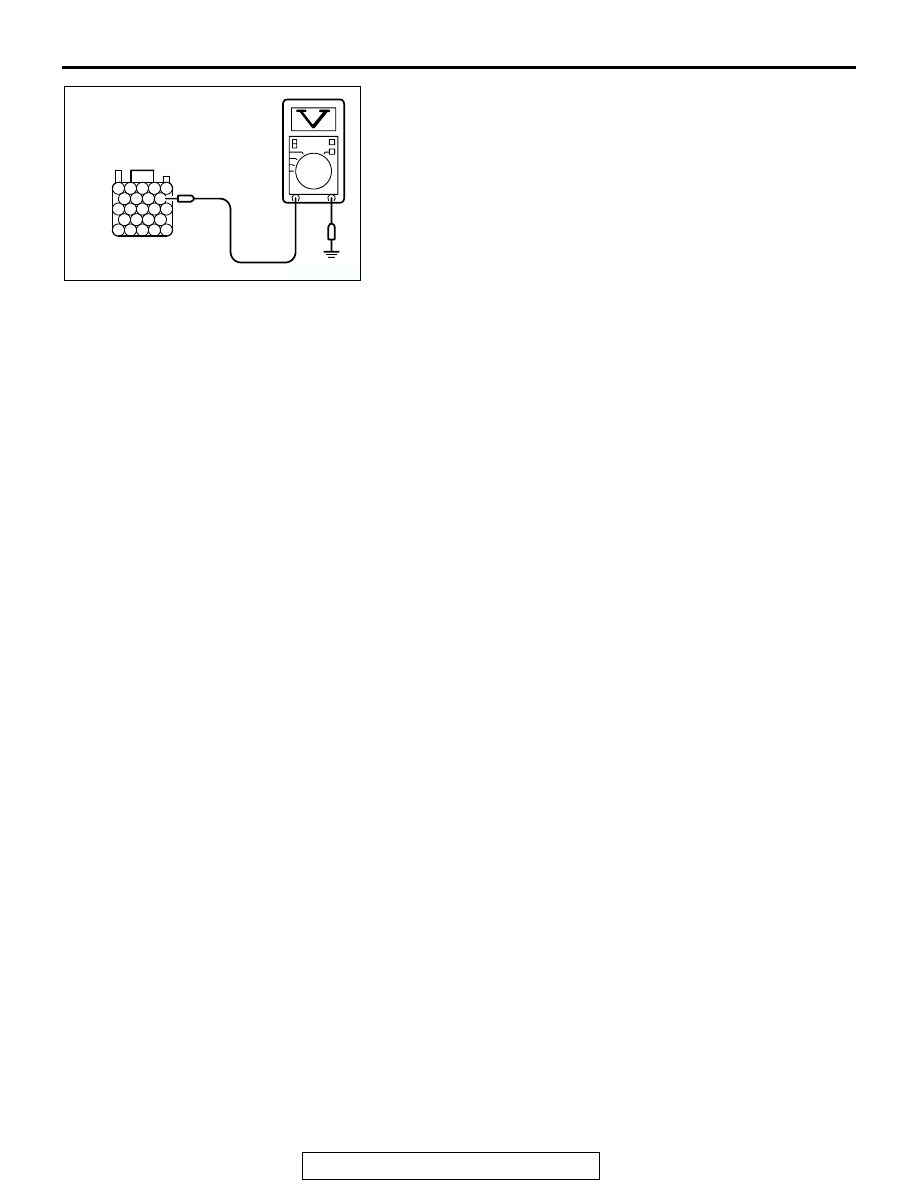

(3) Measure the voltage between terminal No. 96 and ground.

• Warming up the engine. When the engine is 2,500 r/min,

the output voltage should repeat 0 volt and 0.6 to 1.0
volt alternately.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage within the specified range?

YES : Go to Step 4.
NO :  Go to Step 6.

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

AK203115AB

POWER PLANT ECU
CHECK HARNESS
CONNECTOR

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-366

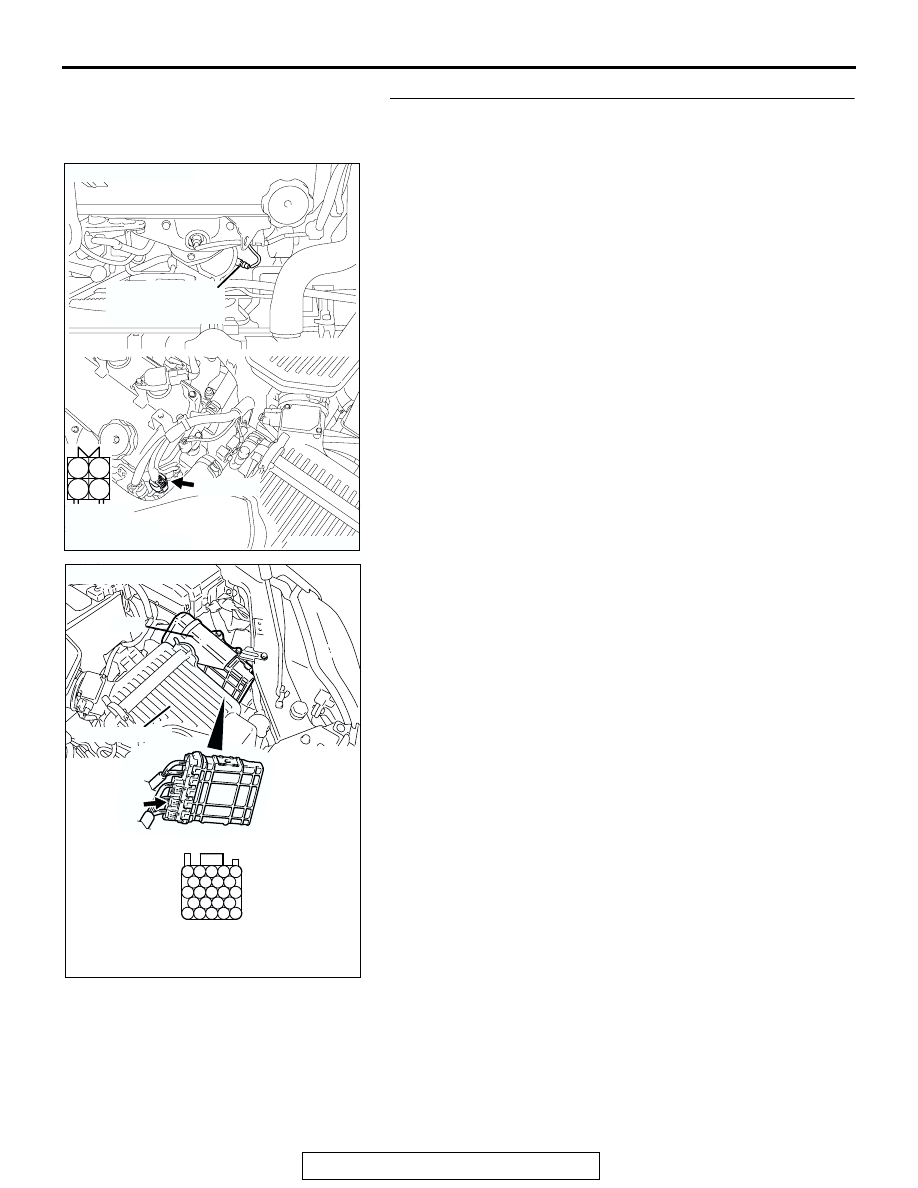

STEP 4. Check harness connector B-24 at left bank heated
oxygen sensor (rear) and harness connector B-22 at PCM
for damage.

Q: Is the harness connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

1

2

3

4

AK303079

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-24

AB

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

B-24 (GR)

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-367

STEP 5. Using scan tool MB991958, check data list item 59:
Heated Oxygen Sensor Bank 2, Sensor 2 (left rear).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991958 to the data reading mode for item

59, Heated Oxygen Sensor Bank 2, Sensor 2 (left rear).

• Warming up the engine. When the engine is revved, the

output voltage should repeat 0 volt and 0.6 to 1.0 volt
alternately.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

P.00-6

.

NO :  Replace the PCM. Then go to Step 15.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-368

STEP 6. Check harness connector B-24 at left bank heated
oxygen sensor (rear) and harness connector B-22 at PCM
for damage.

Q: Is the harness connector in good condition?

YES : Repair harness wire between left bank heated oxygen

sensor (rear) connector B-24 (terminal No. 4) and
PCM connector B-22 (terminal No. 96) because of
open circuit or harness damage. Then go to Step 15.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 15.

1

2

3

4

AK303079

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-24

AB

LEFT BANK
HEATED OXYGEN
SENSOR (REAR)

B-24 (GR)

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER
