MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-341

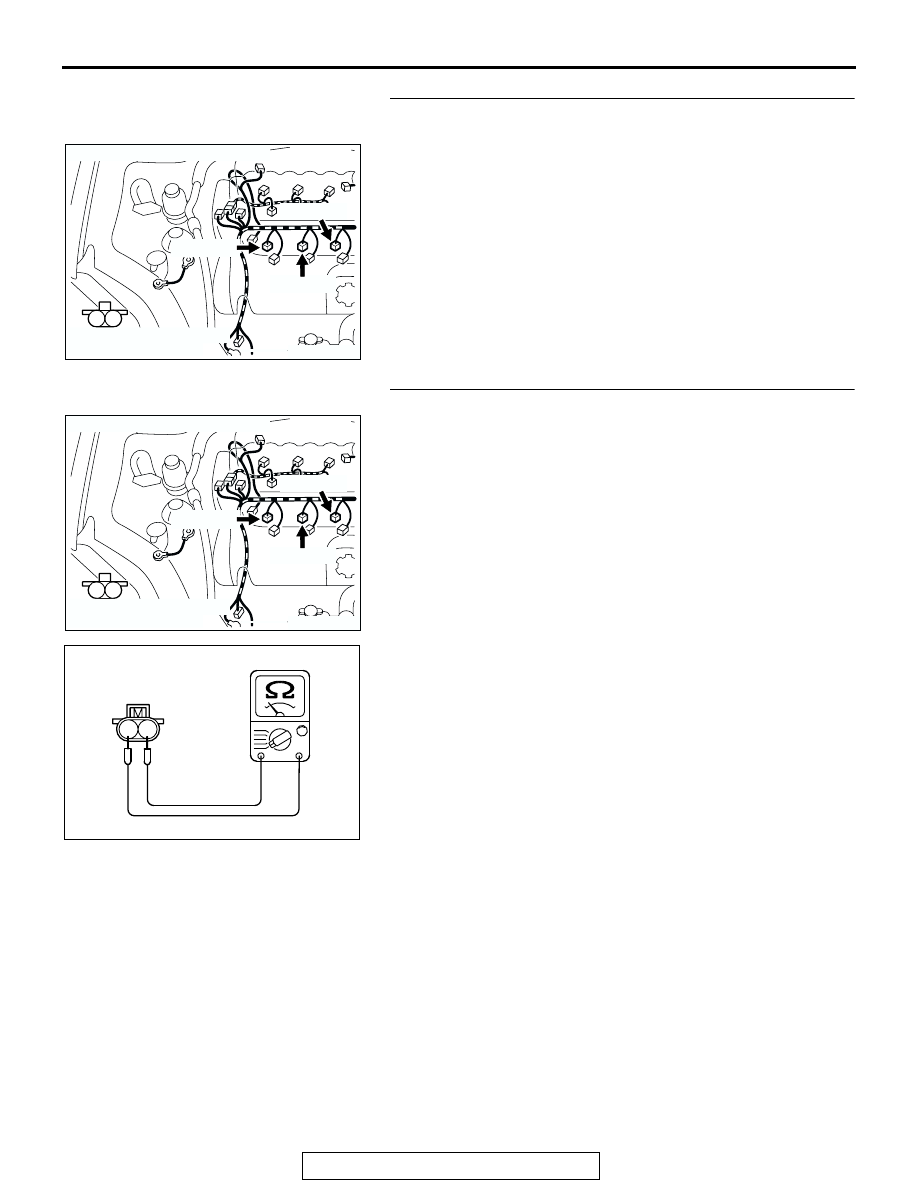

STEP 6. Check harness connector B-27, B-26, B-30 at left
bank injector for damage.

(1) Remove the intake manifold.
(2) Check the left bank injector connector for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

STEP 7. Check the left bank injector.

(1) Disconnect each left bank injector connector.

(2) Measure the resistance between injector side connector

terminal No. 1 and No. 2.

Standard value: 10.5

− 13.5 ohms [at 20°C (68°F)]

Q: Is the measured resistance between 10.5 and 13.5 ohms

[at 20

°C (68°F)]?

YES : Go to Step 8.
NO :  Replace the injector. Then go to Step 12.

AK303075

M

1

2

CONNECTOR: B-26, B-27, B-30

B-30 (GR)

B-27 (GR)

B-26 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AB

AK303075

M

1

2

CONNECTOR: B-26, B-27, B-30

B-30 (GR)

B-27 (GR)

B-26 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AB

AK000559

2

1

INJECTOR SIDE
CONNECTOR

AB

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-342

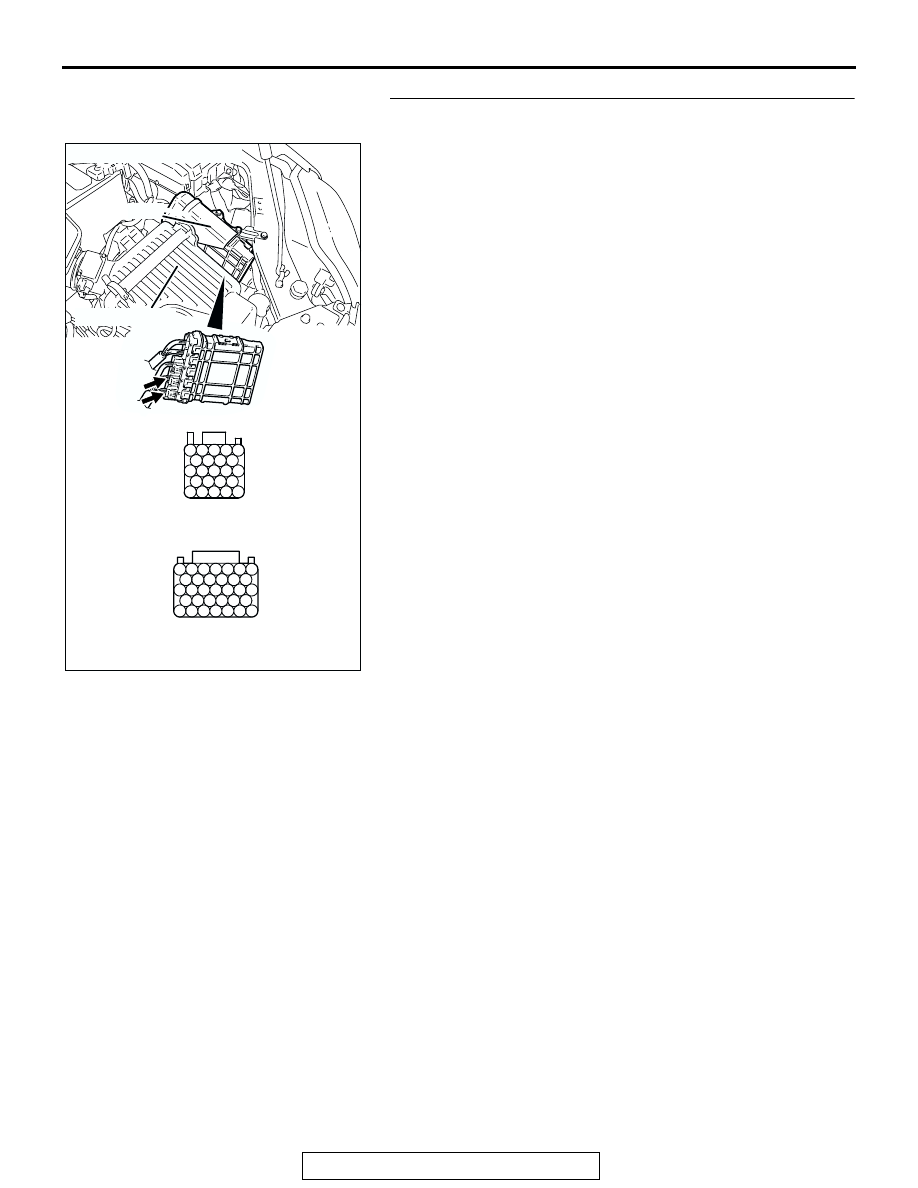

STEP 8. Check harness connector B-22, B-23 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK303057

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

CONNECTORS: B-22, B-23

B-22 (B)

AB

B-23

B-22 HARNESS CONNECTOR:
COMPONENT SIDE

B-23 HARNESS CONNECTOR:
COMPONENT SIDE

PCM

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-343

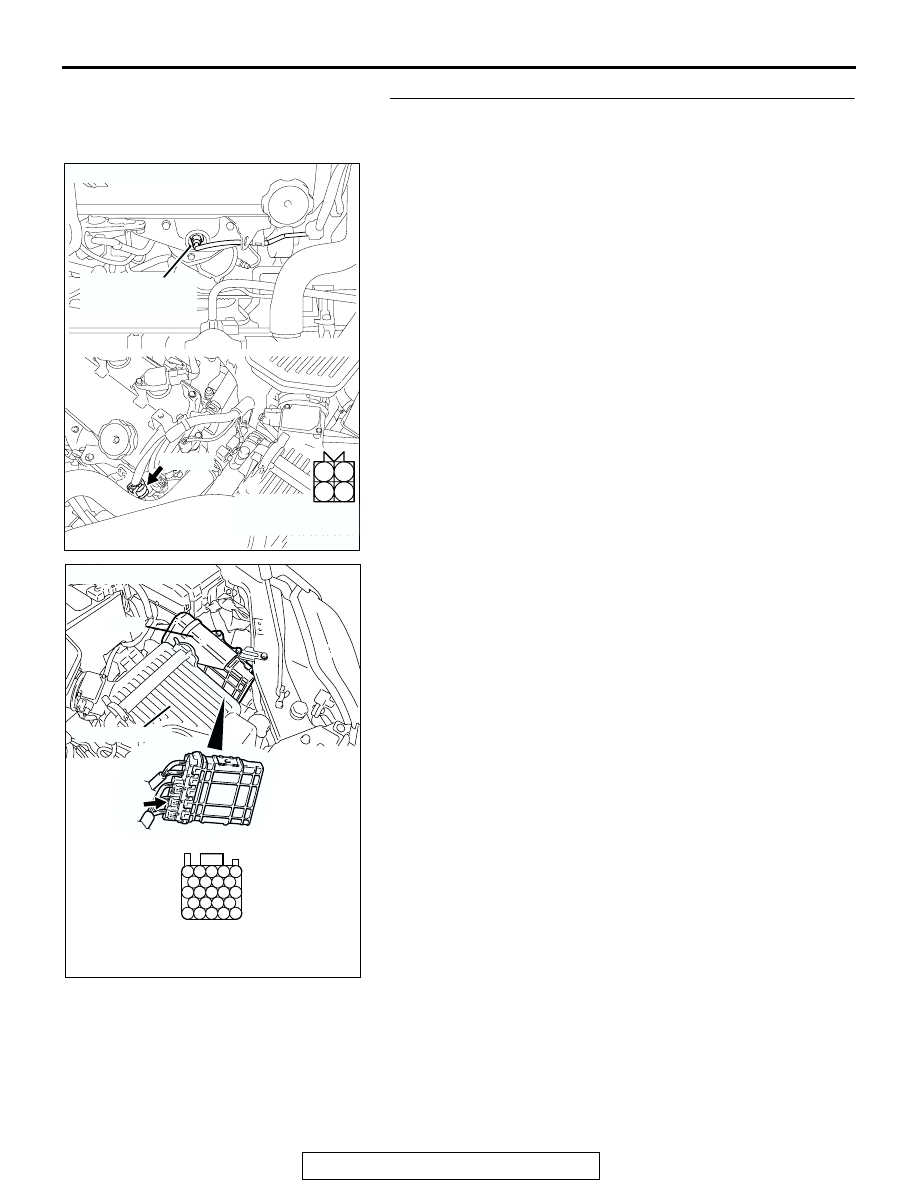

STEP 9. Check for harness damage between left bank
heated oxygen sensor (front) connector B-25 (terminal No.
4) and PCM connector B-22 (terminal No. 91).

Q: Is the harness wire in good condition?

YES : Go to Step 10.
NO :  Repair it. Then go to Step 12.

AK303071

1

2

3

4

LEFT BANK
HEATED OXYGEN
SENSOR (FRONT)

CONNECTOR: B-25

B-25 (B)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-344

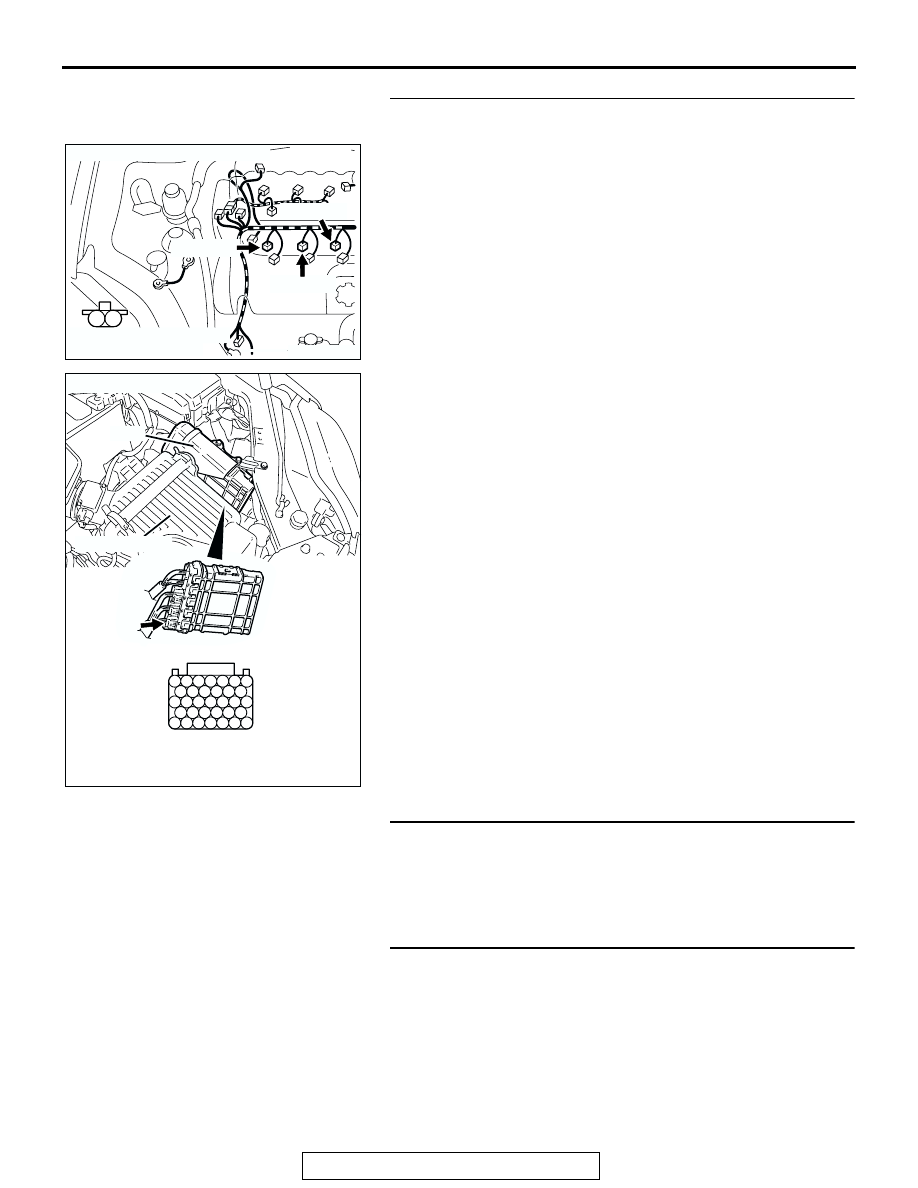

STEP 10. Check for harness damage between left bank
injector connector and PCM connector.

a. Check the harness wire between left bank injector connec-

tor B-30 (terminal No. 2) and PCM connector B-23 (terminal
No. 146) at No. 2 cylinder.

b. Check the harness wire between left bank injector connec-

tor B-27 (terminal No. 2) and PCM connector B-23 (terminal
No. 139) at No. 4 cylinder.

c. Check the harness wire between left bank injector connec-

tor B-26 (terminal No. 2) and PCM connector B-23 (terminal
No. 127) at No. 6 cylinder.

Q: Is the harness wire in good condition?

YES : Go to Step 11.
NO :  Repair it. Then go to Step 12.

STEP 11. Check the fuel pressure.

Refer to On-vehicle Service

− Fuel Pressure Test

P.13B-1133

.

Q: Is the fuel pressure normal?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

STEP 12. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0154 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK303075

M

1

2

CONNECTOR: B-26, B-27, B-30

B-30 (GR)

B-27 (GR)

B-26 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AB

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER
