MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-265

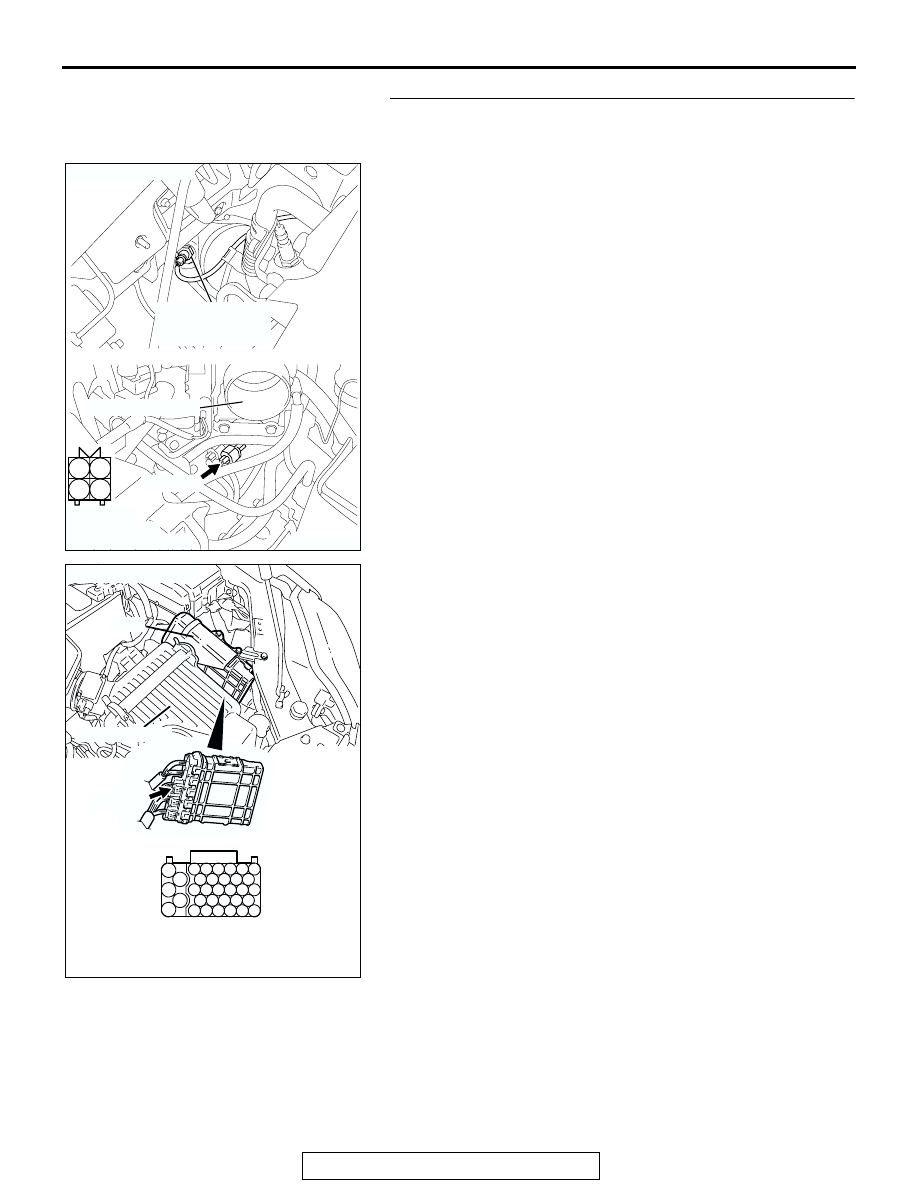

STEP 12. Check for harness damage between right bank
heated oxygen sensor (rear) connector B-08 (terminal No.
2) and PCM connector B-21 (terminal No. 69).

Q: Is the harness wire in good condition?

YES : Go to Step 13.
NO :  Repair it. Then go to Step 15.

AK303064

1

2

3

4

THROTTLE BODY

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

CONNECTOR: B-08

B-08 (GR)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303018

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

CONNECTOR: B-21

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-266

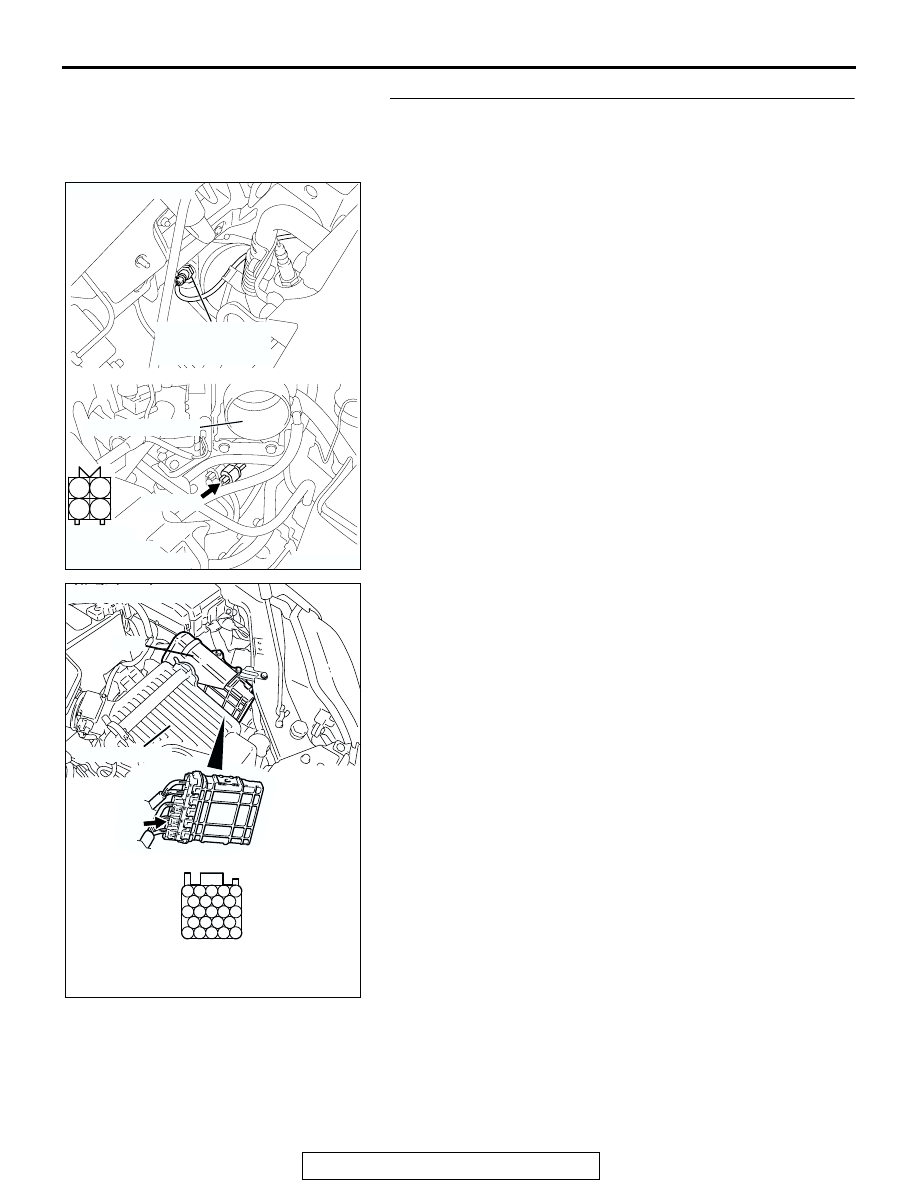

STEP 13. Check for short circuit to ground and harness
damage between right bank heated oxygen sensor (rear)
connector B-08 (terminal No. 4) and PCM connector B-22
(terminal No. 97).

Q: Is the harness wire in good condition?

YES : Go to Step 14.
NO :  Repair it. Then go to Step 15.

AK303064

1

2

3

4

THROTTLE BODY

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

CONNECTOR: B-08

B-08 (GR)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-267

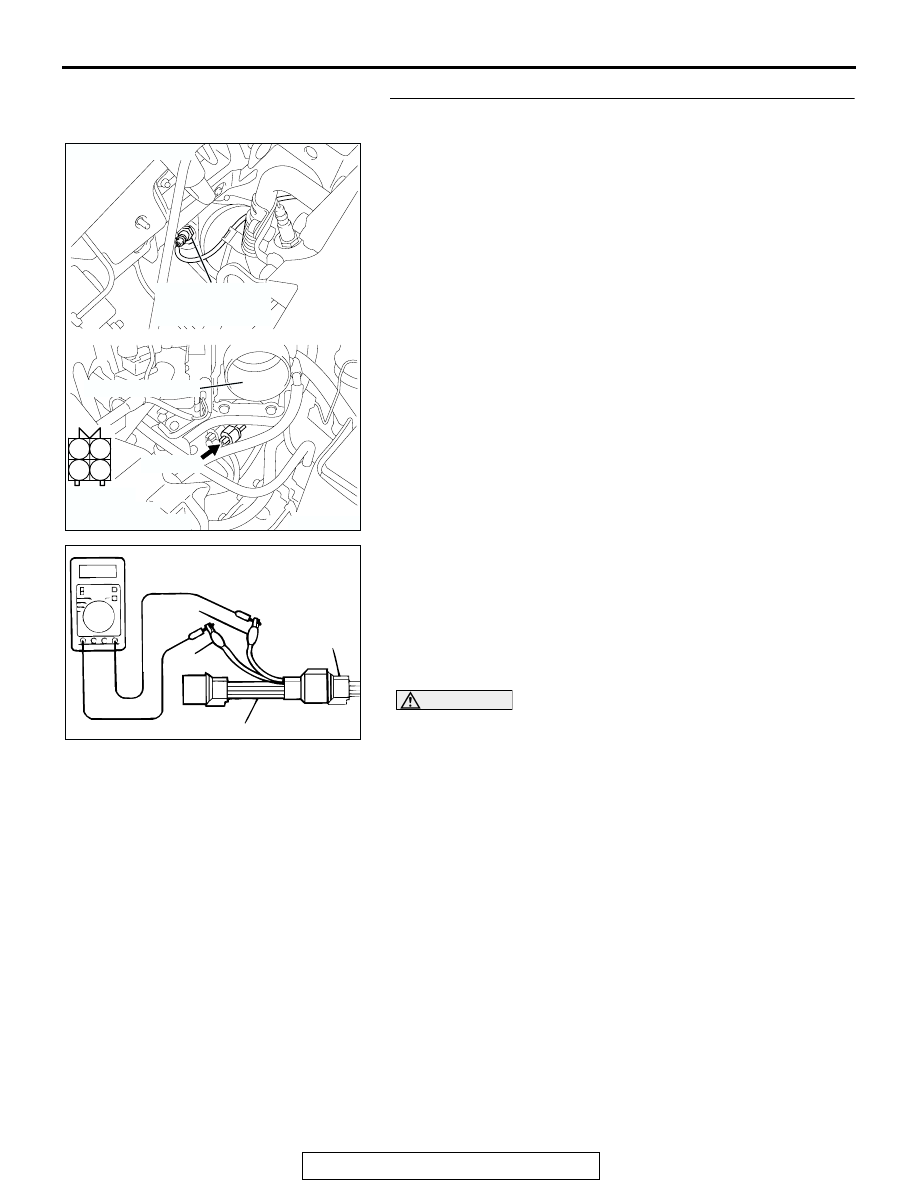

STEP 14. Check the right bank heated oxygen sensor
(rear).

(1) Disconnect the right bank heated oxygen sensor (rear)

connector B-08 and connect test harness special tool,
MB991316, to the connector on the right bank heated
oxygen sensor (front) side.

(2) Warm up the engine until engine coolant 80

°C (176°F) or

higher.

(3) Perform a tracing for 5 minutes or more with the engine

speed of 4,500 r/min.

(4) Connect a digital voltage meter between terminal No. 2

(black clip) and terminal No. 4 (white clip).

(5) While repeatedly revving the engine, measure the right

bank heated oxygen sensor (front) output voltage.

Standard value: 0.6

− 1.0 volt

CAUTION

• Be very careful when connecting the jumper wire;

incorrect connection can damage the oxygen sensor.

• Be careful the heater is broken when voltage of beyond

8V is applied to the oxygen sensor heater.
NOTE: If the sufficiently high temperature (of approximate
400

°

C or more) is not reached although the oxygen sensor

is normal, the output voltage would be possibly low
although the rich air-fuel ratio. Therefore, if the output volt-
age is low, use a jumper wire to connect the terminal No.1
(red clip of special tool) and the terminal No. 3 (blue clip of
special tool) of the oxygen sensor with a (+) terminal and (-)
terminal of 8 V power supply respectively, then check again.

Q: Is the voltage between 0.6 and 1.0 volt?

YES : Replace the PCM. Then go to Step 15.
NO :  Replace the right bank heated oxygen sensor (rear).

Then go to Step 15.

AK303064

1

2

3

4

THROTTLE BODY

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

CONNECTOR: B-08

B-08 (GR)

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

AKX01624

HEATED
OXYGEN
SENSOR
COMPONENT
SIDE
CONNECTOR

MB991316

WHITE

BLACK

AN

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-268

STEP 15. Test the OBD-II drive cycle.

(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0136 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0137: Heated Oxygen Sensor Circuit Low Voltage (bank 1, sensor 2)

YELLO

W

BLUE

BLA

CK

BLA

CK

AK302842

TO PCM

FROM MFI RELAY

69

97

2

4

3

1

B-22

RIGHT BANK
HEATED OXYGEN
SENSOR (REAR)

POWERTRAIN CONTROL
MODULE (PCM)

4

3

1 2

B-08

MU802665

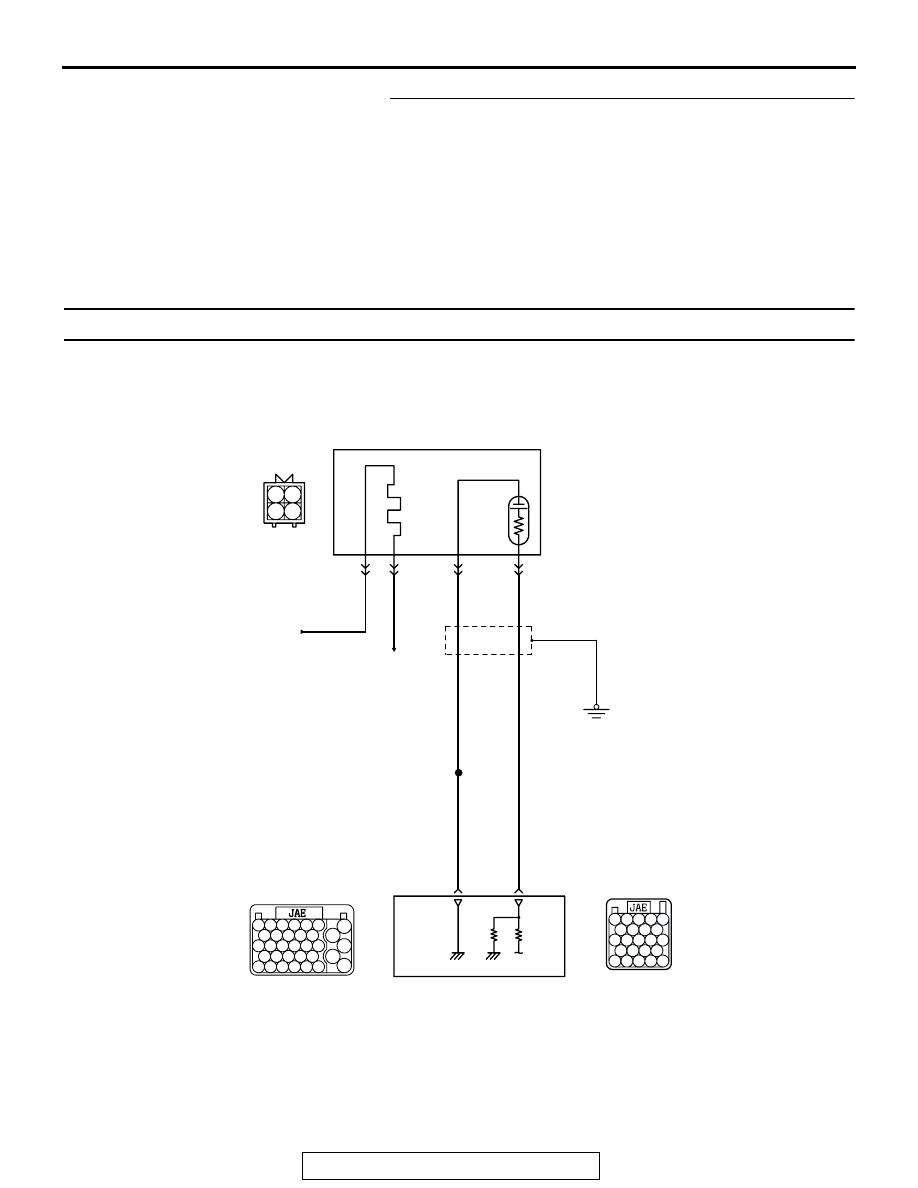

Right Bank Heated Oxygen Sensor (rear) Circuit

B-21

52

51

53 54 55 56

57

58 59 60 61 62

63

64 65 66 67 68 69

70

71 72 73 74 75

76

77 78 79 80 81 82

83

100

99

92

91

93 94 95

96 97 98

101 102 103 104

105 106 107 108

109 110 111 112 113
