MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-969

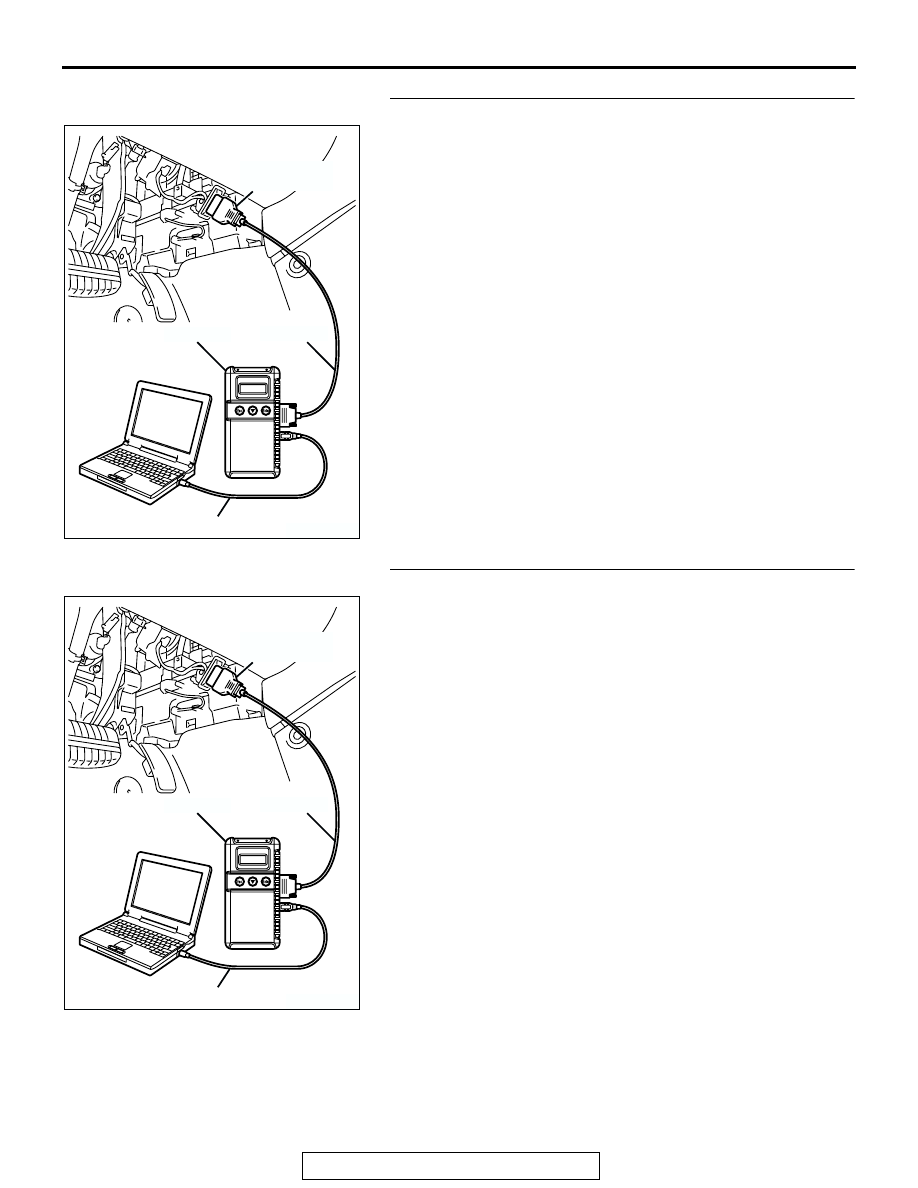

STEP 6. Using scan tool MB991958, check data list.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following items in the data list. Refer to Data List

Reference Table

P.13A-1063

.

a. Item 13: Intake Air Temperature Sensor.
b. Item 25: Barometric Pressure Sensor.

c. Item 21: Engine Coolant Temperature Sensor.

d. Item 69: Cylinder 1, 4 Bank Heated Oxygen Sensor

(rear).

e. Item 39: Cylinder 1, 4 Bank Heated Oxygen Sensor

(front).

f. Item 59: Cylinder 2, 3 Bank Heated Oxygen Sensor

(rear).

g. Item 11: Cylinder 2, 3 Bank Heated Oxygen Sensor

(front).

h. Item 27: Power Steering Pressure Switch.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Are they operating properly?

YES : Go to Step 7.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 7. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following item in the actuator test. Refer to

Actuator Test Reference Table

P.13A-1076

.

a. Item 08: Evaporative Emission Purge Solenoid.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the actuator operating properly?

YES : Go to Step 8.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-970

STEP 8. Check the fuel pressure.
Refer to On-vehicle Service

− Fuel Pressure Test

P.13A-1104

.

Q: Is the fuel pressure normal?

YES :  a. Check the following items, and repair or replace

the defective items.

• Vacuum leak.

• Broken intake manifold gasket.

• Broken air intake hose.

• Broken vacuum hose.

• Positive crankcase ventilation valve does not

operate.

b. Injector clogged.

Then confirm that the malfunction symptom is
eliminated.

NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 9. Check the ignition timing.
Refer to GROUP 11A, On-vehicle Service

− Ignition Timing

Check

P.11A-12

.

Q: Is the ignition timing normal?

YES : Check the following items, and repair or replace the

defective items.

a. Check the ignition coil and spark plugs.
b. Check the purge control system.

c. Check compression pressure.

d. Check if the foreign materials (water,

kerosene, etc.) got into fuel.

e. Check the EGR valve.

Then confirm that the malfunction symptom is

eliminated.

NO :  Check that the crankshaft position sensor and timing

belt cover are in the correct position. Then confirm
that the malfunction symptom is eliminated.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-971

INSPECTION PROCEDURE 9: Idle speed is high (improper idle speed).

.

COMMENT

• In such cases as the above, the cause is proba-

bly that the intake air volume during idle is too
great.

.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

• Malfunction of the electronic control throttle valve

system.

• Malfunction of the throttle body.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

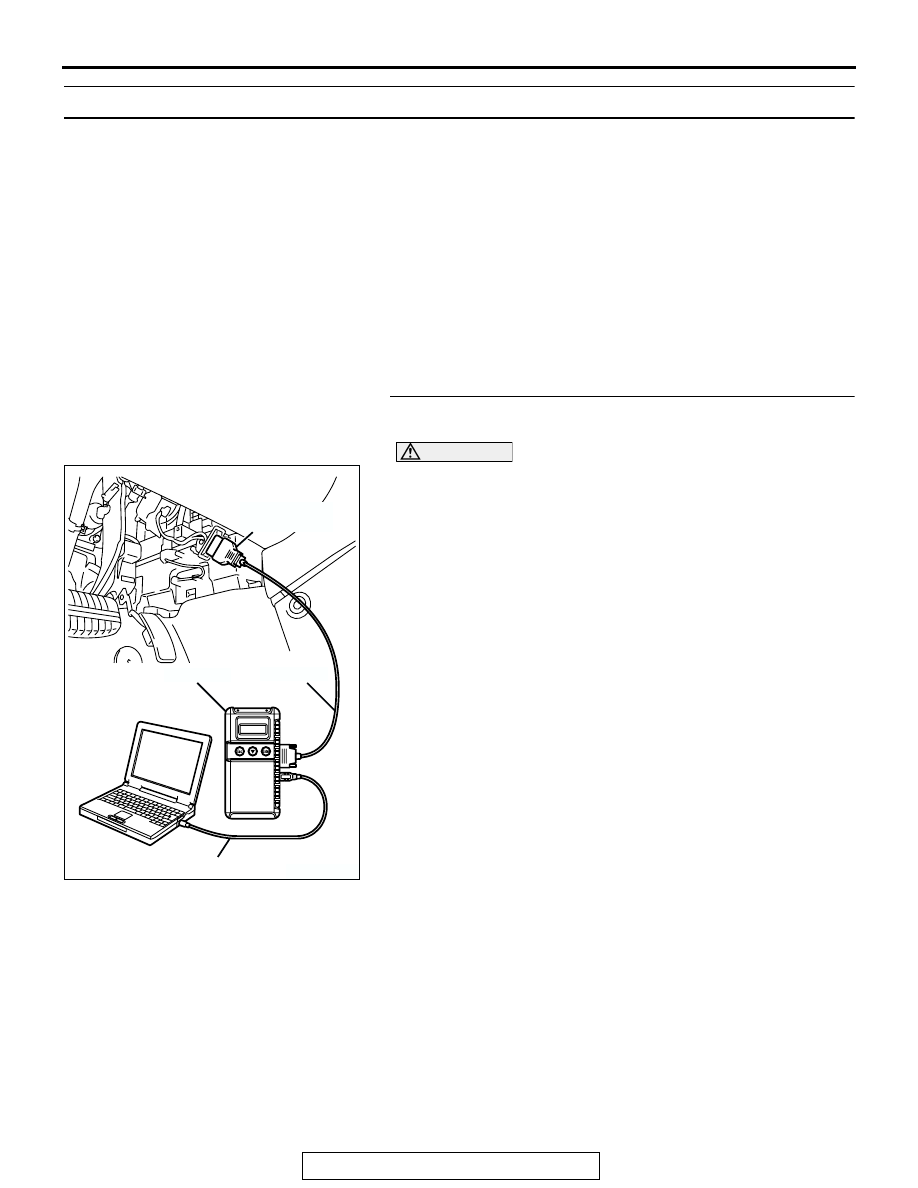

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the DTC.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the DTC set?

YES : Refer to Diagnostic Trouble Code Chart

P.13A-34

.

NO :  Go to Step 2.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-972

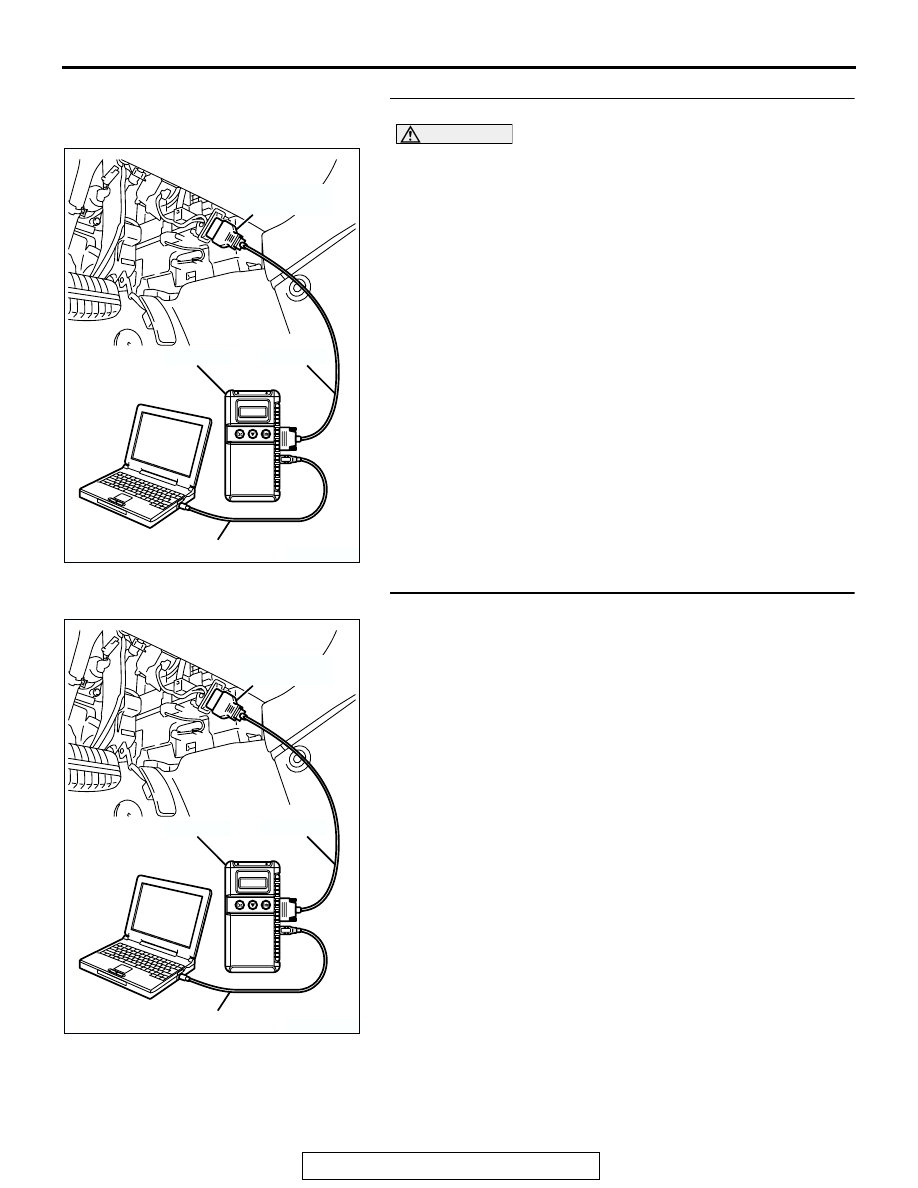

STEP 2. Using scan tool MB991958, check data list.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Check the following item in the data list. Refer to Data List

Reference Table

P.13A-1063

.

a. Item 21: Engine Coolant Temperature Sensor.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : Go to Step 3.
NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

STEP 3. Using scan tool MB991958, check actuator test.
(1) Turn the ignition switch to the "ON" position.
(2) Check the following item in the actuator test. Refer to

Actuator Test Reference Table

P.13A-1076

.

a. Item 08: Evaporative Emission Purge Solenoid.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the actuator operating properly?

YES : Refer to On-vehicle Service

− Throttle Body (Throttle

Valve Area) Cleaning

P.13A-1104

.

NO :  Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827
