MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-889

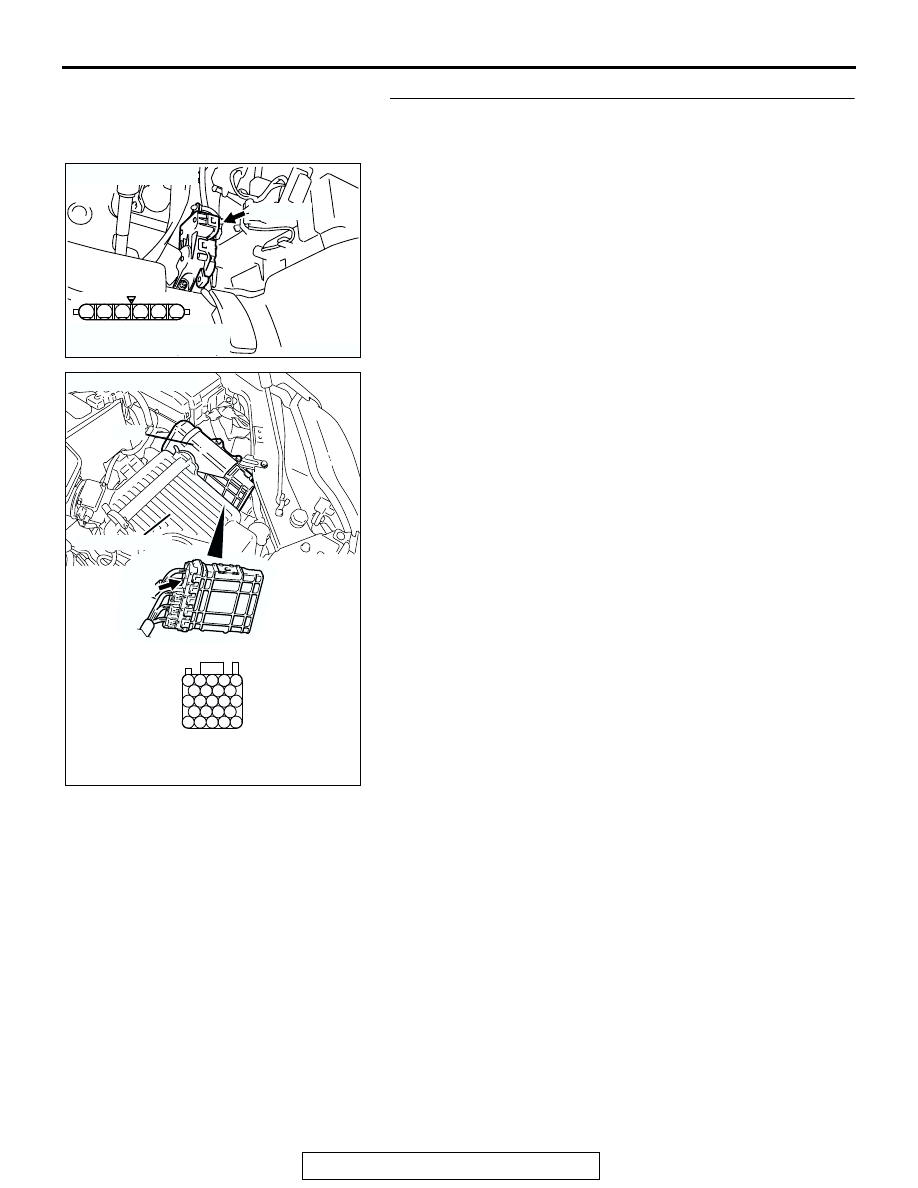

STEP 8. Check for harness damage between accelerator
pedal position sensor connector C-24 (terminal No. 4) and
PCM connector B-20 (terminal No. 21).

Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair it. Then go to Step 11.

AK303906

1

6 5 4 3 2

AB

C-24 (B)

CONNECTOR: C-24

HARNESS CONNECTOR:
COMPONENT SIDE

AK303092

25

21

24 23 22

29 28 27 26

34 33 32 31 30

38 37 36 35

43 42 41 40 39

CONNECTOR: B-20

B-20

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-890

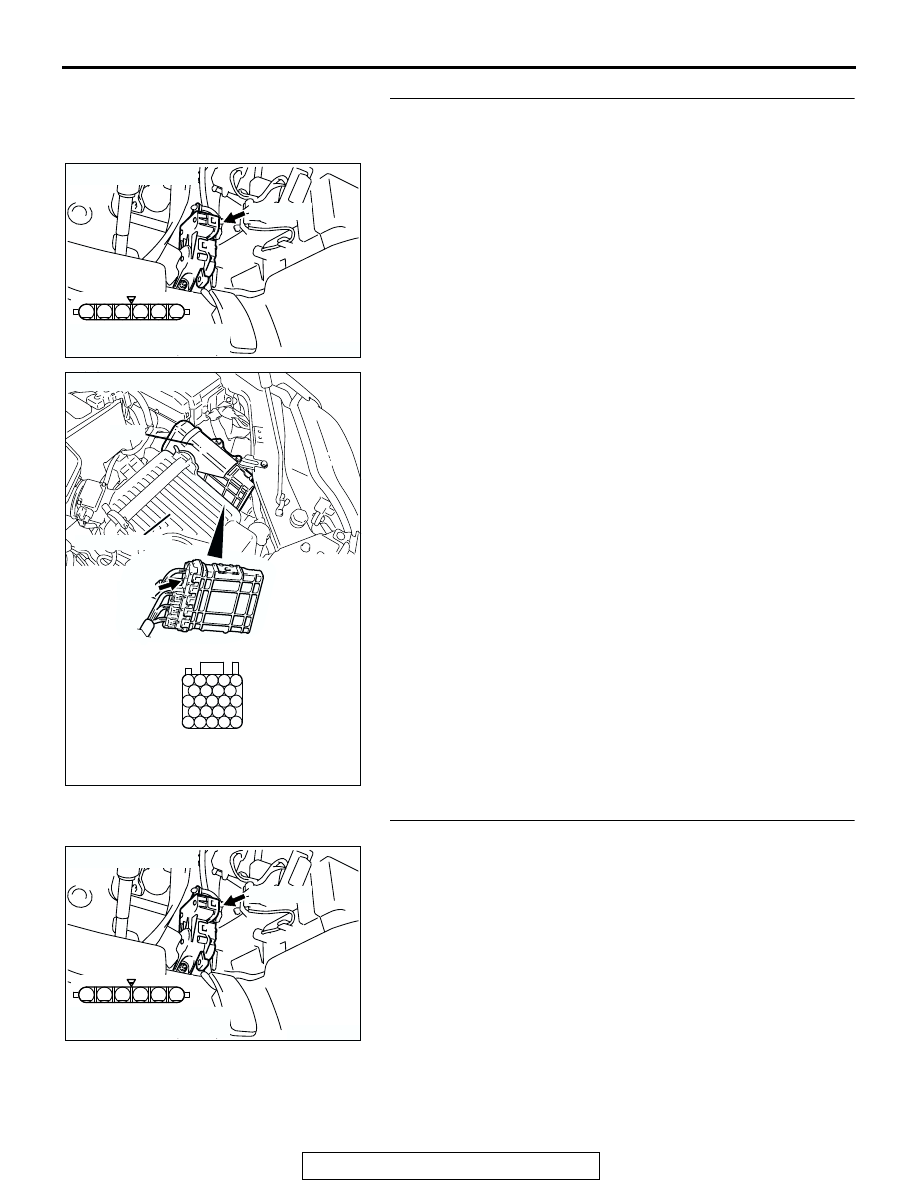

STEP 9. Check for harness damage between accelerator
pedal position sensor connector C-24 (terminal No. 6) and
PCM connector B-20 (terminal No. 27)

Q: Is the harness wire in good condition?

YES : Go to Step 10.
NO :  Repair it. Then go to Step 11.

STEP 10. Replace the accelerator pedal position sensor.

(1) Replace the accelerator pedal position sensor.
(2) Turn the ignition switch to the "ON" position.

(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P2127 set?

YES : Replace the PCM. Then go to Step 11.
NO :  The procedure is complete.

AK303906

1

6 5 4 3 2

AB

C-24 (B)

CONNECTOR: C-24

HARNESS CONNECTOR:
COMPONENT SIDE

AK303092

25

21

24 23 22

29 28 27 26

34 33 32 31 30

38 37 36 35

43 42 41 40 39

CONNECTOR: B-20

B-20

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

AK303906

1

6 5 4 3 2

AB

C-24 (B)

CONNECTOR: C-24

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-891

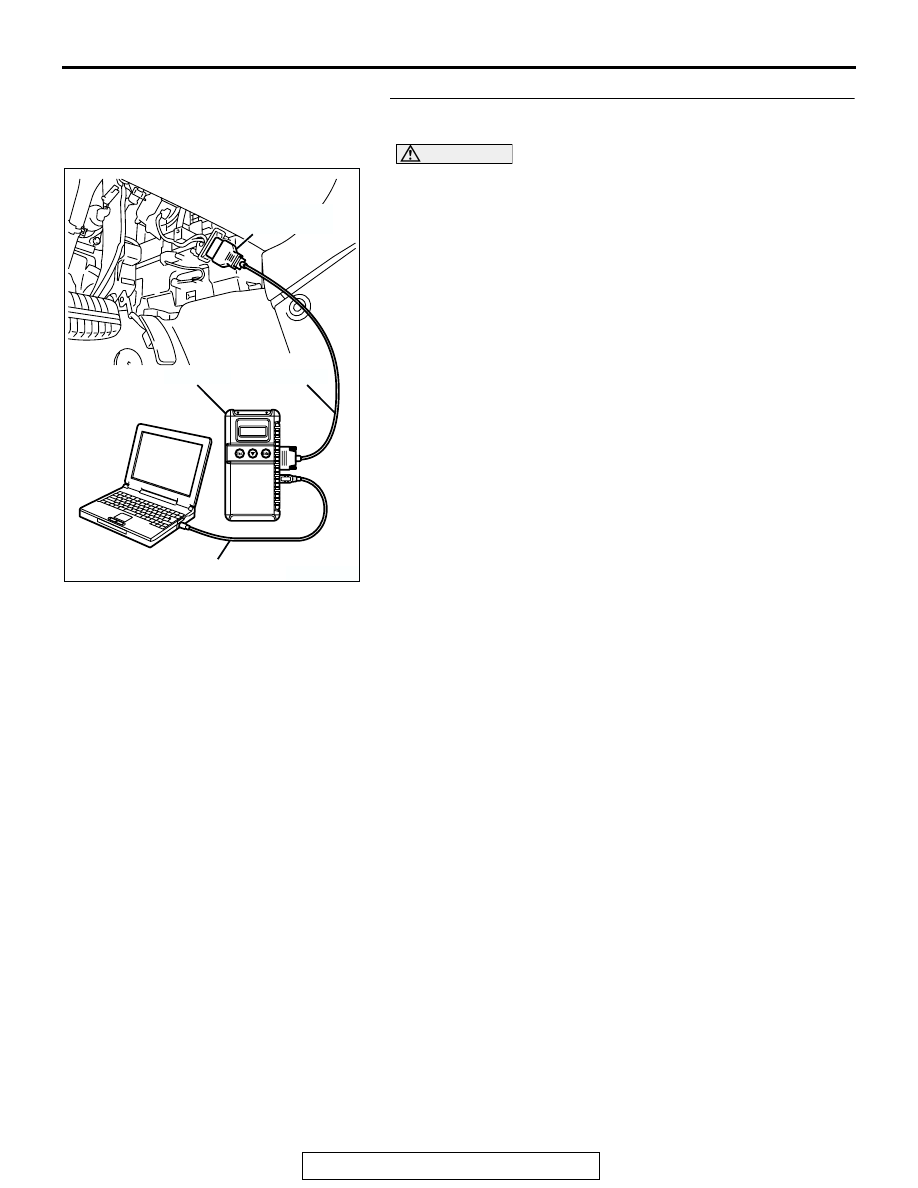

STEP 11. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is DTC P2127 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-892

DTC P2128: Accelerator Pedal Position Sensor (sub) Circuit High Input

CAUTION

If DTC P2128 has been set, TCL related DTC
U1120 is also set. After P2128 has been diag-
nosed, don't forget to erase DTC U1120.

.

22

21

23 24 25

26 27 28 29

30 31 32 33 34

35 36 37 38

39 40 41 42 43

6

1 2 3 4 5

AK303908

YELLO

W

-RED

PINK-GREEN

BR

O

W

N

C-24

5 V

21

4

ACCELERATOR PEDAL

POSITION SENSOR
(SUB)

POWERTRAIN CONTROL
MODULE (PCM)

27

22

6

5

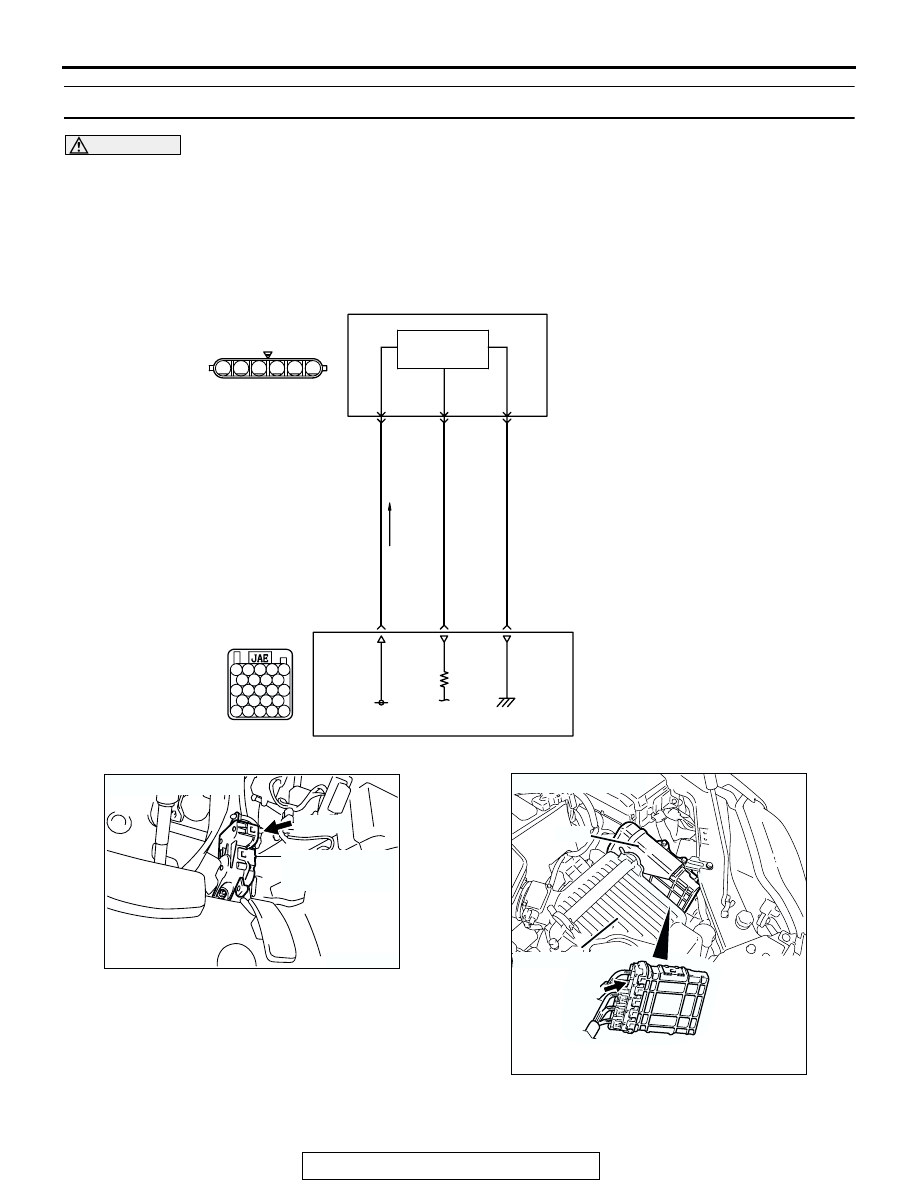

Accelerator Pedal Position Sensor (sub) Circuit

B-20

HALL IC

AC305244

AK303904AB

ACCELERATOR
PEDAL POSITION
SENSOR

CONNECTOR: C-24

C-24 (B)

AK303085

CONNECTOR: B-20

PCM

AB

AIR CLEANER

B-20
