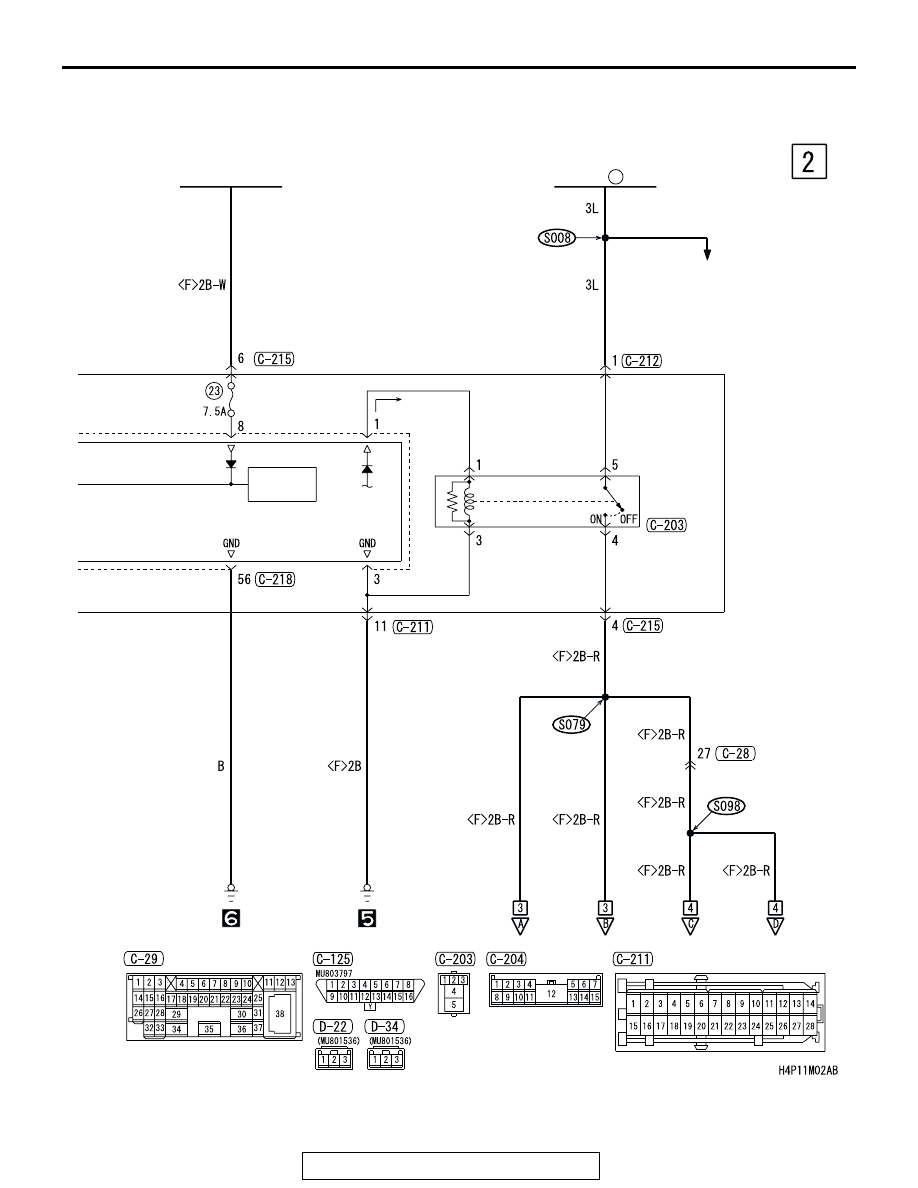

POWER WINDOWS

TSB Revision

CIRCUIT DIAGRAMS

90-135

IGNITION
SWITCH (IG1)

FUSIBLE
LINK

5

AUDIO SYSTEM
<VEHICLES WITH
 AUDIO AMPLIFIER>

JUNCTION
BLOCK

POWER
WINDOW
RELAY

POWER
SUPPLY

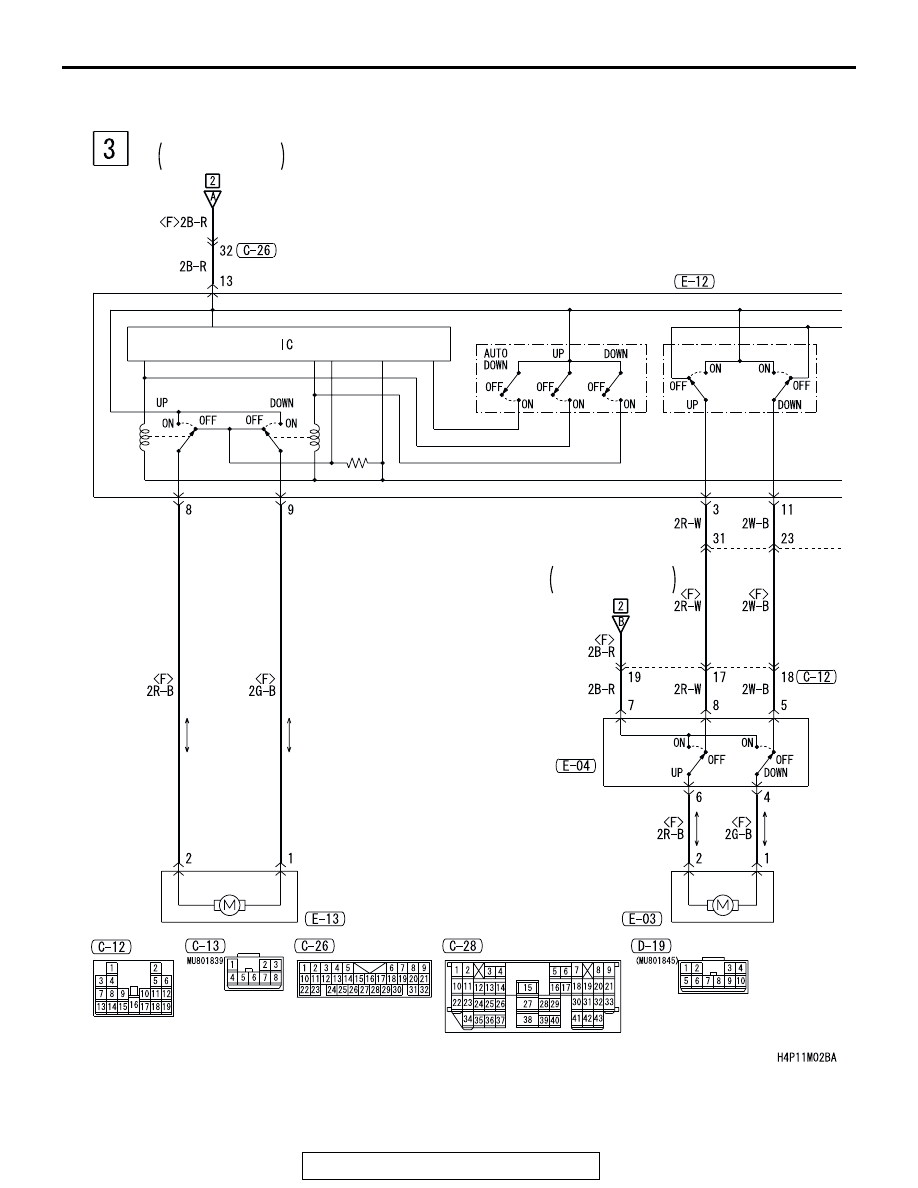

POWER WINDOWS

TSB Revision

CIRCUIT DIAGRAMS

90-136

POWER WINDOWS (CONTINUED)

JUNCTION BLOCK

POWER WINDOW
RELAY

POWER WINDOW
MAIN SWITCH

JUNCTION BLOCK

POWER WINDOW
RELAY

FRONT
POWER WINDOW
SUB SWITCH

FRONT
DOOR WINDOW
REGULATOR
MOTOR (RH)

FRONT
DOOR WINDOW
REGULATOR
MOTOR (LH)

(FRONT: LH)

(FRONT: RH)

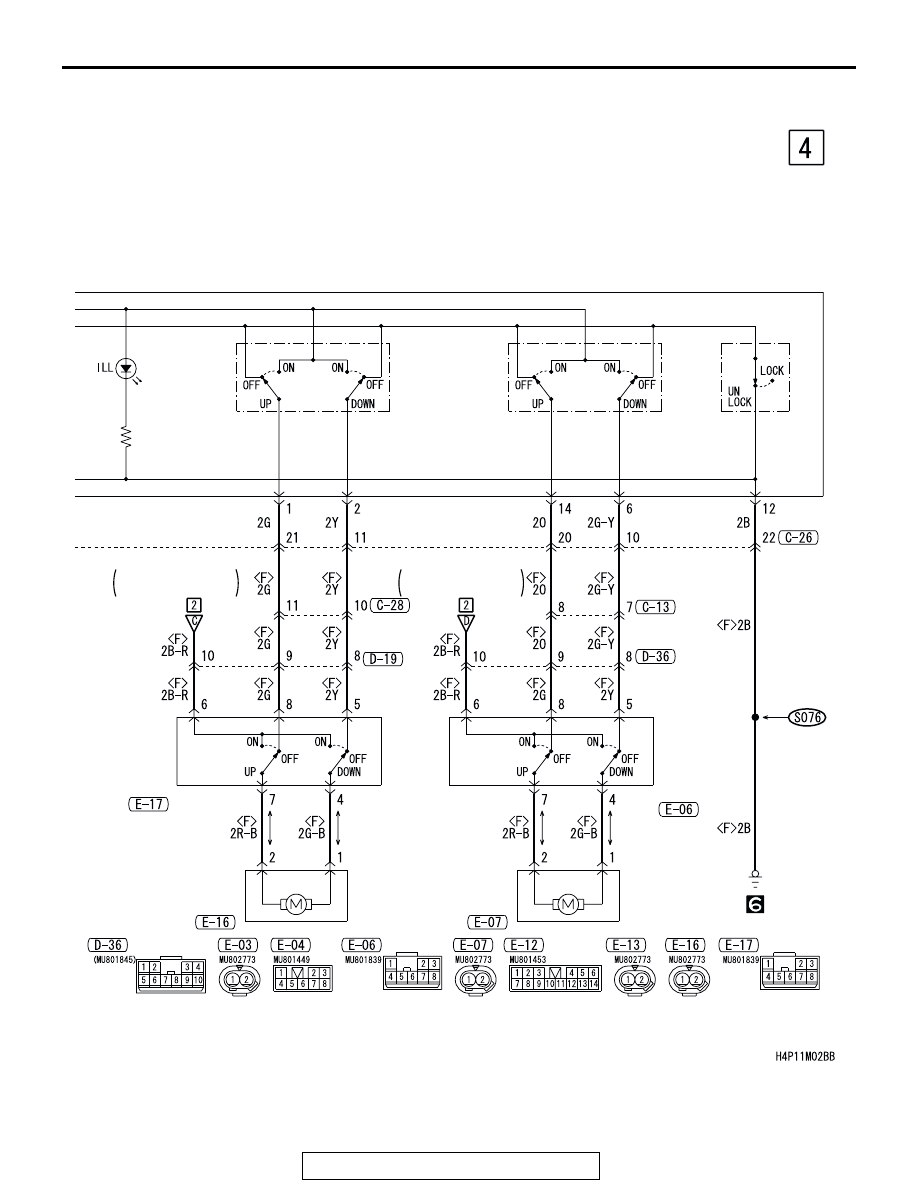

POWER WINDOWS

TSB Revision

CIRCUIT DIAGRAMS

90-137

(REAR: LH)

(REAR: RH)

JUNCTION BLOCK
POWER WINDOW
RELAY

JUNCTION BLOCK

POWER WINDOW
RELAY

REAR
POWER
WINDOW
SUB
SWITCH
(LH)

REAR
POWER
WINDOW
SUB
SWITCH
(RH)

REAR DOOR
WINDOW
REGULATOR
MOTOR (LH)

REAR DOOR
WINDOW
REGULATOR
MOTOR (RH)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

LOCK
SWITCH

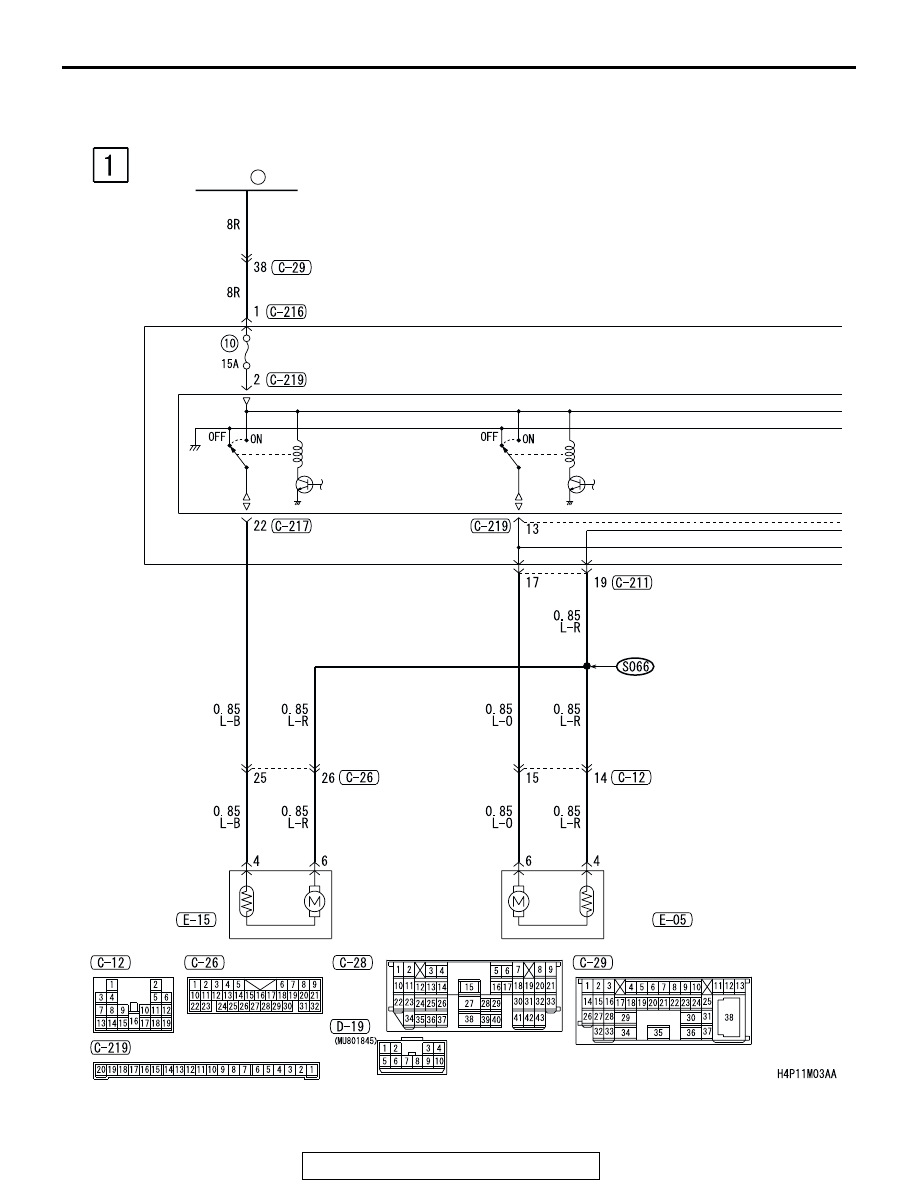

CENTRAL DOOR LOCKING SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-138

CENTRAL DOOR LOCKING SYSTEM

M1901004701046

FUSIBLE
LINK

1

JUNCTION
BLOCK

ETACS-ECU

FRONT
DOOR LOCK
ACTUATOR
(LH)

FRONT
DOOR LOCK
ACTUATOR
(RH)

JUNCTION BLOCK SIDE
