IGNITION SYSTEM <2.4L ENGINE>
TSB Revision

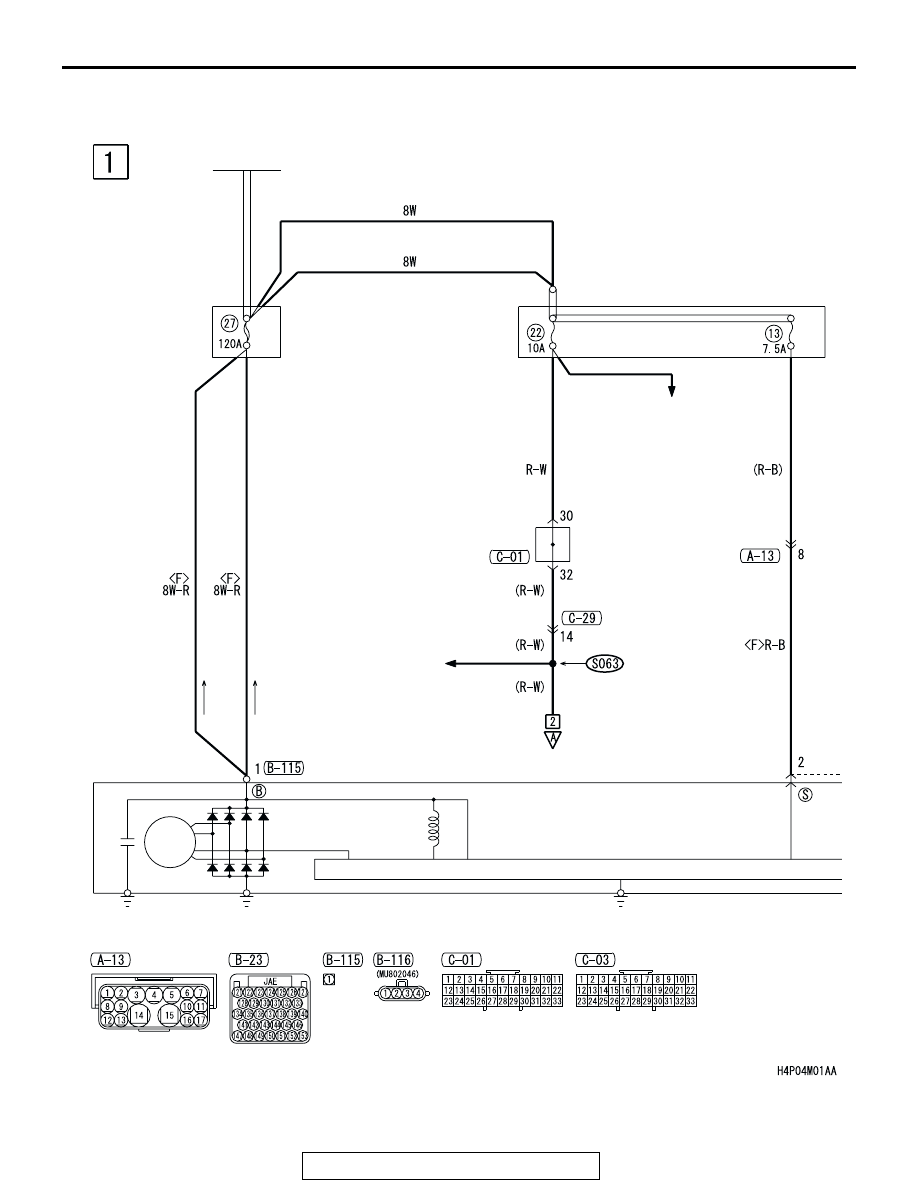

CIRCUIT DIAGRAMS
90-31

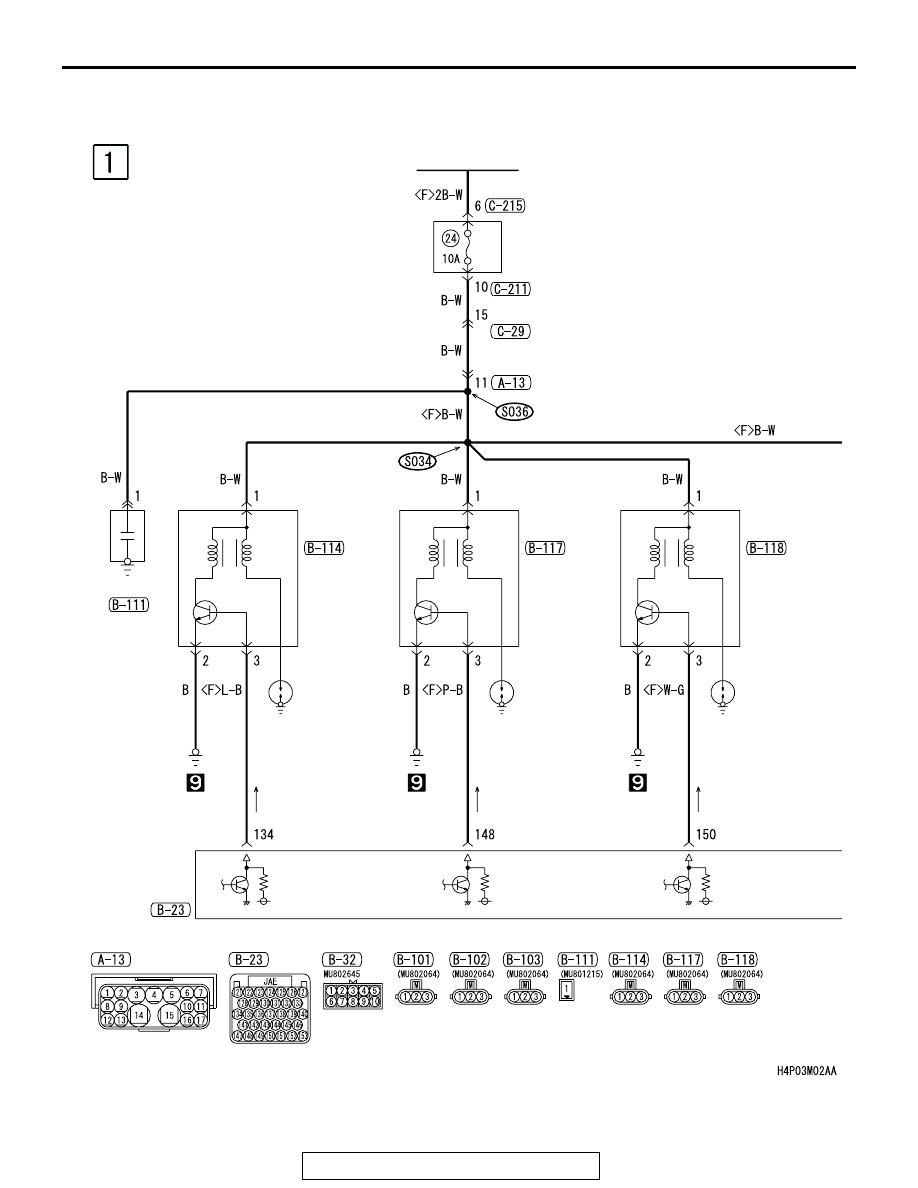

IGNITION

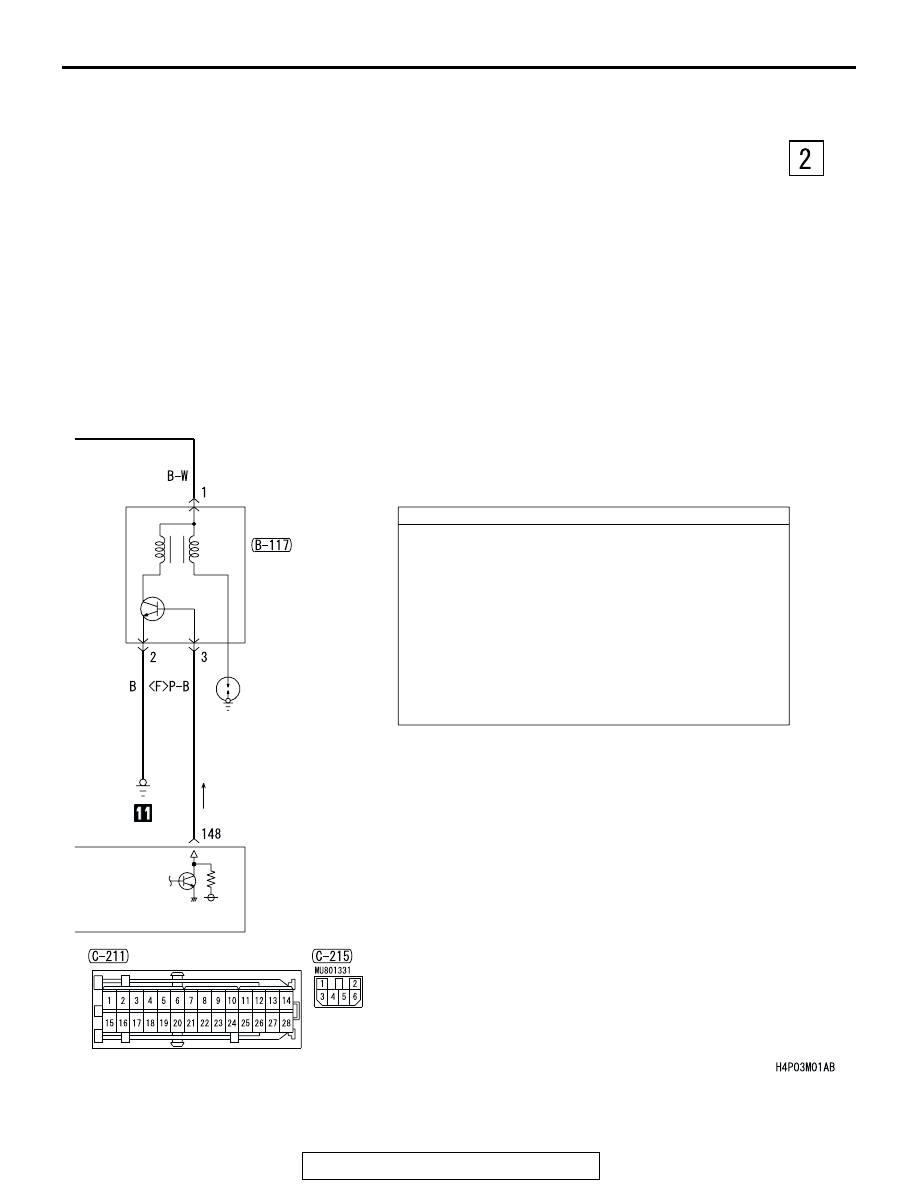

COIL 4
SPARK
PLUG
·ACCELERATOR PEDAL
POSITION SENSOR
·CAMSHAFT
POSITION SENSOR
·CRANKSHAFT
POSITION SENSOR
·ENGINE COOLANT
TEMPERATURE
SENSOR
·FUEL TANK DIFFERENTIAL
PRESSURE SENSOR
·HEATED OXYGEN SENSOR
POWERTRAIN CONTROL MODULE INPUT SIGNAL
·IGNITION SWITCH (ST)
·INTAKE AIR TEMPERATURE
SENSOR
·KNOCK SENSOR
·MANIFOLD DIFFERENTIAL
PRESSURE SENSOR
·TRANSMISSION RANGE
SWITCH
·THROTTLE POSITION
SENSOR
·OUTPUT SHAFT SPEED
SENSOR
·VOLUME AIRFLOW
SENSOR
WIRE COLOR CODE
B : BLACK LG : LIGHT GREEN G : GREEN L : BLUE
BR :BROWN O : ORANGE GR : GRAY R : RED W : WHITE
SB : SKY BLUE P : PINK Y : YELLOW V : VIOLET
