80A-1

GROUP 80A

CONFIGURATION

DIAGRAMS

CONTENTS

OVERALL CONFIGURATION
DIAGRAM. . . . . . . . . . . . . . . . . . . . . .

80A-2

HOW TO READ CONFIGURATION
DIAGRAMS  . . . . . . . . . . . . . . . . . . . .

80A-3

ENGINE COMPARTMENT. . . . . . . . .

80A-4

ENGINE AND TRANSAXLE
<2.4L ENGINE> . . . . . . . . . . . . . . . . .

80A-6

ENGINE AND TRANSAXLE
<3.8L ENGINE>  . . . . . . . . . . . . . . . . .

80A-10

DASH PANEL . . . . . . . . . . . . . . . . . . .

80A-14

FLOOR AND ROOF . . . . . . . . . . . . . .

80A-22

DOOR . . . . . . . . . . . . . . . . . . . . . . . . .

80A-24

LUGGAGE COMPARTMENT . . . . . . .

80A-25

OVERALL CONFIGURATION DIAGRAM

TSB Revision

CONFIGURATION DIAGRAMS

80A-2

OVERALL CONFIGURATION DIAGRAM

M1801000100558

NOTE:

.

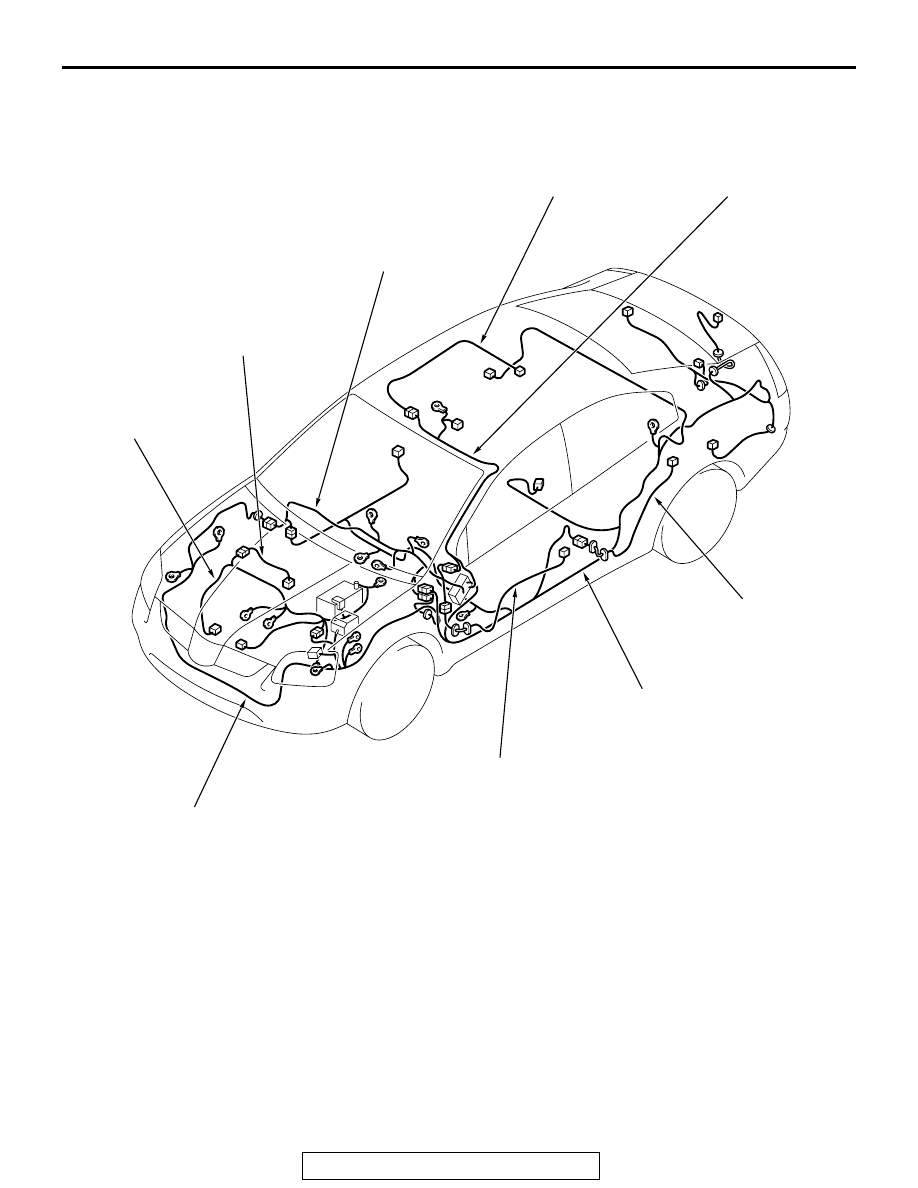

1. This illustration shows only major wiring harnesses.
2. *: also equipped at the right side.

AC304369AB

CONTROL WIRING
HARNESS

INJECTOR WIRING
HARNESS
<3.8L ENGINE>

INSTRUMENT PANEL
WIRING HARNESS

REAR DOME LIGHT
WIRING HARNESS

ROOF WIRING
HARNESS

FRONT WIRING
HARNESS

FLOOR WIRING
HARNESS

REAR DOOR
WIRING HARNESS

*

FRONT DOOR
WIRING HARNESS

*

HOW TO READ CONFIGURATION DIAGRAMS

TSB Revision

CONFIGURATION DIAGRAMS

80A-3

HOW TO READ CONFIGURATION DIAGRAMS

M1801000200470

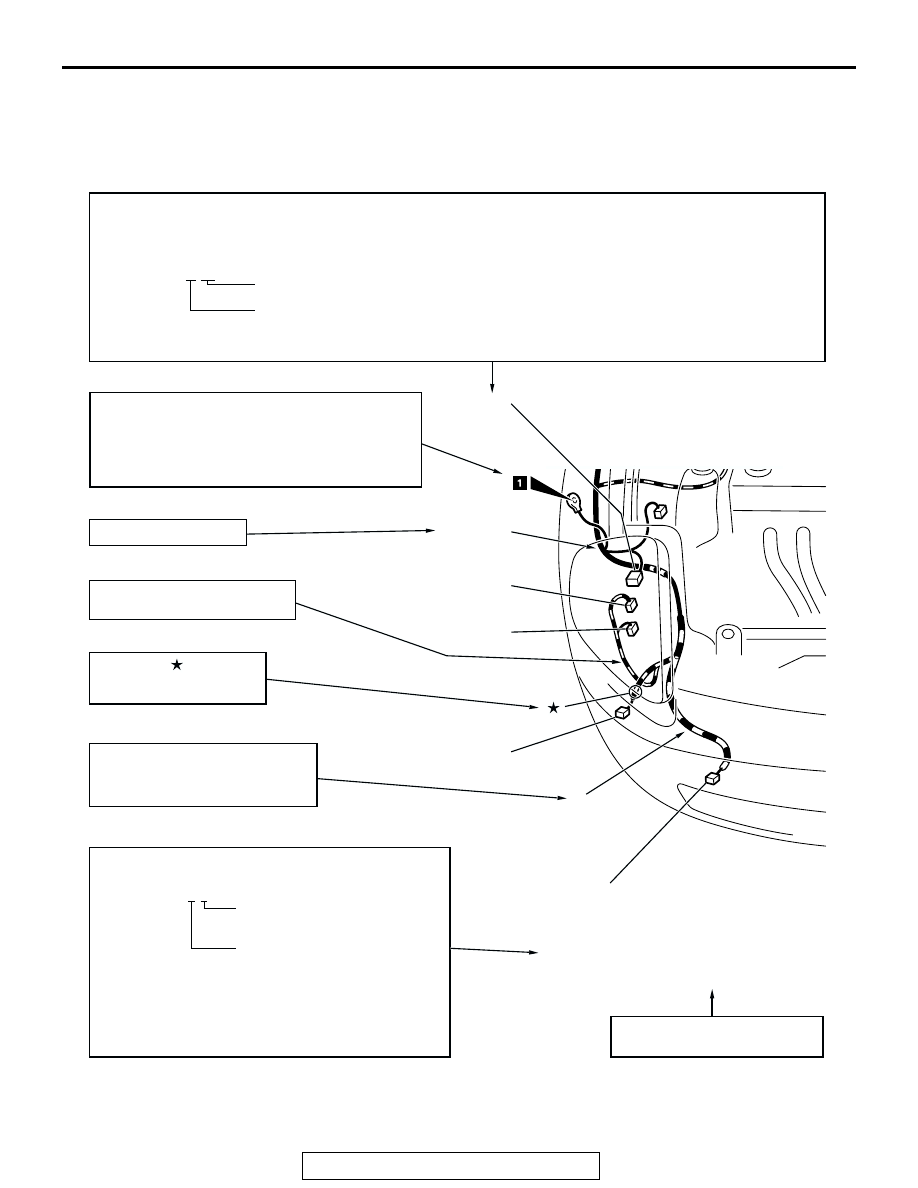

The wiring harness diagrams clearly show the connector locations and harness configurations on actual vehi-
cles. Some variations are included in one configuration diagram. Accordingly, some diagrams may not be
applicable for individual vehicles.

AC207633

Denotes connector No.
The same connector No. is used throughout the circuit diagrams to facilitate connector location searches.
The first alphabetical symbol indicates the location site of the connector and a number that follows is the unique number.
Numbers are usually assigned to parts in clockwise order on the diagram.

       Example: A-19

Number specific to connector (serial number)

Connector location site symbol
A:  ENGINE COMPARTMENT

D:  FLOOR AND ROOF

B:  ENGINE AND TRANSAXLE

E:  DOOR

C:  DASH PANEL

F:  LUGGAGE COMPARTMENT

Denotes ground point.
Same ground number is used throughout circuit
diagrams to facilitate search of ground point.
Refer to GROUP 70 SINGLE PART INSTALLATION
POSITION - GROUND MOUNTING LOCATIONS
for details of ground points.

Denotes the color of the corrugated
tube (If not specified, it is black.)
R:  Red
Y:   Yellow

The number of connector pins and the connector color
(except milk white)* are shown for ease of retrieval.

       Example: (2-B)

          Connector color
          (milk white if no color is indicated)

          Number of connector pins

*: Typical connector colors
        B:   Black

BR: Brown

        Y:    Yellow

V:    Violet

        L:    Blue

O:   Orange

        G:   Green

GR: Gray

        R:   Red

NONE: Milk white

A-15 (2)             FOG LIGHT (RH)
A-16 (2-GR)       HORN (LOW)
A-17 (2-B)          HEADLIGHT (RH)
A-18 (2-B)          WINDSHIELD WASHER MOTOR
A-19 (2-GR)       DUAL PRESSURE SWITCH

Indicates the device to which the
connector is connected.

The mark            shows the
standard mounting position
of wiring harness.

AC

A-17

A-16

A-15

A-18

A-19

Y

Denotes a section covered by a
corrugated tube.

FRONT
WIRING
HARNESS
(RH)

Denotes harness name.

ENGINE COMPARTMENT

TSB Revision

CONFIGURATION DIAGRAMS

80A-4

ENGINE COMPARTMENT

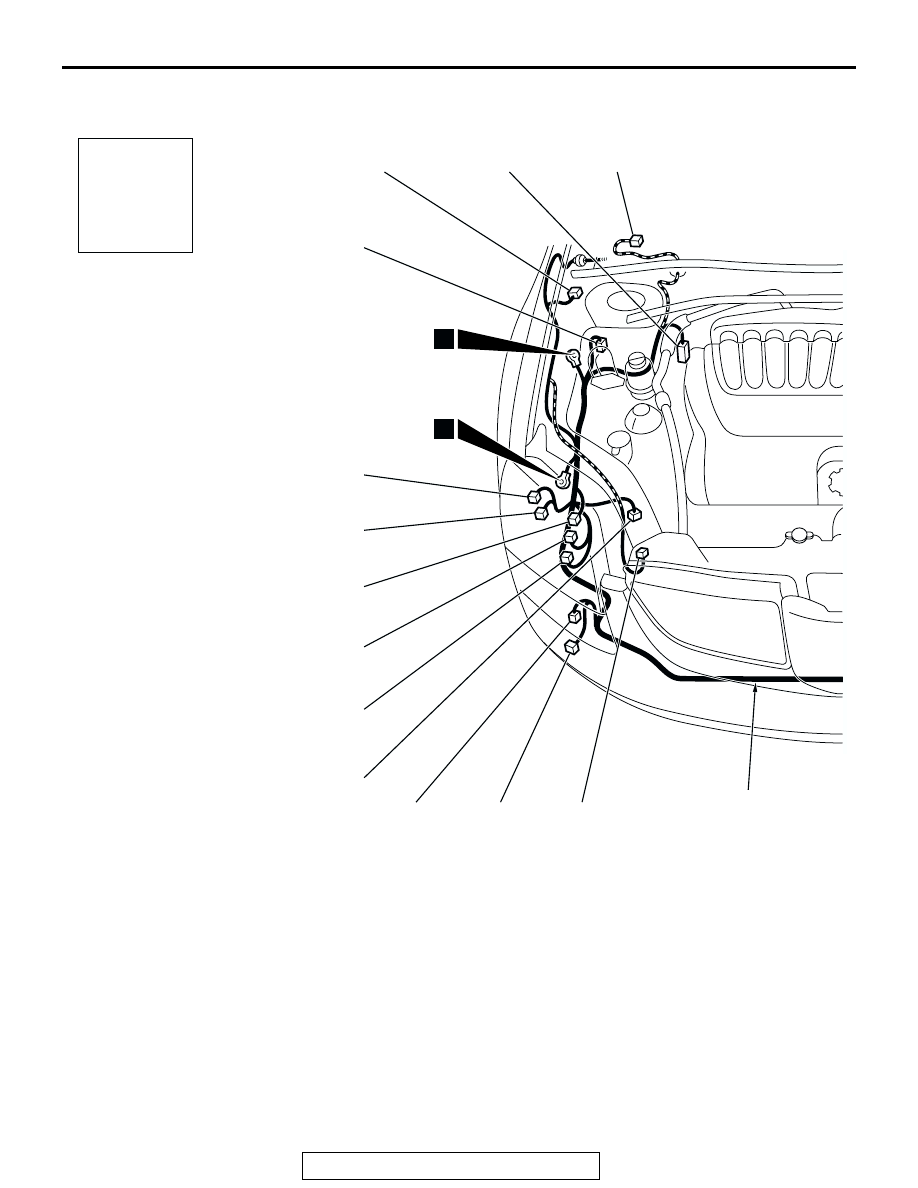

M1801000300756

AC304351

Connector
symbol

A

AB

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

8

1

FRONT WIRING
HARNESS

A-03

A-02

A-01

A-36

A-35

A-34

A-33

A-32

A-31

A-30

A-29

A-28

A-27

A-01

(2-B)

WHEEL SPEED SENSOR (FRONT:
RH)

A-02

(28-GR) ABS-ECU OR ABS/TCL-ECU

A-03

(5-B)

WINDSHIELD WIPER MOTOR

A-04

(2-B)

WHEEL SPEED SENSOR (FRONT:
LH)

A-05X (4)

FOG LIGHT RELAY

A-06X (4)

HORN RELAY

A-10X (4)

FAN CONTROL RELAY

A-11X (11)

FRONT-ECU

A-12X (11)

FRONT-ECU

A-13

(17-GR) FRONT WIRING HARNESS AND

CONTROL WIRING HARNESS
COMBINATION

A-14

(6-GR)

GROUNDING CONNECTOR

A-15X (4)

CONDENSER FAN RELAY

A-16X (5)

RADIATOR FAN RELAY

A-17

(2)

FRONT SIDE MARKER LIGHT (LH)

A-18

(3-GR)

FRONT COMBINATION LIGHT (LH)

A-19

(3-GR)

HEADLIGHT (LH) <2-BULB TYPE>

A-20

(2-BR)

HEADLIGHT (LOW: LH) <4-BULB
TYPE>
