BODY REPAIR

TSB Revision

BASE OF BODY REPAIR

9-23

PANEL REPAIR CAUTION

1. Take care when respraying the original part to cover the theft

protection label with masking tape prior to respraying. In
addition, remember to peel off the masking tape after
completion of the respray.

2. Because theft protection labels on the supplementary parts

are covered with masking tape already, they can be
resprayed just as they are.

3. Take care not to peel off the theft protection labels from

either the original or the supplementary parts.

HOW TO PEEL OFF THE SURFACE MASKING
FILM FROM THE THEFT-PROTECTION LABEL

CAUTION

Be careful not to damage the paint surface or the label
itself.
1. Using a sharp knife at the corner of the label surface, lift up

the masking film only.

2. Grasp the masking film and peel it all off.
NOTE: If the masking film tears, repeat from step 1. Use the
knife, however, to lift the opposite corner of the label, rather
than trying to continue peeling from the place where it tore.

AB200080AB

KNIFE

MASKING FILM

BODY REPAIR

TSB Revision

BASE OF BODY REPAIR

9-24

ATTACHMENT OF SILENCERS

M4090009000030

Silencers (petroleum-asphalt sheets) are attached to
the upper surface of the floor and at the interior side
of the dash panel in order to absorb vibrations and
shut out exhaust gas heat. If these silencers are
peeled off in the course of replacement or repair of a

welded panel, cut and attach replacement material
(in the shape shown in the figure). For detailed infor-
mation concerning the locations where silencers are
to be attached for individual models, refer to the
manual for that model.

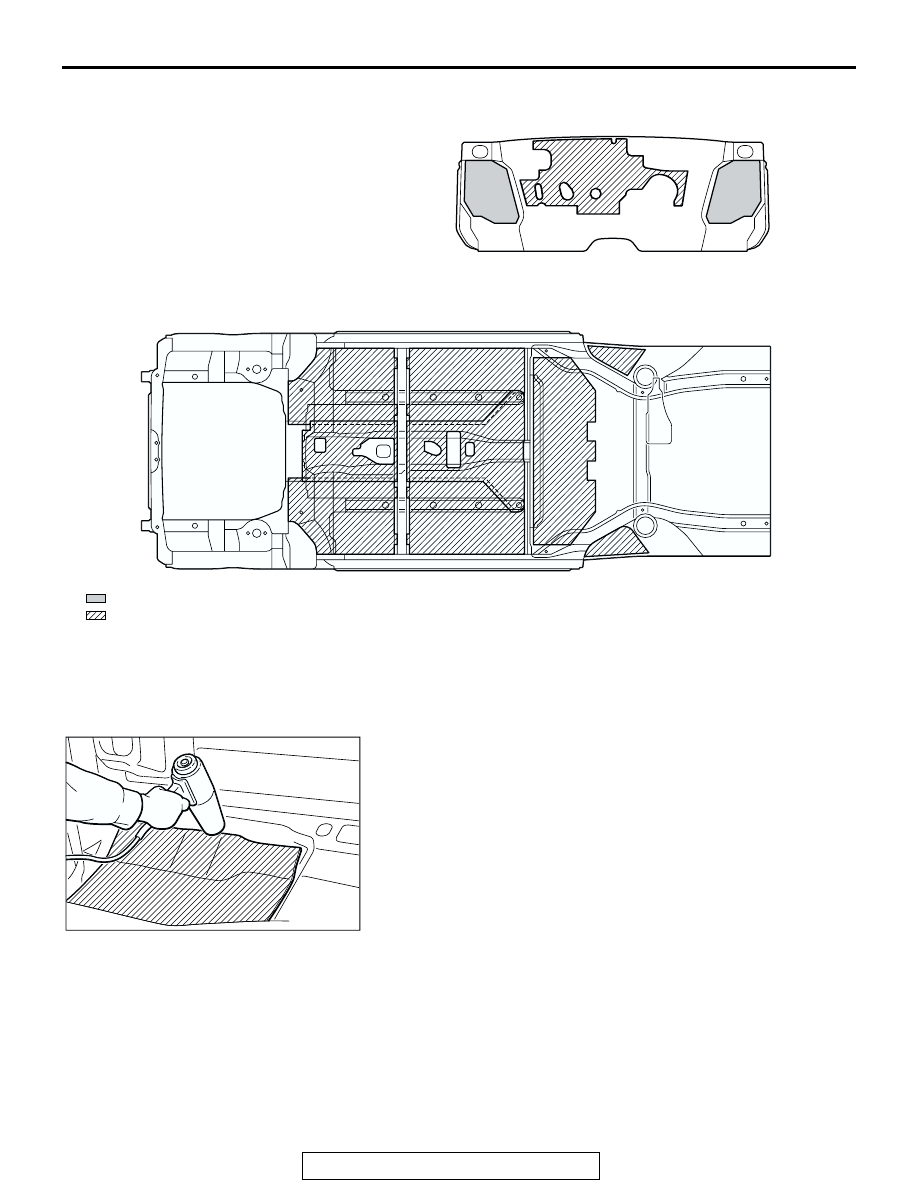

1. Heat the "silencer layer" (petroleum-asphalt sheet) with a

blow drier to soften it.

AB200097

:
:

AB

DASH PANEL INTERIOR SIDE

Thickness: 1.6 mm (0.06 in)
Thickness: 3.2 mm (0.13 in) (two 1.6 mm (0.06 in) silencers overlapped)

AB200098

BODY REPAIR

TSB Revision

BASE OF BODY REPAIR

9-25

2. Align the silencer layer in the position where it is to be

installed, and then press it down with a roller or a block of
wood so that it adheres well.
NOTE: An infrared light can also be used to heat both the
silencer layer and the body panels (be sure to wear gloves).

POSITIONING DIMENSIONS FOR OPENINGS

M4090010000023

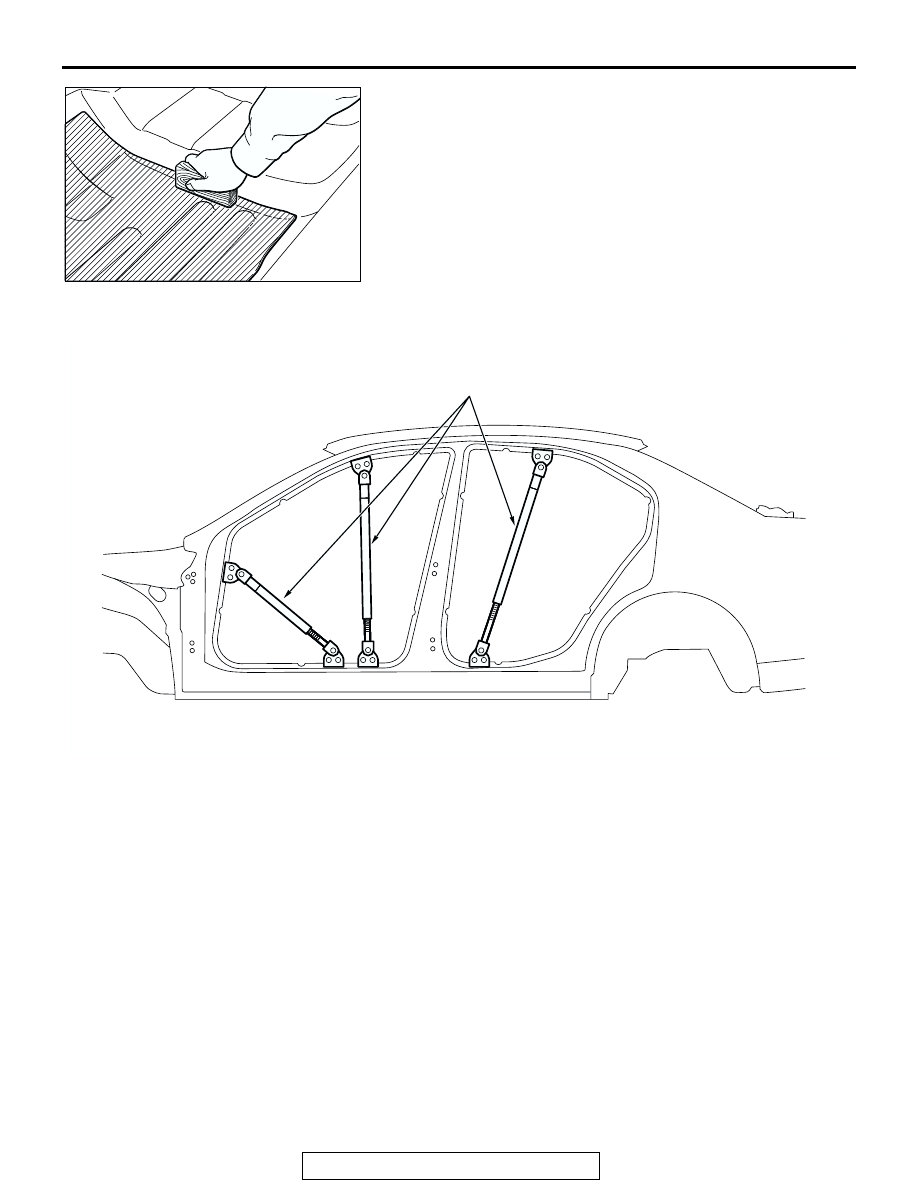

When replacing the panel of the opening of the front
pillar, center pillar and other openings, make a point
to securely bite the poltapower, etc. so the position of
the opening is not off-center. Upon assembling,
adjust the opening dimensions to the standard speci-
fications and then weld.

AB200099

AB200100

PORTA POWER

AB

BODY REPAIR

TSB Revision

BASE OF BODY REPAIR

9-26

STANDARD PROCEDURES FOR SHEET METAL WORK

M4090012000029

REPAIRS USING A HAMMER AND DOLLY

It a damaged external panel, etc., can be reused, the
usual way to repair it is by using a hammer and dolly
to hammer out the damaged area. The following
describes these repair procedures.

.

1. Check whether or not there is foreign material (mud, etc.) on

the panel surface. If so, clean it away.

CAUTION

The surface of the hammer and dolly must be free of scars,
etc.
2. Select the appropriate hammer and dolly to be used

according to the panel shape.

CAUTION

Care should be taken, as far as possible, not to permit the
panel plates to become elongated.

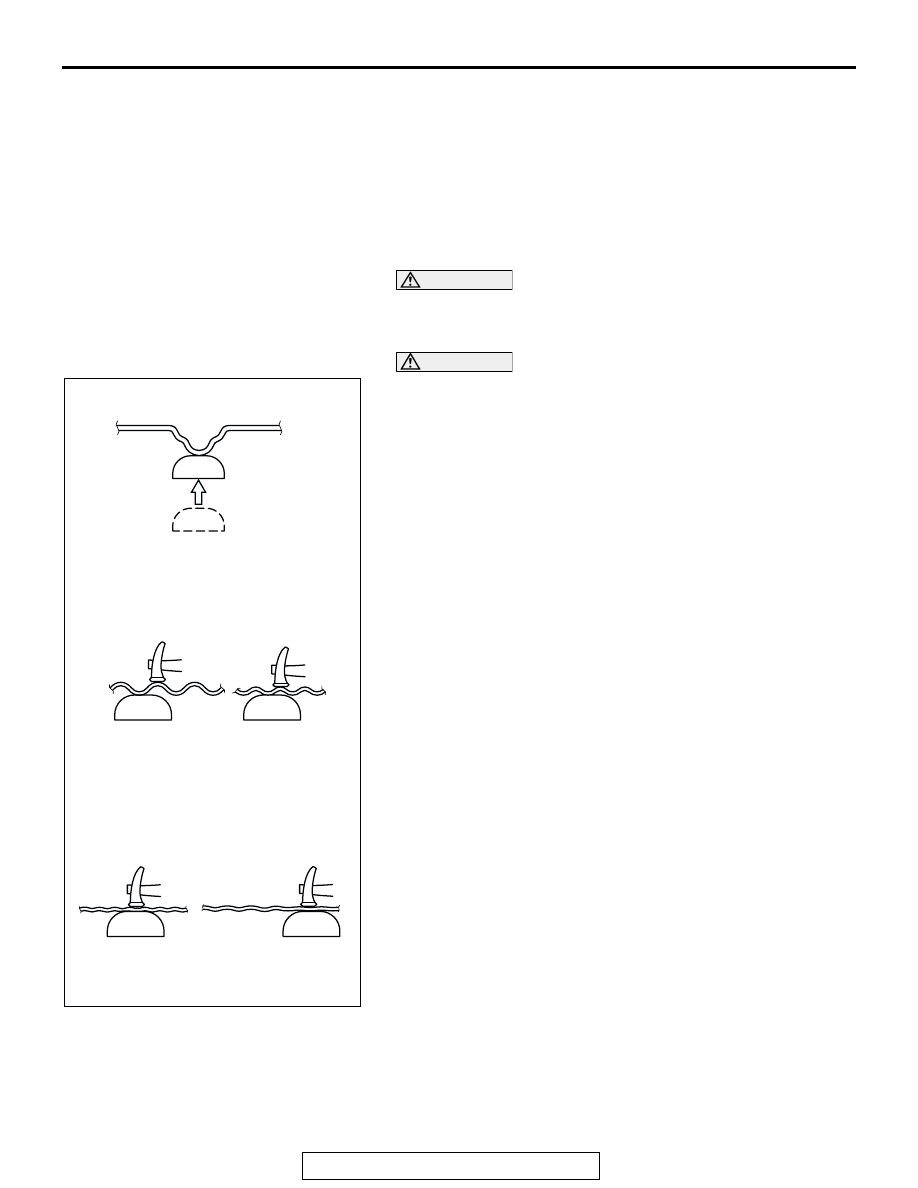

3. Use the hammer and dolly to repair the dents and other

uneven surfaces of the panel.

(1) First repair the larger areas of damage so that they are as

close as possible to the original condition before the
damage occurred.

(2) Next repair the areas of moderate damage.
(3) Finally, smooth the surface out.

AB200101

(1)

(2)

(3)
