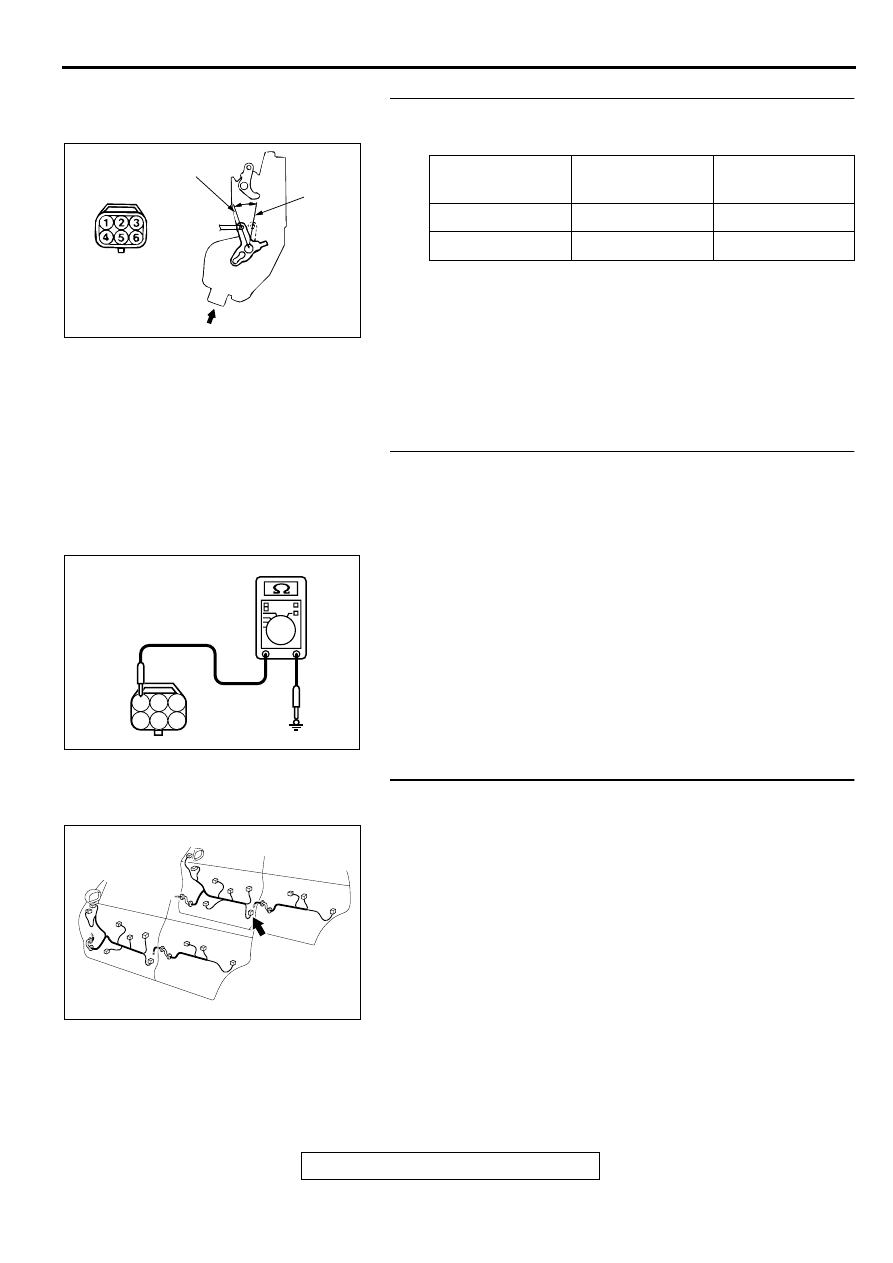

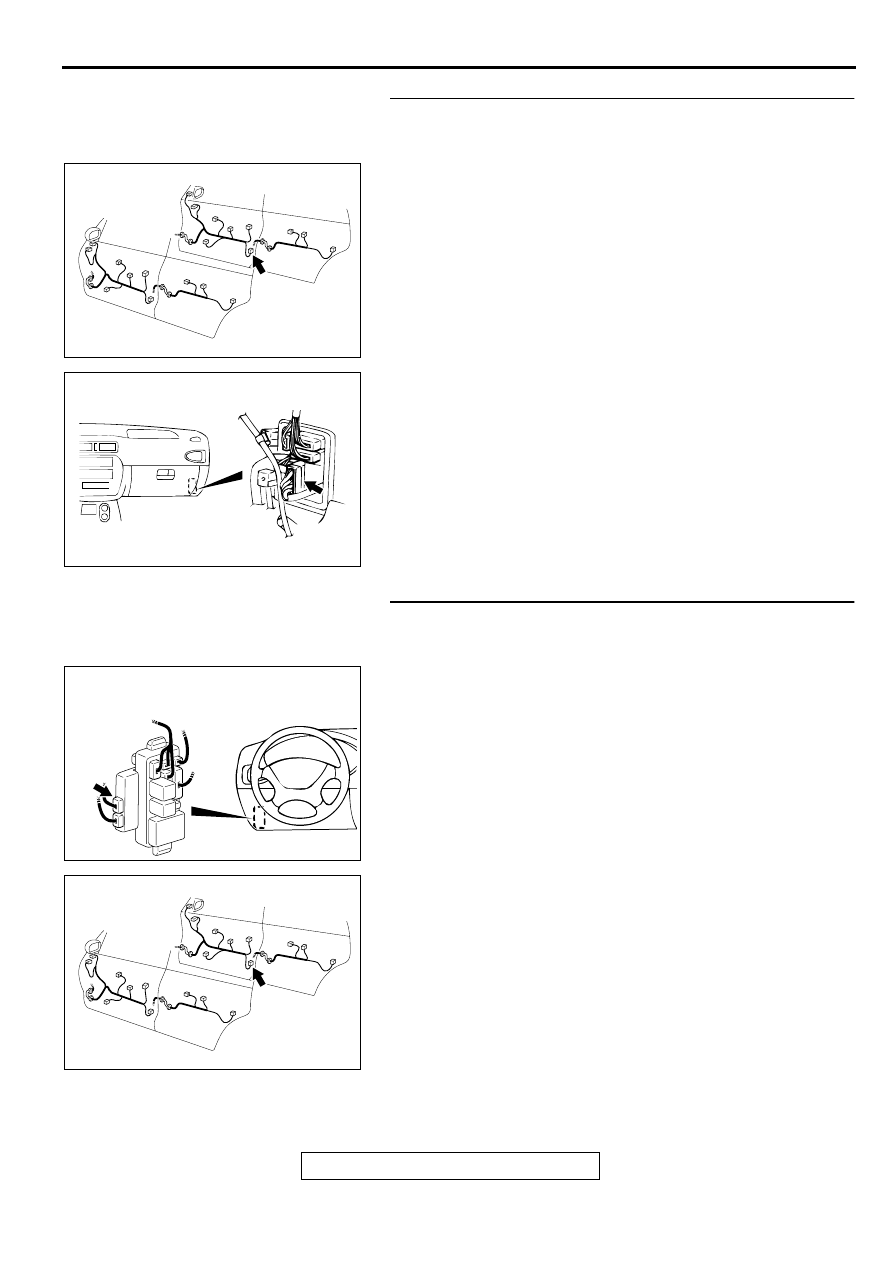

STEP 5. Check the harness wires between driver's door
lock actuator switch connector E-15 and ground.
NOTE: After checking intermediate connector C-68, check the
wires. If intermediate connector C-68 is damaged, repair or
replace it. Refer to GROUP 00E, Harness Connector
Inspection
P.00E-2
.
Q: Are the harness wires between driver's door lock
actuator switch connector E-15 and ground in good
condition?
YES : There is no action to be taken.
NO : Repair them. The input signal from the driver's door
lock actuator switch should be able to be checked and
the functions, which are described in the "Technical
Description (comment)," should work normally.

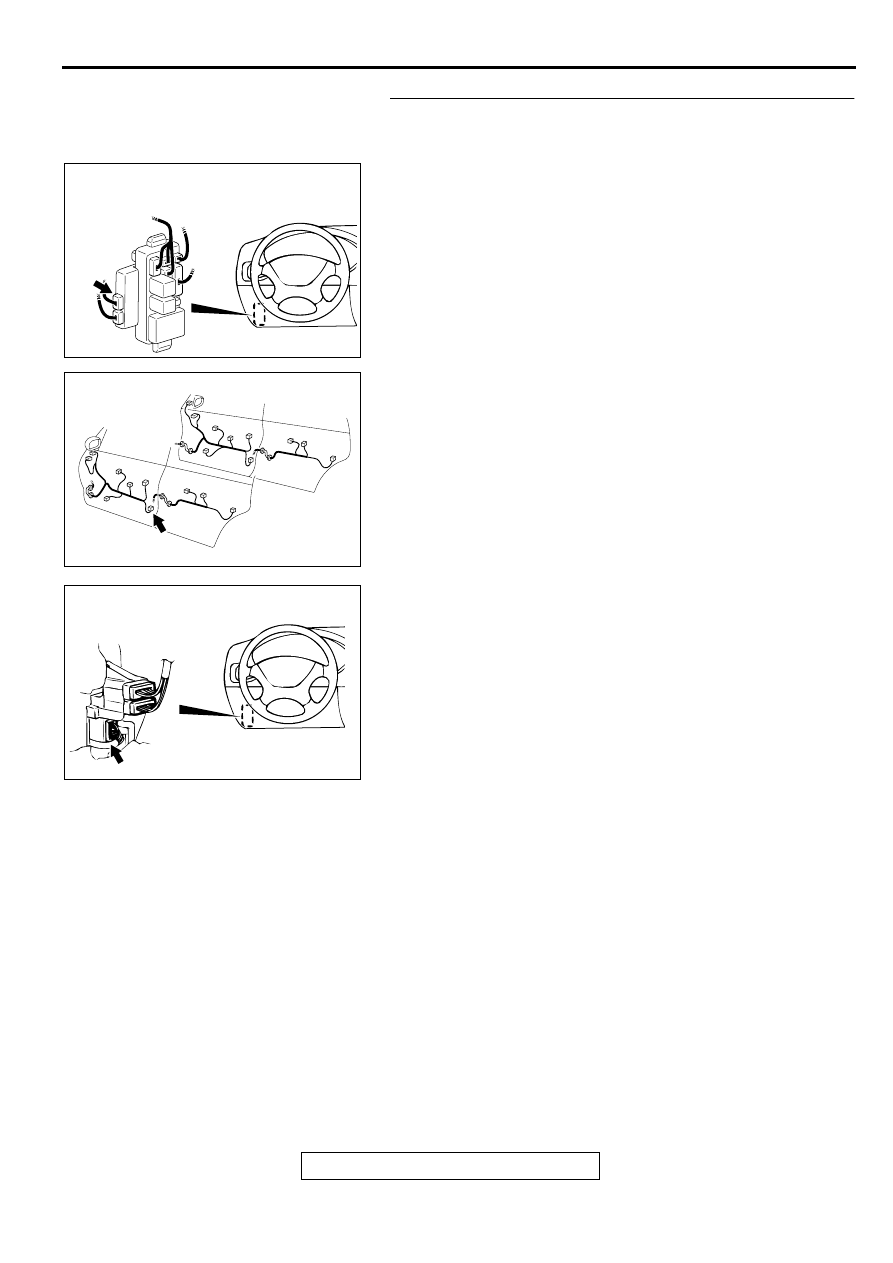

STEP 6. Check the driver's door lock actuator switch
connector E-15 and ETACS-ECU connector C-81 for
damage.
Q:
YES : Go to Step 7.
NO : Repair or replace them. Refer to GROUP 00E,
Harness Connector Inspection
P.00E-2
. The input
signal from the driver's door lock actuator switch
should be able to be checked and the functions,
which are described in the "Technical Description
(comment)," should work normally.

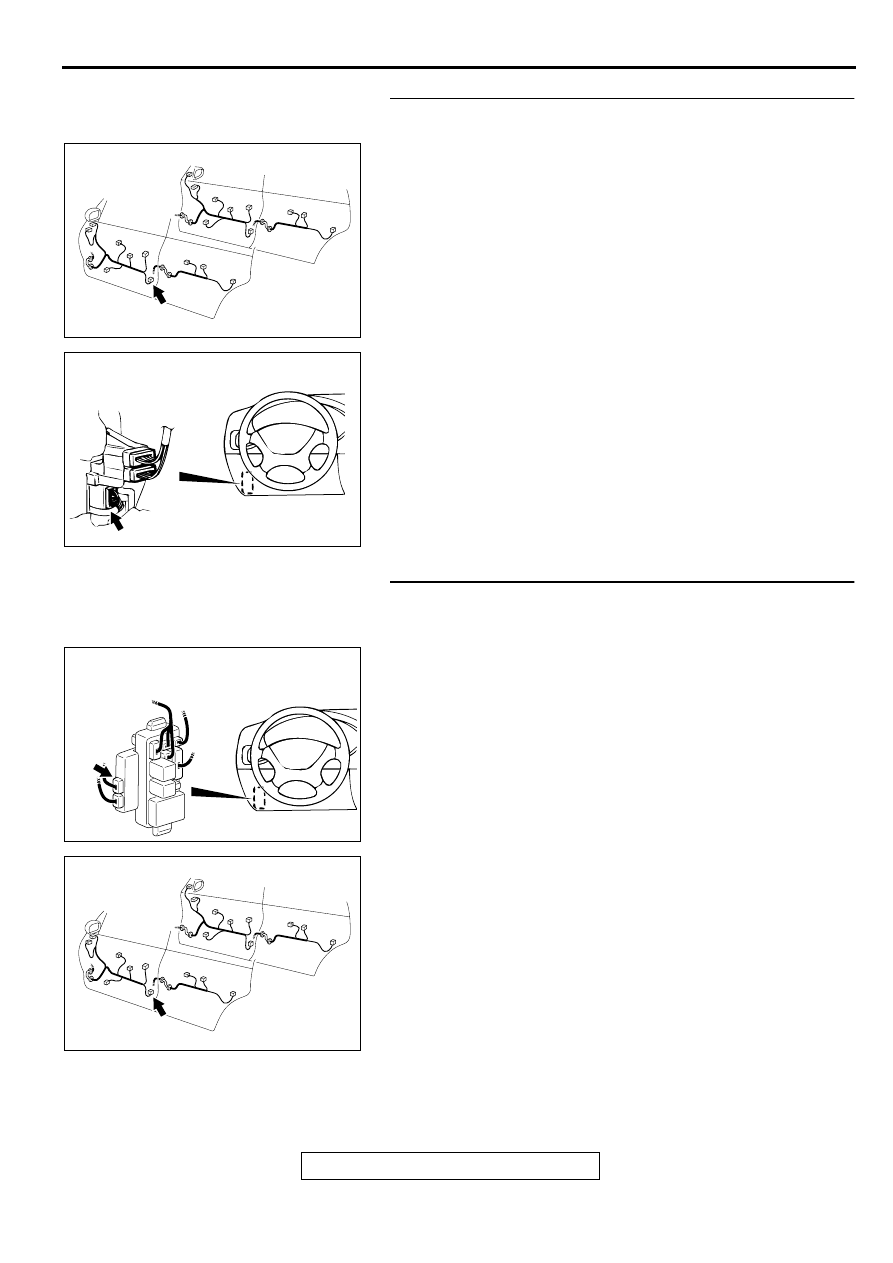

AC003086AI
DOOR
CONNECTOR: E-15
AC003079AK
CONNECTOR
BLOCK (LH)
CONNECTOR: C-68
AC003082 AJ
JUNCTION BLOCK
(FRONT VIEW)
CONNECTOR: C-81
AC003086AI
DOOR
CONNECTOR: E-15
