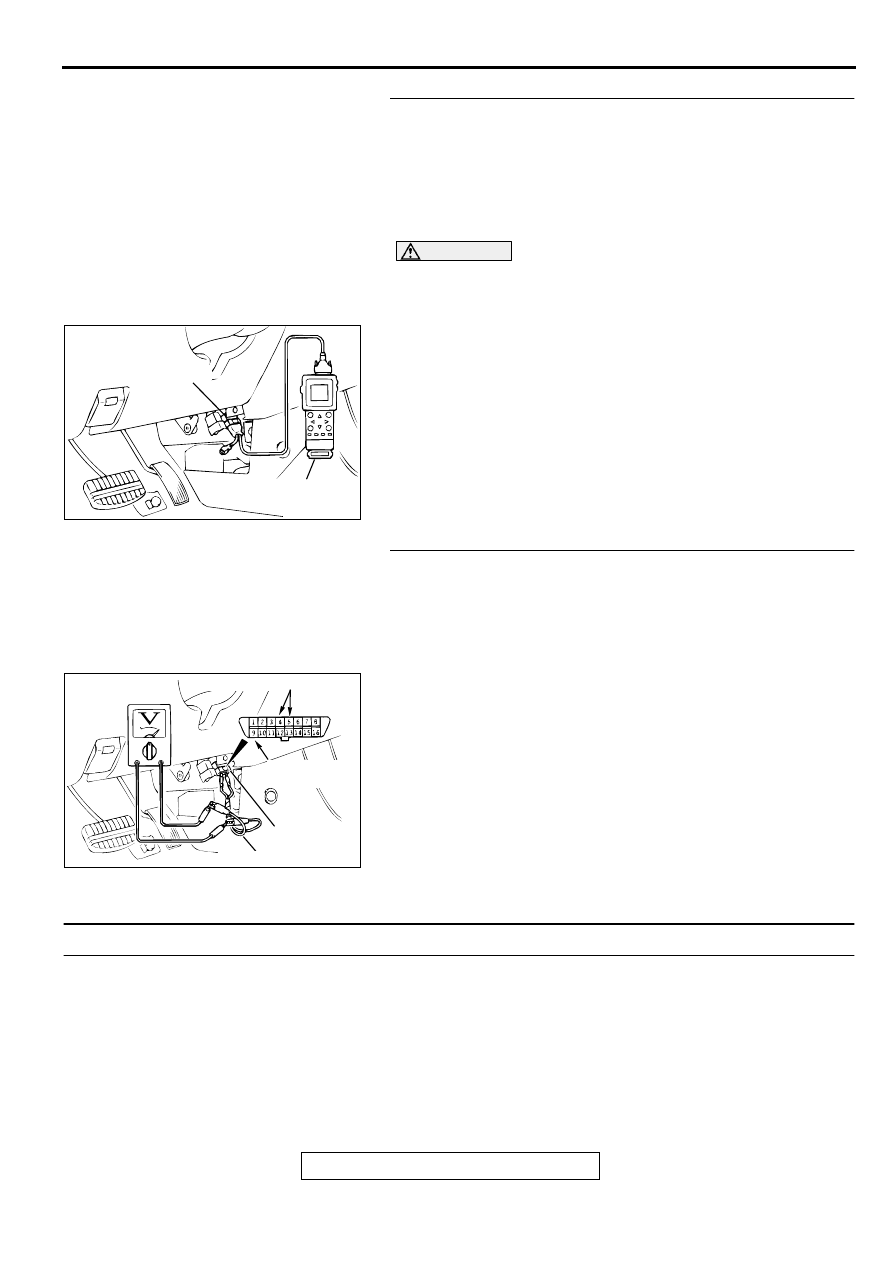

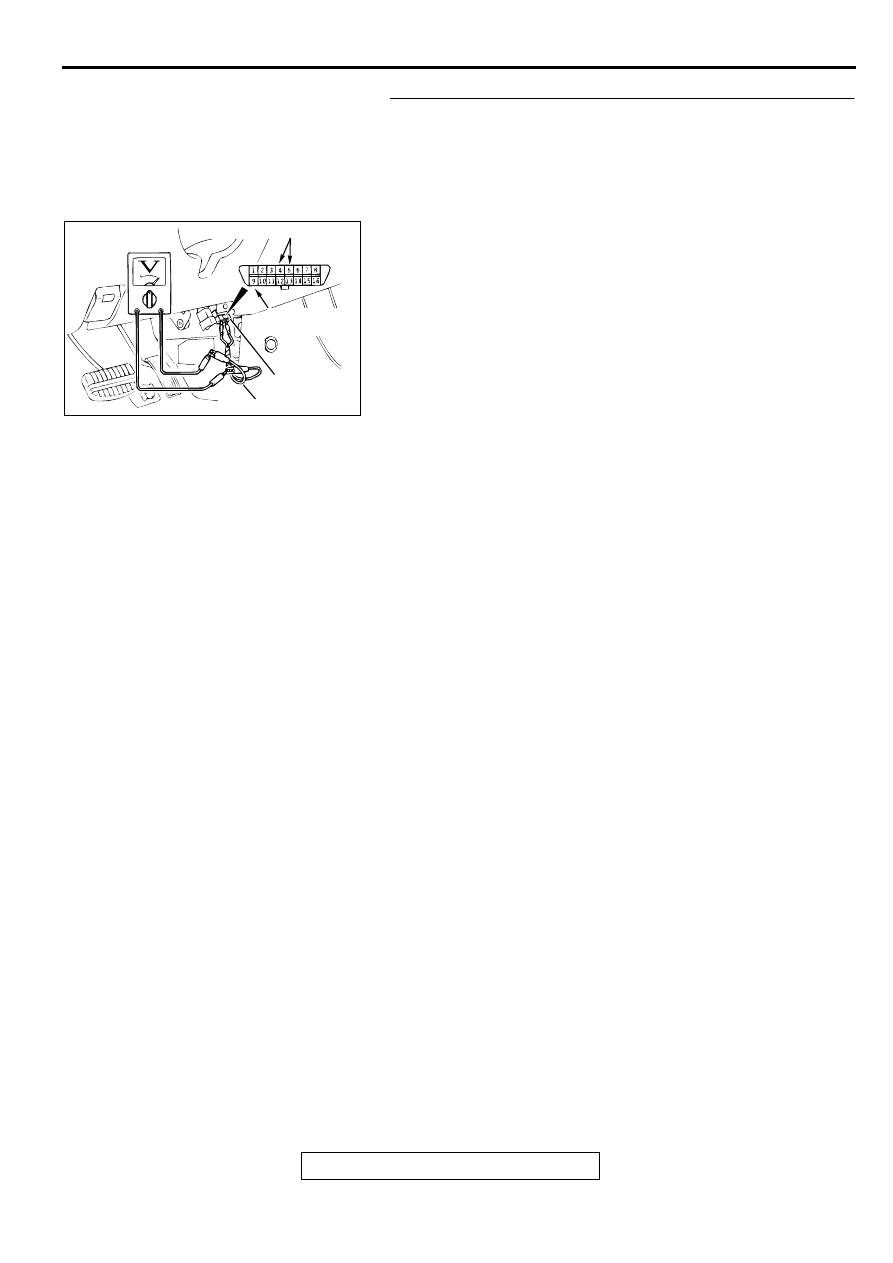

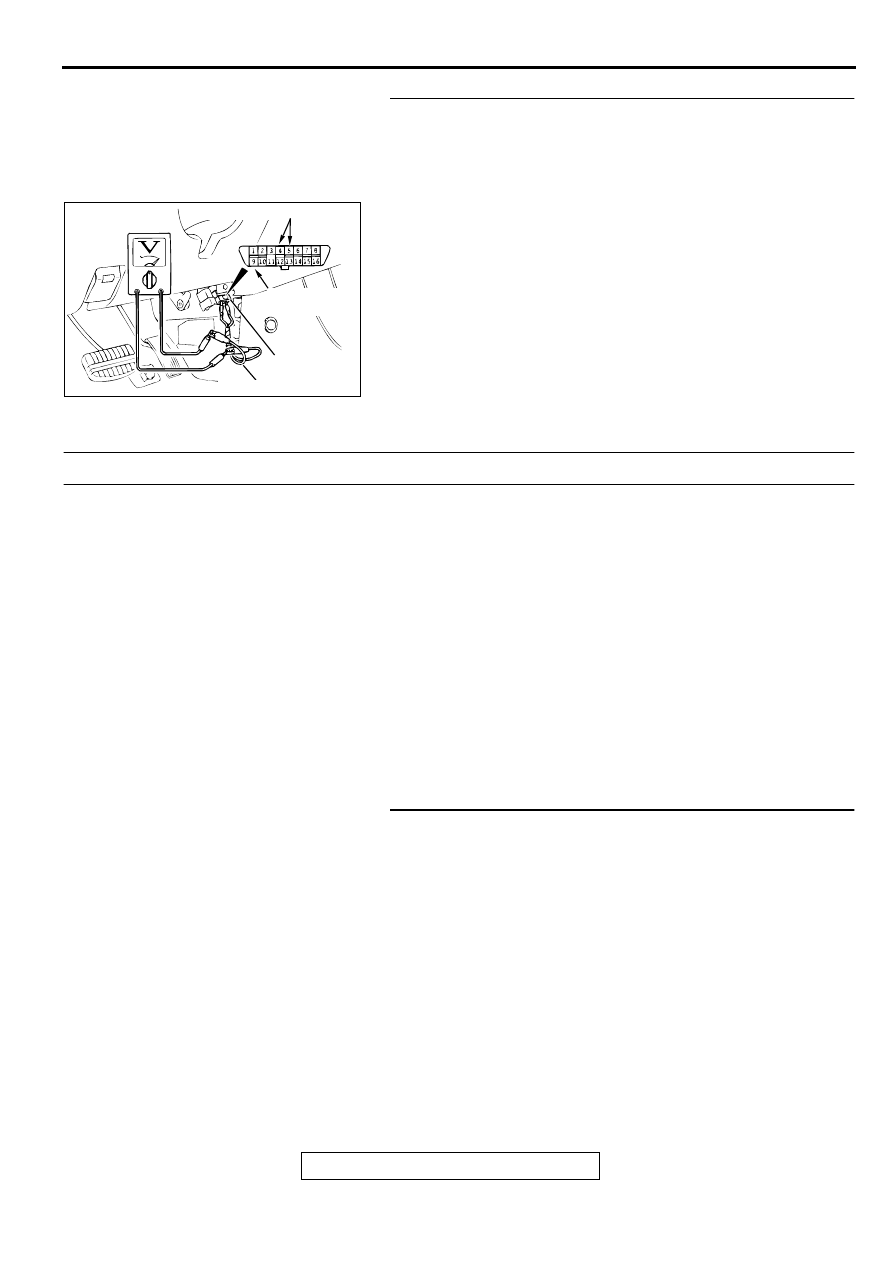

SWS DIAGNOSIS TSB Revision SIMPLIFIED WIRING SYSTEM (SWS) 54B-35 STEP 3. Check the input signal (by using a voltmeter). • Ignition switch (IG1) • Key reminder switch • Driver's door switch (1)Use special tool MB991529 to connect a voltmeter between ground terminal 4 or 5 and ETACS-ECU terminal 9 of the (2)Check that the voltmeter indicator deflects once when the input signal enters. Q: Does the voltmeter indicator deflect? YES : Replace the ETACS-ECU. The ignition key reminder tone alarm function should work normally. NO : Check the relevant input circuit. Refer to Inspection Procedure B-2: Tone alarm: Light reminder tone alarm function does not work normally. TECHNICAL DESCRIPTION (COMMENT) • Ignition switch (IG1) • Driver's door switch • Taillight switch • Headlight switch If the function does not work normally, a defect on TROUBLESHOOTING HINTS • Malfunction of the driver's door switch • Malfunction of the column switch (turn-signal light • Malfunction of the ETACS-ECU • Damaged harness wires or connectors DIAGNOSIS Required Special Tools: • MB991502: Scan Tool (MUT-II) • MB991529: Diagnostic Trouble Code Check Harness STEP 1. Check the ETACS-ECU power supply circuit. • Ignition key reminder tone alarm function • Central door locking system • Hazard warning light • Interior light dimming function • Theft-alarm system Q: Do any functions described above operate? YES : Go to Step 2 <when using scan tool MB991502> or 3 <when using a voltmeter>. NO : Check the ETACS-ECU battery circuit. Refer to Inspection Procedure O-1 ( AC003083 16 PIN AB ETACS-ECU GROUNDED TERMINAL MB991529 |
