Mitsubishi Galant. Manual - part 540





PARKING BRAKE DIAGNOSIS

TSB Revision

PARKING BRAKES

36-3

SYMPTOM PROCEDURES

Inspection Procedure 1: Brake drag

DIAGNOSIS

STEP 1. Check the incomplete release of parking
brake.

Q: Is there a fault?

YES :

Correct it. Then go to Step 5.

NO :

Go to step 2.

STEP 2. Check the incorrect parking break
adjustment. (Refer to

P.36-4

.)

Q: Is there a fault?

YES :

Adjust it. Then go to Step 5.

NO :

Go to Step 3.

STEP 3. Check the parking break cable routing
condition.

Q: Is there a fault?

YES :

Correct it. Then go to Step 5.

NO :

Go to Step 4.

STEP 4. Check the rear brake's shoe and lining.
(Refer to

P.36-5

.)

Q: Is there a fault?

YES :

Correct it. Then go to Step 5.

NO :

Go to Step 5.

STEP 5. Check symptom.

Q: Is the malfunction eliminated?

YES :

Diagnosis is complete.

NO :

Recheck from Step 1.

Inspection Procedure 2: Insufficient parking brake function

DIAGNOSIS

STEP 1. Check the excessive parking brake lever
stroke.

Q: Is there a fault?

YES :

Adjust the parking brake lever stroke or

check the parking brake cable routing. Then
go to Step 7.

NO :

Go to Step 2.

STEP 2. Check the parking brake cable sticking.

Q: Is there a fault?

YES :

Replace it. Then go to Step 7.

NO :

Go to Step 3.

STEP 3. Check the worn brake lining.

Q: Is there a fault?

YES :

Replace it. Then go to Step 7.

NO :

Go to Step 4.

STEP 4. Check the grease or oil on lining surface.

Q: Is there a fault?

YES :

Replace it. Then go to Step 7.

NO :

Go to Step 5 (Vehicles with drum brake). Go
to Step 7 (Vehicles with drum-in-disc brake)

STEP 5. Check the stuck wheel cylinder.

Q: Is there a fault?

YES :

Replace it. Then go to Step 7.

NO :

Go to Step 6.

STEP 6. Check the auto adjuster malfunction.

Q: Is there a fault?

YES :

Replace it. Then go to Step 7.

NO :

Go to Step 7.

STEP 7. Check symptom.

Q: Is the malfunction eliminated?

YES :

Diagnosis is complete.

NO :

Recheck from Step 1.

ON-VEHICLE SERVICE

TSB Revision

PARKING BRAKES

36-4

O N -VEH IC LE SERVIC E

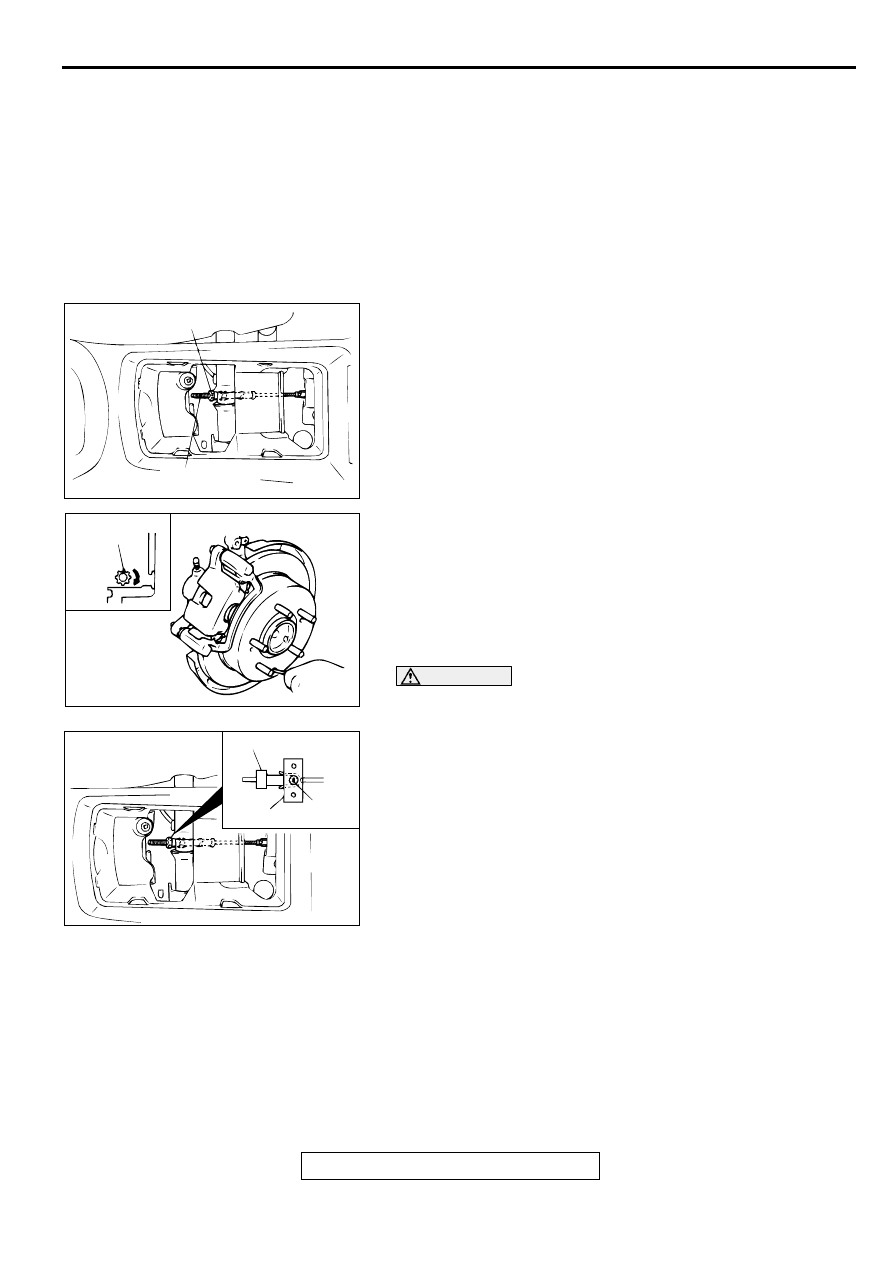

PARKING BRAKE LEVER STROKE CHECK AND
ADJUSTMENT

M1361000900050

1. Pull the parking brake lever with a force of approximately

196 N (44 pounds) and count the number of notches.

Standard value:

−−−−

 7 notches <Vehicles with drum brake>

−−−−

 5 notches <Vehicles with drum-in-disc brake>

NOTE: Depressing the brake pedal repeatedly will
automatically adjust the shoe clearance to the normal
setting.

2. If the parking brake lever stroke is not the standard value,

adjust as described below.
Remove the floor console cup tray or arm rest assembly,
loosen the adjusting nut as far as the end of the cable rod to
release the cable, and then adjust by the following
procedure:
<Vehicles with drum brake>
Depress the brake pedal repeatedly until the stroke no
longer changes.
 <Vehicles with drum-in-disc brake>

(1) Remove the adjustment hole plug, and then use a flat-tip

screwdriver to turn the adjuster in the direction of the
arrow (the direction which expands the shoe) so that the
disc will not rotate. Return the adjuster five notches in the
direction opposite to the direction of the arrow.

CAUTION

If the parking brake lever stroke is below the standard
value and the braking is too firm, the rear brakes may drag.

(2) Turn the adjusting nut to adjust the parking brake lever

stroke to the standard value. After adjusting, check that
there is no space between the adjusting nut and the
parking brake lever.

(3) After adjusting the parking brake lever stroke, jack up the

rear of the vehicle. Release the parking brake and turn
the rear wheels to check that the rear brakes are not
dragging.

AC000974AB

CABLE ROD

ADJUSTING NUT

AC000975AB

ADJUSTER

AC001036

PIN

NUT HOLDER

AB

ADJUSTING NUT

ON-VEHICLE SERVICE

TSB Revision

PARKING BRAKES

36-5

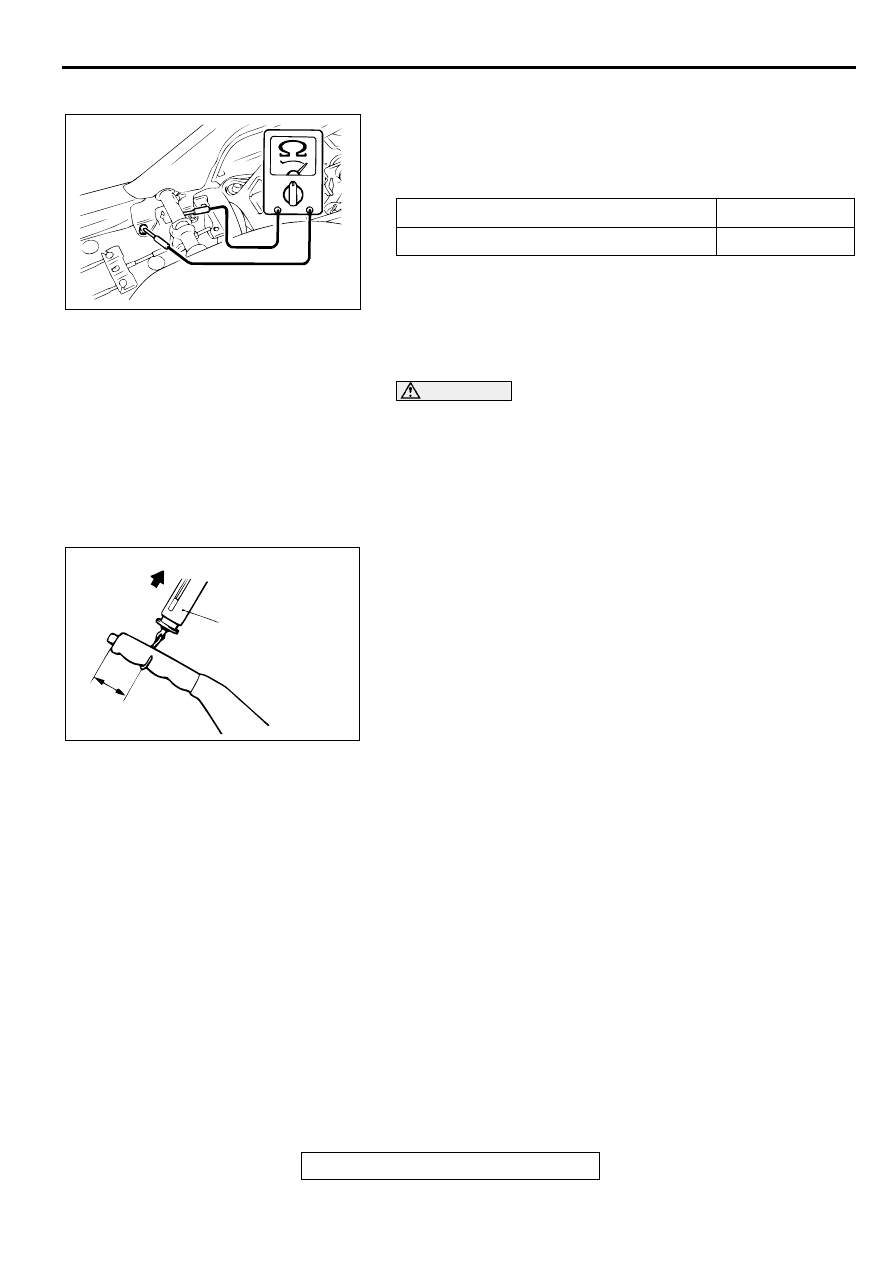

PARKING BRAKE SWITCH CHECK

M1361003300057

1. Remove the floor console. (Refer to GROUP 52A, Floor

Console

P.52A-11

.)

2. Check for continuity between the parking brake switch

terminal and the switch mounting bolt.

LINING RUNNING-IN

M1361001100057

CAUTION

Carry out running-in a place with good visibility, and pay
careful attention to safety.
Carry out running-in by the following procedure when replacing
the parking brake linings or the rear brake disc rotors, or when
brake performance is insufficient.
1. Adjust the parking brake stroke to the specified value. (Refer

to

P.36-4

.)

2. Hook a spring scale onto the center of the parking brake

lever grip and pull it with a force of 98

 147 N (22

 33

pounds) in a direction perpendicular to the handle.

3. Drive the vehicle at a constant speed of 35

 50 km/h (22



31 mph) for 100 meters (328 feet).

4. Release the parking brake and let the brakes cool for five to

ten minutes.

5. Repeat the procedure in steps 2. to 4. four to five times.

When parking brake lever is pulled

Less than 2 ohms

When parking brake lever is released

Open circuit

AC001037

ACX00701AC

SPRING SCALE

PULL

APPROXIMATELY
40 mm (1.6 in)

PARKING BRAKE LEVER

TSB Revision

PARKING BRAKES

36-6

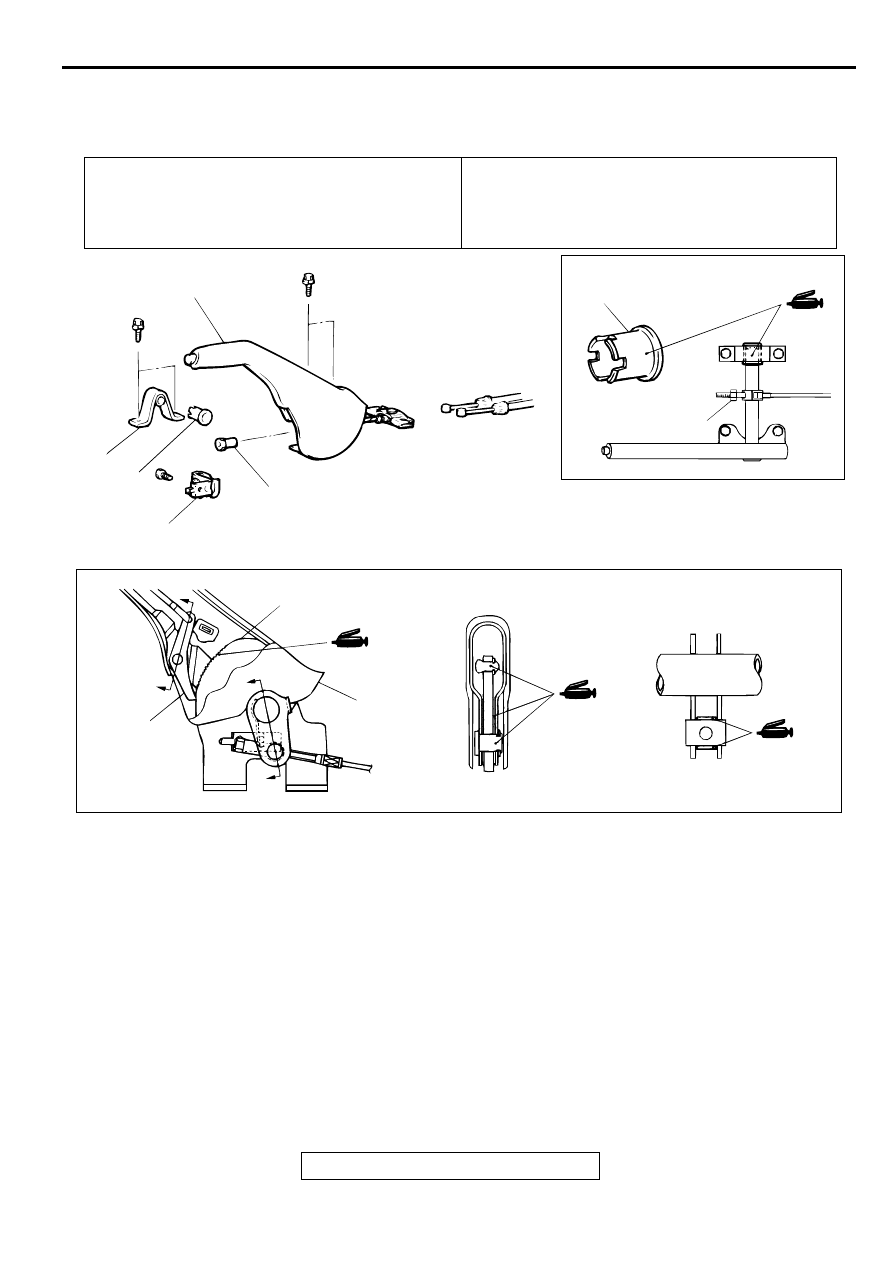

PA R K IN G  B RA KE LEVER

REMOVAL AND INSTALLATION

M1361001300051

Pre-removal Operation
Floor Console Removal (Refer to GROUP 52A, Floor Con-
sole

P.52A-11

.)

Post-installation Operation

Parking Brake Lever Stroke Check and Adjustment (Refer
to

P.36-4

.)

Floor Console Installation (Refer to GROUP 52A, Floor
Console

P.52A-11

.)

AC003118 AB

1

2

3

4

5

1

3

SECTION A

 A

SECTION B

 B

A

A

B

B

5

RATCHET PLATE

RATCHET PAWL

REMOVAL STEPS

1.

ADJUSTING NUT

2.

PARKING BRAKE STAY

3.

BUSHING

4.

PARKING BRAKE SWITCH

5.

PARKING BRAKE LEVER
