Mitsubishi Galant. Manual - part 424





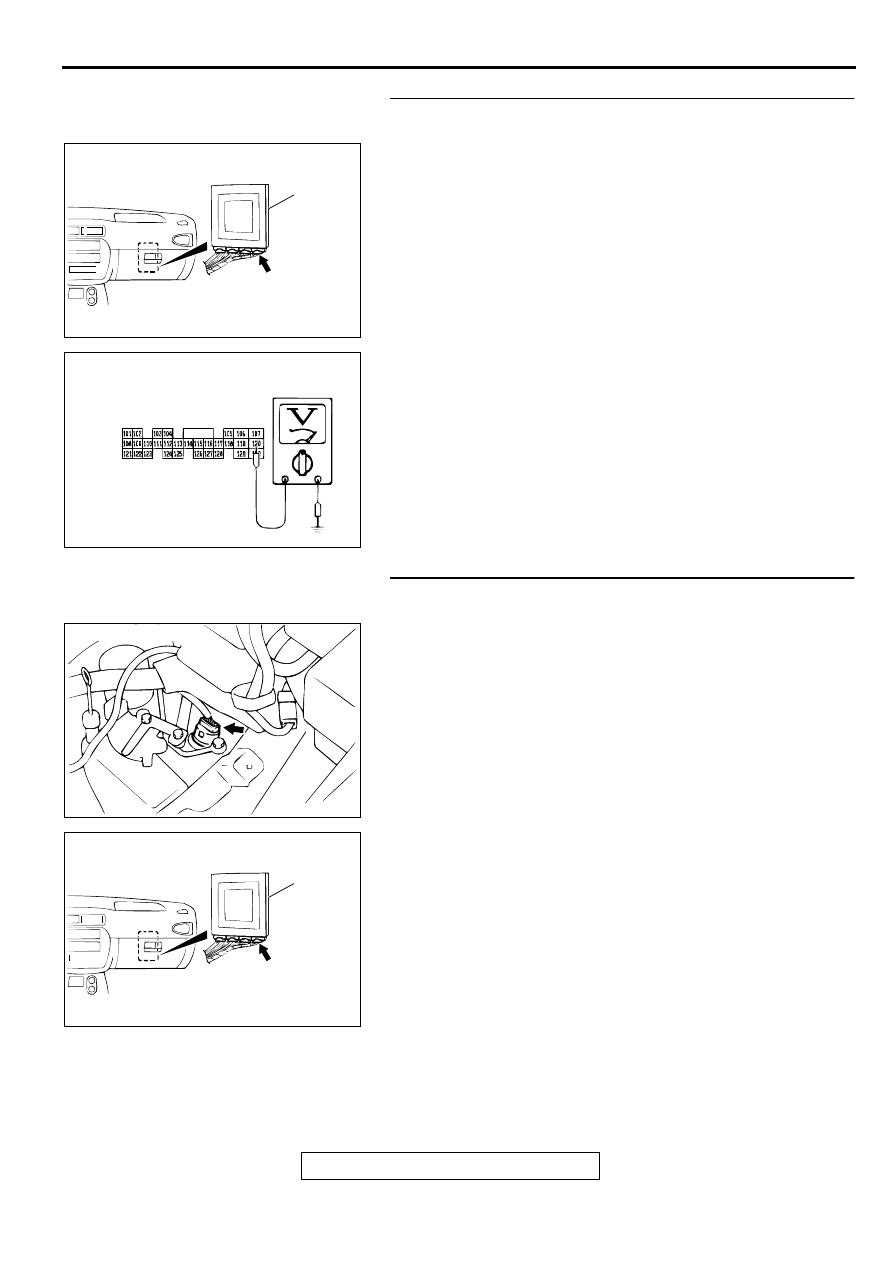

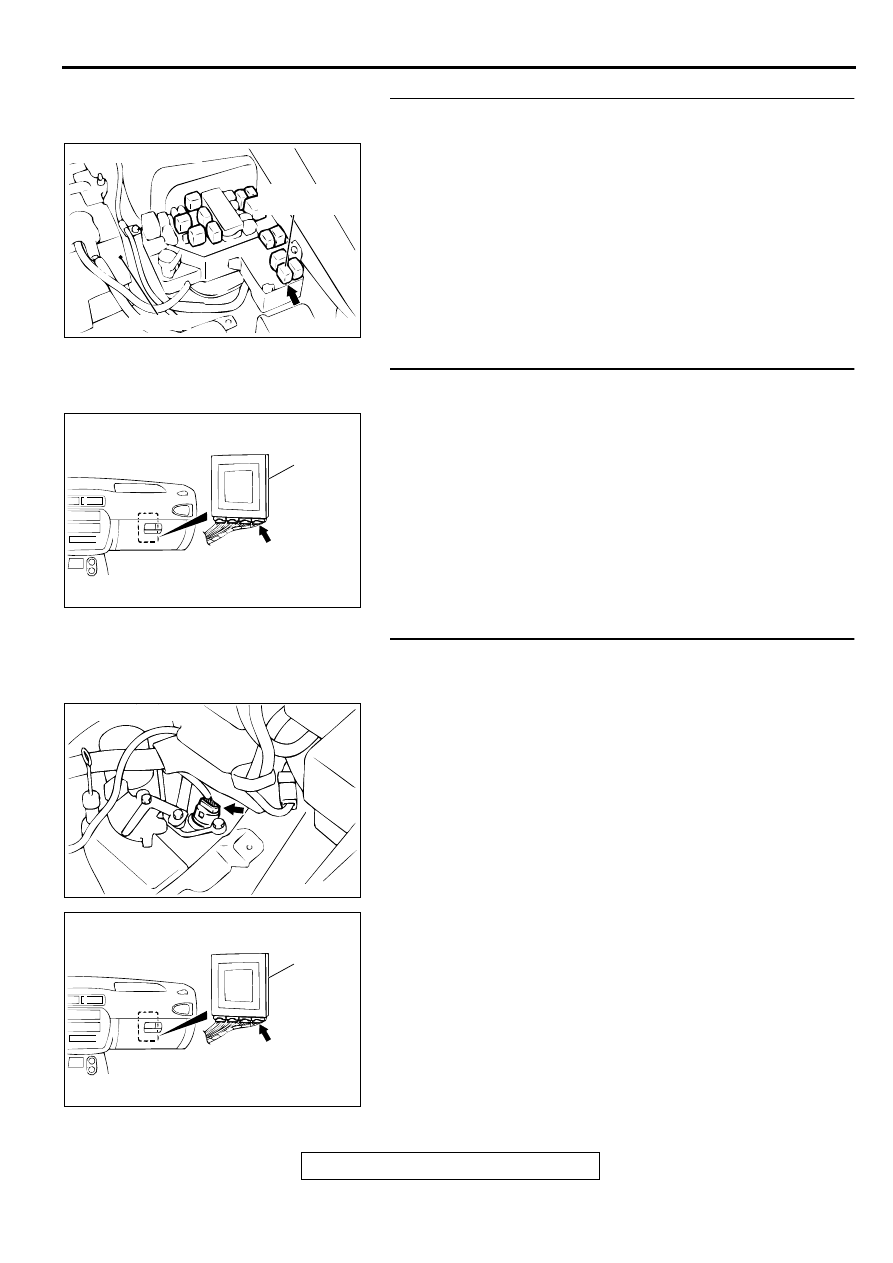

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-163

STEP 12. Check connector A-19X at A/T control relay for
damage.
Q: Is the connector in good condition?

YES : Repair it because of harness open circuit or short

circuit to ground between solenoid valve assembly
connector B-38 terminal 10 and A/T control relay
connector A-19X terminal 3.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

STEP 13. Check connector C-42 at PCM connector for
damage.
Q: Is the connector in good condition?

YES : Go to Step 14.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

STEP 14. Check harness for open circuit, or short circuit to
ground between solenoid valve assembly connector B-38
terminal 6 and PCM connector C-42 terminal 129.
Q: Is the harness wire in good condition?

YES : Replace the PCM.
NO :  Repair it.

AC004286 AC

A/T CONTROL
RELAY

BATTERY

CONNECTOR: A-19X

AC004197

PCM

AF

CONNECTOR: C-42

ACX02479

CONNECTOR: B-38

AF

AC004197

PCM

AF

CONNECTOR: C-42

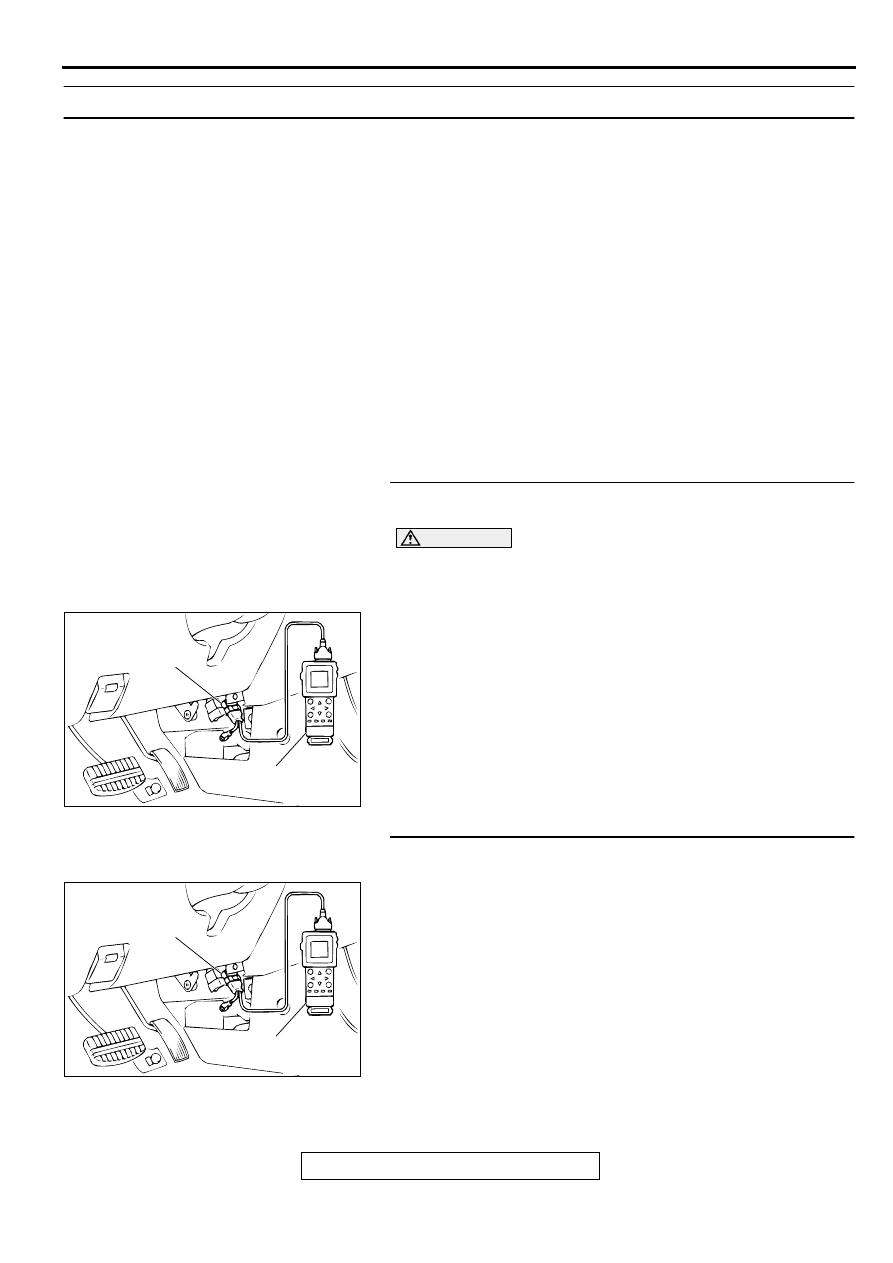

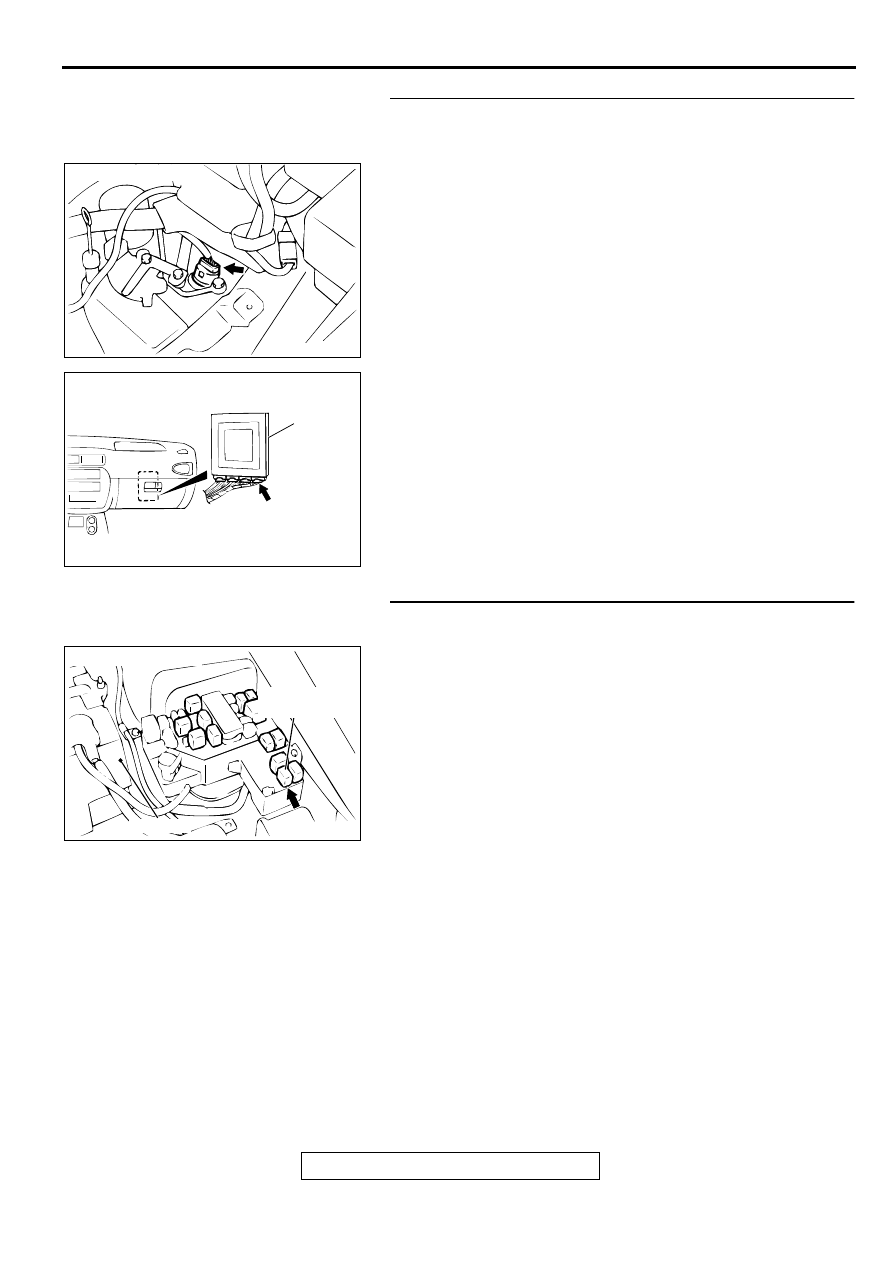

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-164

DTC 32: Underdrive Solenoid Valve System

Solenoid Valve System Circuit
Refer to

P.23A-156

.

CIRCUIT OPERATION
Refer to

P.23A-156

.

DTC SET CONDITIONS
If the resistance value for a solenoid valve circuit is
greater than 3.5

 for 4 seconds at 100

°

C (212

°

F) or

less than 2.6

 for 4 seconds at 100

°

C (212

°

F), it is

judged that there is a short circuit or an open circuit
in the solenoid valve and the diagnostic trouble code
number "32" is displayed. The transmission is locked
into 3rd gear as a fail-safe measure.

TROUBLESHOOTING HINTS (The most likely

causes for this code to be set:)

Malfunction of underdrive solenoid valve

Damaged harness, connector

Malfunction of the PCM

DIAGNOSIS

Required Special Tool:
MB991502: Scan Tool (MUT-II)

STEP 1. Using scan tool MB991502, read the A/T
diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Read the A/T diagnostic trouble code.
(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the A/T diagnostic trouble code number "54" output?

YES : Refer to

P.23A-208

, code number 54: A/T control

relay system.

NO :  Go to Step 2.

STEP 2. Using scan tool MB991502, check actuator test
item 02: Underdrive Solenoid Valve.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Set scan tool MB991502 to actuator test mode for item 02:

Underdrive Solenoid Valve.

An operation sound should be heard from solenoid
valve when the underdrive solenoid valve is operated.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the solenoid valve operating properly?

YES : This malfunction is intermittent. Refer to GROUP 00,

How to Use Troubleshooting/Inspection Service
Points

 How to Cope with Intermittent Malfunction

P.00-8

.

NO :  Go to Step 3.

AC003081AC

MB991502

DATA LINK
CONNECTOR

AC003081AC

MB991502

DATA LINK
CONNECTOR

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-165

STEP 3. Check the solenoid valve output voltage at PCM
connector C-42 by backprobing.
(1) Do not disconnect connector C-42.
(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 120 and ground by

backprobing.

Voltage should be battery positive voltage.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 4.
NO :  Go to Step 9.

STEP 4. Check connectors B-38 at solenoid valve
assembly and C-42 at PCM for damage.
Q:  Are the connectors in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC004197

PCM

AF

CONNECTOR: C-42

AC001961

C-42 CONNECTOR
HARNESS SIDE VIEW

AE

ACX02479

CONNECTOR: B-38

AF

AC004197

PCM

AF

CONNECTOR: C-42

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-166

STEP 5. Check harness for damage between solenoid
valve assembly connector B-38 terminal 3 and PCM
connector C-42 terminal 120.
Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair it.

STEP 6. Check connector A-19X at A/T control relay for
damage.
Q: Is the connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

ACX02479

CONNECTOR: B-38

AF

AC004197

PCM

AF

CONNECTOR: C-42

AC004286 AC

A/T CONTROL
RELAY

BATTERY

CONNECTOR: A-19X
