Mitsubishi Galant. Manual - part 394





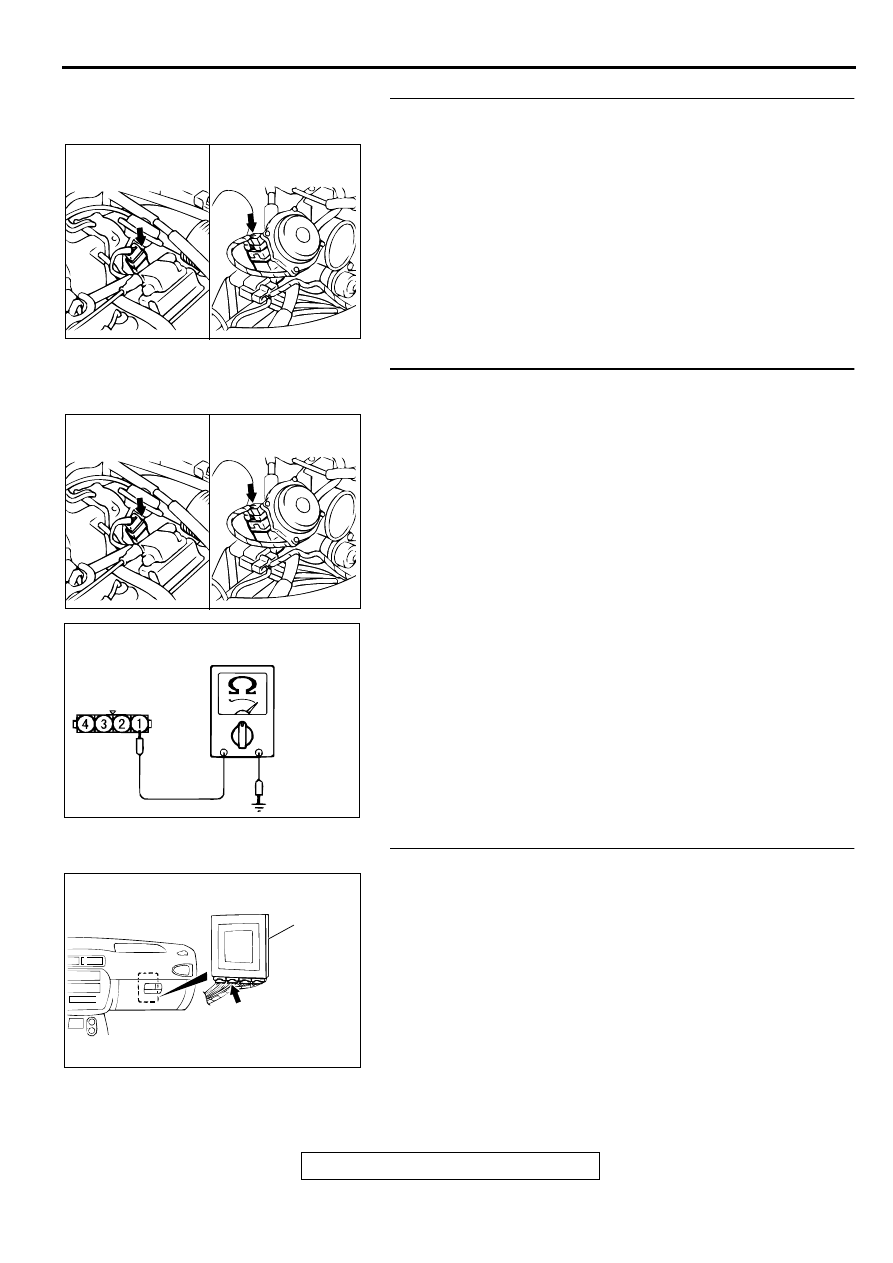

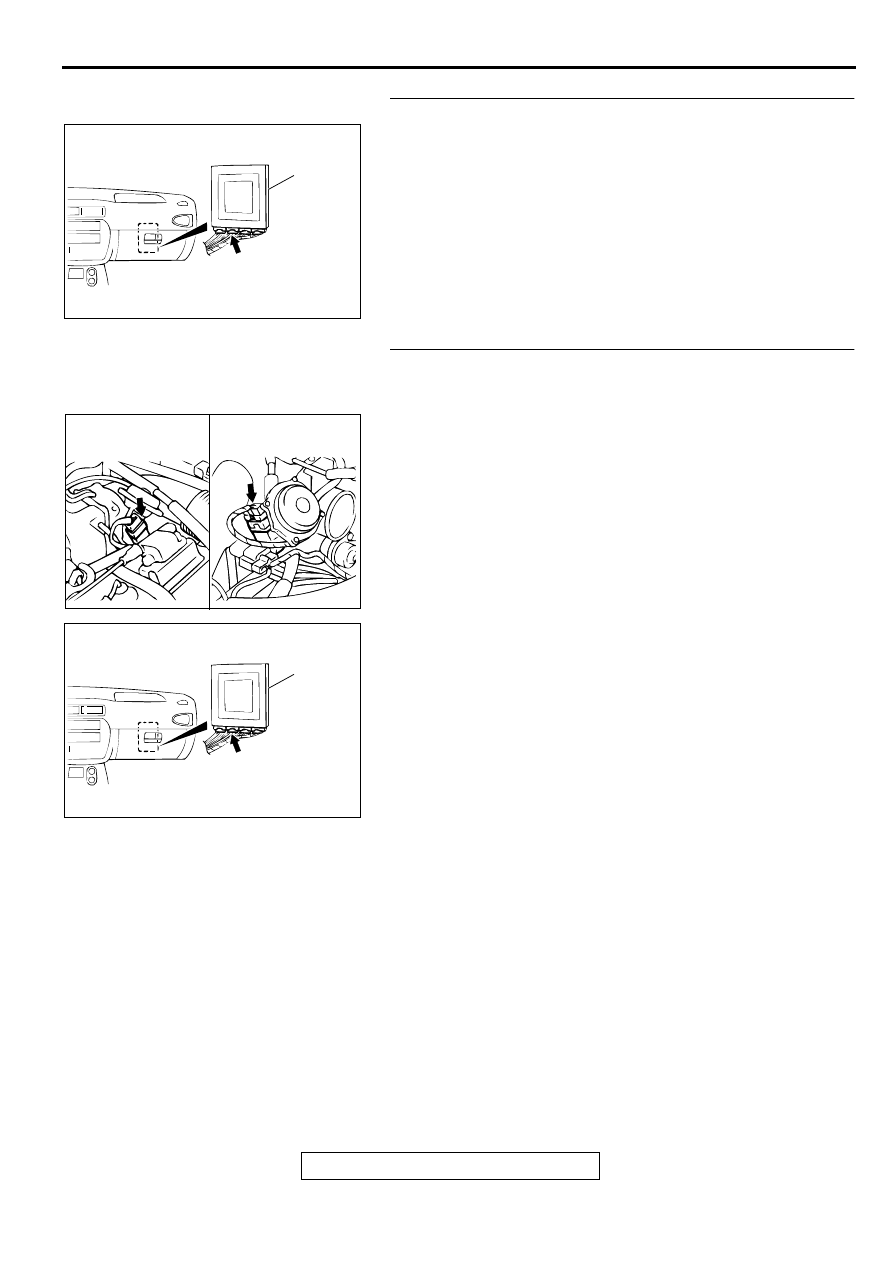

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-43

STEP 7. Check connector B-05 at throttle position sensor
for damage.
Q: Is the connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

STEP 8. Check the continuity at throttle position sensor
connector B-05.
(1) Disconnect connector B-05 and measure at the harness

side.

(2) Check for the continuity between terminal 1 and ground.

Should be less than 2 ohm.

Q: Is the continuity normal?

YES : Go to Step 11.
NO :  Go to Step 9.

STEP 9. Check connector C-40 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001831AD

CONNECTOR: B-05

<2.4L ENGINE>

<3.0L ENGINE>

AC001831AD

CONNECTOR: B-05

<2.4L ENGINE>

<3.0L ENGINE>

ACX02096

HARNESS
CONNECTOR: B-05

AD

AC004197

PCM

AD

CONNECTOR: C-40

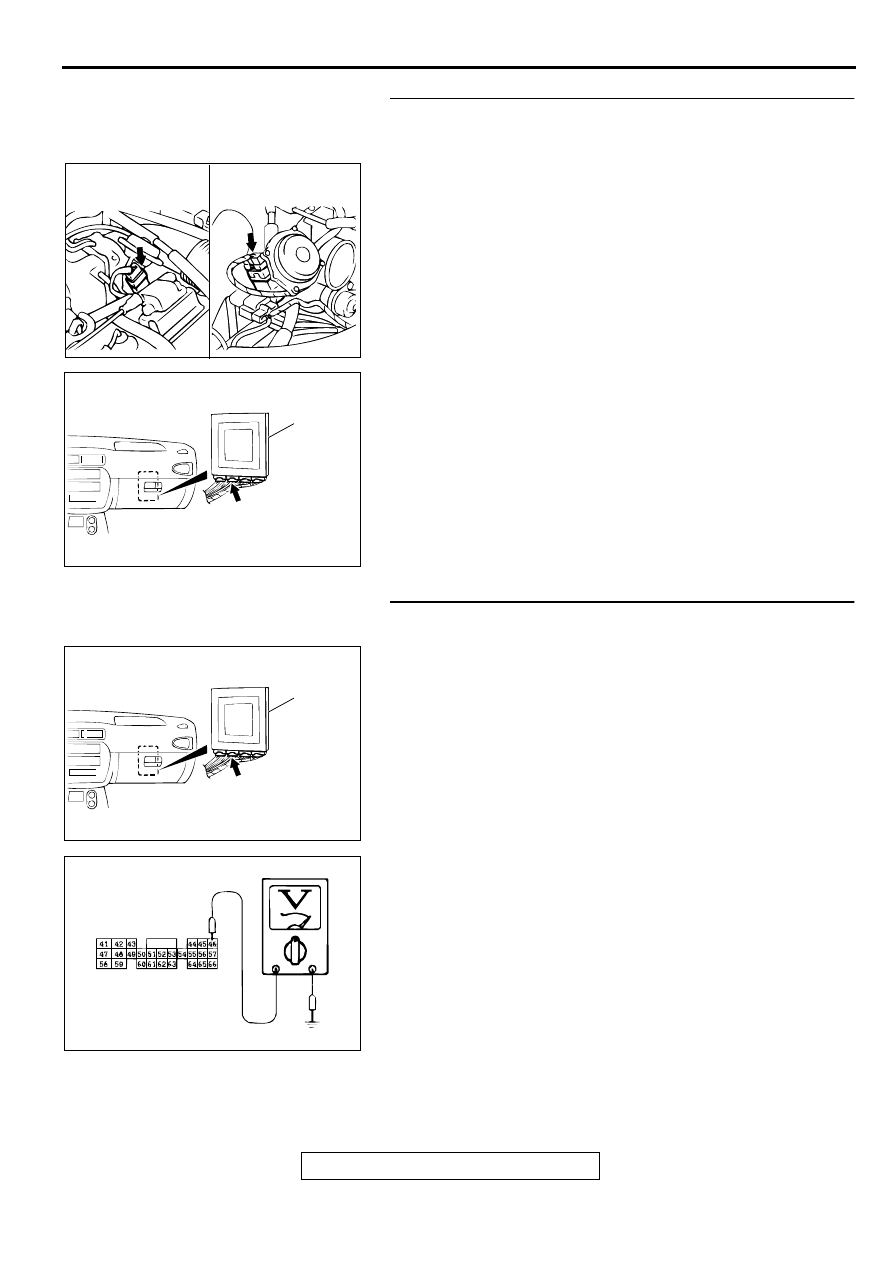

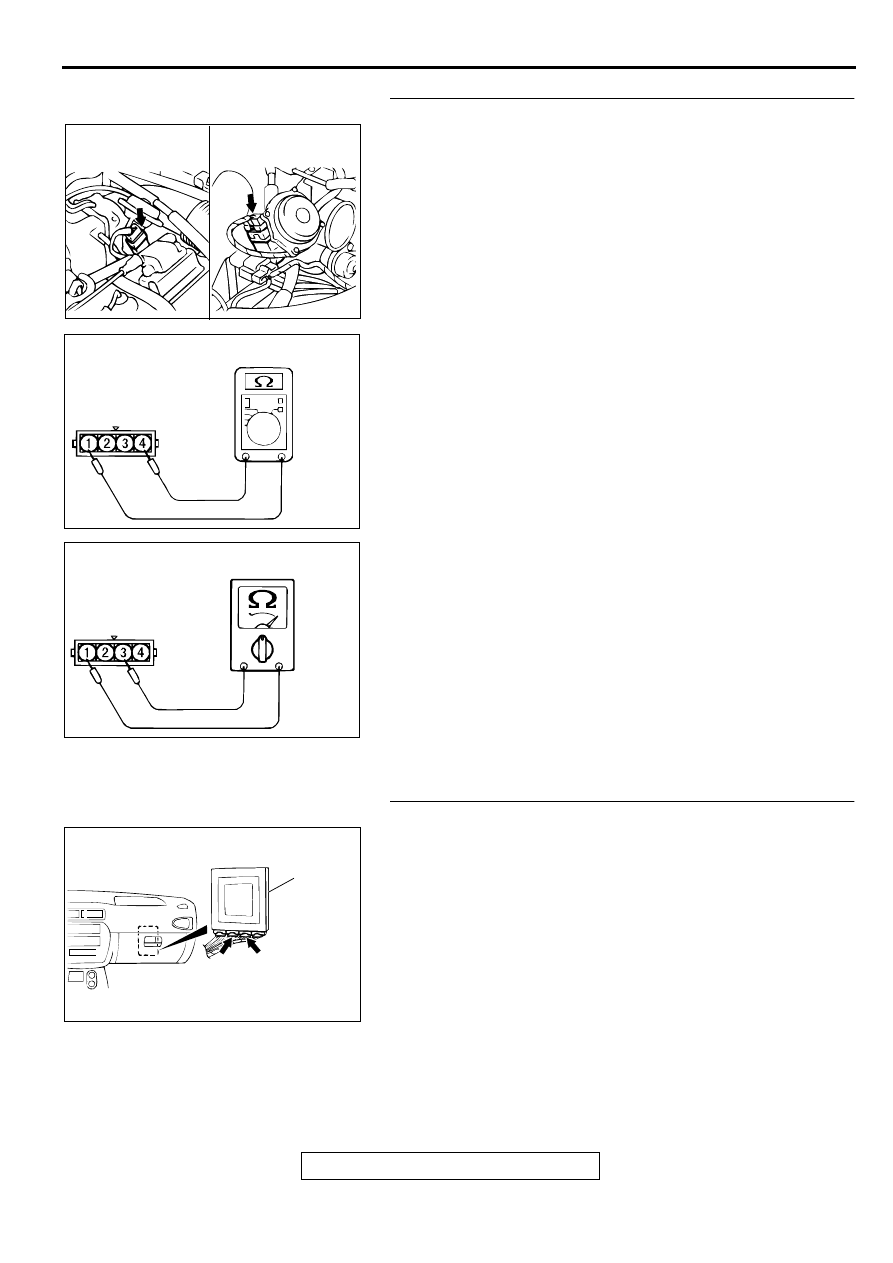

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-44

STEP 10. Check harness for open circuit or damage
between throttle position sensor connector B-05 terminal 1
and PCM connector C-40 terminal 57.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair it.

STEP 11. Check the power supply voltage at PCM
connector C-40 by backprobing.
(1) Do not disconnect connector C-40.
(2) Turn the ignition switch to "ON" position.

(3) Measure the voltage between terminal 46 and ground by

backprobing.

Voltage should be between 4.8 and 5.2 volts.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the voltage normal?

YES : Go to Step 14.
NO :  Go to Step 12.

AC001831AD

CONNECTOR: B-05

<2.4L ENGINE>

<3.0L ENGINE>

AC004197

PCM

AD

CONNECTOR: C-40

AC004197

PCM

AD

CONNECTOR: C-40

AC000848

C-40 CONNECTOR
HARNESS SIDE VIEW

AE

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-45

STEP 12. Check connector C-40 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 13.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

STEP 13. Check harness for damage between throttle
position sensor connector B-05 terminal 4 and PCM
connector C-40 terminal 46.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair it.

AC004197

PCM

AD

CONNECTOR: C-40

AC001831AD

CONNECTOR: B-05

<2.4L ENGINE>

<3.0L ENGINE>

AC004197

PCM

AD

CONNECTOR: C-40

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-46

STEP 14. Check the throttle position sensor.
(1) Disconnect connector B-05 and measure at the sensor

side.

(2) Measure the resistance between connector terminal 1 and

4.

Standard value: 3.5

−−−−

 6.5 k

(3) Measure resistance between the throttle position sensor

side connector terminal 1 and 3.

(4) Move the throttle valve from idle position to full-open

position.

Resistance should change smoothly in proportion to
opening angle of the throttle valve.

Q: Is the resistance normal?

YES : Go to Step 15.
NO :  Replace the throttle position sensor. Refer to GROUP

13A <2.4L Engine>, Throttle Body Assembly

P.13A-

451

 or 13B <3.0L Engine>, Throttle Body Assembly

P.13B-528

.

STEP 15. Check connectors C-40, C-41 at PCM for damage.
Q: Are the connectors in good condition?

YES : Go to Step 16.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

.

AC001831AD

CONNECTOR: B-05

<2.4L ENGINE>

<3.0L ENGINE>

ACX02093

HARNESS
CONNECTOR: B-05

AD

ACX02094

HARNESS
CONNECTOR: B-05

AD

AC004197

PCM

C-40

C-41

CONNECTORS: C-40, C-41

AB
