THROTTLE BODY ASSEMBLY

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-453

<VEHICLES WITH AUTO-CRUSE CONTROL SYSTEM>

NOTE: IF THE ADJUSTING SCREW WAS HAPPEN
TO HAVE BEEN REMOVED, PERFOM SPEED
ADJUSTING SCREW ADJUSTMENT.

DISASSEMBLY SERVICE POINTS

<<A>> THROTTLE POSITION SENSOR DISASSEBLY
1. Do not disassemble the sensor and motor.

2. Do not clean the sensor and motor by dipping them into

cleaning solvent. Clean them with shop towel.

<<B>> THROTTLE BODY DISASSEMBLY
1. Do not disassemble the throttle body.

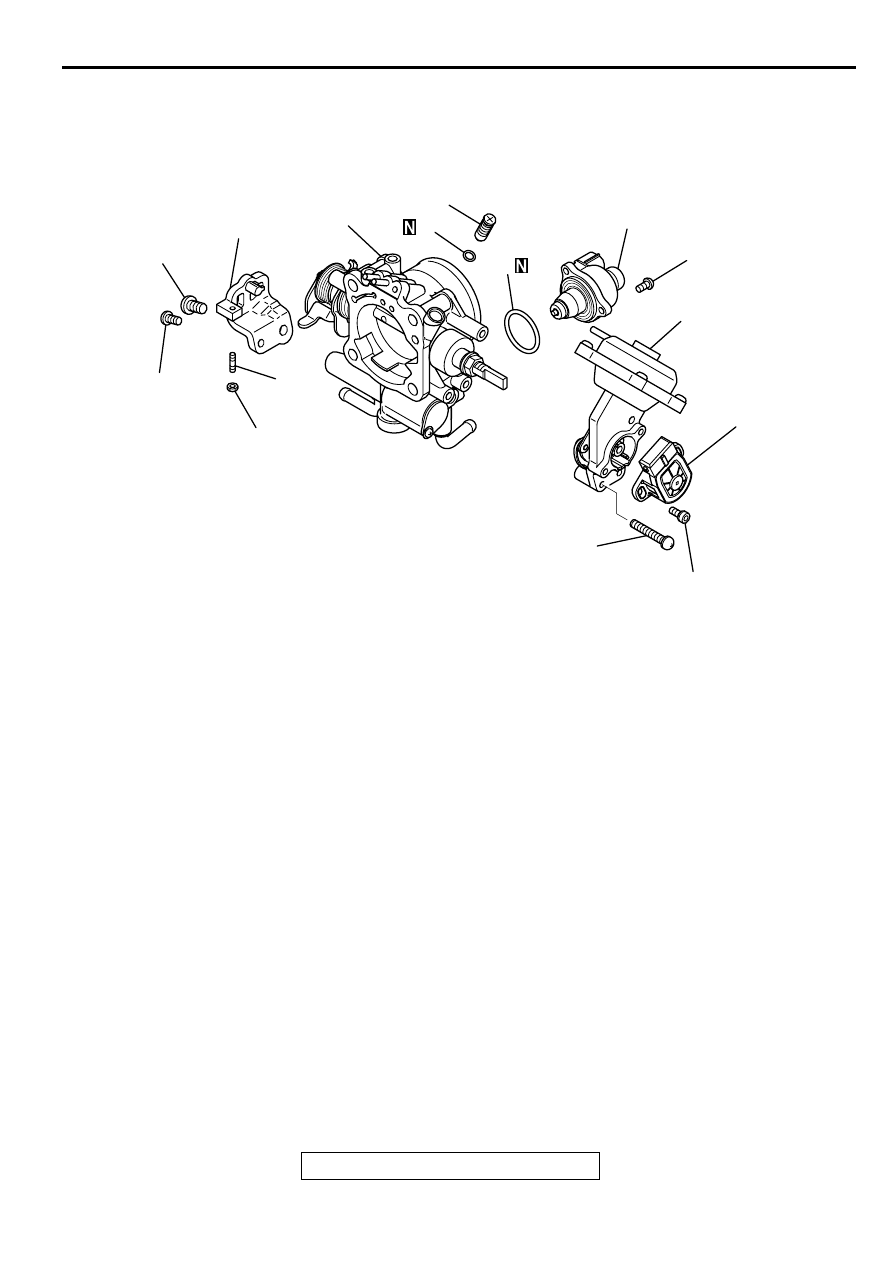

AK000035

7

6

6.9 N·m
61 in-lb

4.9 N·m
43 in-lb

2.0 N·m
18 in-lb

5

9

8

4

2.0 N·m
18 in-lb

3

2

1

4.9 N·m
43 in-lb

2.0 N·m
18 in-lb

AC

REMOVAL STEPS

<<A>>

>>A<<

1. THROTTLE POSITION SENSOR
2. LEVER ASSEMBLY
3. IDLE AIR CONTROL MOTOR
4. O-RING

<<B>>

5. THROTTLE BODY
6. THROTTLE SPEED ADJUSTING

SCREW

7. BRACKET

8. SPEED ADJUSTING SCREW
9. O-RING

REMOVAL STEPS (Continued)

SPECIFICATIONS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-454

2. Check if the vacuum port or passage is clogged. Use

compressed air to clean the vacuum passage.

ASSEMBLY SERVICE POINTS

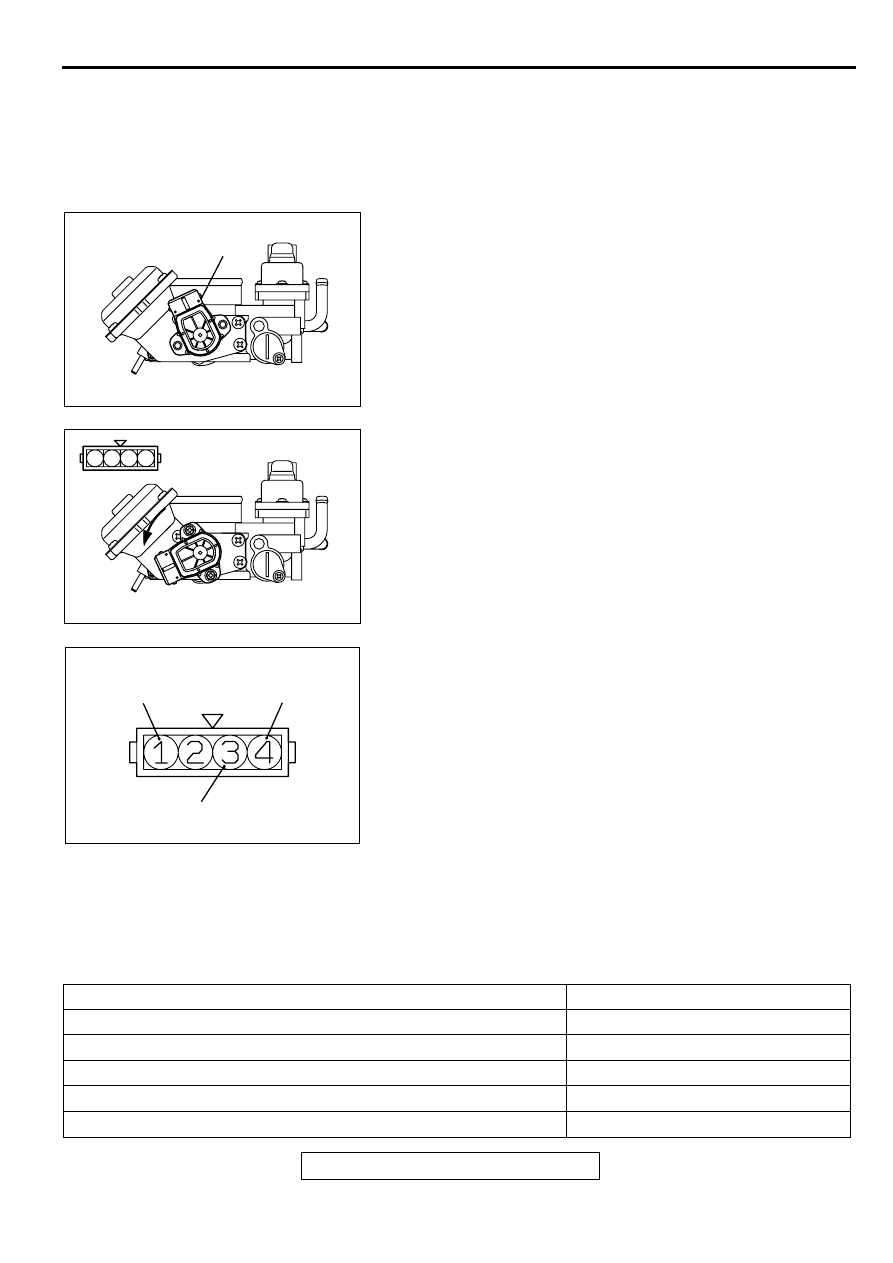

>>A<< THROTTLE POSITION SENSOR (TPS)
INSTALLATION
1. Install the throttle position sensor to the throttle body as

shown in the illustration.

2. Turn the throttle position sensor 90 degrees

counterclockwise to set it, and tighten the screws.

3. Connect an ohmmeter between terminals 1 (ground) and 3

(output), or between terminals 3 (output) and 4 (power).
Then, make sure that the resistance changes smoothly
when the throttle valve is slowly moved to the fully open
position.

SPECIFIC ATIO NS

FASTENER TIGHTENING SPECIFICATIONS

M1131011600108

AK000037

TPS

AB

1 2 3 4

AK000038AB

AKX01635

THROTTLE POSITION
SENSOR POWER

GROUND

THROTTLE POSITION
SENSOR OUTPUT

AB

ITEM

SPECIFICATION

Fuel pressure regulator

8.8 N

⋅

m (78 in-lb)

Fuel rail mounting bolt

9.8

−

 13 N

⋅

m (87

−

 115 in-lb)

High-pressure fuel hose

4.9 N

⋅

m (43 in-lb)

Idle air control motor

2.0 N

⋅

m (18 in-lb)

Lever assembly

4.9 N

⋅

m (44 in-lb)

SPECIFICATIONS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-455

GENERAL SPECIFICATIONS

M1131000200076

Throttle body bracket M64.9 N

⋅

m (44 in-lb)

Throttle body bracket M8

6.9 N

⋅

m (61 in-lb)

Throttle body mounting bolt

19 N

⋅

m (14 ft-lb)

Throttle position sensor

2.0 N

⋅

m (18 in-lb)

Throttle speed adjusting screw mounting nut

2.0 N

⋅

m (18 in-lb)

ITEM

SPECIFICATION

ITEMS

SPECIFICATIONS

Throttle body

Throttle bore mm (in.)

54 (2.1)

Throttle position sensor

Variable resistor type

Idle air control motor

Stepper motor (stepper motor type by-
pass air control system with the air
volume limiter)

Powertrain control
module (PCM)

Identification model No.

E2T76482 <California>

E2T76483 <Federal>

Sensors

Volume air flow sensor

Karman vortex type

Barometric pressure sensor

Semiconductor type

Intake air temperature sensor

Thermistor type

Engine coolant temperature sensor

Thermistor type

Heated oxygen sensor

Zirconia type

Vehicle speed sensor

Electromagnetic resistance element
type

Park/neutral position switch

Contact switch type

Camshaft position sensor

Electromagnetic resistance element
type

Crankshaft position sensor

Hall element type

Power steering pressure switch

Contact switch type

Manifold differential pressure sensor

Semiconductor type

Actuators

Multiport fuel injection (MFI) relay

Contact switch type

Fuel pump relay

Contact switch type

Injector type and number

Electromagnetic type, 4

Injector identification mark

CDH240

EGR solenoid

Duty cycle type solenoid valve

Evaporative emission purge solenoid

Duty cycle type solenoid valve

Fuel pressure
regulator

Regulator pressure kPa (psi)

335 (47.6)

SPECIFICATIONS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L>

13A-456

SERVICE SPECIFICATIONS

M1131000300051

SEALANT AND ADHESIVE

M1131000500022

ITEMS

STANDARD VALUE

Throttle position sensor adjusting voltage   mV

535

−

 735

Basic idle speed   r/min

700

±

 50

Fuel pressure kPa (psi)

Vacuum hose
disconnected

330

−

 350 (47

−

 50) at curb idle

Vacuum hose connected Approximately 270 (38) at curb

idle

Intake air temperature sensor resistance   k

Ω

0

°

C (32

°

F)

5.3

−

 6.7

20

°

C (86

°

F)

2.3

−

 3.0

40

°

C (104

°

F)

1.0

−

 1.5

80

°

C (176

°

F)

0.30

−

 0.42

Engine coolant temperature sensor
resistance   k

Ω

0

°

C (32

°

F)

5.1

−

 6.5

20

°

C (86

°

F)

2.1

−

 2.7

40

°

C (104

°

F)

0.9

−

 1.3

80

°

C (176

°

F)

0.26

−

 0.36

Throttle position sensor resistance   k

Ω

3.5

−

 6.5

Heated oxygen sensor output voltage   V

0.6

−

 1.0

Heated oxygen sensor heater resistance

Ω

<Front>

4.5

−

 8.0

<Rear>

11

−

 18

Injector coil resistance

Ω

13

−

 16 [at 20

°

C (68

°

F)]

Idle air control motor coil resistance

Ω

28

−

 33 [at 20

°

C (68

°

F)]

ITEM

SPECIFIED SEALANT

Engine coolant temperature sensor threaded portion 3M



 AAD part number 8731or equivalent
