ON-VEHICLE SERVICE

TSB Revision

ENGINE LUBRICATION

12-5

4. Use the respective tool in the following table to remove the

engine oil filter.

5. Clean the filter bracket side mounting surface and ensure

the old O-ring has been removed.

6. Apply a small amount of engine oil to the O-ring of the new

oil filter.

7. Once the O-ring of the oil filter is touching the flange, use the

respective tool in the following table to tighten to the
specified torque.

8. Install the drain plug and refill engine oil. (Refer to Engine

Oil Replacement

P.12-3

.)

9. Race the engine a few times, and check to be sure that no

engine oil leaks from the installation section of the oil filter.

AC000093 AC

MB991396,
MB991610 OR
GENERAL
SERVICE
TOOL

ACX00396

O-RING

AB

NUMBER

ENGINE

SPECIAL TOOL

TIGHTENING TORQUE

MD360935

2.4L

MB991396 or equivalent

Approximately one turn [14 N

⋅

m (124 in-lb)]

MD325714,
MD332687,
MD365876

MB991396 or equivalent

Approximately 3/4 turn [16 N

⋅

m (11.6 ft-lb)]

MD136466,
MD322508

General service tool

Approximately 3/4 turn [17 N

⋅

m (12.5 ft-lb)]

MD352626

3.0L

MB991610 or equivalent

Approximately 3/4 turn [14 N

⋅

m (124 in-lb)]

ON-VEHICLE SERVICE

TSB Revision

ENGINE LUBRICATION

12-6

OIL PRESSURE CHECK

M1121002300078

Required Special Tool:
MD998054:Oil Pressure Switch Wrench
1. Check engine oil quantity.

2. Remove the oil pressure switch terminal.

CAUTION

Since sealant is applied to the thread of the oil pressure
switch, take care not to damage the oil pressure switch
when removing it.
3. Use special tool MD998054 to remove the oil pressure

switch.

4. Install the oil pressure gauge.

NOTE: Use a 1/8 pipe thread adapter.

5. Run the engine to warm it.

6. After the engine has been warmed up, check that oil

pressure is within the standard value.

Standard value:

At idle: 29 kPa (4.2 psi) or more
At 3,500 r/min: 294

−−−−

 686 kPa (43

−−−−

 100 psi)

7. Remove the oil pressure gauge.
8. Apply the specified sealant 3M



 AAD Part number 8672 or

equivalent to thread of the oil pressure switch.

AK000197AB

CYLINDER BLOCK

OIL PRESSURE
SWITCH

<2.4L ENGINE>

AKX00293

CYLINDER BLOCK

OIL FILTER
BRACKET

OIL PRESSURE
SWITCH

AKX00293AC

<3.0L ENGINE>

AKX00294

MD998054

AB

AKX00295 AB

SPECIFICATIONS

TSB Revision

ENGINE LUBRICATION

12-7

CAUTION

Do not start the engine within one hour after the engine oil
pressure switch has been installed.
9. Use special tool MD998054 to tighten the oil pressure switch

to the specified torque.

Tightening torque:

19 N

⋅⋅⋅⋅

m (14 ft-lb) <2.4L ENGINE>

9.8 N

⋅⋅⋅⋅

m (87 in-lb) <3.0L ENGINE>

10.Install the oil pressure switch terminal.

SPECIFIC ATIO NS

FASTENER TIGHTENING SPECIFICATIONS

M1121002200060

SERVICE SPECIFICATION

M1121000300027

SEALANT

M1121000500021

LUBRICANTS

M1121000400080

AKX00294

MD998054

AB

ITEMS

SPECIFICATIONS

Engine oil filter

MD360935, MD352626

14 N

⋅

m (124 in-lb)

MD325714, MD332687,
MD365876

16 N

⋅

m (11.6 ft-lb)

MD136466, MD322508

17 N

⋅

m (12.5 ft-lb)

Engine oil pan grain plug

39 N

⋅

m (29 ft-lb))

Oil pressure switch

2.4L Engine

19 N

⋅

m (14 ft-lb)

3.0L Engine9.8 N

⋅

m (87 in-lb)

ITEM

STANDARD VALUE

Oil pressure kPa (psi)

at idle

29 (4.2) or more

at 3,500 r/min

294

−

 686 (43

−

 100)

ITEM

SPECIFIED SEALANT

Oil pressure switch

3M



 AAD Part No. 8672 or equivalent

ITEMS

ENGINE OIL (API CLASSIFICATION)

QUANTITY dm

3

 (qt)

Oil filter

SJ or higher

0.3 (0.32)

Total quantity

4.3 (4.5)

SPECIFICATIONS

TSB Revision

ENGINE LUBRICATION

12-8

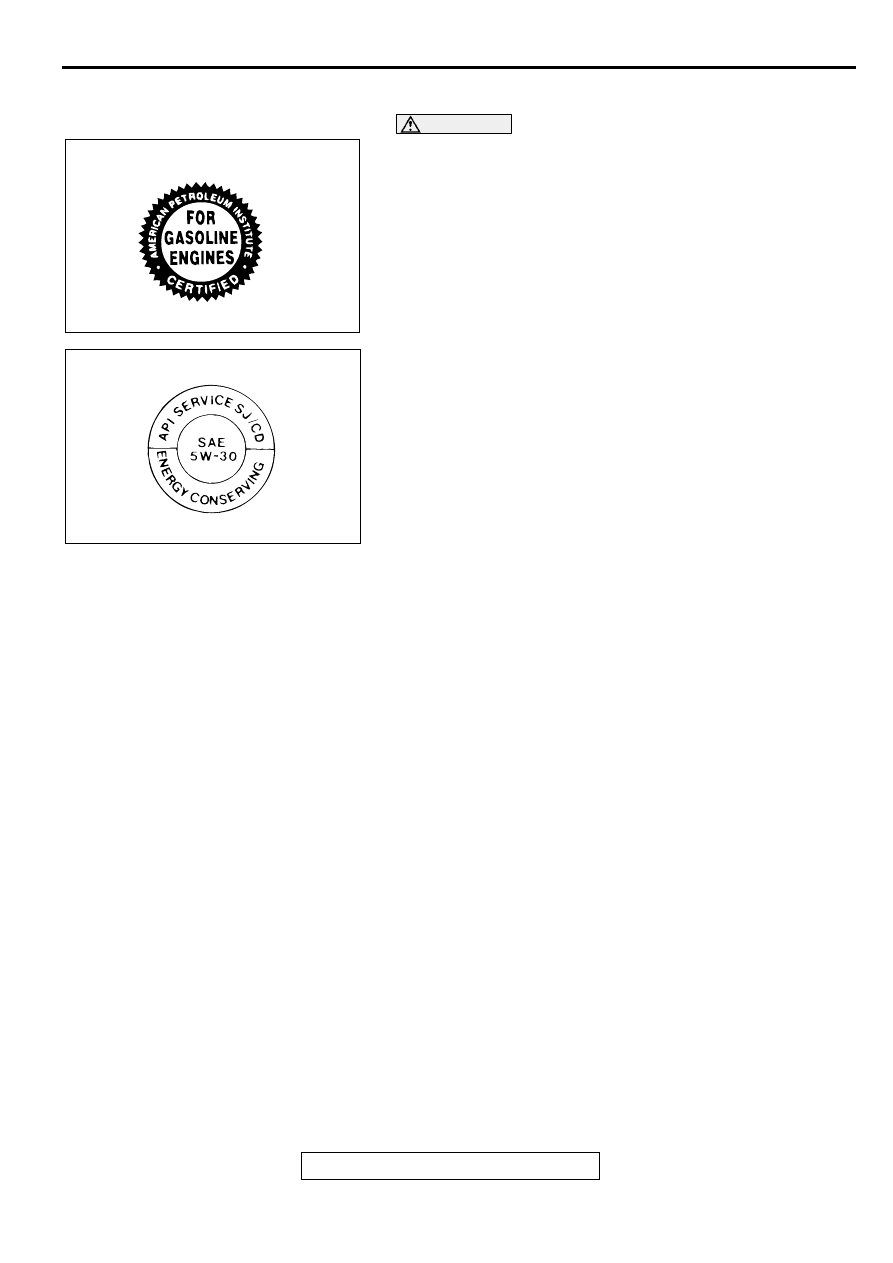

ENGINE OIL

CAUTION

Never use nondetergent or straight mineral oil.
Oil Identification Symbol
Use only engine oils displaying the ILSAC certification mark
("Starburst" symbol) on the container.

If these oils are not available, an API classification SJ EC or SJ/
CD EC can be used.

ACX00394AI

ILSAC CERTIFICATION MARK
("STARBURST" SYMBOL)

ACX00886 AB

API SERVICE SYMBOL
