Mitsubishi Galant. Manual - part 37





ROCKER ARMS AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <2.4L>

11B-29

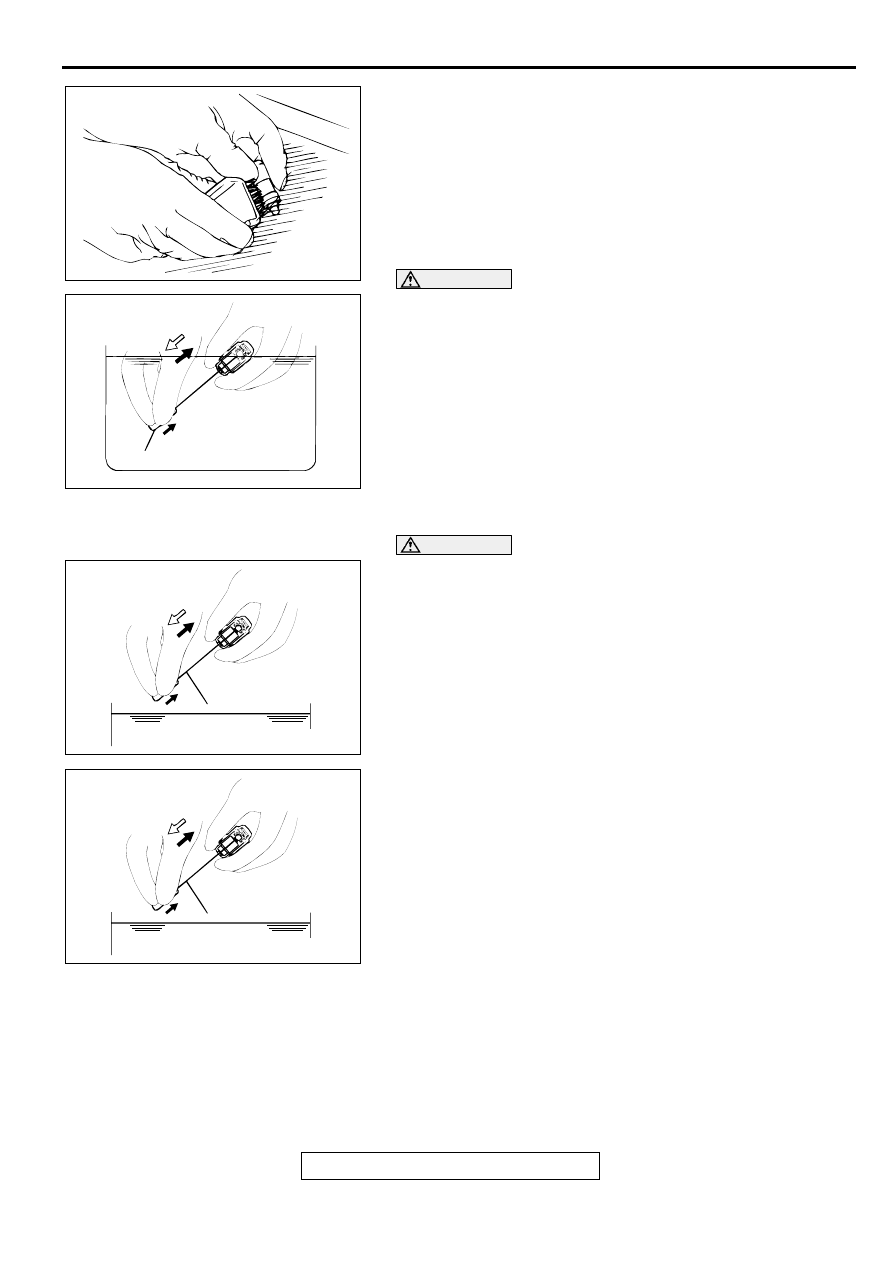

2. Place the lash adjuster in container A and clean its outside

surface.

NOTE: Use a nylon brush if deposits are hard to remove.

CAUTION

The steel ball spring is extremely weak, so the lash
adjuster's functionality may be lost if the air bleed wire is
pushed in hard.sT
3. While gently pushing down the internal steel ball using wire

[0.5 mm (0.020 inch) indiameter] or special tool MD998442,
move the plunger through five to ten strokes until it slides
smoothly. In addition to eliminating stiffness in the plunger,
this operation will remove dirty oil.

NOTE: If the plunger remains stiff or the mechanism
appears otherwise abnormal, replace the lash adjuster.

4. Remove the lash adjuster from the container. Then, push

down the steel ball gently and push the plunger to eliminate
diesel fuel from the pressure chamber.

CAUTION

The steel ball spring is extremely weak, so the lash
adjuster's functionality may be lost if the air bleed wire is
pushed in hard.
5. Place the lash adjuster in container B. Then, gently push

down the internal steel ball using wire [0.5 mm (0.020 inch)
indiameter] or special tool MD998442 and move the plunger
through five to ten strokes until it slides smoothly. This
operation will clean the lash adjuster's pressure chamber.

6. Remove the lash adjuster from the container. Then, push

down the steel ball gently and push the plunger to eliminate
diesel fuel from the pressure chamber.

AKX00504

DIESEL
FUEL

AB

AKX00506

DIESEL FUEL

WIRE OR MD998442

AB

AKX00507

WIRE OR MD998442

DIESEL FUEL

AB

AKX00507

WIRE OR MD998442

DIESEL FUEL

AB

ROCKER ARMS AND CAMSHAFT

TSB Revision

ENGINE OVERHAUL <2.4L>

11B-30

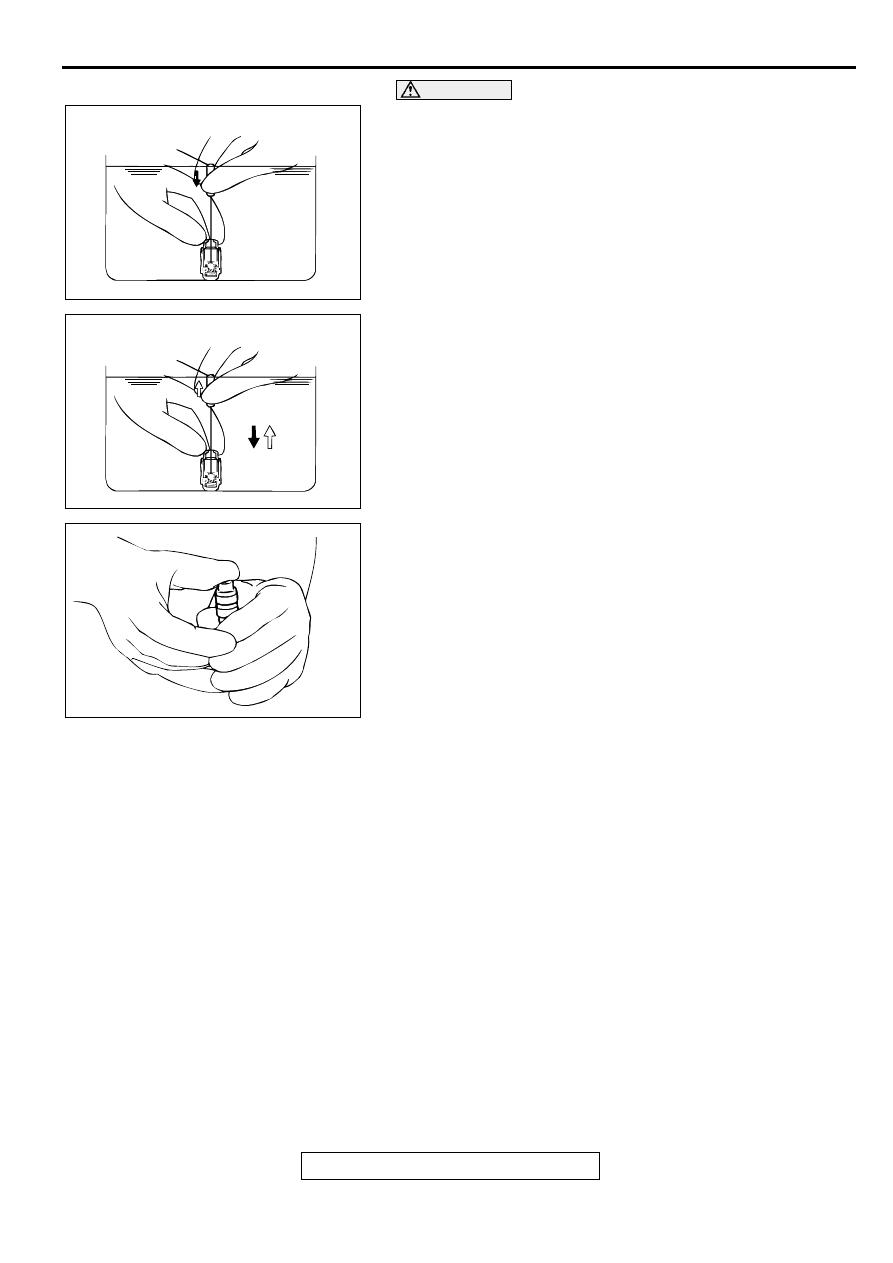

CAUTION

Do not use container C for cleaning. If cleaning is
performed in container C, foreign matter could enter the
pressure chamber when the chamber is filled with diesel
fuel.
7. Place the lash adjuster in container C. Then, gently push

down the internal steel ball using wire [0.5 mm (0.020 inch)
indiameter] or special tool MD998442.

8. Stand the lash adjuster with its plunger at the top, then push

the plunger downward firmly until it moves through its
greatest possible stroke. Return the plunger slowly, then
release the steel ball and allow the pressure chamber to fill
with diesel fuel.

9. Remove the lash adjuster from the container, then stand the

lash adjuster with its plunger at the top. Push the plunger
firmly and check that it does not move. Also, check that the
lash adjuster's height matches that of a new lash adjuster.

NOTE: If the lash adjuster contracts or moves, perform the
operations (7) through (9) again to fill it with diesel fuel
completely. Replace the lash adjuster if it still contracts or
moves after performing these steps.

10.Stand the lash adjuster upright to prevent diesel fuel from

spilling out. Do not allow the lash adjuster to become
contaminated by dirt or other foreign matter. Fit the lash
adjuster onto the engine as soon as possible.

AKX00508

DIESEL
FUEL

WIRE OR MD998442

AB

AKX00509

DIESEL
FUEL

WIRE OR MD998442

AB

AKX00505

CYLINDER HEAD AND VALVES

TSB Revision

ENGINE OVERHAUL <2.4L>

11B-31

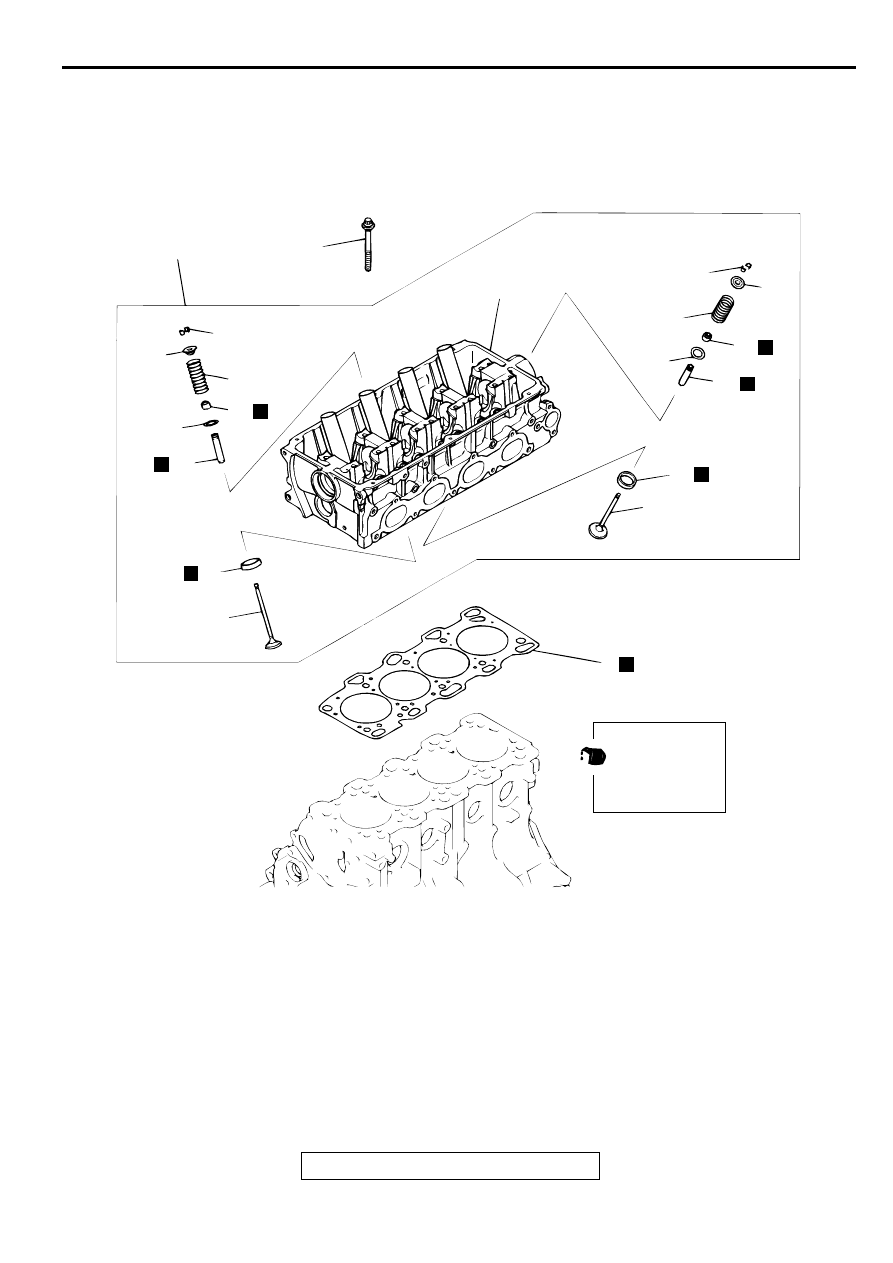

C YLIN D ER  H EA D  A N D  VA LVES

REMOVAL AND INSTALLATION

M1113006900055

AKX00476

78 Nm
58 ft-lb

20 Nm
14 ft-lb

Back off

+ 90 + 90

APPLY ENGINE
OIL TO ALL
MOVING PARTS
BEFORE
INSTALLATION.

2

1

4

5

6

13

16

18

7

3

11

19

9

8

10

15

20

N

N

N

N

N

N

N

AB

12

17

14

REMOVAL STEPS

<<A>>

>>D<<

1. CYLINDER HEAD BOLT
2. CYLINDER HEAD ASSEMBLY

>>D<<

3 CYLINDER HEAD GASKET

<<B>>

>>C<<

4. RETAINER LOCK
5. VALVE SPRING RETAINER

>>B<<

6. VALVE SPRING
7. INTAKE VALVE

<<B>>

>>C<<

8. RETAINER LOCK
9. VALVE SPRING RETAINER

>>B<<

10.VALVE SPRING

11. EXHAUST VALVE

>>A<<

12.VALVE STEM SEAL
13.VALVE SPRING SEAT

>>A<<

14.VALVE STEM SEAL
15.VALVE SPRING SEAT
16.INTAKE VALVE GUIDE
17.EXHAUST VALVE GUIDE
18.INTAKE VALVE SEAT
19.EXHAUST VALVE SEAT
20.CYLINDER HEAD

REMOVAL STEPS (Continued)

CYLINDER HEAD AND VALVES

TSB Revision

ENGINE OVERHAUL <2.4L>

11B-32

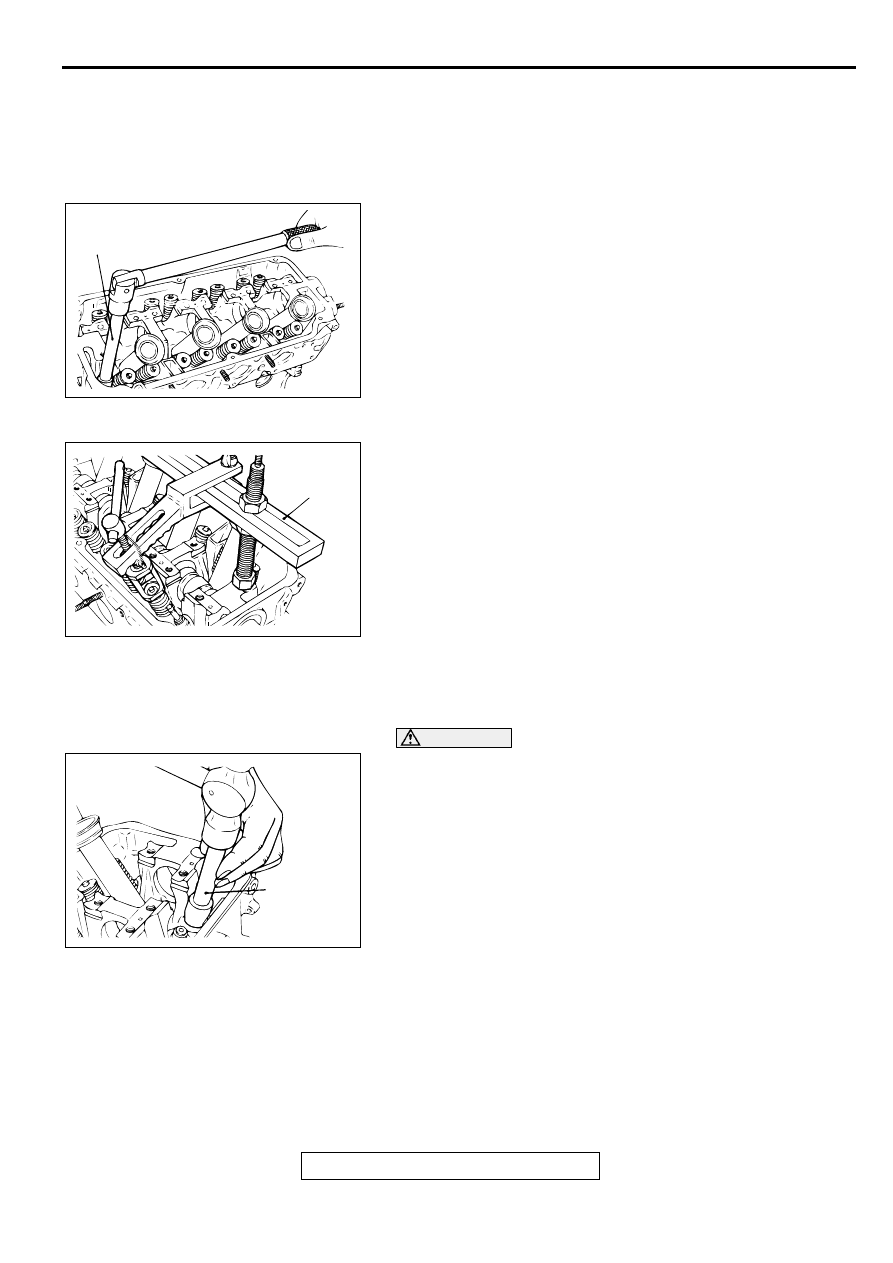

Required Special Tools:
MB991654: Cylinder Head Bolt Wrench (12)

MD998772: Valve Spring Compressor
MD998774: Valve Stem Seal Installer

REMOVAL SERVICE POINTS

<<A>> CYLINDER HEAD BOLTS REMOVAL
Using special tool MB991654, loosen the cylinder head bolts.
Loosen each bolt evenly, little by little, by two or three steps.

<<B>> RETAINER LOCK REMOVAL
1. Set special tool MD998772 as illustrated to compress the

valve spring. Remove the retainer lock.

2. Relieve the spring tension and remove the valve, retainer,

spring, etc. Store removed valves, springs, and other parts,
tagged to indicated their cylinder number and location for
assembly.

INSTALLATION SERVICE POINTS

>>A<< VALVE STEM SEAL INSTALLATION

CAUTION

The special tool must be used to install the valve stem
seal. Improper installation could result in oil leaking past
the valve guide.
1. Install the valve spring seat.

2. Using special tool MD998774, install a new valve stem seal.

AKX00519

MB991654

AB

AKX00520

MD998772

AB

AKX00521

MD998774

AB
