MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-140

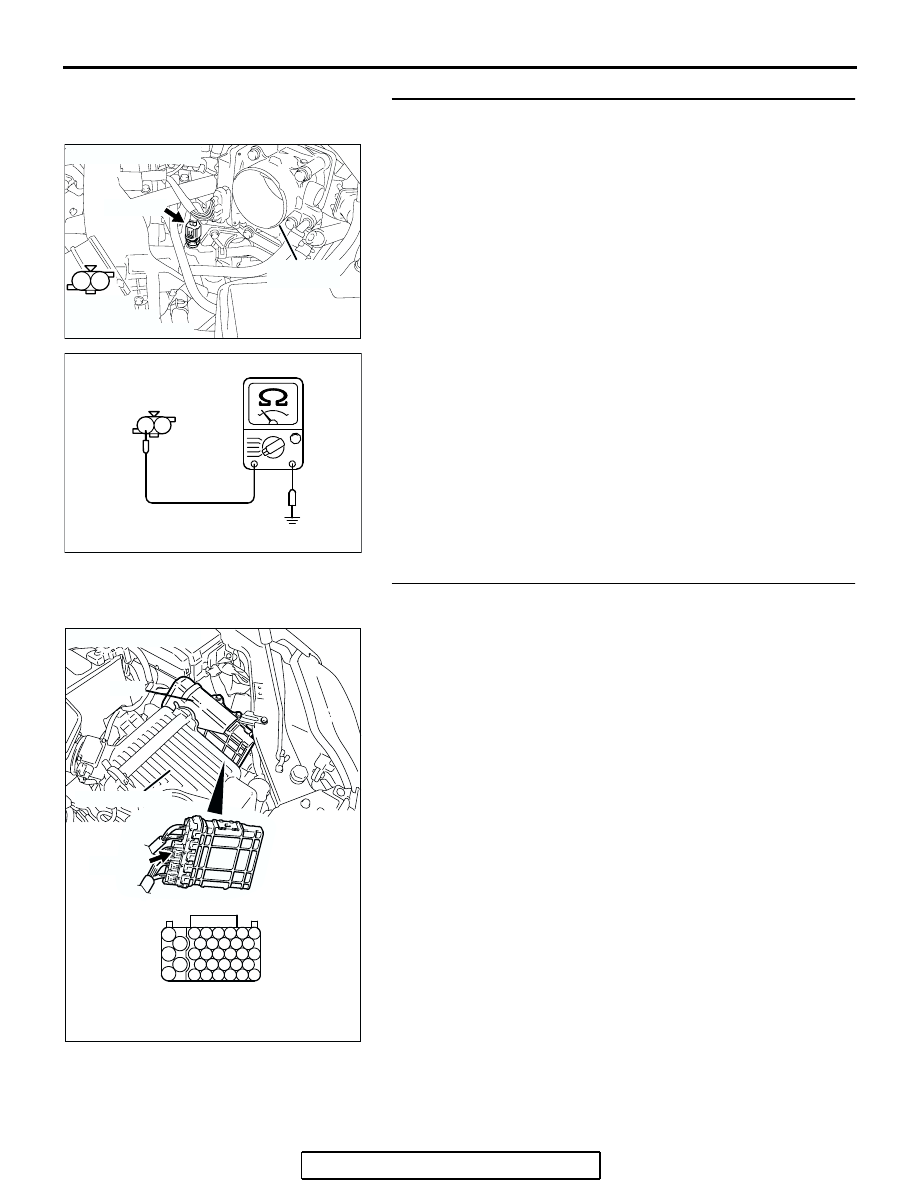

STEP 4. Check for continuity at engine coolant
temperature sensor harness side connector B-104.

(1) Disconnect the connector B-104 and measure at the

harness side.

(2) Check for the continuity between terminal No. 2 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 7.
NO :  Go to Step 5.

STEP 5. Check harness connector B-21 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Replace the PCM. Then go to Step 9.
NO :  Repair it. Then go to Step 9.

1

2

AK303037

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-104

AB

B-104 (B)

THROTTLE
BODY

AK000235

B-104 HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

AQ

AK303018

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

CONNECTOR: B-21

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-141

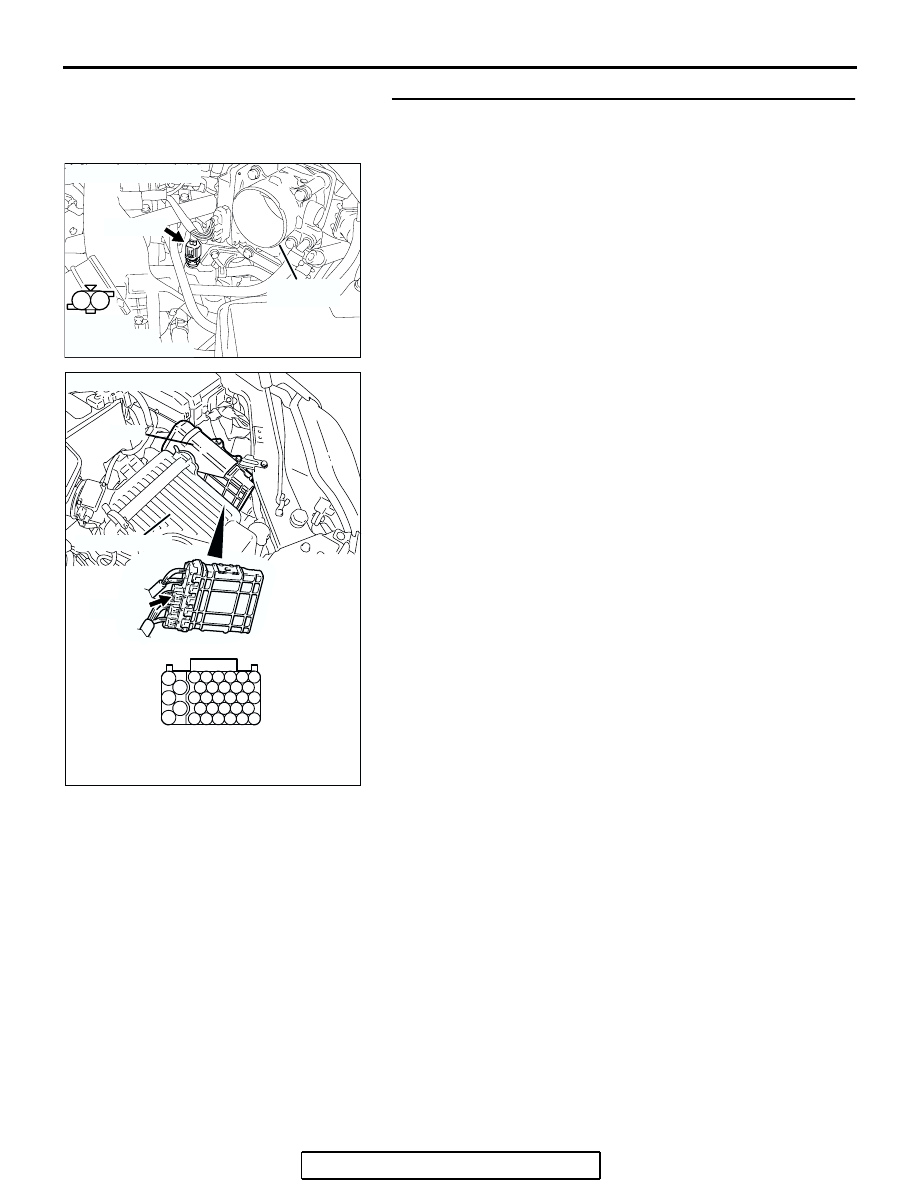

STEP 6. Check for harness damage between engine
coolant temperature sensor connector B-104 (terminal No.
2) and PCM connector B-21 (terminal No. 69).

Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 9.
NO :  Repair it. Then go to Step 9.

1

2

AK303037

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-104

AB

B-104 (B)

THROTTLE
BODY

AK303018

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

CONNECTOR: B-21

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-142

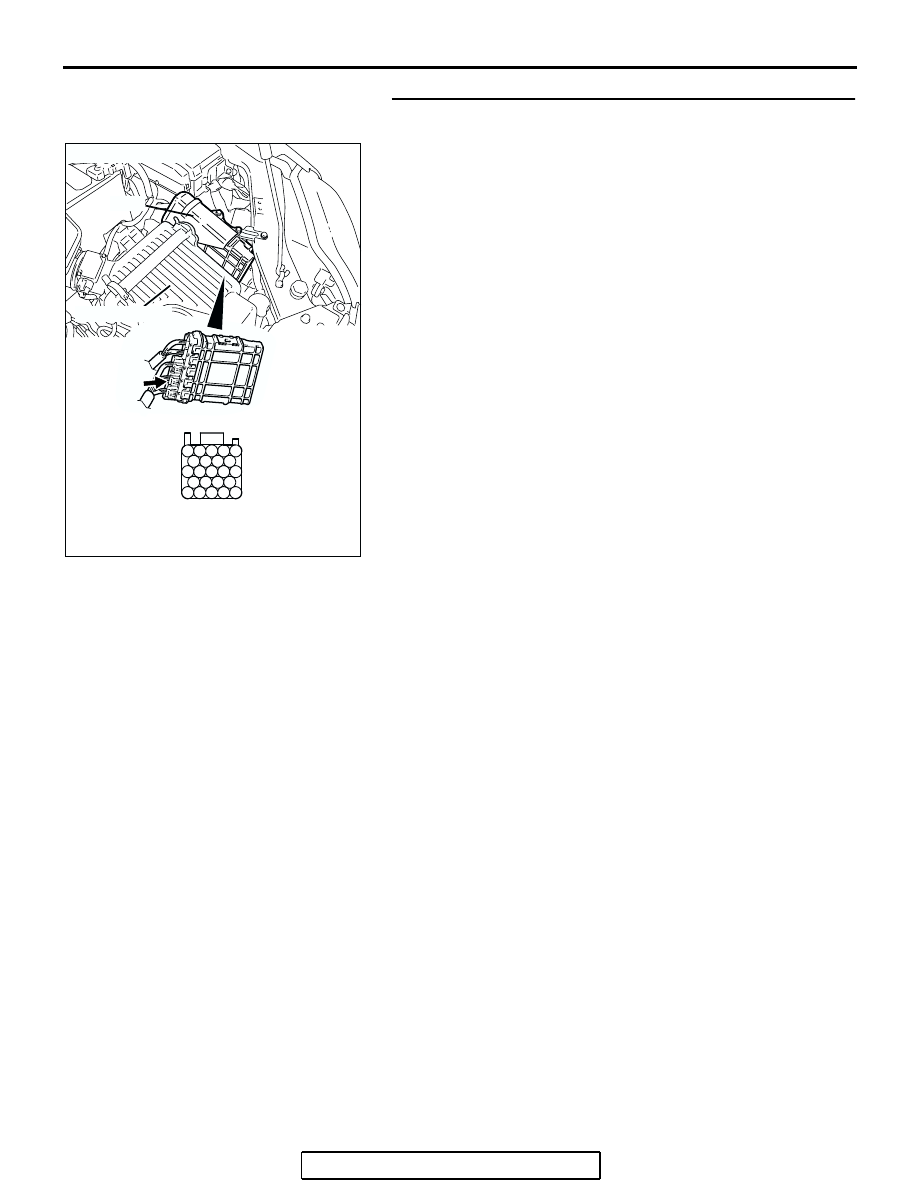

STEP 7. Check harness connector B-22 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-143

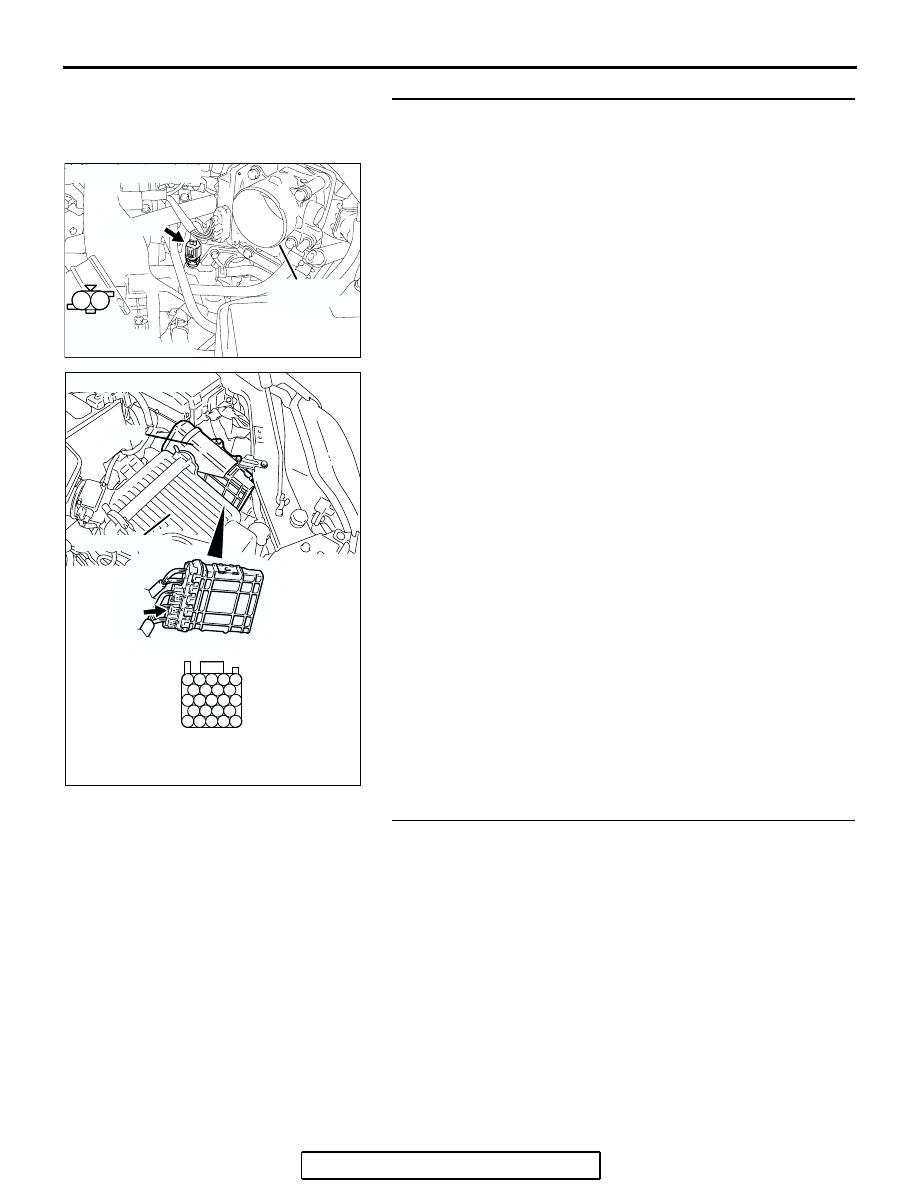

STEP 8. Check for harness damage between engine
coolant temperature sensor connector B-104 (terminal No.
1) and PCM connector B-22 (terminal No. 93).

Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 9.
NO :  Repair it. Then go to Step 9.

STEP 9. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-6

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0116 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

1

2

AK303037

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-104

AB

B-104 (B)

THROTTLE
BODY

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER
