Mitsubishi Galant 9G. Manual - part 907





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-1070

DIAGNOSIS

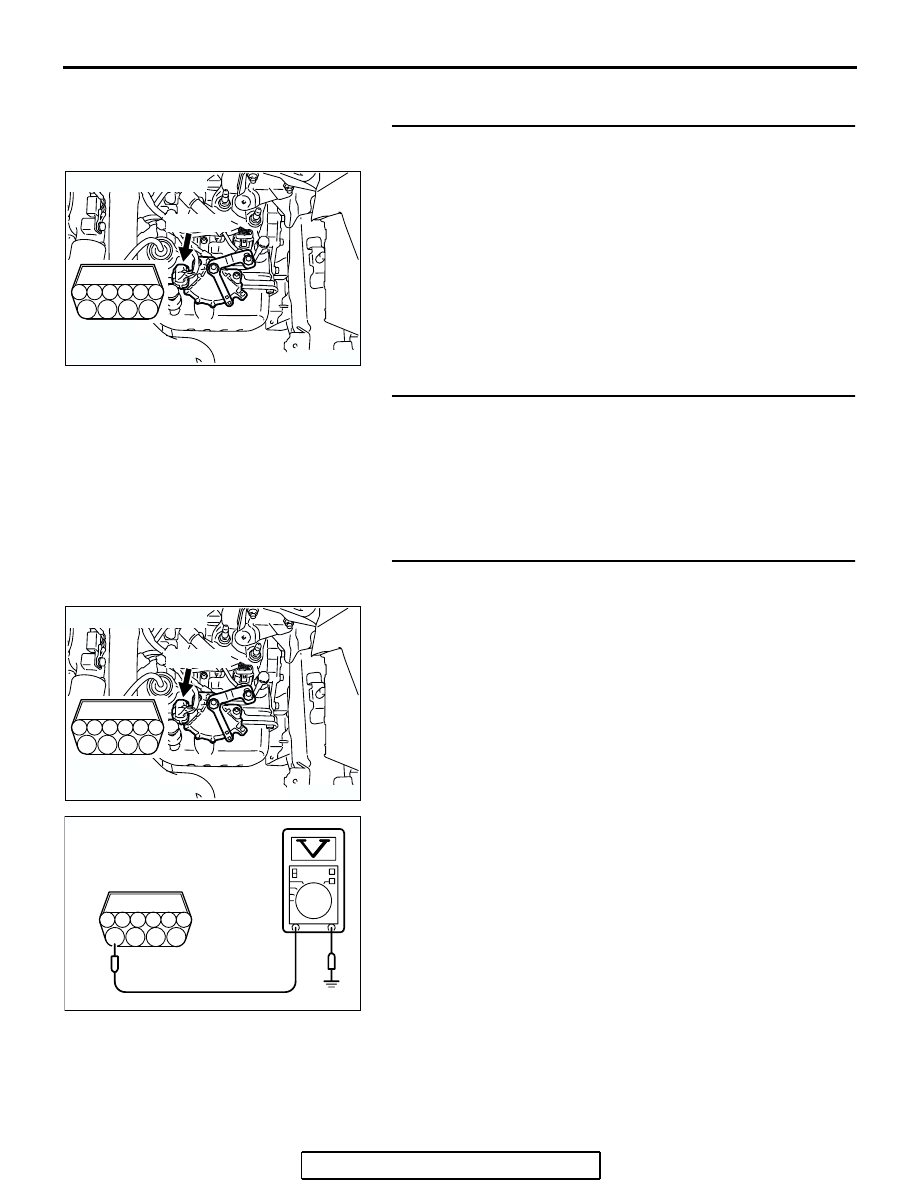

STEP 1. Check connector B-110 at transmission range
switch for damage.
Q: Is the connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

STEP 2. Check the transmission range switch.
Refer to GROUP 23A, On-vehicle Service

− Essential Service −

Transmission Range Switch Continuity Check

P.23A-372

.

Q: Are there any abnormalities?

YES : Repair or replace it. Then confirm that the malfunction

symptom is eliminated.

NO :  Go to Step 3.

STEP 3. Measure the power supply voltage at transmission
range switch connector B-110.
(1) Disconnect the connector B-110 and measure at the

harness side.

(2) Turn the ignition switch to the "START" position.

(3) Measure the voltage between terminal No. 10 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 4.
NO :  Check connector A-13 and C-29 at intermediate

connector for damage, and repair or replace as
required. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. If intermediate connector are in

good condition, repair harness wire between ignition
switch connector C-308 (terminal No. 5) and
transmission range switch connector B-110 (terminal
No. 10) because of open circuit. Then confirm that the
malfunction symptom is eliminated.

AK303935

8

9

3

4

5

1

2

6

7

10

AB

CONNECTOR: B-110

B-110 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303935

8

9

3

4

5

1

2

6

7

10

AB

CONNECTOR: B-110

B-110 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

8

9

3

4

5

1

2

6

7

10

AK203279

B-110 HARNESS
CONNECTOR:
COMPONENT SIDE

AC

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-1071

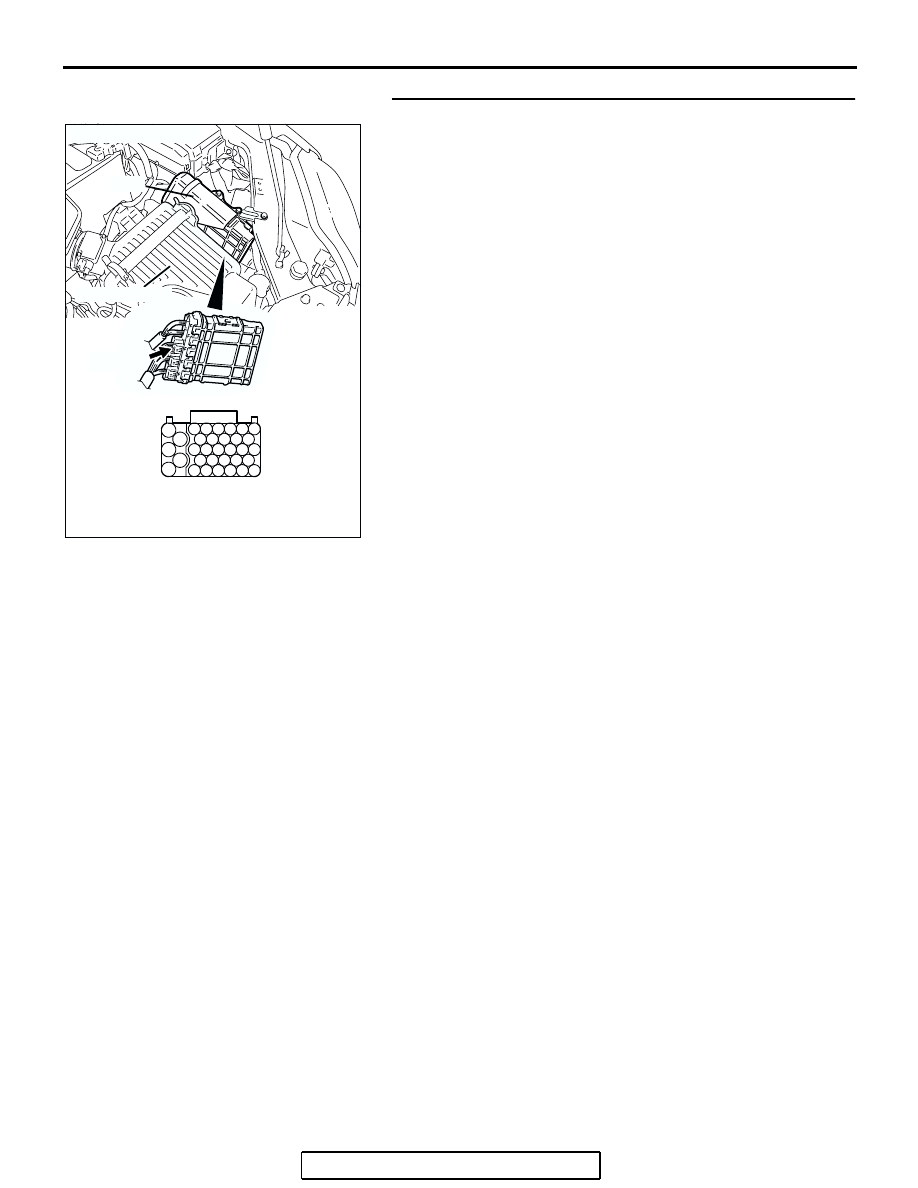

STEP 4. Check connector  B-21 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then confirm that the

malfunction symptom is eliminated.

AK303018

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

CONNECTOR: B-21

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-1072

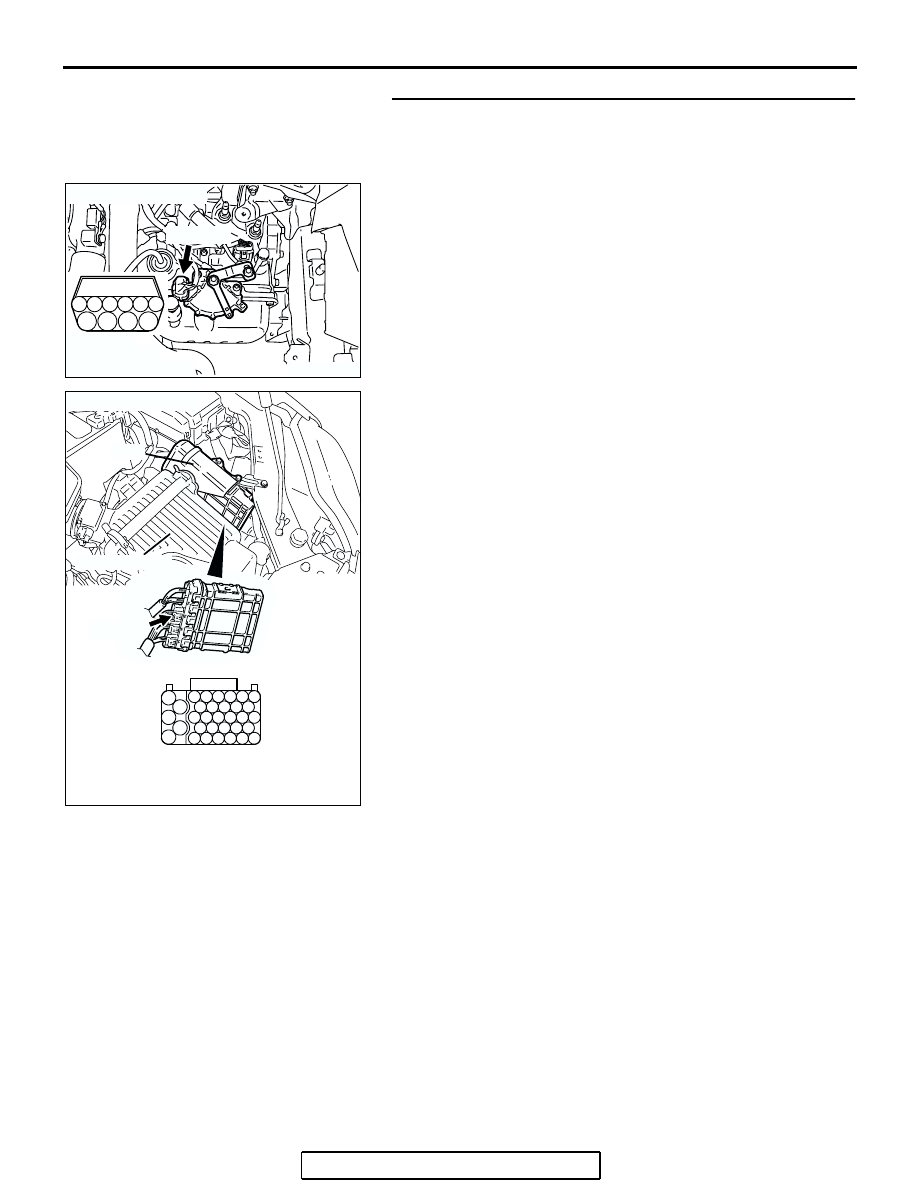

STEP 5. Check for open circuit and short circuit to ground
and harness damage between transmission range switch
connector B-110 (terminal No. 9) and PCM connector B-21
(terminal No. 83).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then confirm that the malfunction

symptom is eliminated.

NO :  Repair it. Then confirm that the malfunction symptom

is eliminated.

AK303935

8

9

3

4

5

1

2

6

7

10

AB

CONNECTOR: B-110

B-110 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303018

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

CONNECTOR: B-21

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-1073

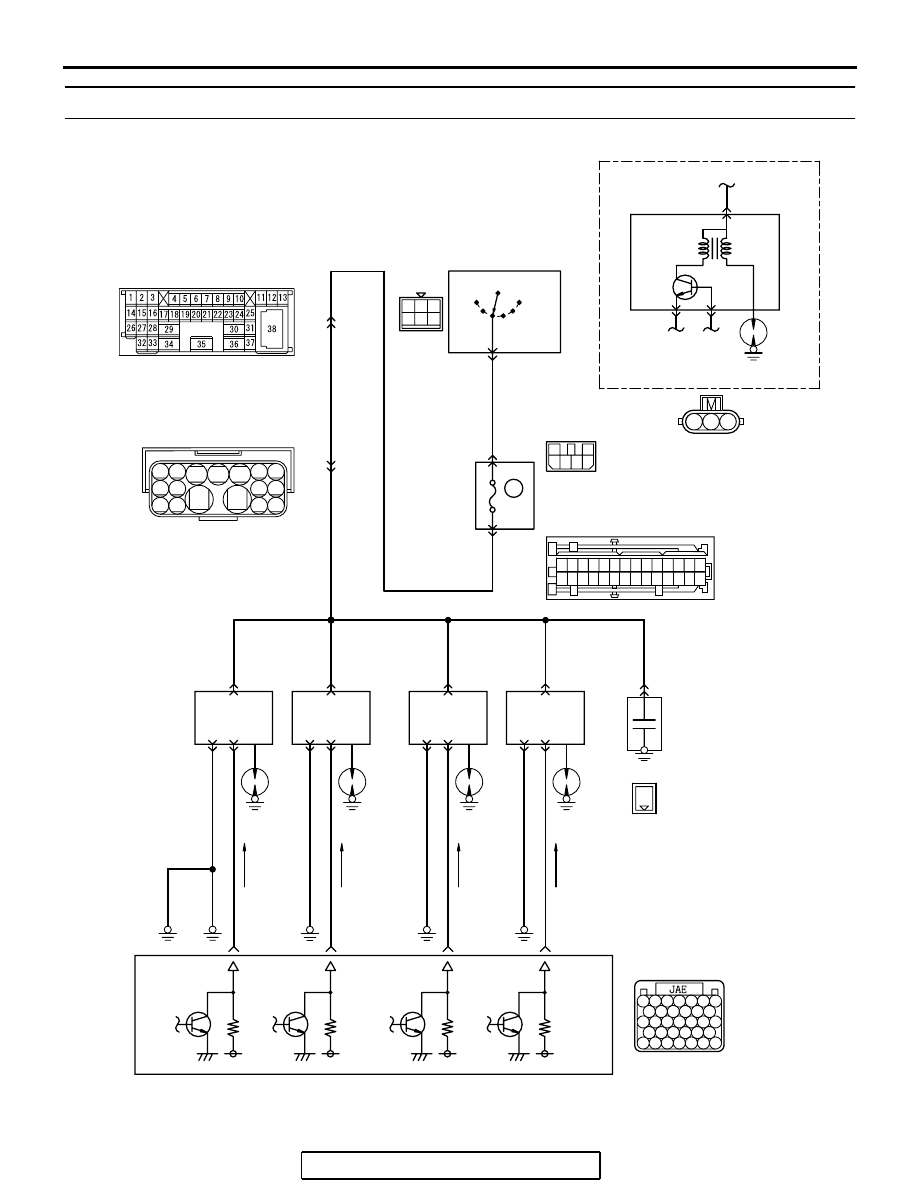

INSPECTION PROCEDURE 31: Ignition Circuit System

1

3

4 5 6

1

3

2

4 5 6

2

1

6

4 5

11

10

1213

15

17

16

14

19

18

8 9

7

20

2 3

2122 23 2425 26 27 28

1 2

3 4 5

14

15

8 9

12 13

6 7

10 11
16 17

1

1 2 3

121 122 123 124 125 126 127

128 129 130 131 132 133

134 135 136 137 138 139 140

141 142 143 144 145 146

147 148 149 150 151 152 153

AK304186

IGNITION
COIL 1

IGNITION
COIL2

IGNITION
COIL 3

IGNITION
COIL 4

BLA

C

K-WHITE

BLA

CK-

WHITE

BLA

CK-

WHITE

BLA

CK-

WHITE

BLA

CK-

WHITE

BLA

CK-

WHITE

BLA

C

K-WHITE

BLA

C

K-WHITE

LOCK

ACC

IG1

IGNITION
SWITCH

C-308

2

6

10

15

R

C-215

MU801331

IG2

11

A-13

JUNCTION

BLOCK

ST

Ignition Circuit

C-211

B-23

151

143

POWERTRAIN CONTROL MODULE (PCM)

150

148

PINK-BLA

CK

BLA

C

K

BLA

C

K

GRA

Y

BLA

C

K-BLUE

WHITE-BLUE

1

2

3

2

3

2

3

2

3

B-101

1 B-118

1 B-102

1 B-117

CAPACITOR

BLA

CK-

WHITE

24

10 A

C-29

1

B-111

(MU801215)

IGNITION COIL

IGNITION COIL

CONNECTOR

(MU802064)

BLA

C

K

BLA

C

K

BLA

C

K

BLA

C

K

1

2

3

SPARK

PLUG
