MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-910

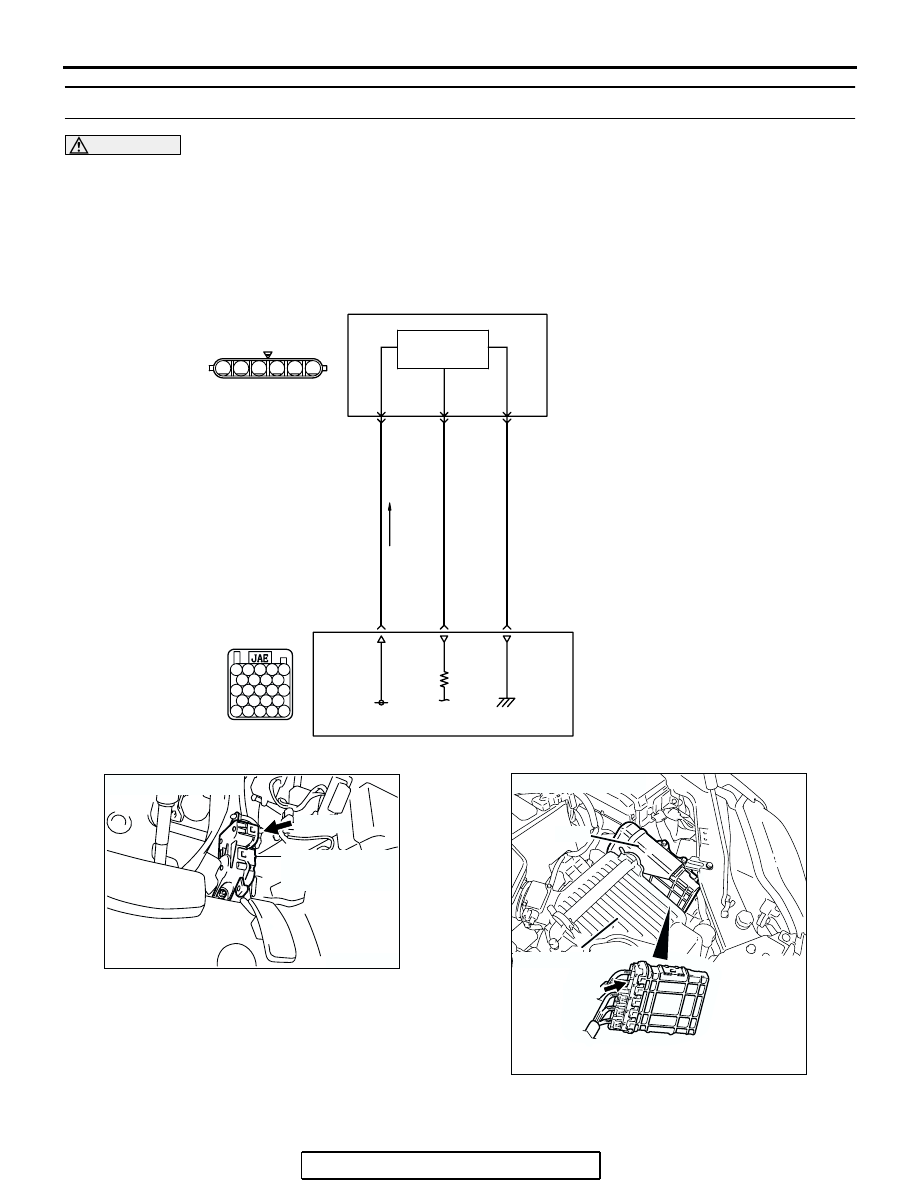

DTC P2127: Accelerator Pedal Position Sensor (sub) Circuit Low Input

CAUTION

If DTC P2127 has been set, TCL related DTC
U1120 is also set. After P2127 has been diag-
nosed, don't forget to erase DTC U1120.

23 24 25

26 27 28 29

30 31 32 33 34

35 36 37 38

39 40 41 42 43

1 2 3 4 5

AK303908

YELLO

-RED

PINK-GREEN

C-24

5 V

ACCELERATOR PEDAL

POSITION SENSOR
(SUB)

POWERTRAIN CONTROL
MODULE (PCM)

Accelerator Pedal Position Sensor (sub) Circuit

B-20

HALL IC

AC305244

AK303904AB

ACCELERATOR
PEDAL POSITION
SENSOR

CONNECTOR: C-24

C-24 (B)

AK303085

CONNECTOR: B-20

PCM

AIR CLEANER

B-20

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-911

CIRCUIT OPERATION

• A 5-volt power supply is applied on the accelera-

tor pedal position sensor (sub) power terminal
(terminal No. 4) from the PCM (terminal No. 21).
The ground terminal (terminal No. 5) is grounded
with PCM (terminal No. 22).

TECHNICAL DESCRIPTION

• The accelerator pedal position sensor (sub) out-

puts voltage which corresponds to the accelera-
tor pedal depression.

• The PCM checks whether the voltage is within a

specified range.

DESCRIPTIONS OF MONITOR METHODS

Accelerator pedal position sensor (sub) output volt-

age is out of specified range.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Not applicable

Sensor (The sensor below is determined to be

normal)

• Not applicable

DTC SET CONDITIONS
Logic Flow Chart

AK303909

START

END

YES

MALFUNCTION

GOOD

CONTINUOUS

FAILURE FOR 0.3sec

OUTPUT VOLTAGE < 0.2V

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-912

Check Conditions

• Ignition switch is "ON" position.

Judgement Criteria

• Accelerator pedal position sensor (sub) output

voltage is 0.2 volt or less for 0.3 second.

OBD-II DRIVE CYCLE PATTERN

None.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Accelerator pedal position sensor failed.

• Open or shorted accelerator pedal position sen-

sor (sub) circuit, harness damage or connector
damage.

• PCM failed.

DIAGNOSIS

Required Special Tools:

• MB991958: Scan tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

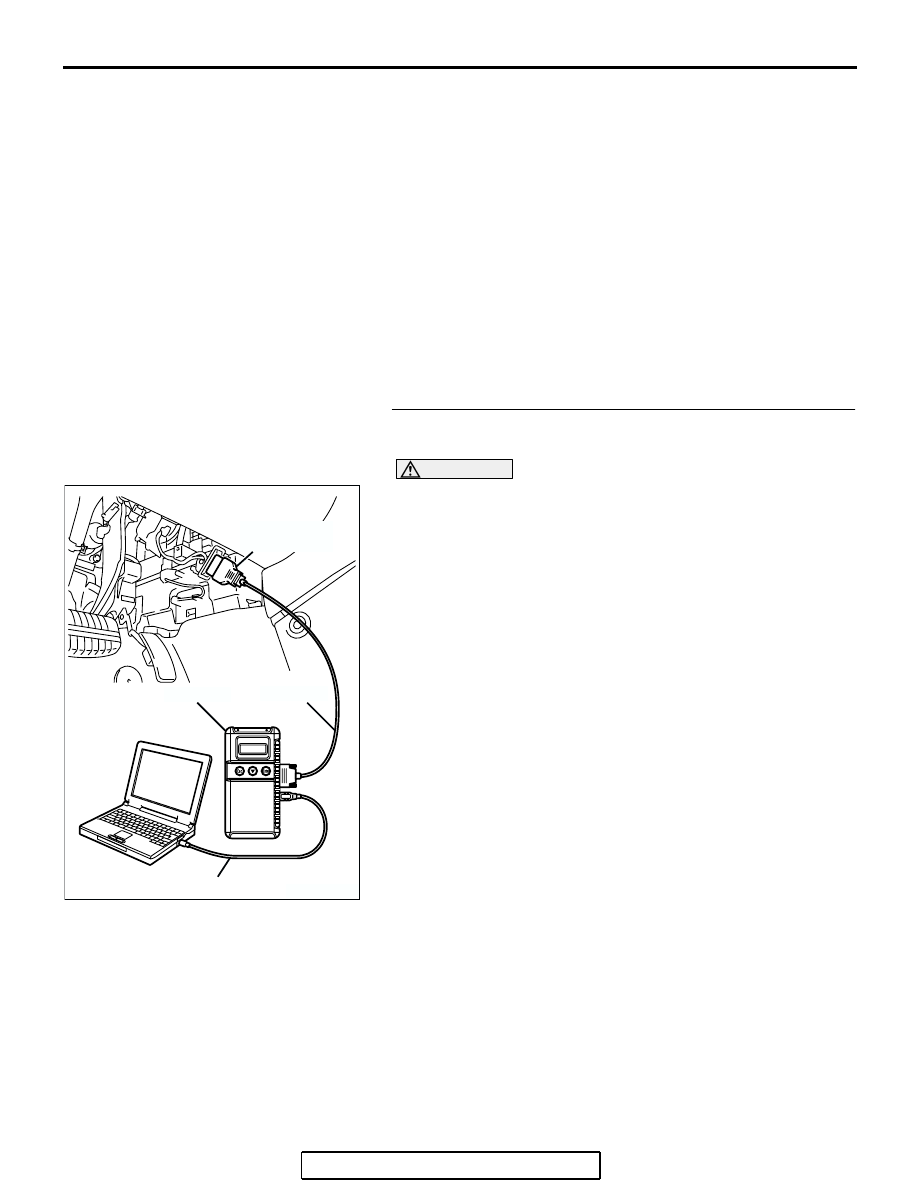

STEP 1. Using scan tool MB991958, check data list item 77:
Accelerator Pedal Position Sensor (sub).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

77, Accelerator Pedal Position Sensor (sub).

• Output voltage is between 0.435 and 1.035 volts when

foot is released from accelerator pedal.

• Output voltage is 3.7 volts or higher when accelerator

pedal is fully depressed.

(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

NO : Go to Step 2.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-913

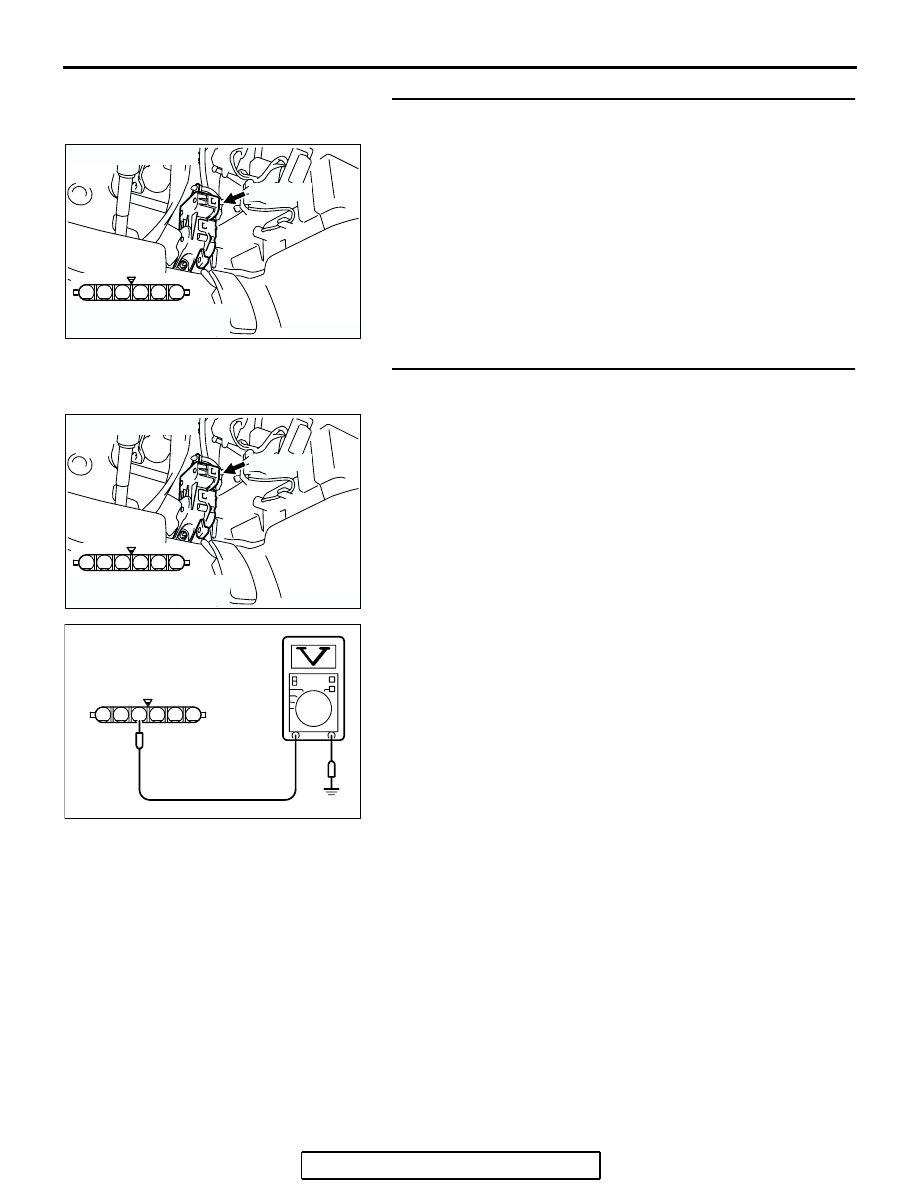

STEP 2. Check harness connector C-24 at accelerator
pedal position sensor for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO : Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 11.

STEP 3. Measure the sensor supply voltage at accelerator
pedal position sensor harness side connector C-24.
(1) Disconnect the connector C-24 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 4 and ground.

• Voltage should be between 4.9 and 5.1 volts.

(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is the measured voltage between 4.9 and 5.1 volts?

YES : Go to Step 7.
NO : Go to Step 4.

AK303906

6 5 4 3 2

C-24 (B)

CONNECTOR: C-24

HARNESS CONNECTOR:
COMPONENT SIDE

AK303906

6 5 4 3 2

C-24 (B)

CONNECTOR: C-24

HARNESS CONNECTOR:
COMPONENT SIDE

6 5 4 3 2

AK203019

C-24 HARNESS
CONNECTOR:
COMPONENT SIDE
