MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-838

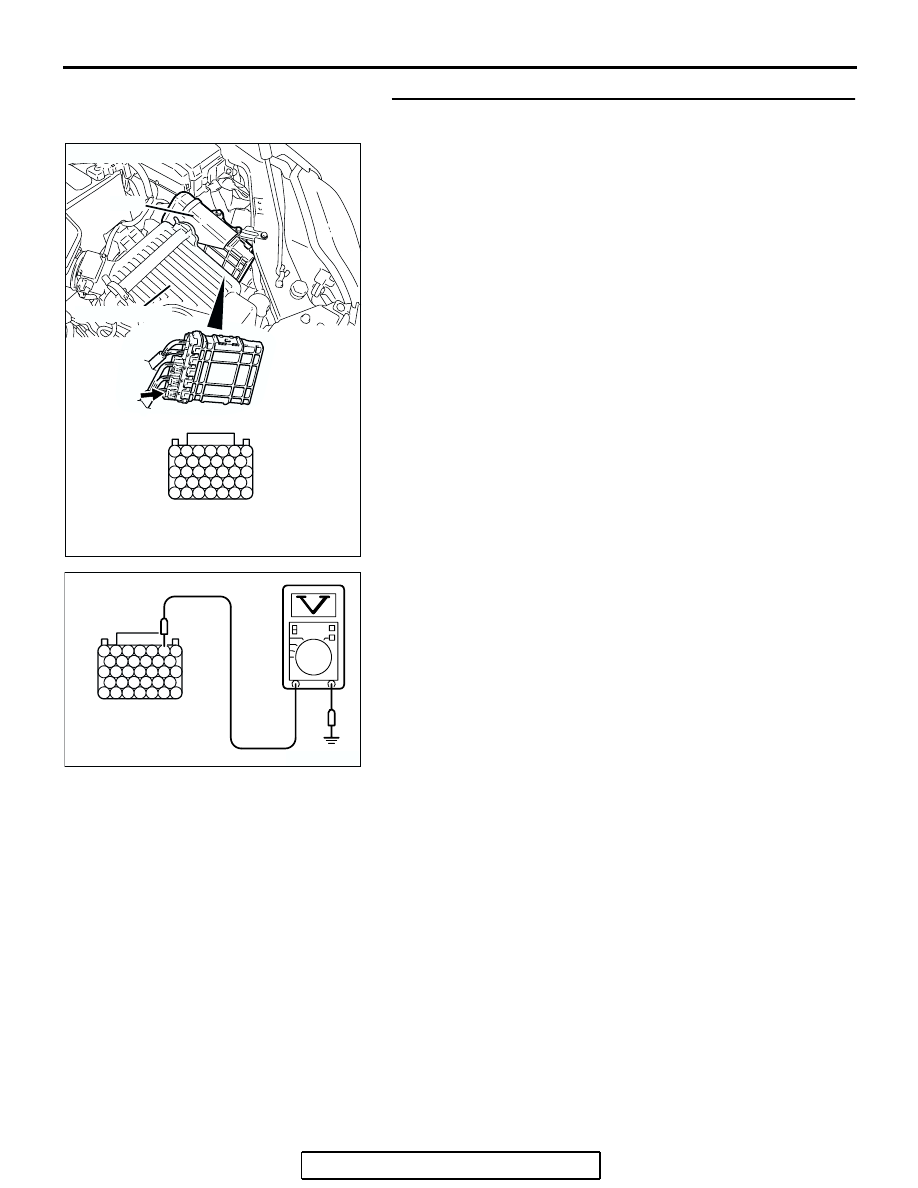

STEP 6. Measure the power supply voltage at PCM harness
side connector B-23.
(1) Disconnect the connector B-23 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 123 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 7.
NO :  Repair harness wire between throttle actuator control

motor relay connector B-14X (terminal No. 3) and
PCM connector B-23 (terminal No. 123) because of
open circuit or short circuit to ground. Then go to Step
14.

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303889AB

B-23 HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-839

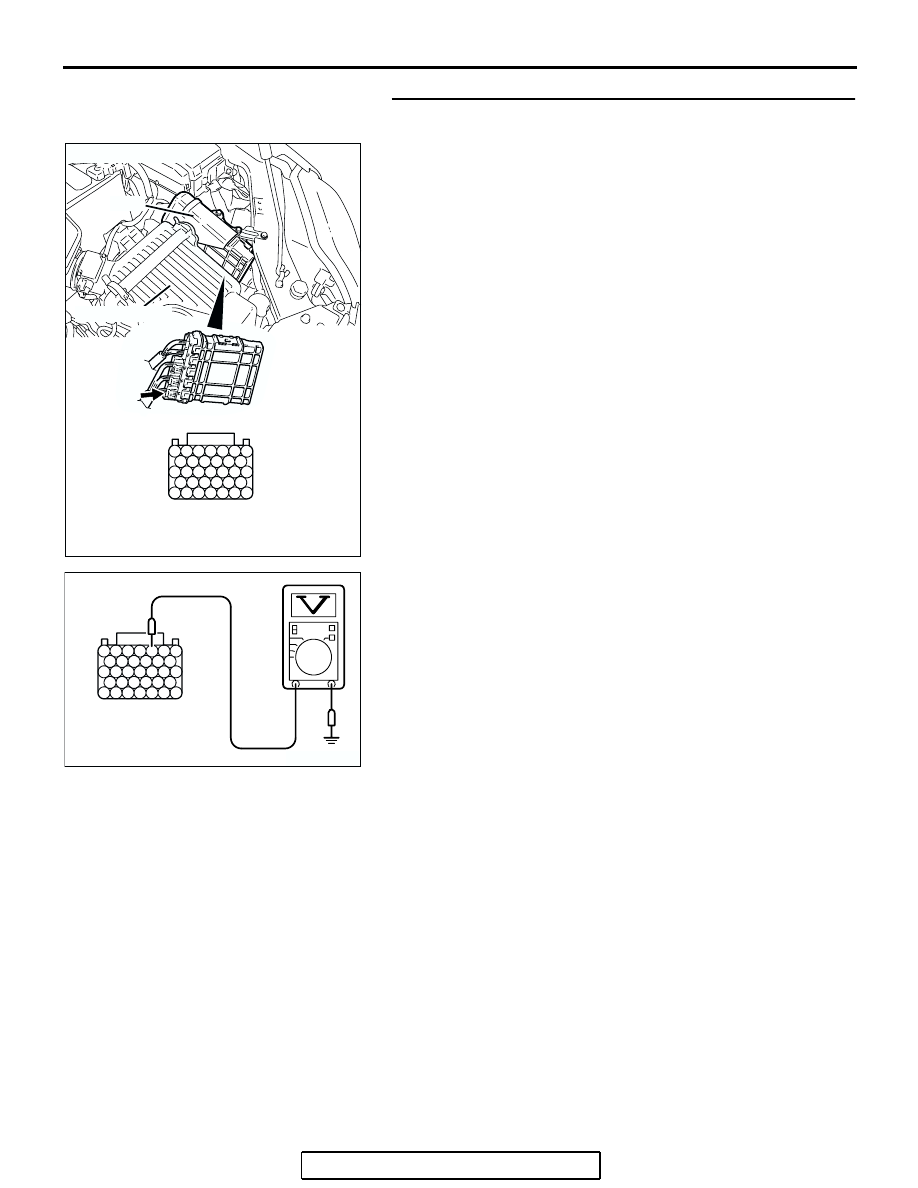

STEP 7. Measure the power supply voltage at PCM harness
side connector B-23.
(1) Disconnect the connector B-23 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 122 and ground.

• Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is battery positive voltage (approximately 12 volts)

present?
YES :
Go to Step 10.
NO :  Go to Step 8.

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303890AB

B-23 HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-840

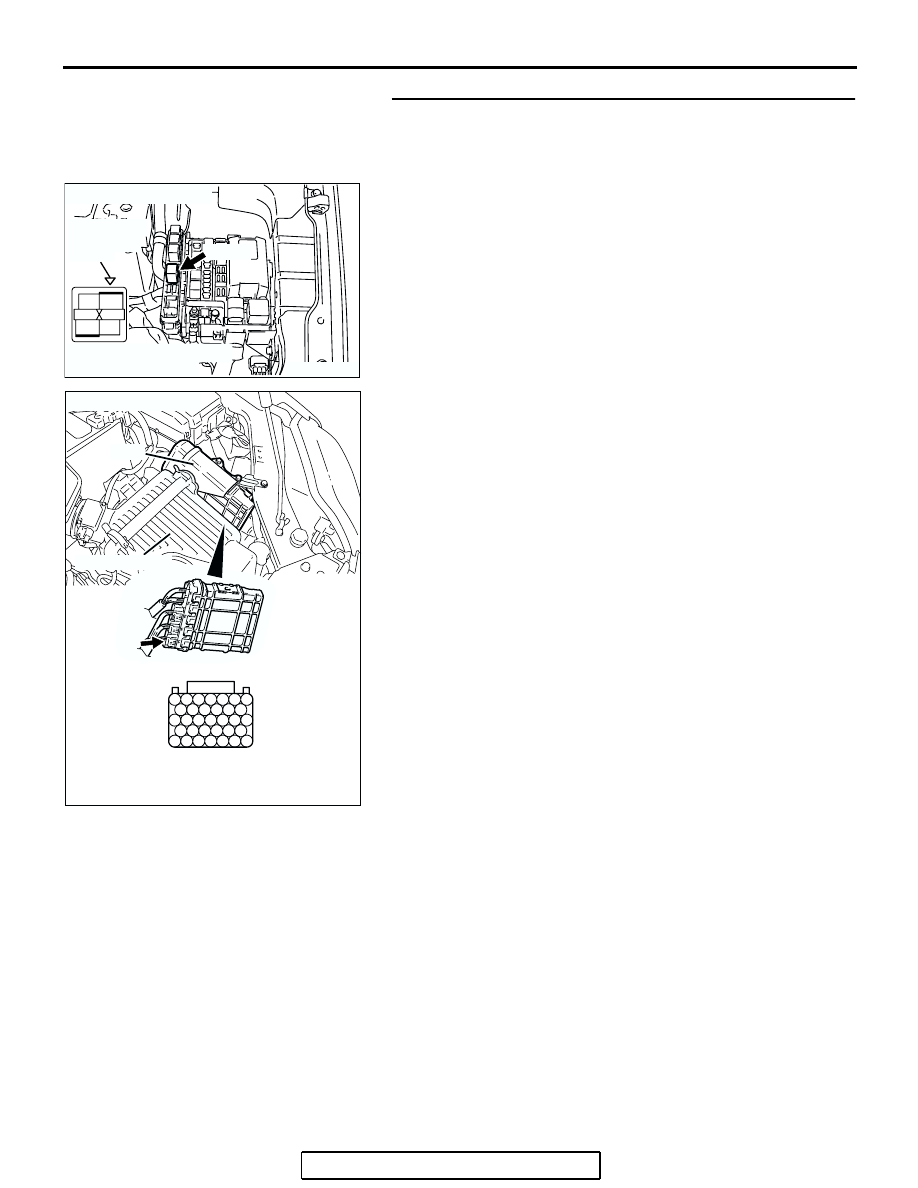

STEP 8. Check for open circuit and short circuit to ground
between throttle actuator control motor relay connector
B-14X (terminal No. 4) and PCM connector B-23 (terminal
No. 122).
Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repair it. Then go to Step 14.

AK303887

2

1

3

4

AB

CONNECTOR: B-14X

B-14X

RELAY BOX
TRIANGLE
MARK

HARNESS CONNECTOR:
COMPONENT SIDE

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-841

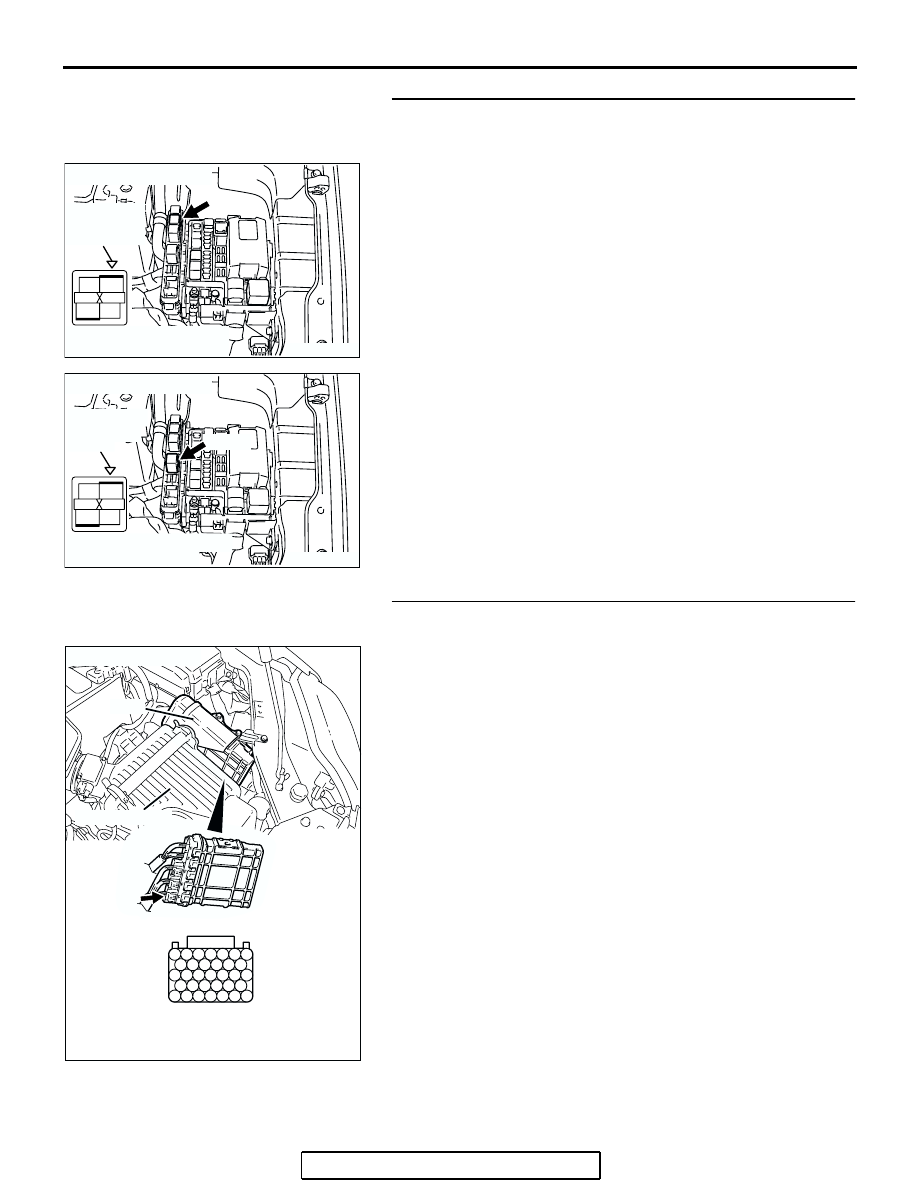

STEP 9. Check for harness damage between MFI relay
connector B-17X (terminal No. 4) and throttle actuator
control motor relay connector B-14X (terminal No. 2).
Q: Is the harness wire in good condition?

YES : Repair harness wire between throttle actuator control

motor relay connector B-14X (terminal No. 3) and
PCM connector B-23 (terminal No. 123) because of
harness damage. Then go to Step 14.

NO :  Repair it. Then go to Step 14.

STEP 10. Check harness connector B-23 at PCM for
damage.
Q:  Is the harness connector in good condition?

YES : Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 14.

AK303806

2

1

3

4

AB

CONNECTOR: B-17X

B-17X

RELAY BOX
TRIANGLE
MARK

HARNESS CONNECTOR:
COMPONENT SIDE

AK303887

2

1

3

4

AB

CONNECTOR: B-14X

B-14X

RELAY BOX
TRIANGLE
MARK

HARNESS CONNECTOR:
COMPONENT SIDE

127 126 125 124 123 122 121

133 132 131 130 129 128

140 139 138 137 136 135 134

146 145 144 143 142 141

153 152 151 150 149 148 147

AK303058

HARNESS CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-23

B-23

PCM

AB

AIR CLEANER
