MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-742

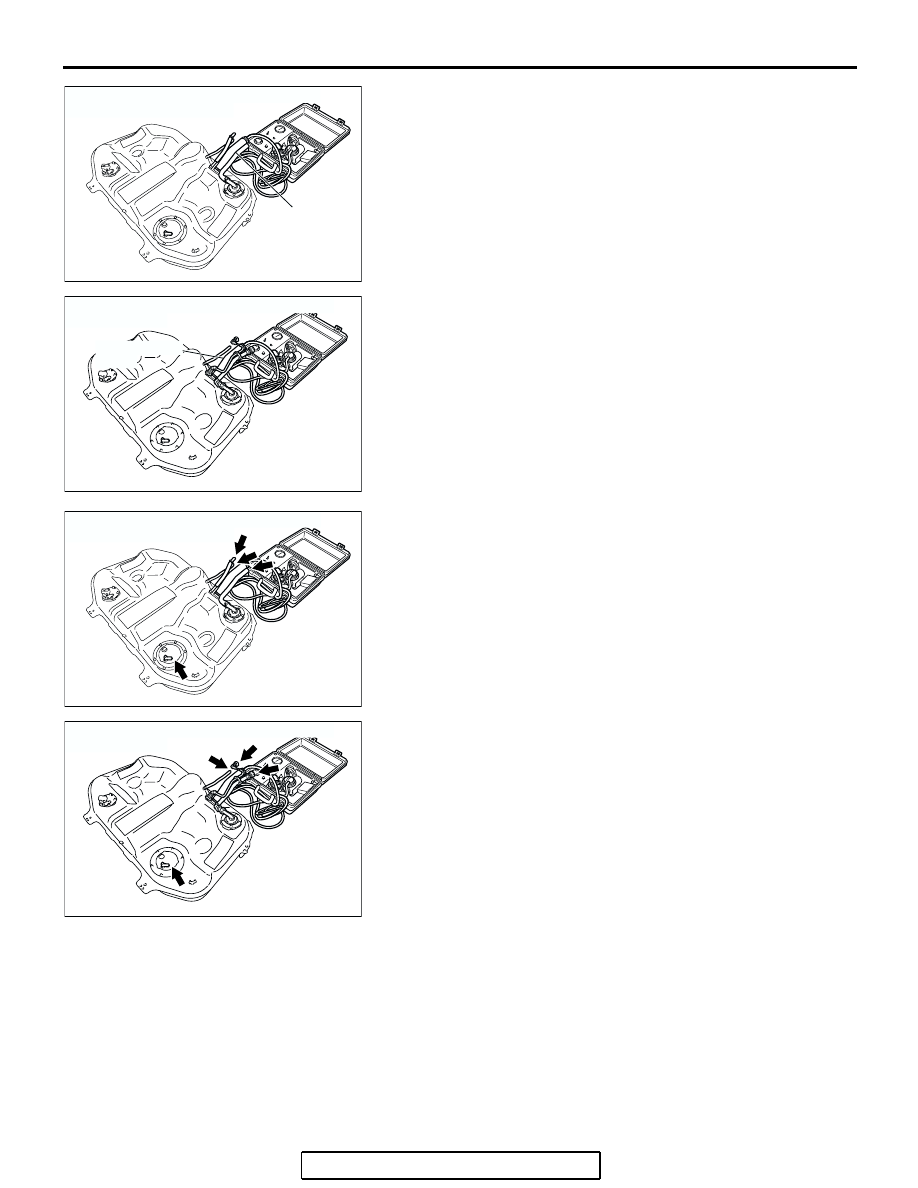

STEP 10. Check for leaks in evaporative emission hoses L
and M.

Use a hand vacuum pump to test each hose L and M.

Q: Do the hoses hold vacuum?

YES :  Go to Step 11.
NO :  Replace any damaged hose. Then go to Step 19.

STEP 11. Check for leaks in evaporative emission hose N.
(1) Remove the fuel tank assembly (Refer to GROUP 13C,

Fuel Tank

P.13C-10

).

(2) Use the hand vacuum pump to check the hose N.
Q: Is the hose hold vacuum?

YES :  Go to Step 12.
NO :  Replace the hose and reinstall the fuel tank assembly

(Refer to GROUP 13C, Fuel Tank

P.13C-10

). Then go

to Step 19.

AC306776

AB

HOSE M

HOSE L

<EXCEPT VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

AC306776

AC307258AB

HOSE M

HOSE L

<VEHICLES FOR CALIFORNIA EMISSION
REGULATION>

AC305683AB

HOSE N

<EXCEPT VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

AC307255AB

HOSE N

<VEHICLES FOR CALIFORNIA EMISSION
REGULATION>

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-743

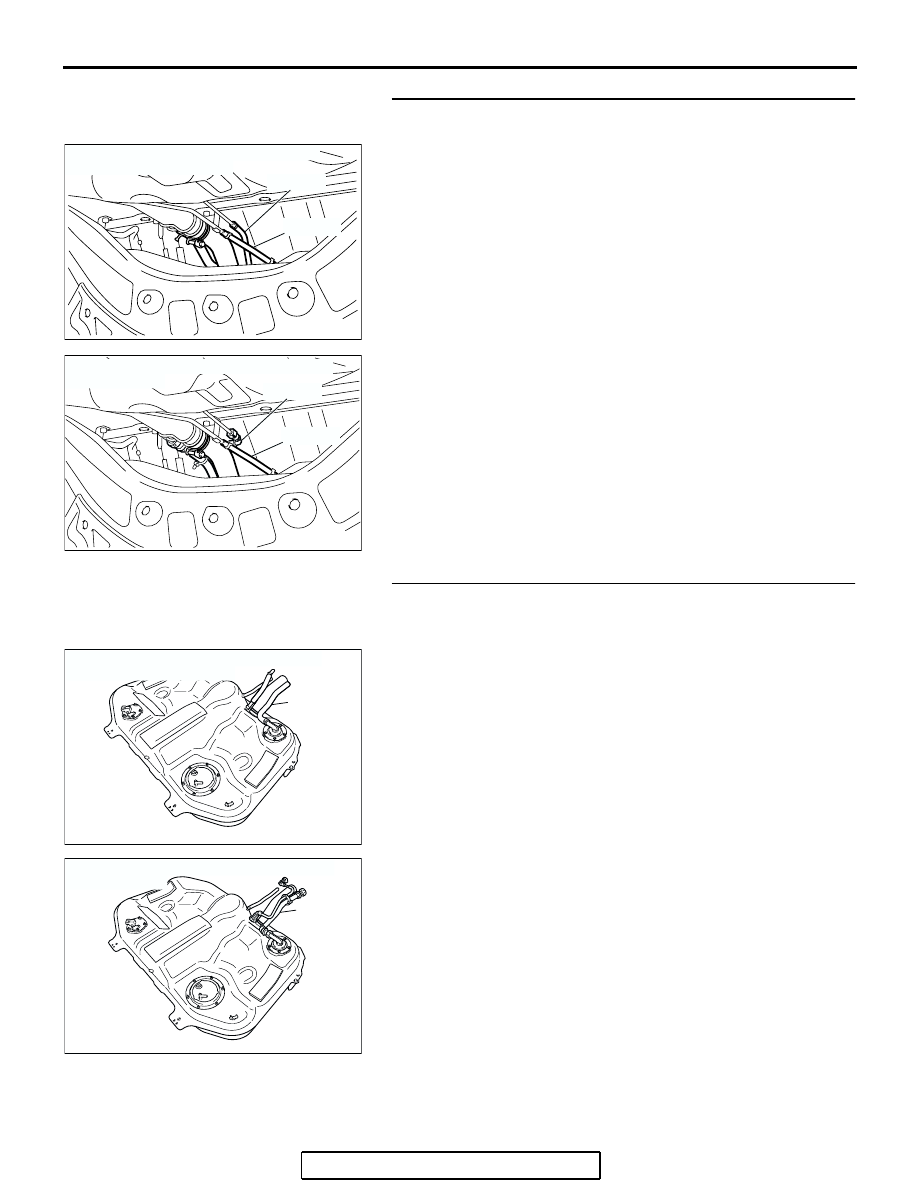

STEP 12. Check for leaks in the fuel tank.
(1) Visually check for cracks or other leaks in the fuel tank.

NOTE: Carefully check the fuel pump module and the fuel
tank differential pressure sensor installation in the fuel tank.

AC305683AD

<EXCEPT VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

AC307255AC

<VEHICLES FOR CALIFORNIA EMISSION
REGULATION>

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-744

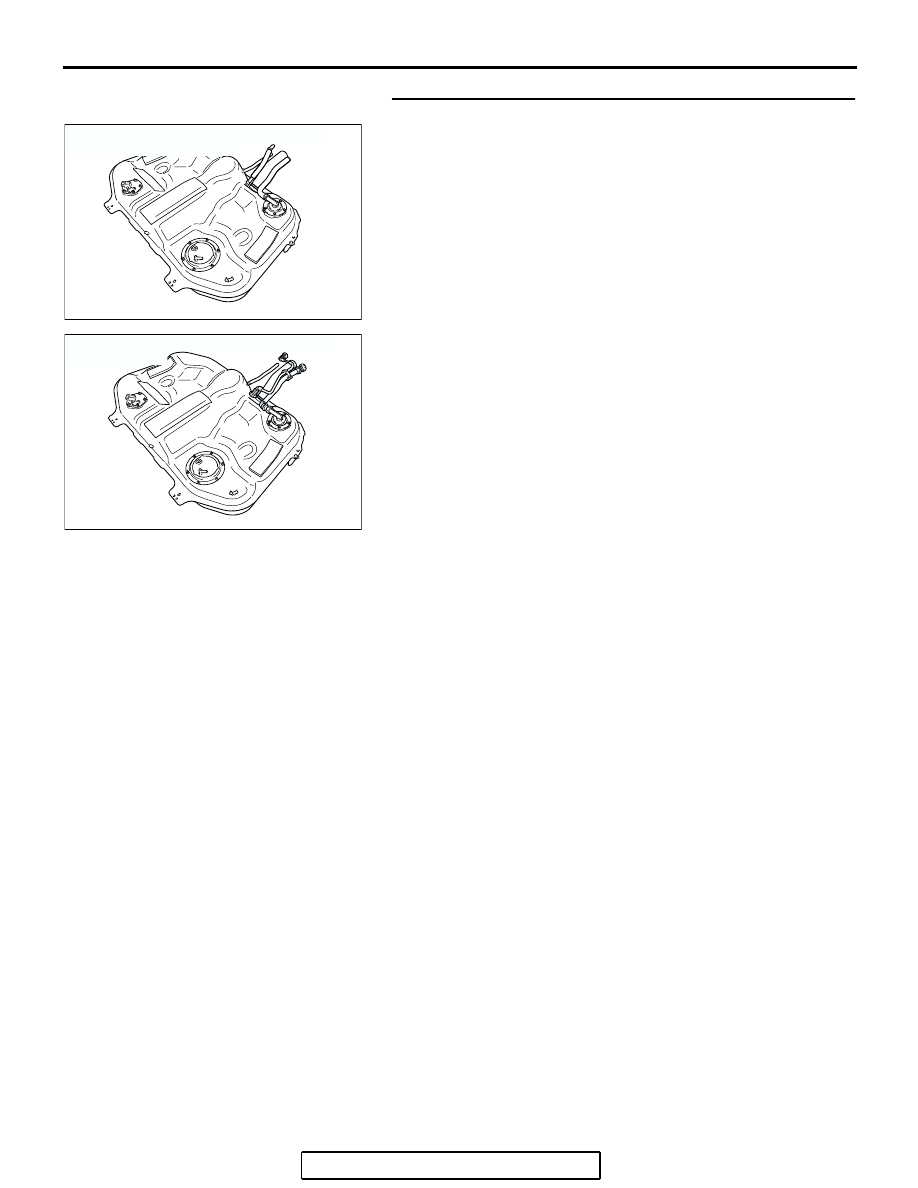

(2) Connect the evaporative emission system pressure pump

(Miller number 6872A) to the fuel filler hose.

(3) Plug the hose and the nipple shown in the illustration.

NOTE: If these items are not securely plugged now, the fuel
could leak in the next step.

(4) Pressurize the fuel tank with the evaporative emission

system pressure pump.

(5) In the pressurized state, check for leaks by applying a

soapy water solution to each section and look for bubbles.

Q: Are any leaks found?

YES <When there is a leak from the attachment points of
the fuel pump module, fuel tank differential pressure
sensor, fuel level sensor (sub) or leveling valve.> :

Reassemble the leaked parts and check again that
there are no leaks. Then reinstall the fuel tank (Refer
to GROUP 13C, Fuel Tank

P.13C-10

). Then go to

Step 19      .

YES <When there is a leak from the fuel tank.> : Replace

the fuel tank (Refer to GROUP 13C, Fuel Tank

P.13C-10

). Go to Step 19.

NO :  When there is no leak, reinstall the fuel tank (Refer to

GROUP 13C, Fuel Tank

P.13C-10

). Then go to Step

18.

AC305684

FUEL FILLER
HOSE

AD

<EXCEPT VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

AC307256AB

<VEHICLES FOR CALIFORNIA EMISSION
REGULATION>

FUEL FILLER
HOSE

AC305684AE

<EXCEPT VEHICLES FOR CALIFORNIA
EMISSION REGULATION>

AC307256AC

<VEHICLES FOR CALIFORNIA EMISSION
REGULATION>

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-745

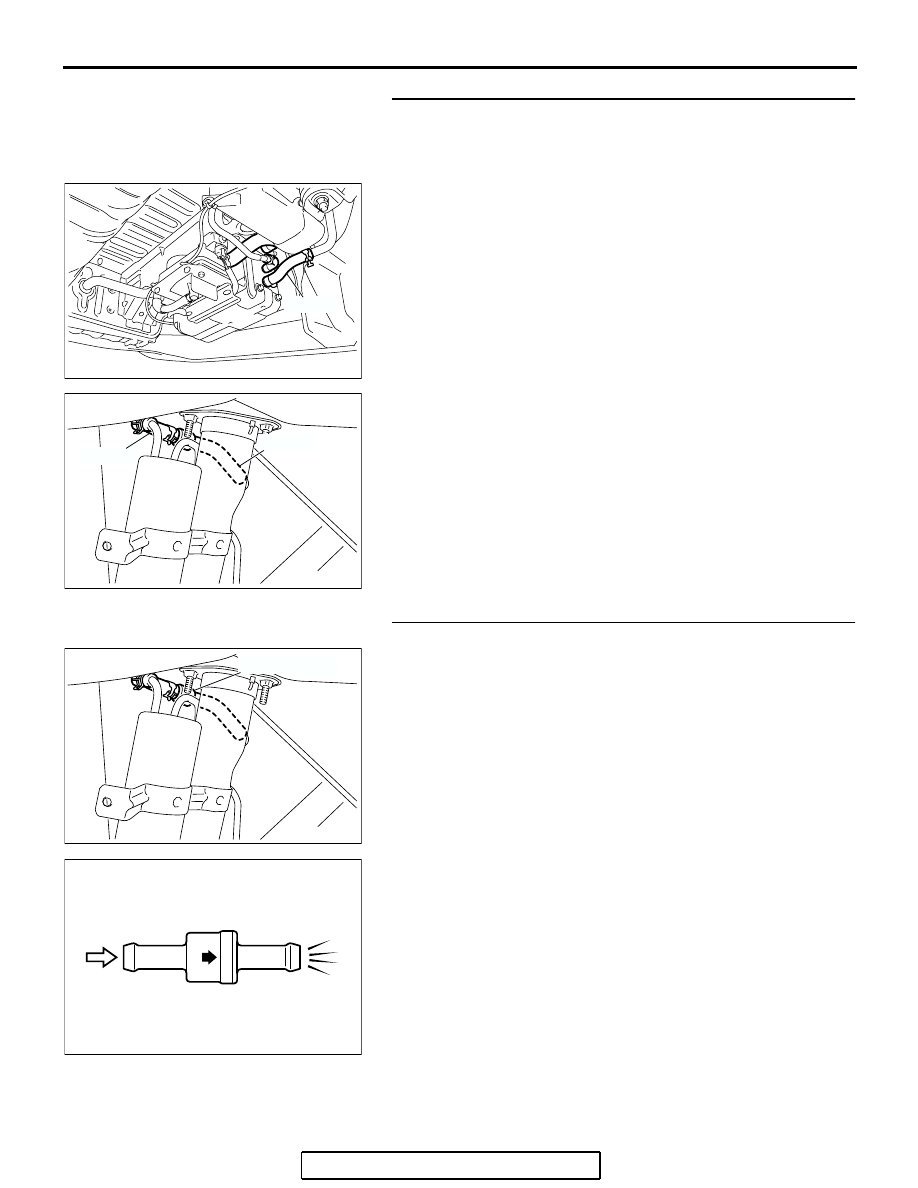

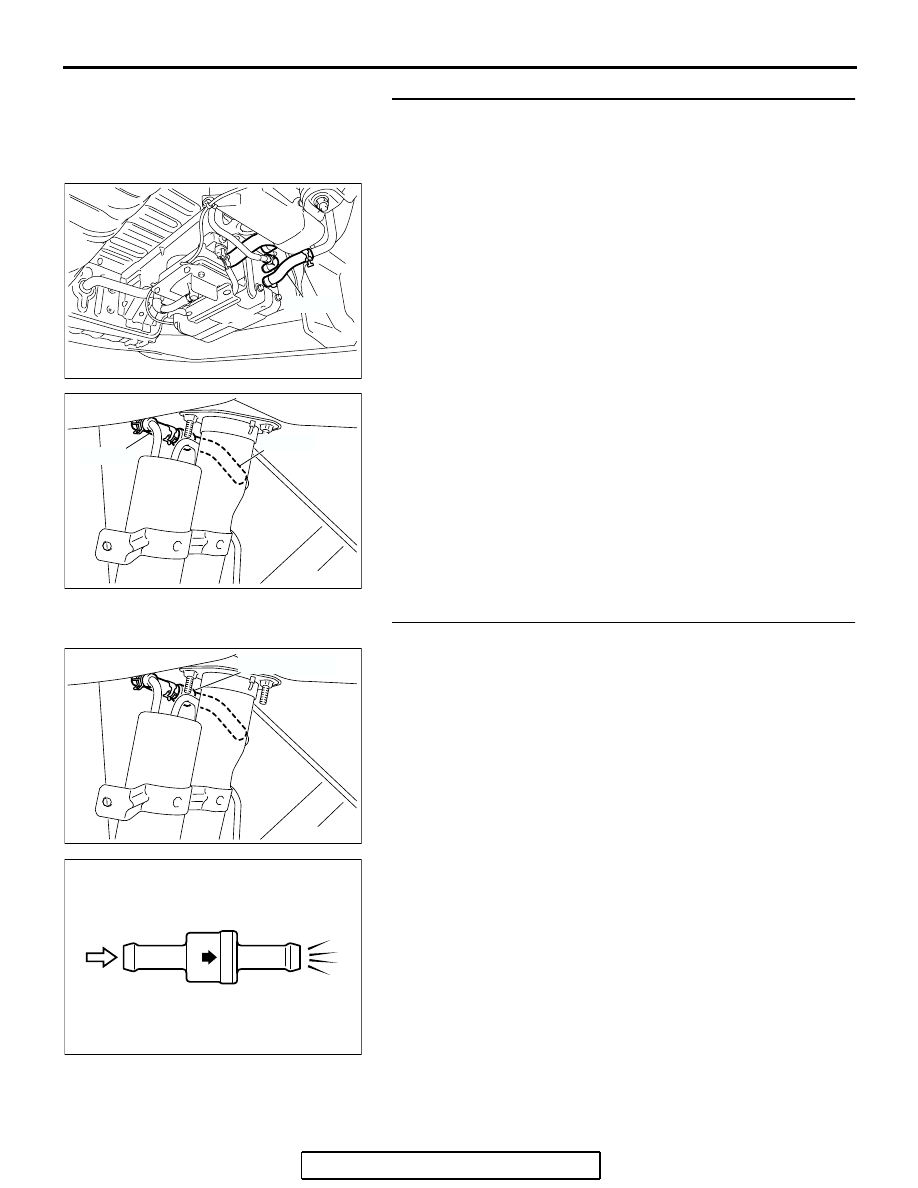

STEP 13. Check for clogging in evaporative emission
system hoses I through K.
(1) Remove the fuel tank filler tube protector (Refer to GROUP

13C, Fuel Tank

P.13C-10

).

(2) Use a hand vacuum pump on each hose from hoses I to K.
Q: Are the hoses in good condition?

YES : Go to Step 14.
NO :  Replace the damaged hose, and the fuel tank filler

tube protector (Refer to GROUP 13C, Fuel Tank

P.13C-10

). Then go to Step 19.

STEP 14. Test check valve.
(1) Check valve is a one-way check valve.

(2) Check valve should allow air to flow in only one direction.
Q: Does check valve allow air to pass in one direction

only?
YES : Go to Step 15.
NO :  Replace check valve, and reinstall the fuel tank filler

tube protector (Refer to GROUP 13C, Fuel Tank

P.13C-10

). Then go to Step 19.

AC306401

HOSE I

AC

AC306800

AB

HOSE J

HOSE K

AC306800

AD

CHECK VALVE

AC306332

AB

CHECK VALVE
