MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-610

STEP 4. Using scan tool MB991958, check actuator test
item 29: Evaporative Emission Ventilation Solenoid.
(1) Turn the ignition switch to the "ON" position.
(2) Set scan tool MB991958 to the actuator test mode for item

29, Evaporative emission ventilation solenoid.

• An operation sound should be heard and vibration

should be felt when the evaporative emission ventilation
solenoid is operated.

(3) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the solenoid operating properly?

YES : Repair or replace the vent hose and air filter. Then go

to Step 5.

NO :  Replace the evaporative emission ventilation

solenoid. Then go to Step 5.

STEP 5. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 1 −

Evaporative Emission System Leak Monitor

P.13A-6

.

(2) Read the diagnostic trouble code.
Q: Is DTC P0441 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

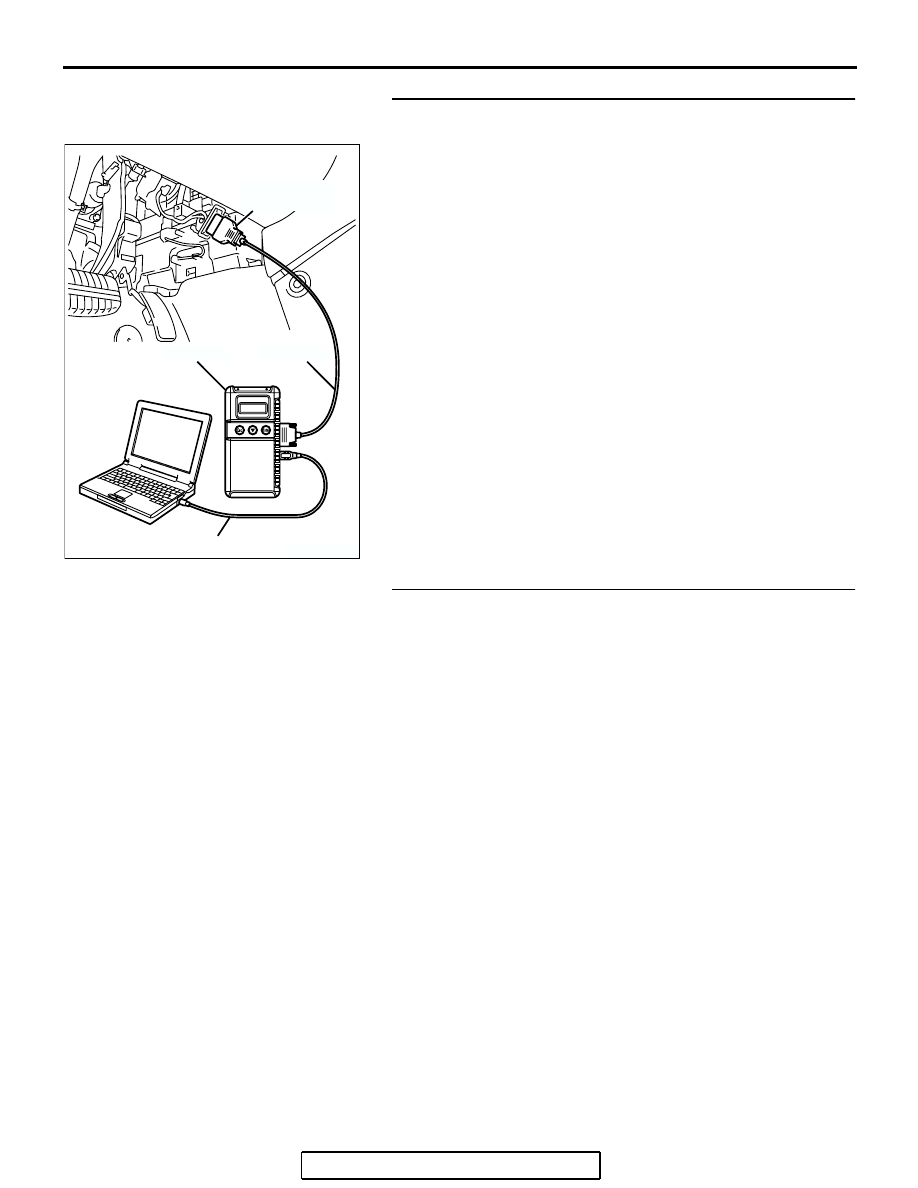

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-611

DTC P0442: Evaporative Emission System Leak Detected (Small Leak)

.

AC306277

A

B

C

D

E

F

G

H

P

Q

R

O

N

M

I

J

K

L

AB

INTAKE MANIFOLD

FUEL TANK

EVAPORATIVE EMISSION
VENTILATION SOLENOID

CHECK VALVE

EVAPORATIVE EMISSION
PURGE SOLENOID

EVAPORATIVE
EMISSION CANISTER

ONBOARD REFUELING
VAPOR RECOVERY(ORVR)
VENT VALVE MODULE

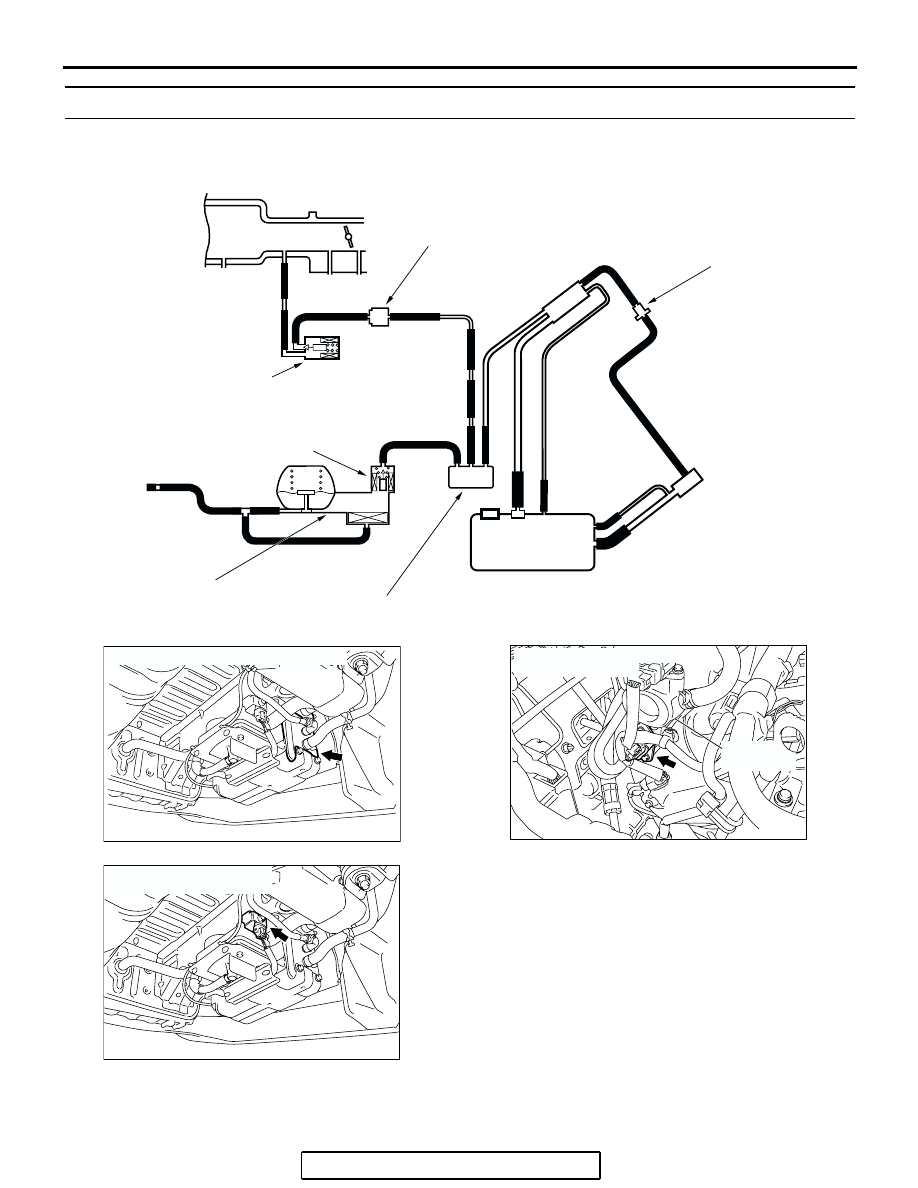

SYSTEM DIAGRAM

CHAMBER

AC306400

AB

EVAPORATIVE EMISSION CANISTER

AC305066AC

EVAPORATIVE EMISSION
PURGE SOLENOID

INTAKE
MANIFOLD

AC305053AC

EVAPORATIVE EMISSION
VENTILATION SOLENOID

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-612

TECHNICAL DESCRIPTION

• The PCM monitors the Evaporative Emission

(EVAP) System pressure.

• The PCM controls the evaporative emission ven-

tilation solenoid. It closes the evaporative emis-
sion ventilation solenoid to seal the evaporative
emission canister side of the system.

• The evaporative emission purge solenoid is

opened to allow manifold vacuum to create low
pressure (vacuum) in the EVAP system.

• When the EVAP system develops a vacuum of 2

kPa (0.29 psi), the evaporative emission purge
solenoid is closed and the fuel system vacuum is
maintained at 2 kPa. (0.29 psi).

• The PCM determines whether there is a leak in

the EVAP system by monitoring the vacuum
inside the fuel tank.

• The test is stopped when fuel vapor pressure

exceeds predetermined limits.

.

DESCRIPTIONS OF MONITOR METHODS

• Measure reverting pressure after depressurizing

by intake manifold negative pressure and detect
malfunction if reverting pressure rises largely.

.

MONITOR EXECUTION

• Once per driving cycle.

.

MONITOR EXECUTION CONDITIONS
(OTHER MONITOR AND SENSOR)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Evaporative emission purge solenoid monitor

• Evaporative emission purge system monitor

• Fuel tank differential pressure sensor monitor

• Evaporative emission ventilation solenoid monitor

• Fuel level sensor monitor

• Fuel temperature sensor monitor

 Sensor (The sensors below are determined to be

normal)

• Mass airflow sensor

• Barometric pressure sensor

• Intake air temperature sensor

• Engine coolant temperature sensor

.

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-613

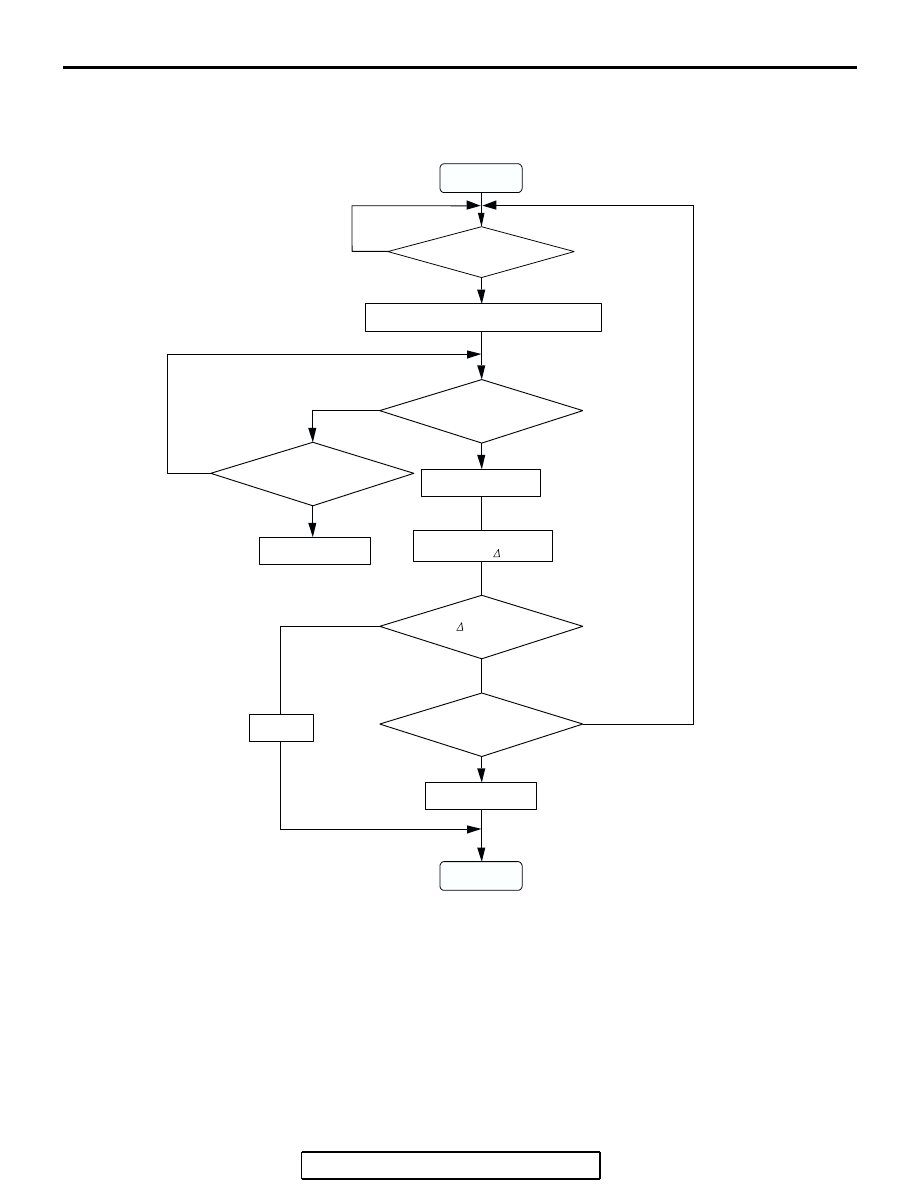

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Remaining fuel amount is 15

− 40 percent of capacity

(fuel level sensor output signal voltage is 1.4

− 2.4

volts).

Check Conditions A: At Start up

• Intake air temperature is 36°C (97°F) or less

when the engine is started.

• The engine coolant temperature is 36 °C (97 °F)

or less when the engine is started.

AC306649

0.04in, 0.02in GROSS LEAK MONITOR

START

YES

YES

YES

YES

YES

NO

NO

NO

NO

NO

MONITORING
CONDITIONS?

DEPRESSURIZE FUEL TANK PRESSURE

GROSS LEAK

MONITORING CONDITIONS

SHUT PURGE LINE

MEASURE REVERTING
PRESSURE :    PFT

PFT > PT

SPECIFIED TIMES

MONITORED

MALFUNCTION

END

SPECIFIED TIMES

HAVE PASSED

MALFUNCTION

(GROSS LEAK)

GOOD
