MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-266

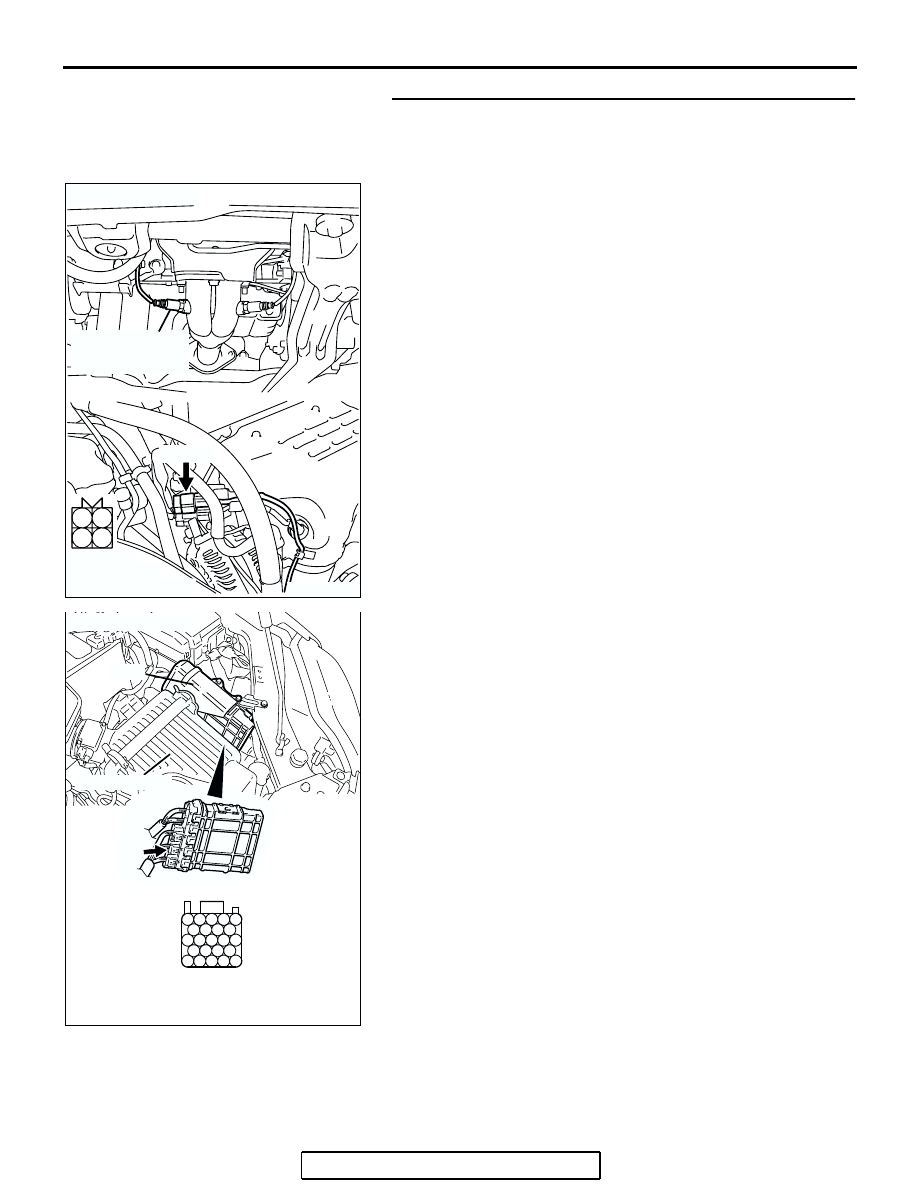

STEP 13. Check for short circuit to ground and harness
damage between cylinder 1, 4 heated oxygen sensor (rear)
connector B-38 (terminal No. 4) and PCM connector B-22
(terminal No. 97).
Q: Is the harness wire in good condition?

YES : Go to Step 14.
NO :  Repair it. Then go to Step 15.

AK303826

1

2

3

4

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-38

B-38 (B)

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (REAR)

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-267

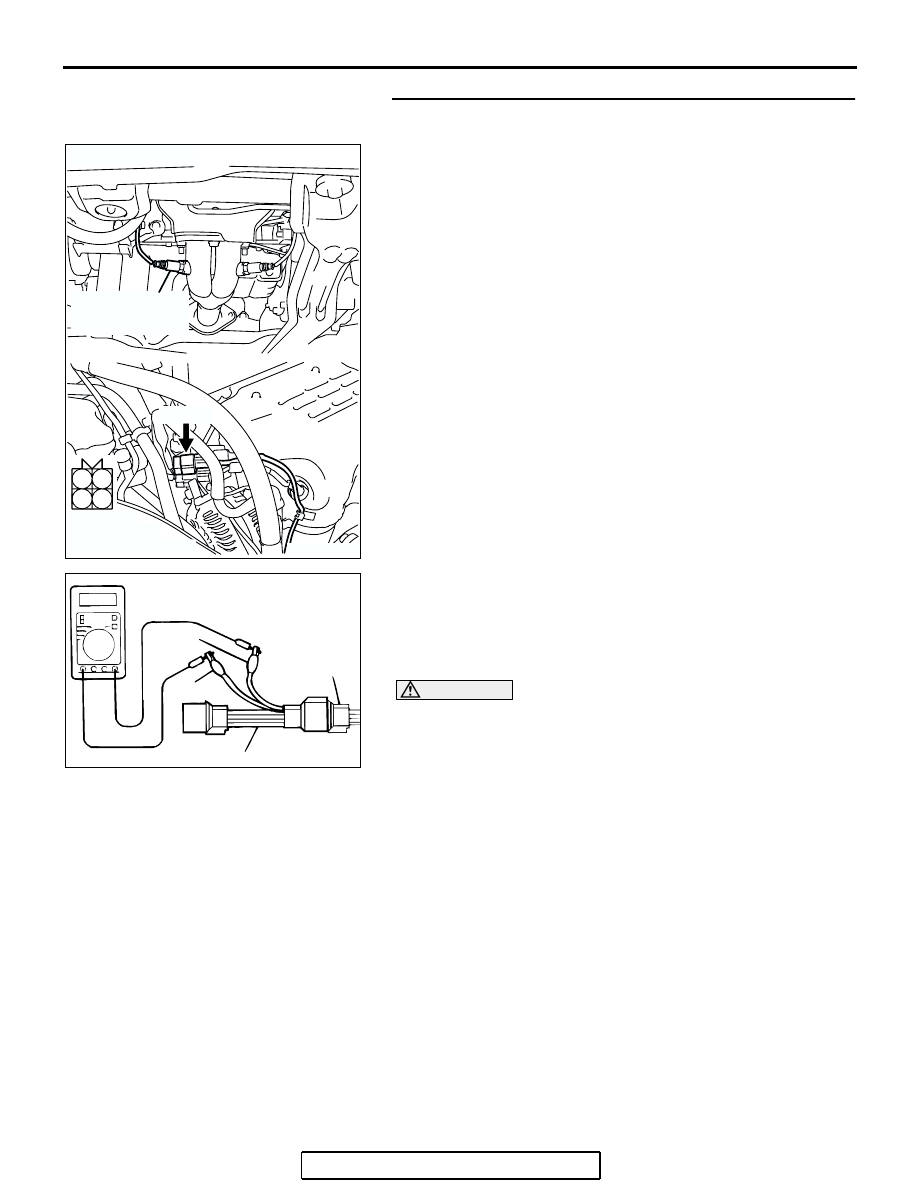

STEP 14. Check the cylinder 1, 4 heated oxygen sensor
(rear).
(1) Disconnect the cylinder 1, 4 heated oxygen sensor (rear)

connector B-38 and connect test harness special tool
MD998464 to the connector on the cylinder 1, 4 heated
oxygen sensor (rear) side.

(2) Warm up the engine until engine coolant temperature

reaches 80

°C (176°F) or higher.

(3) Perform a racing for 5 minutes or more with the engine

speed of 4,500 r/min.

(4) Connect a digital voltage meter between terminal No. 2

(black clip) and terminal No. 4 (white clip).

(5) While repeatedly revving the engine, measure the cylinder

1, 4 heated oxygen sensor (rear) output voltage.

Standard value: 0.6

 1.0 volt

CAUTION

• Be very careful when connecting the jumper wire;

incorrect connection can damage the heated oxygen
sensor.

• Be careful the heater is broken when voltage of beyond

12 volts is applied to the heated oxygen sensor heater.
NOTE: If the sufficiently high temperature [of approximate
400

°

C (752

°

F) or more] is not reached although the heated

oxygen sensor is normal, the output voltage would be possi-
bly low although the rich air/fuel ratio. Therefore, if the out-
put voltage is low, use a jumper wire to connect the terminal
No. 1 (red clip) and the terminal No. 3 (blue clip) of the
heated oxygen sensor with the positive terminal and the
negative terminal of 12 volts power supply respectively,
then check again.

Q: Is the measured voltage between 0.6 and 1.0 volt?

YES : Replace the PCM. Then go to Step 15.
NO :  Replace the cylinder 1, 4 heated oxygen sensor

(rear). Then go to Step 15.

AK303826

1

2

3

4

AB

HARNESS
CONNECTOR:
COMPONENT SIDE

CONNECTOR: B-38

B-38 (B)

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (REAR)

AKX01624

HEATED
OXYGEN
SENSOR
COMPONENT
SIDE
CONNECTOR

MD998464

WHITE

BLACK

AL

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-268

STEP 15. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-6

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0136 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

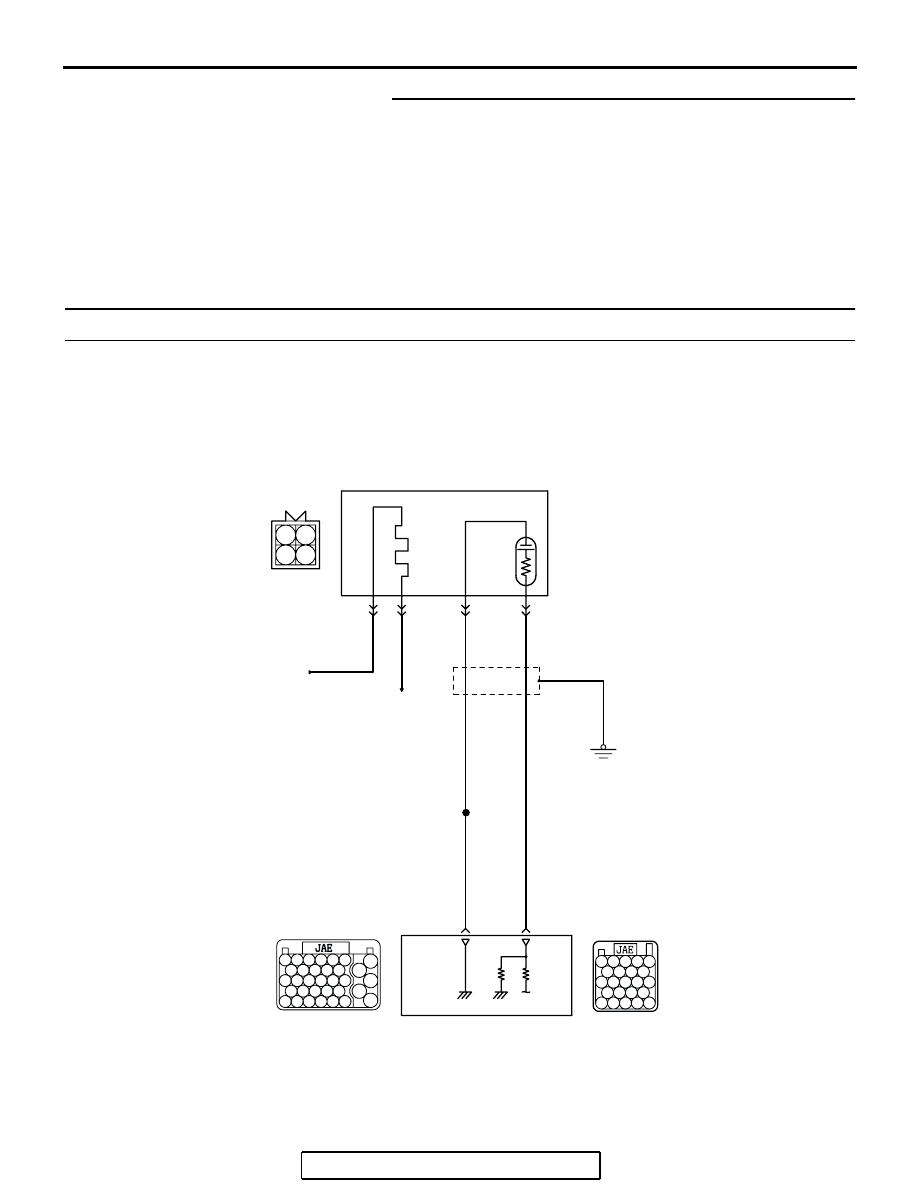

DTC P0137: Cylinder 1, 4 Heated Oxygen Sensor Circuit Low Voltage (sensor 2)

52

51

53 54 55 56

57

58 59 60 61 62

63

64 65 66 67 68 69

70

71 72 73 74 75

76

77 78 79 80 81 82

83

100

99

92

91

93 94 95

96 97 98

101 102 103 104

105 106 107 108

109 110 111 112 113

AK303824

1

2

3

4

YELLO

W

BLUE

BLA

CK

BLA

CK

TO PCM

FROM MFI RELAY

69

97

2

4

3

1

B-22

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (REAR)

POWERTRAIN CONTROL
MODULE (PCM)

B-38

MU802605

Cylinder 1, 4 Heated Oxygen Sensor (rear) Circuit

B-21

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-269

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the PCM (ter-
minal No. 97) from the output terminal (terminal
No. 4) of the cylinder 1, 4 heated oxygen sensor
(rear).

• Terminal No. 2 of the cylinder 1, 4 heated oxygen

sensor (rear) is grounded with PCM (terminal No.
69).

.

TECHNICAL DESCRIPTION

• The output signal of the cylinder 1, 4 heated oxy-

gen sensor (front) is compensated by the output
signal of the cylinder 1, 4 heated oxygen sensor
(rear).

• The PCM checks for an open circuit in the cylin-

der 1, 4 heated oxygen sensor (rear) output line.

.

DESCRIPTIONS OF MONITOR METHODS

Cylinder 1, 4 heated oxygen sensor (rear) output

voltage stays low when air/fuel ratio is forced to
be rich. The above procedure is repeated when
oxygen sensor is inactive.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Heated oxygen sensor heater (front) monitor

• Heated oxygen sensor heater (rear) monitor

• Air/fuel ratio feedback monitor

Sensor (The sensor below is determined to be

normal)

• Mass airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

.

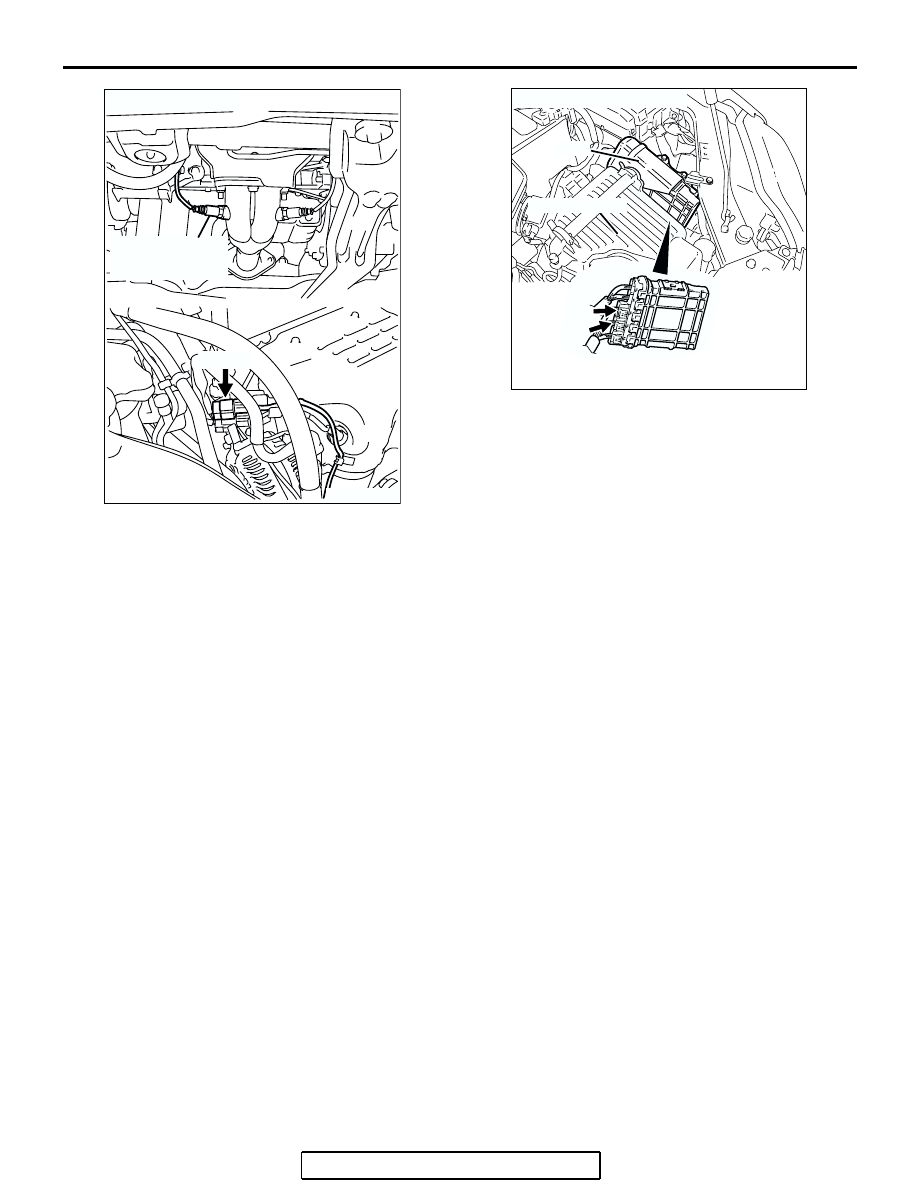

AK303825AB

CONNECTOR: B-38

CYLINDER 1, 4
HEATED OXYGEN
SENSOR (REAR)

B-38 (B)

AK303013

CONNECTORS: B-21, B-22

PCM

AB

AIR CLEANER

B-22 (B)

B-21 (B)
