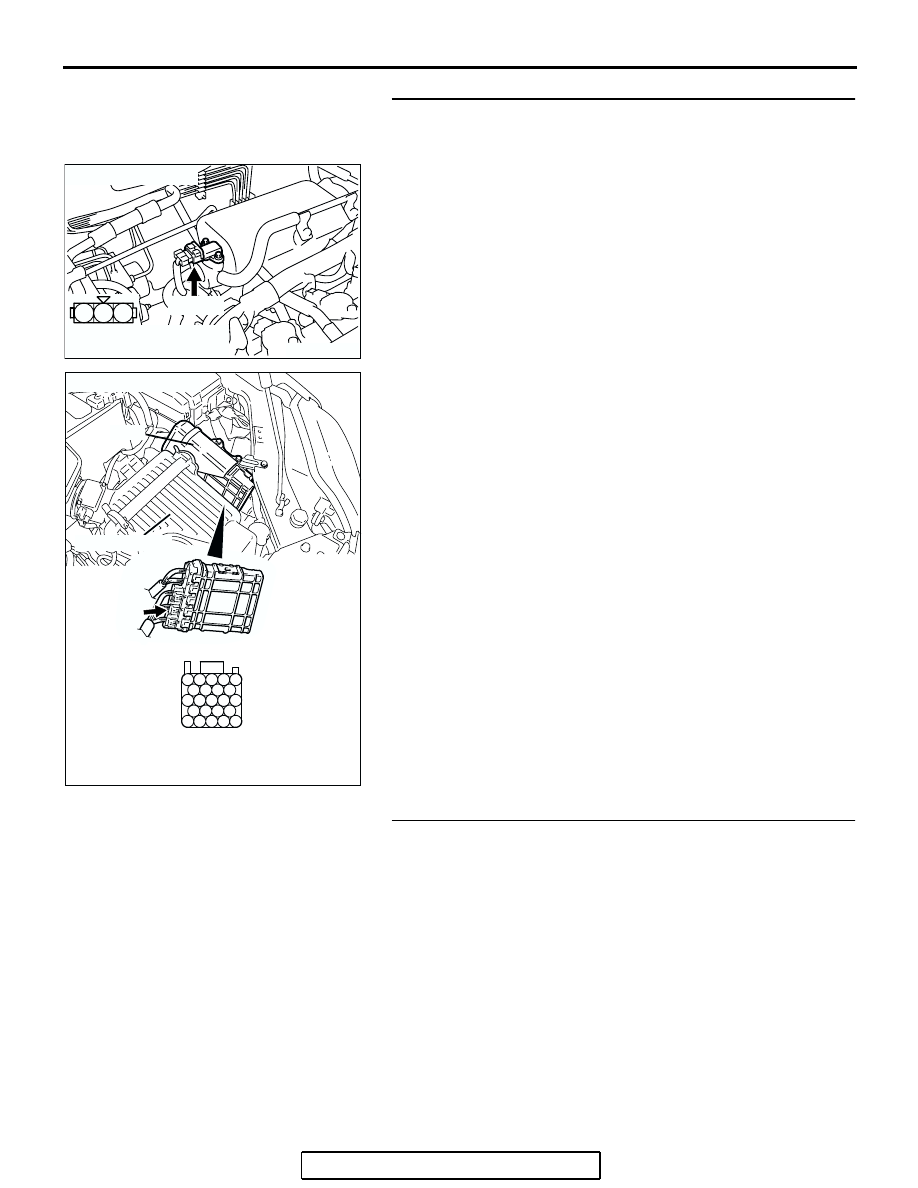

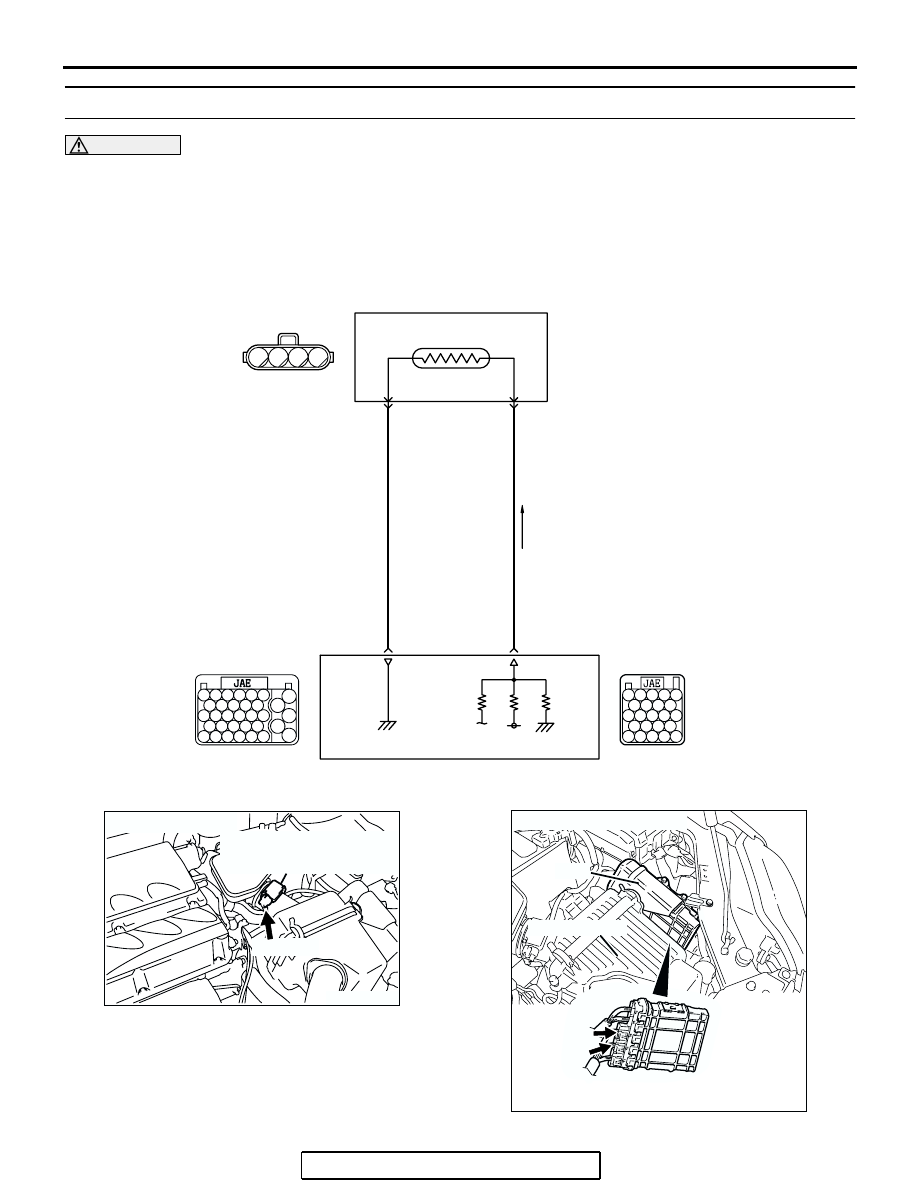

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE> 13A-106 STEP 6. Check harness connector B-02 at the manifold YES : Replace the manifold absolute pressure sensor. Then go to Step 7. NO : Repair or replace it. Refer to GROUP 00E, Harness . Then go to Step 7. STEP 7. Test the OBD-II drive cycle. Diagnostic Function − OBD-II Drive Cycle − Procedure 6 − (2) Check the diagnostic trouble code (DTC). YES : Retry the troubleshooting. AK303809 1 2 3 AB CONNECTOR: B-02 B-02 (B) HARNESS CONNECTOR: AK303016 104 96 94 95 93 92 91 99 98 97 103 102 101 100 108 107 106 105 113 112 111 110 109 CONNECTOR: B-22 B-22 (B) PCM AB HARNESS CONNECTOR: AIR CLEANER |
