Mitsubishi Galant 9G. Manual - part 652





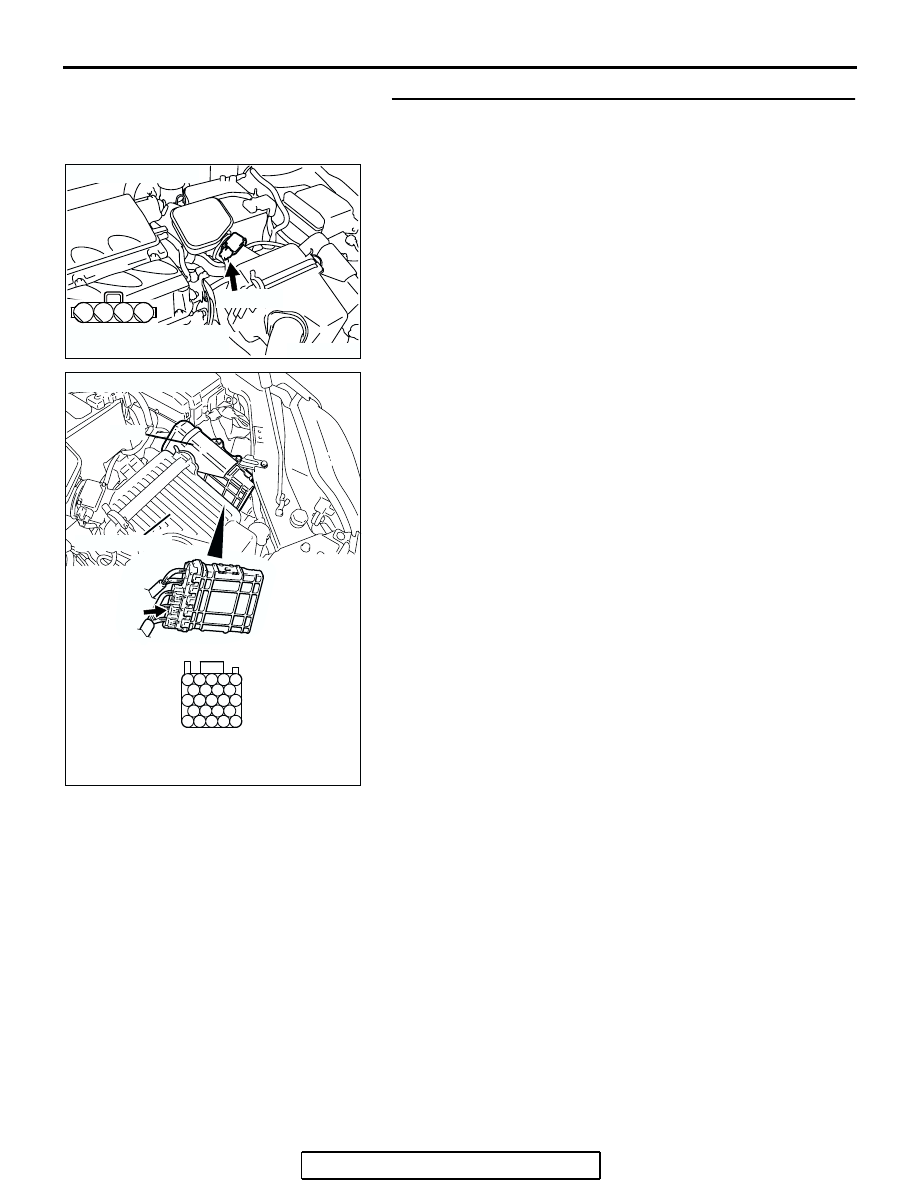

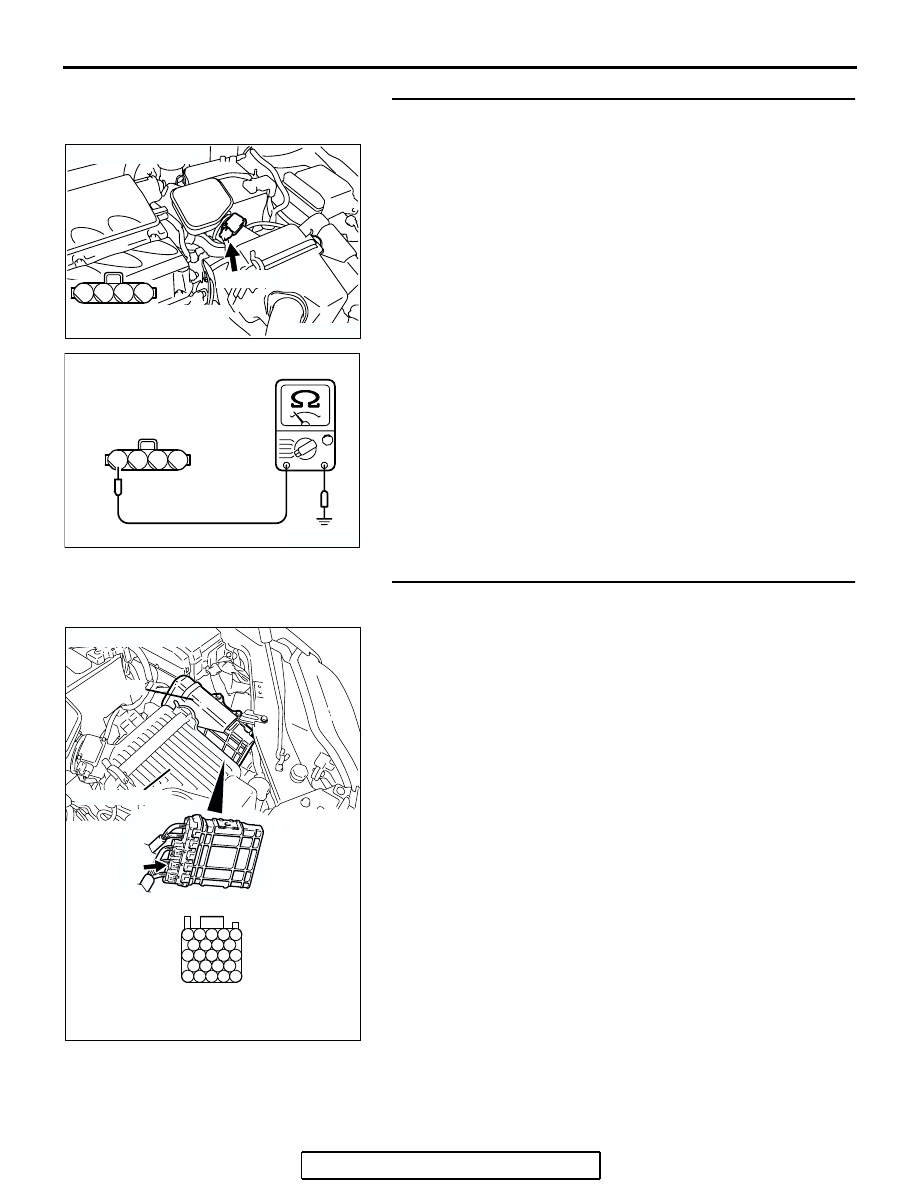

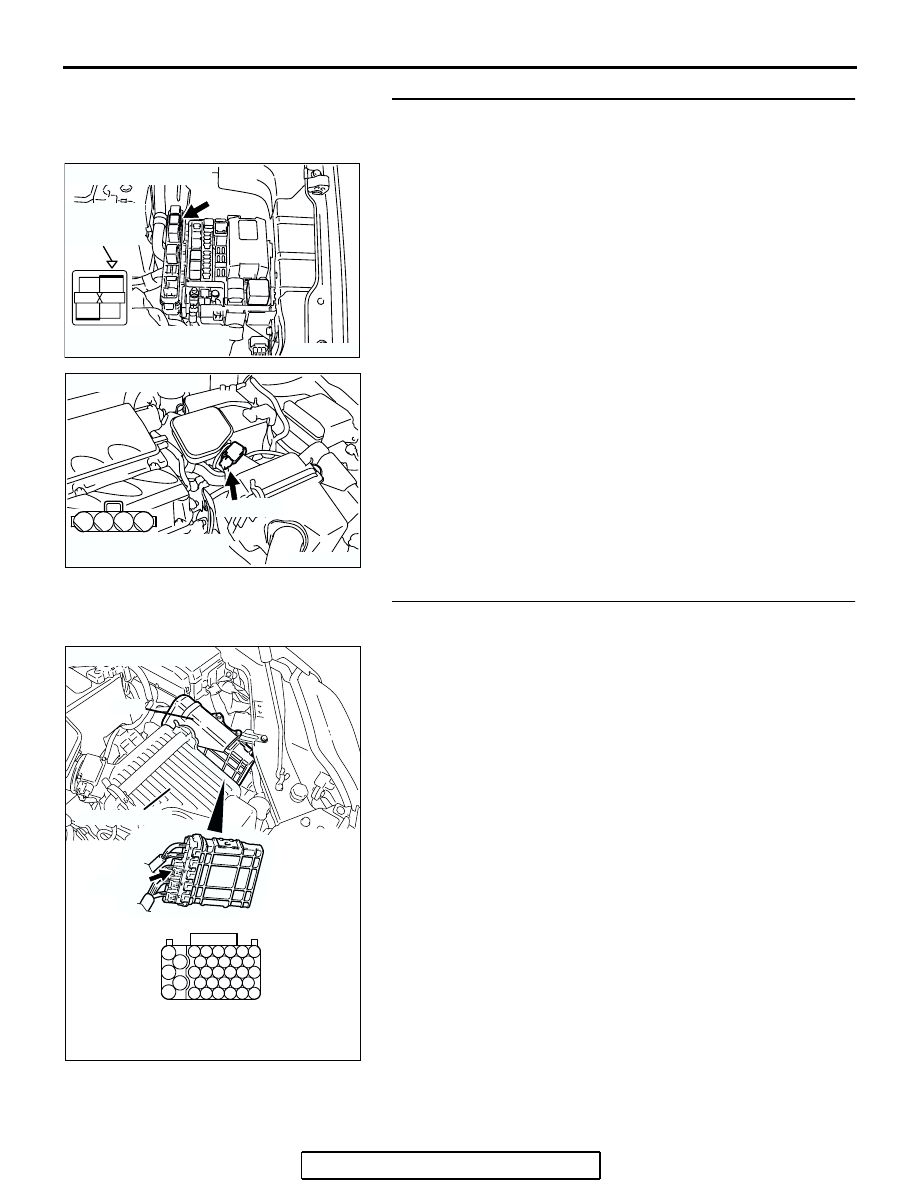

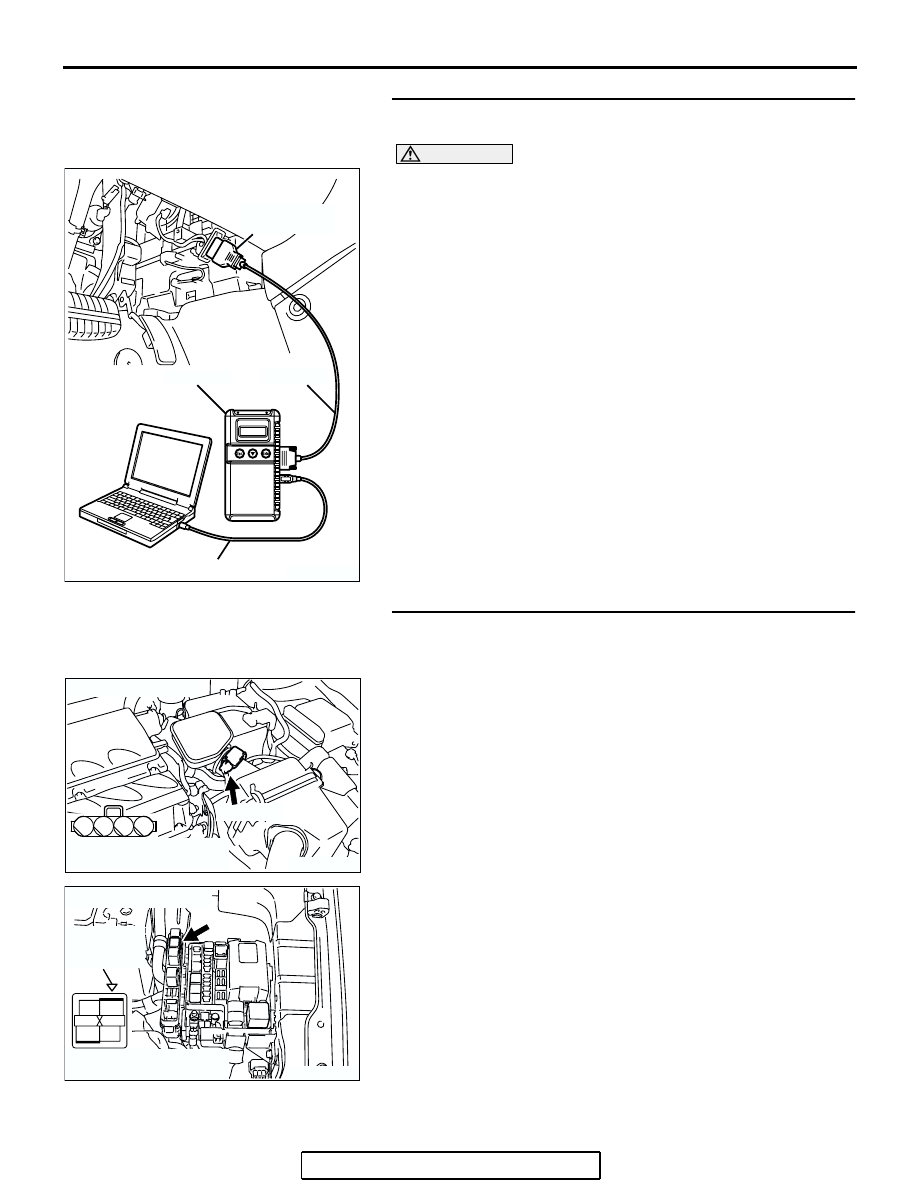

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-50

STEP 1. Using scan tool MB991958, check data list item 12:
Mass Airflow Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991958 to the data reading mode for item

12, Mass Airflow Sensor.

(4) Warm up the engine to normal operating temperature: 80

°C

to 95

°C (176°F to 203°F).

• The standard value during idling should be between 2.0

and 6.0 g/sec.

• When the engine is revved, the mass airflow rate should

increase according to the increase in engine speed.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Go to Step 2.

STEP 2. Check harness connector B-10 at mass airflow
sensor and harness connector B-17X at MFI relay for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

AK303805

2

1

3

4

AB

CONNECTOR: B-10

B-10 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK303806

2

1

3

4

AB

CONNECTOR: B-17X

B-17X

RELAY BOX
TRIANGLE
MARK

HARNESS CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-51

STEP 3. Check for harness damage between MFI relay
connector B-17X (terminal No. 4) and mass airflow sensor
connector B-10 (terminal No. 2).
Q: Is the harness wire in good condition?

YES : Go to Step 4.
NO :  Repair it. Then go to Step 9.

STEP 4. Check harness connector B-21 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

AK303806

2

1

3

4

AB

CONNECTOR: B-17X

B-17X

RELAY BOX
TRIANGLE
MARK

HARNESS CONNECTOR:
COMPONENT SIDE

AK303805

2

1

3

4

AB

CONNECTOR: B-10

B-10 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK303018

55

56

54 53 52 51

57

62 61 60 59 58

63

69 68 67 66 65 64

70

75 74 73 72 71

76

82 81 80 79 78 77

83

CONNECTOR: B-21

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

B-21 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-52

STEP 5. Check the continuity at mass airflow sensor
harness side connector B-10.
(1) Disconnect the connector B-10 and measure at the harness

side.

(2) Check for the continuity between terminal No. 4 and

ground.

• Should be less than 2 ohms.

Q: Does continuity exist?

YES : Go to Step 6.
NO :  Repair harness wire between mass airflow sensor

connector B-10 (terminal No. 4) and PCM connector
B-21 (terminal No. 69) because of harness damage.
Then go to Step 9.

STEP 6. Check harness connector B-22 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 7.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 9.

AK303805

2

1

3

4

AB

CONNECTOR: B-10

B-10 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

2

1

3

4

AK203028

B-10 HARNESS
CONNECTOR:
COMPONENT SIDE

AC

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-53

STEP 7. Check for harness damage between mass airflow
sensor connector B-10 (terminal No. 3) and PCM connector
B-22 (terminal No. 108).
Q: Is the harness wire in good condition?

YES : Go to Step 8.
NO :  Repair it. Then go to Step 9.

AK303805

2

1

3

4

AB

CONNECTOR: B-10

B-10 (GR)

HARNESS CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER
