Mitsubishi Galant 9G. Manual - part 646

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-26

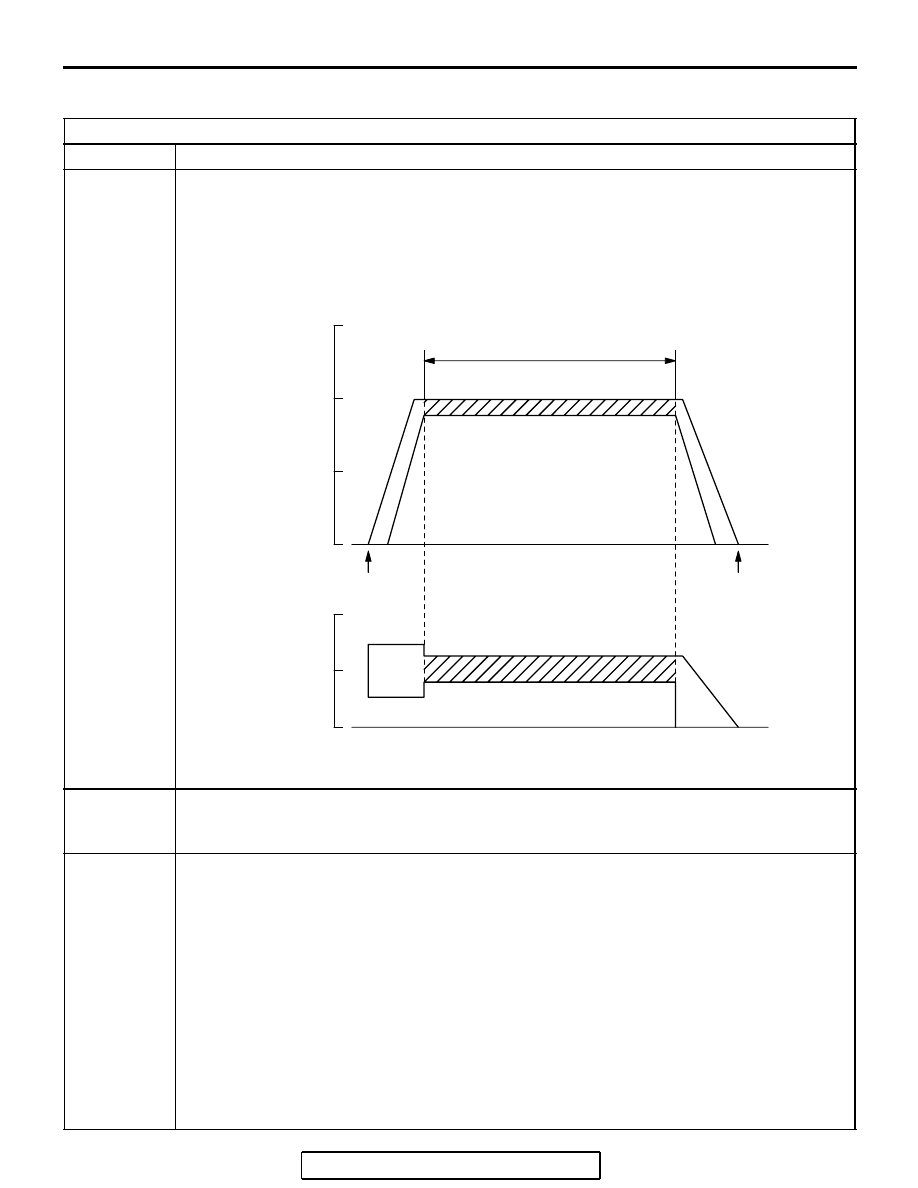

PROCEDURE 4

HEATED OXYGEN SENSOR MONITOR
DTC

P0133, P0139, P0153, P0159

Drive cycle
pattern

This monitor [from start to ignition switch "LOCK" (OFF) position] will be completed while driving the

vehicle with the following drive cycle pattern. It will take 5 minutes. You must complete this drive twice.
NOTE: . Vehicle speed and throttle opening angle should be within the shaded range.

Inspection
conditions

• Engine coolant temperature: 80°C (176°F) or more

• Atmospheric temperature: −10°C (14°F) or more

• Condition of A/T: Selector lever D range

Test
procedure

1. Engine: start
2. Accelerate until the vehicle speed is 56

− 64 km/h (35 − 40 mph).

3. While keeping the accelerator pedal opening degree constant, keep the vehicle speed at 56

− 64

km/h (35

− 40 mph) and travel for 120 seconds or more. (During monitor)

4. Return the vehicle to the shop, then turn the ignition switch to "LOCK" (OFF) position.
5. Confirm that the diagnostic trouble code (DTC) is not output.
6. If DTC P0133 is output, refer to DTC P0133

− Cylinder 1, 4 Heated Oxygen Sensor Circuit Slow

Response (Sensor 1)

P.13A-222

If DTC P0139 is output, refer to DTC P0139

− Cylinder 1, 4 Heated Oxygen Sensor Circuit Slow

Response (Sensor 2)

P.13A-280

If DTC P0153 is output, refer to DTC P0153

− Cylinder 2, 3 Heated Oxygen Sensor Circuit Slow

Response (Sensor 1)

P.13A-329

If DTC P0159 is output, refer to DTC P0159

− Cylinder 2, 3 Heated Oxygen Sensor Circuit Slow

Response (Sensor 2)

P.13A-387

AKX01348

(3)

(2)

(1)

(4)

120 SECONDS OR MORE
56 - 64 km/h (35 - 40 mph)

ENGINE
START

IGNITION
SWITCH: "LOCK"
(OFF)

DURING MONITOR

97
(60)

64
(40)

32
(20)

100

VEHICLE SPEED
km/h (mph)

AKX01348 AB

CALCULATED
LOAD (%)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-27

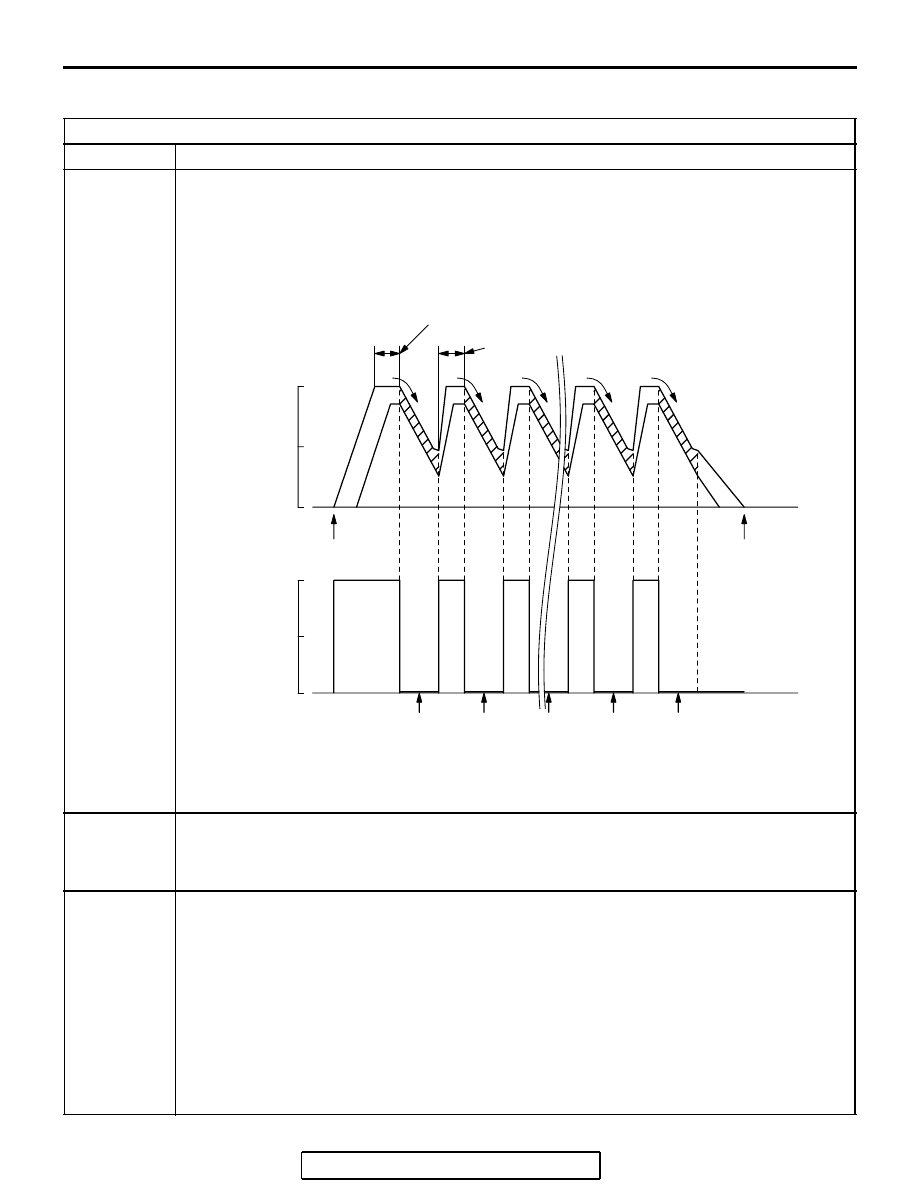

PROCEDURE 5

EXHAUST GAS RECIRCULATION (EGR) SYSTEM MONITOR
DTC

P0401

Drive cycle
pattern

This monitor [from start to ignition switch "LOCK" (OFF) position] will be completed while driving the
vehicle with the following drive cycle pattern. It will take 10 minutes. You must complete this drive
twice.
NOTE: . Vehicle speed and throttle opening angle should be within the shaded range.

Inspection
conditions

• Engine coolant temperature: 80°C (176°F) or more

• Atmospheric temperature: 5°C (41°F) or more

• A/C switch: OFF

• Condition of A/T: Selector lever D range

Test
procedure

1. Engine: start
2. Accelerate until the vehicle speed is 56

− 64 km/h (35 − 40 mph).

3. Travel for 20 seconds or more while keeping the vehicle speed at 56

− 64 km/h (35 − 40 mph).

4. Fully close the throttle from an engine speed of 2,000

− 3,000 r/min, and while keeping the clutch

engaged, decelerate to approximately 900 r/min without applying the brakes. Do not steer the

handle or turn the light ON/OFF during this time. (During monitor)

5. Accelerate until the vehicle speed reaches 56

− 64 km/h (35 − 40 mph), and travel for 20 seconds

or more. Then, repeat steps 4 and 5 and complete 8 monitor sessions.

6. Return the vehicle to the shop, then turn the ignition switch to "LOCK" (OFF) position.
7. Confirm that the diagnostic trouble code (DTC) is not output.
8. If DTC P0401 is output, refer to DTC P0401

− Exhaust Gas Recirculation Flow Insufficient detected

P.13A-581

AKX01349

(2)

AKX01349

(3)

(5)

(2)

(1)

(4)

20 SECONDS OR MORE
56 - 64 km/h (35 - 40 mph)

20 SECONDS OR MORE

1 ST
MON-
ITOR

7 TH
MON-
ITOR

8 TH
MON-
ITOR

2 ND
MON-
ITOR

ENGINE START

IGNITION
SWITCH:"LOCK"
(OFF)

FULL
DECEL-
ERATION

64
(40)

32
(20)

100

VEHICLE
SPEED
km/h (mph)

AKX01349AB

CALCULATED
LOAD (%)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-28

PROCEDURE 6

OTHER MONITOR (Main components, sensors and switches, wire breakage and short circuit)
DTC

• Main components: P0106, P0107, P0108, P0134, P0154, P0300, P0301, P0302, P0303,

P0304, P0506, P0507

• Sensors and switches: P0069, P0101, P0102, P0103, P0111, P0112, P0113, P0116,

P0117, P0118, P0125, P0181, P0182, P0183, P0335, P0340, P0461, P2066,

• Wire breakage and short circuit: P0130, P0131, P0132, P0135, P0136, P0137, P0138,

P0141, P0150, P0151, P0152, P0155, P0156, P0157, P0158, P0161, P0201, P0202,
P0203, P0204, P0403, P0443, P0446, P0462, P0463, P2228, P2229

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-29

Drive cycle
pattern

This monitor [from start to ignition switch "LOCK" (OFF) position] will be completed while
driving the vehicle with the following drive cycle pattern. It will take 10 minutes. You must
complete this drive twice.
NOTE: Drive according to the graph below.

Inspection
conditions

• Engine coolant temperature: 80°C (176°F) or more

• Atmospheric temperature: 5°C (41°F) or more

• Condition of A/T: Selector lever D range

Test
procedure

1. Engine: start
2. Accelerate until the vehicle speed is 56

− 64 km/h (35 − 40 mph), and travel for 300

seconds or more.

3. Return the vehicle to the shop.
4. After stopping the vehicle, continue idling for 300 seconds, and then turn the ignition

switch to the "LOCK" (OFF) position. Moreover, the vehicle should be set to the following
conditions for idling.
NOTE: Vehicles for Canada, the headlight, taillight, etc. remain lit even when the lighting
switch is in "OFF" positions but this is no problem for checks.
• A/C switch: OFF

• Lights and all accessories: OFF

• Transaxle: P range

• Steering wheel: Straightforward position

5. Confirm that the diagnostic trouble code (DTC) is not output.
6. If a DTC is displayed, refer to Diagnostic Trouble Code Chart

P.13A-33

OTHER MONITOR (Main components, sensors and switches, wire breakage and short circuit)

AKX01350

(3)

(2)

(1)

(4)

300 SECONDS OR MORE
56 - 64 km/h (35 - 40 mph)

ENGINE: IDLING
TRANSMISSION: NEUTRAL
300 SECONDS

ENGINE START

IGNITION
SWITCH:"LOCK"
(OFF)

64
(40)

32
(20)

100

VEHICLE
SPEED
km/h (mph)

AKX01350 AB

CALCULATED
LOAD (%)
