TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-56

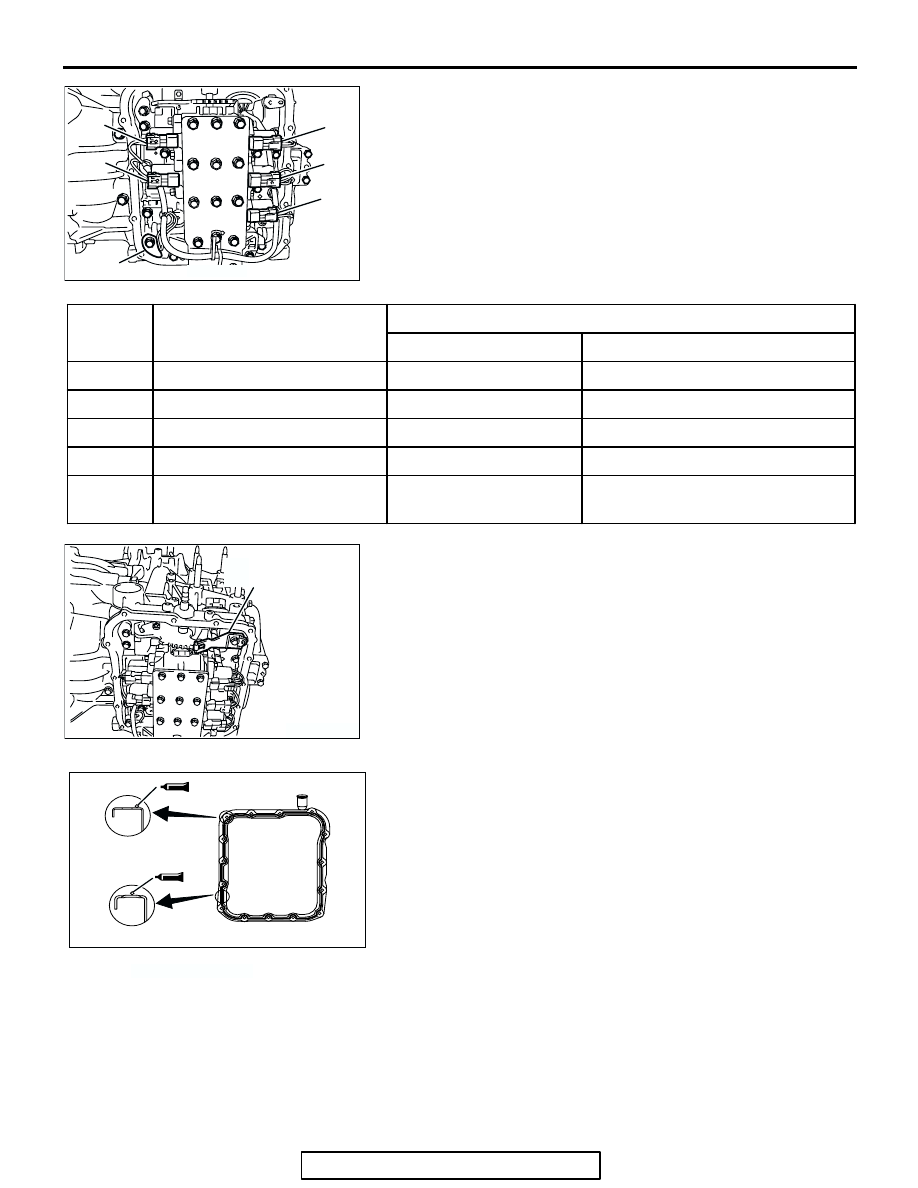

95.Attach the solenoid valve harness to the valve body by

connecting the fluid temperature sensor and all the
connectors.

96.Install the manual control shaft detent and tighten the bolt to

the specified torque.

Tightening torque: 6.0

± 1.0 Nm (52 ± 9 in-lb)

97.Apply a 2.4

− 2.6 mm (0.09 − 0.10 inch) diameter bead of

sealant (MITSUBISHI Genuine Part number MD974421 or
equivalent) to the valve body cover in the area shown.
NOTE: Be sure to install the case quickly while the sealant is
wet (with 15 minutes) or leaks will occur if the rear cover is
installed after the sealant dries.
NOTE: After installation, keep the sealed area away from
ATF for approximately one hour.

AK300224 AD

FLUID TEMPERATURE SENSOR

1

2

3

4

5

NO.

PARTS TO BE CONNECTED SOLENOID VALVE HARNESS

CABLE COLOR

CONNECTOR HOUSING COLOR

1

Underdrive solenoid valve

White, red, red

Black

2

Overdrive solenoid valve

Orange, red

Black

3

Low-reverse solenoid valve

Brown, yellow

Milky white

4

Second solenoid valve

Blue, red, red

Milky white

5

Torque converter clutch control
solenoid valve

Blue, yellow, yellow

Black

AK300222AD

MANUAL CONTROL
SHAFT DETENT

AK301264AD

2.4  2.6 mm
(0.09  0.10 in)

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-57

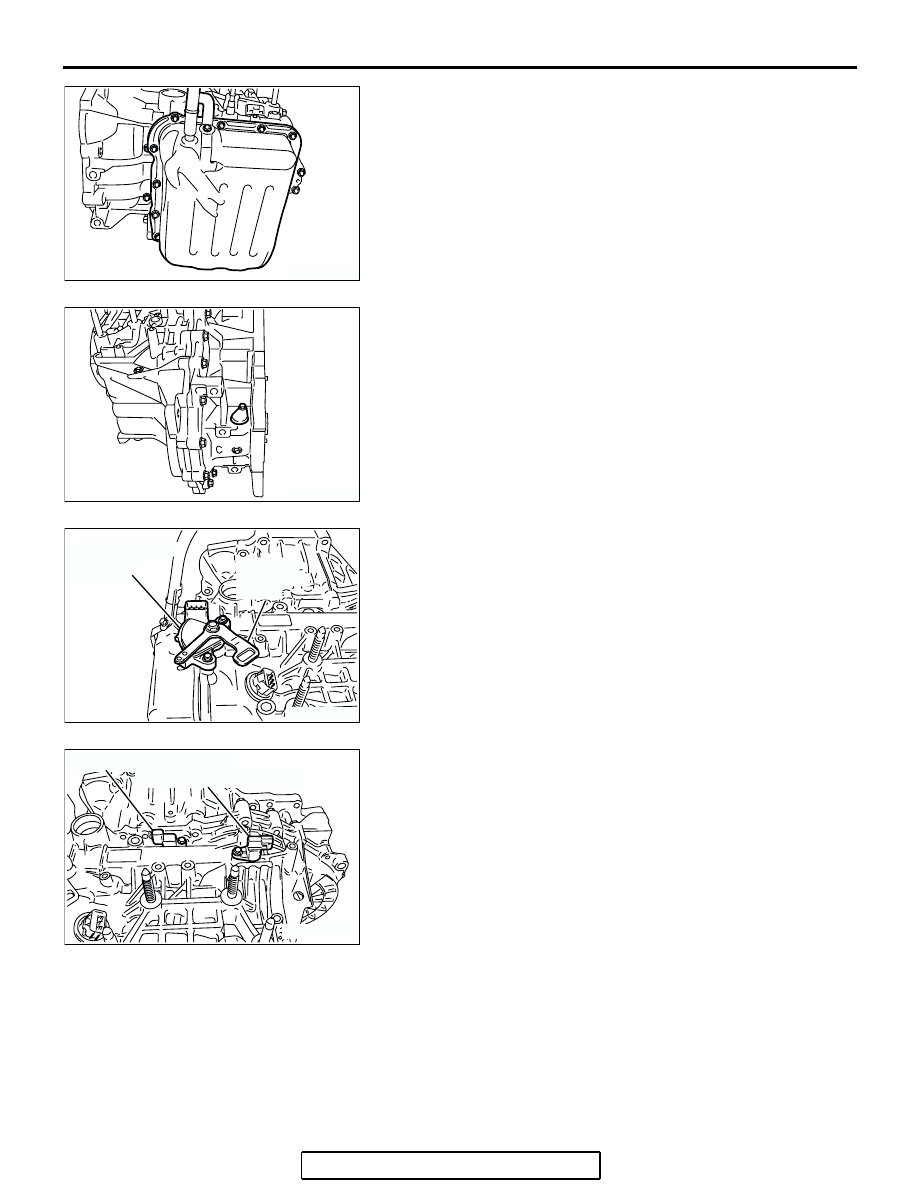

98.Install the valve body cover, and then tighten its mounting

bolts to the specified torque.

Tightening torque: 11

± 1 Nm (95 ± 9 in-lb)

99.Install the sealing cap and tighten the bolt to the specified

torque.

Tightening torque: 5.0

± 1.0 Nm (43 ± 9 in-lb)

100.Install the park/neutral position switch and tighten the bolt

to the specified torque.

Tightening torque: 11

± 1 Nm (95 ± 9 in-lb)

101.Install the manual control lever and tighten the nut to the

specified torque.

Tightening torque: 22

± 3 Nm (16 ± 2 ft-lb)

102.Install the input shaft speed sensor and output shaft speed

sensor and tighten the bolt to the specified torque.

Tightening torque: 11

± 1 Nm (95 ± 9 in-lb)

AK300221

AK300220

AK300219AD

PARK/NEUTRAL
POSITION
SWITCH

MANUAL
CONTROL
LEVER

AK300218AE

OUTPUT SHAFT SPEED SENSOR

INPUT SHAFT SPEED SENSOR

TRANSAXLE

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-58

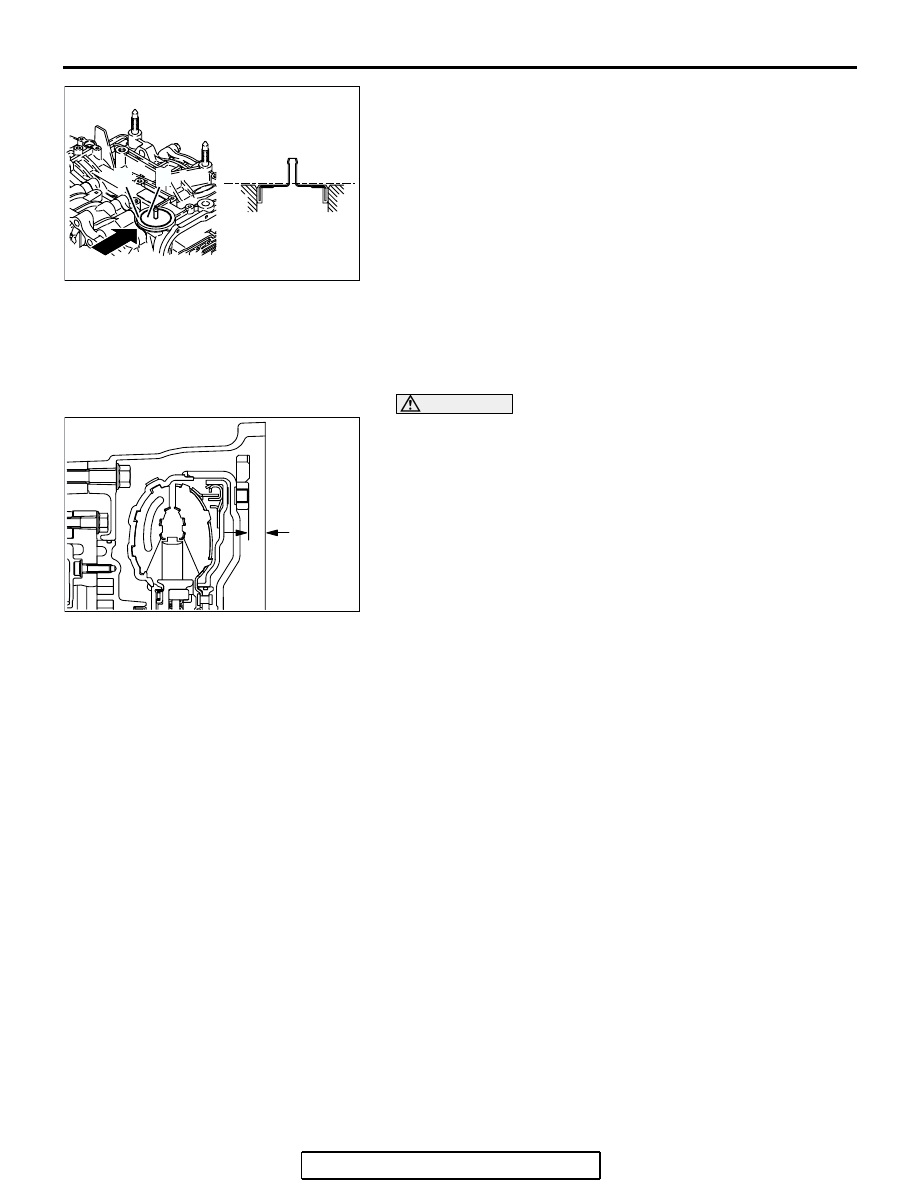

103.Press Face "A" of the air breather to be even with Face "B"

of the transmission case as shown in the drawing.

104.Apply ATF on the both sides of the new gasket and threads

of the eyebolts, and then tighten to the specified torque.

Tightening torque: 24

± 3 Nm (18 ± 2 ft-lb)

105.Tighten the oil cooler feed pipe clamp bolt to the specified

torque.

Tightening torque: 11

± 1 Nm (95 ± 9 in-lb)

106.Install the oil dipstick.
107.Install the cable support brackets to the specified torque.

Tightening torque: 23

± 3 Nm (17 ± 2 ft-lb)

108.Install the roll stopper brackets.

Tightening torque: 70

± 10 Nm (52 ± 7 ft-lb)

CAUTION

Apply ATF to the oil pump drive hub before installing the
torque converter. Be careful not to damage the oil seal lip
when installing the torque converter.
109.Install the torque converter, and align it with the oil pump

so that the shown dimension "A" meets the reference value.

Reference value:

Approximately 12.2 mm (0.48 inch) <F4A4B>
Approximately 9.4 mm (0.37 inch) <F4A5A>

AK203140 AE

A

A

B

B

AK301263AC

A

OIL PUMP

TSB Revision

AUTOMATIC TRANSAXLE OVERHAUL

23B-59

OIL PUMP

DISASSEMBLY AND ASSEMBLY

M1233001300206

Required Special Tool:

• MD998334: Oil Seal Installer

ASSEMBLY SERVICE POINTS

.

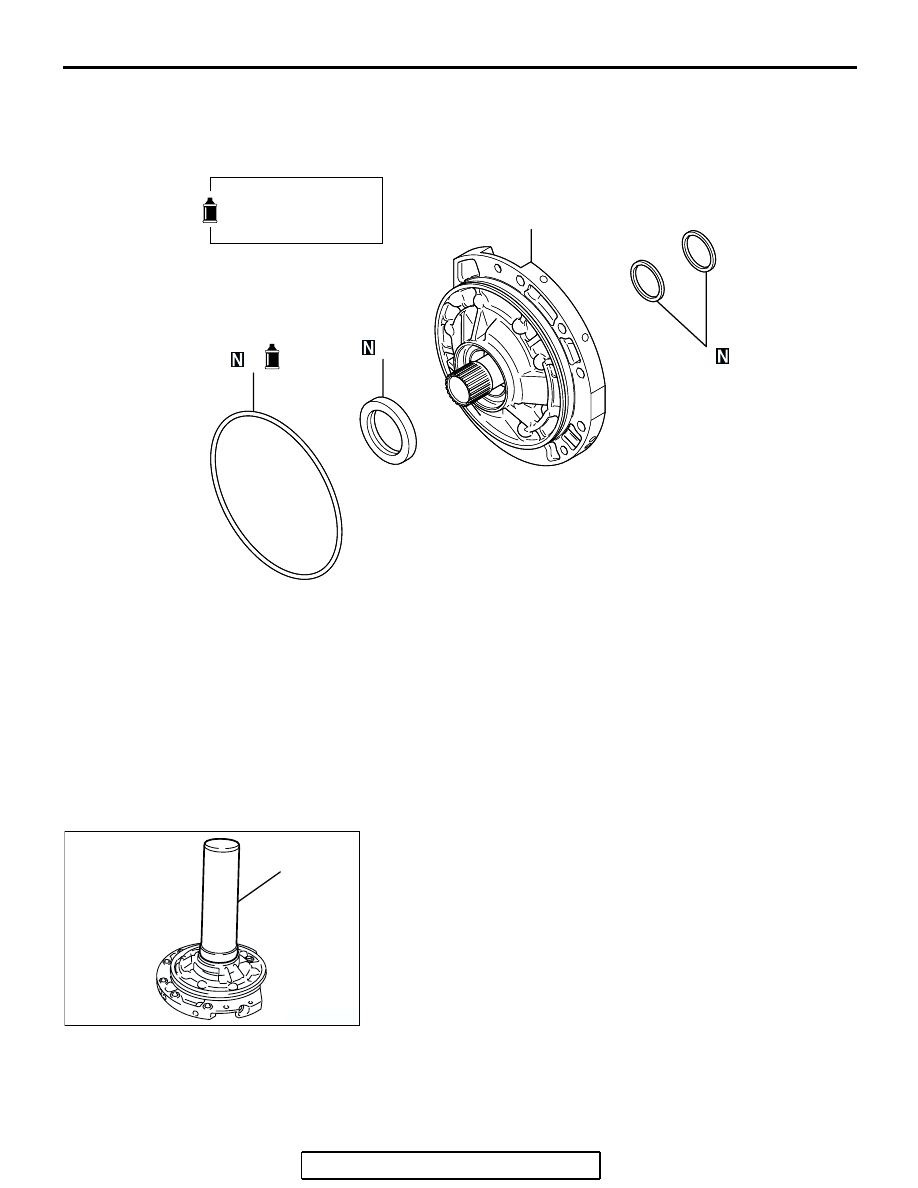

>>A<< OIL SEAL INSTALLATION

1. Apply a small amount of ATF to the oil seal lip.
2. Use special tool MD998334 to tap the oil seal in the oil pump

body.

.

>>B<< O-RING INSTALLATION

Install a new O-ring to the outer groove of the oil pump, and
apply ATF or petroleum jelly (Vaseline) to the O-ring.

AK301599

3

4

2

1

AB

APPLY AUTOMATIC
TRANSMISSION FLUID
TO ALL MOVING PARTS
BEFORE INSTALLATION.

DISASSEMBLY STEPS

>>B<<

1.

O-RING

2.

SEAL RING

>>A<<

3.

OIL SEAL

4.

OIL PUMP ASSEMBLY

DISASSEMBLY STEPS

AK300522AD

MD998334
